Product Overview
Cambium Networks 3 GHz PMP 450b High Gain Subscriber Module
Up to 300 Mbps in a 40 MHz channel. Frequency range is 3 GHz
PMP 450Subscriber
Ideal Applications
Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.
Product Images
9 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the 3 GHz PMP 450b High Gain to ensure compatibility with your deployment.
Specifications
ProductGlobal No Encryption 4-Pack Antenna Assembly C030045B021A C030045B025A N030045D001A
Spectrum
Configurableon 500 KHz increments
3300–4200MHz
MHz, 7MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
Interface
MAC* Layer CambiumNetworks proprietary
Physical Layer 2x2 MIMOOFDM
Ethernet Interface 100/1000BaseT, full duplex, rate auto-negotiated, 802.3 compliant
Protocols Used IPv4, IPv6,UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network IPv4/IPv6(dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, cnMaestro™
Management
VLAN 802.1ad(DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Security
Encryption FIPS-197128-bit AES
256-bitAES (requires optional license for attached access point) 3 GHz 450b Subscriber and Backhaul
Modulation Levels (Adaptive)MCS Signal to Noise Required (SNR, in dB)
2XQPSK 10
4X16QAM 17
6X64QAM 24
8X256QAM 32
Ultimate Sensitivity -94dBm
Maximum Deployment Upto 64 km (40 mi) in point-to-multipoint (PMP) mode
Upto 200 km (124 mi) in point-to-point (PTP) mode
Latency 3–5ms, typical
GPS Synchronization Yes,synchronized by access point or via 3.5 mm port using cnPulse Sync Generator (for PTP mode)
Quality of Service DiffserveQoS
Integrated Antenna 20 dBi
Dualslant, ±45
>30dB
>15dB
Physical
Antenna Accessories OptionalRadome: Part number N000900L021A
Surge Suppression EN61000-4-5: 10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact/30 kV air
Mean Time Between >40Years
Environmental IP55;optional glands to enhance to IP67: Part number N000000L135A
Temperature / -40°Cto 60°C (-40°F to 140°F), 0–95% non-condensing
3.1 kg(7 lb) (includes mounting bracket)
200kph (124 mph)
45 cmx 28 cm (17.8 in x 11.2 in)
Pole Diameter Range 2.5cm to 7.6 cm (1 in to 3 in) ± 20 mechanical tilt
Power Consumption 12 Wtypical, 15 W peak
Input Voltage 20–32VDC, Canopy-style PoE 3 GHz 450b Subscriber and Backhaul
Transmit Power Range 56 dBdynamic range (to EIRP limit by region) (1 dB step)
Maximum Transmit +29dBm (MIMO, combined polarities)
Certifications
ISED Canada 109W-0053(RSS-192, RSS-198)
ETSI EN302 326-2

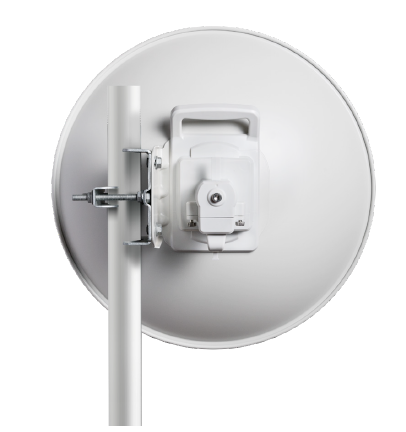

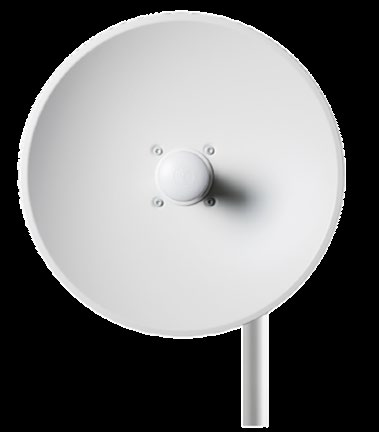

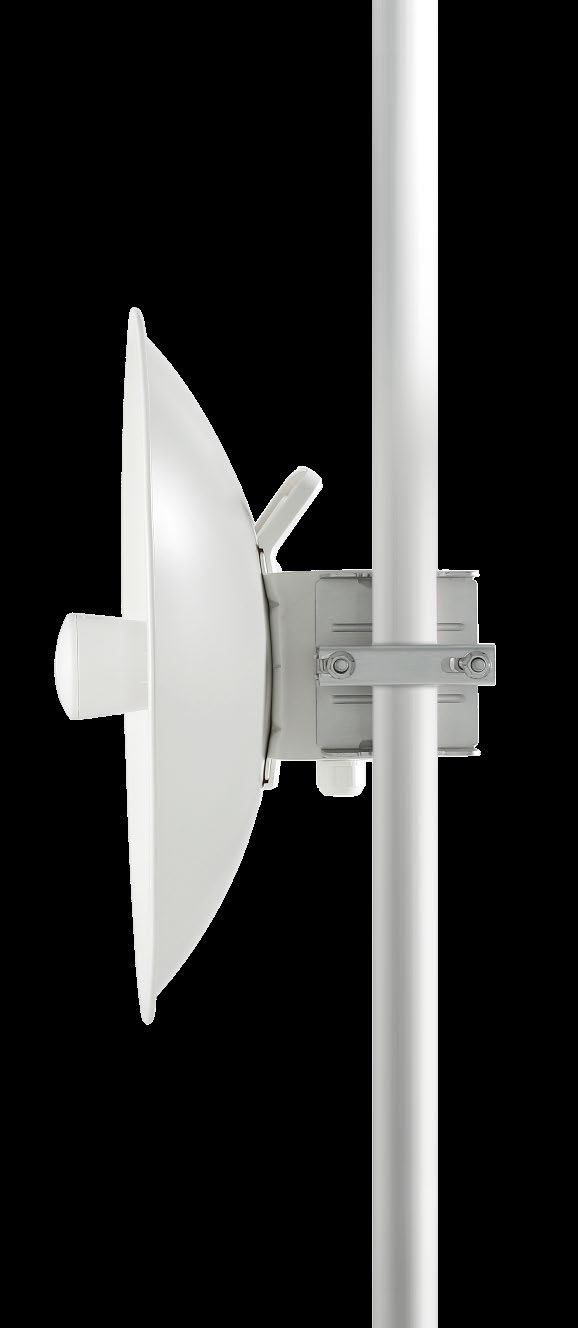

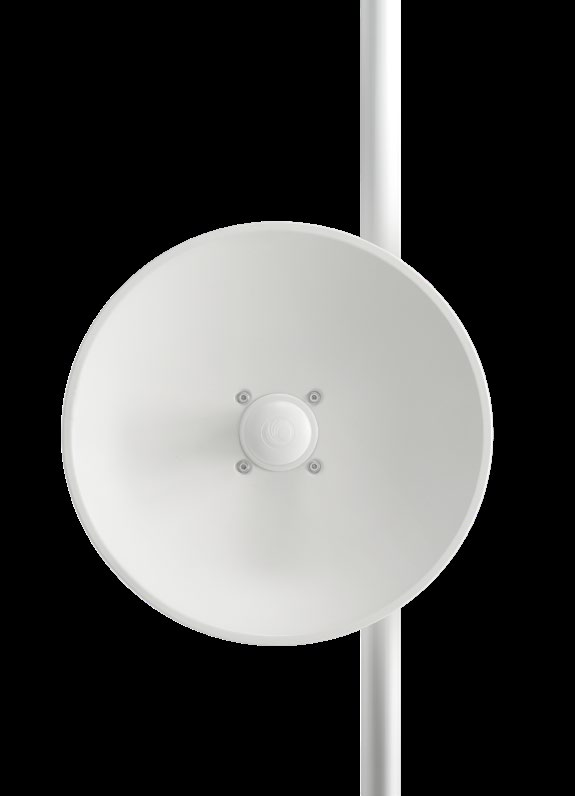

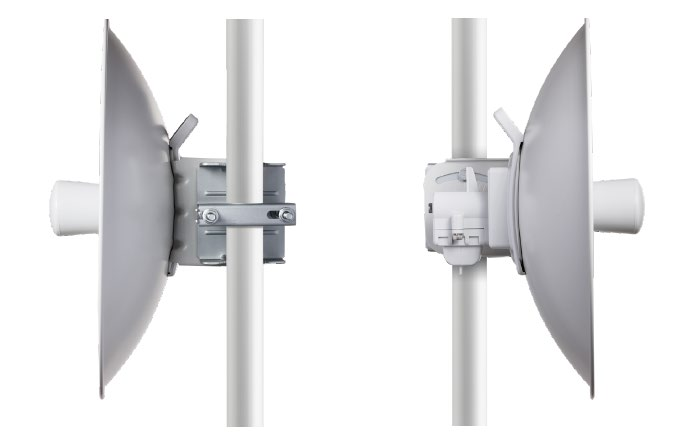

FrontBack Sides 3 GHz 450b Subscriber and Backhaul

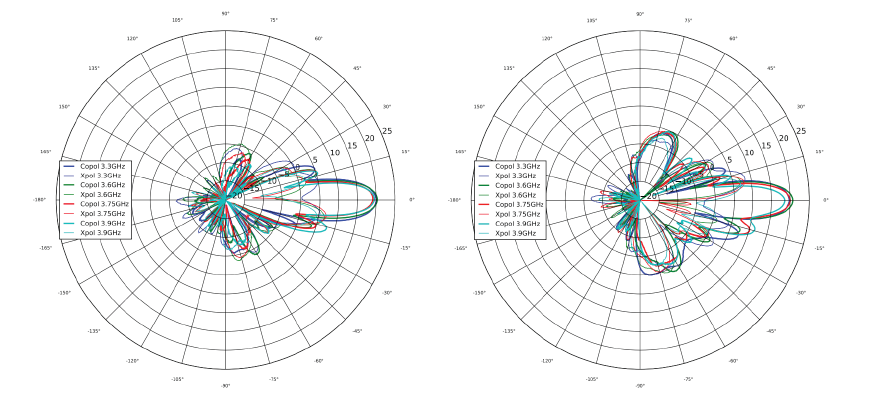

High-Gain Antenna Patterns
Azimuth,+45 Azimuth, -45
Elevation,+45 Elevation, -45
