Cambium Networks X7-35X Wi-Fi 7 Indoor Enterprise Wireless Access Point

Ultra-high-density venues — stadiums, convention centers, and large campuses — demanding multi-gigabit Wi-Fi 7 throughput.

X7-35X
  • Specs: 802.11be Tri-Radio 2+2+2 Access Point with BLE/Zigbee
  • Tri-radio/tri-band Wi-Fi 7
  • 6 GHz (2x2), 5 GHz (2x2), 2.4 GHz (2x2)
  • 9.2 Gbps aggregate data rate
  • 2.5 GbE uplink port
  • LPI (low power indoor) mode
  • BLE/Zigbee®/Thread/Matter IOT radio

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks X7-35X Wi-Fi 7 Indoor Enterprise Wireless Access Point

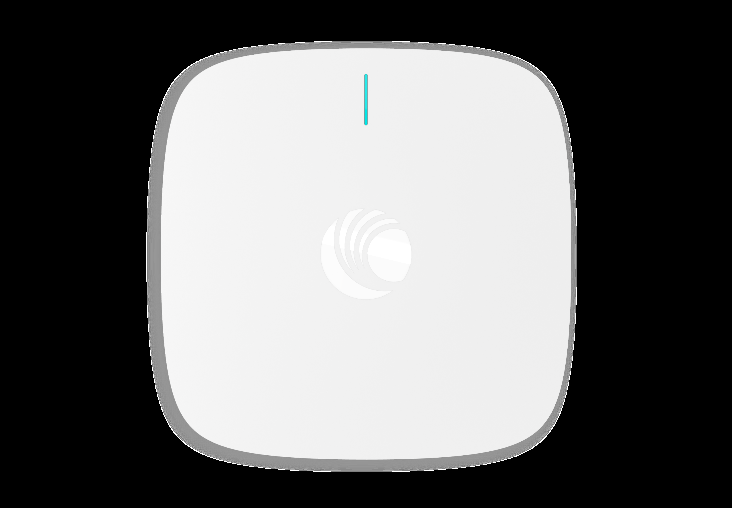

The Cambium Networks X7-35X Wi-Fi 7 Indoor Access Point (AP) is designed to deliver cutting-edge performance and flexibility at a price point suitable for any market. Power your network with the latest Wi-Fi technology, without breaking the bank.

Wi-Fi 7Indoor

Product Highlights

Unbeatable Value for Any Market

The Cambium Networks X7-35X Wi-Fi Indoor Access Point (AP) is designed to deliver cutting-edge performance and flexibility at a price point suitable for any market. Power your network with the latest Wi-Fi technology, without breaking the bank.

Cloud and On-Premises Management

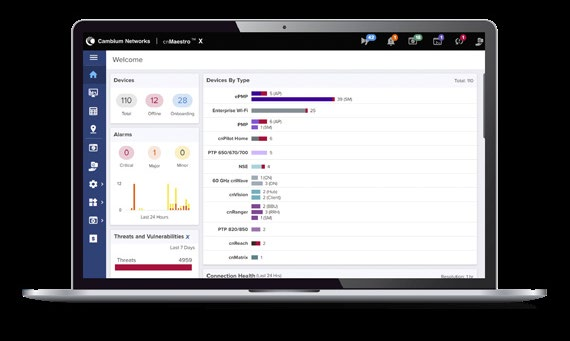

X7-35X operates using Cambium’s cnMaestro Network Management, accessible on both cloud and on-premises platforms. Aligned with Cambium’s ONE Network, cnMaestro facilitates the management of all devices through a user- friendly interface, streamlining control from backhaul to edge devices. This enables you to start managing your network right away, reducing training and troubleshooting time.

Fast Installation

The X7-35X Wi-Fi AP streamlines installation, saving you time and money. Its multi-functional mounting system easily installs the access point over multiple telecom and electrical junction boxes, on a suspended drop ceiling system, or to any flat surface. The recessed Ethernet port and trim mounting bracket enables an aesthetically pleasing installation and final finish. Plus, the new Wi-Fi junction box bracket is backwards compatible with the XV3-8 and XE3-4.

cnMaestro X Assurance

Gain real-time insights into network health and troubleshoot client issues efficiently using AI-based analytics to move from reactive to proactive SLA management.

Ideal Applications

Ultra-high-density venues — stadiums, convention centers, and large campuses — demanding multi-gigabit Wi-Fi 7 throughput. Enterprise branch offices and education campuses deploying next-generation 802.11be infrastructure.

Technical Details

Hardware Specifications

Comprehensive technical data for the X7-35X to ensure compatibility with your deployment.

Access Point Specifications

Radios 2.4GHz 2x2:2 with 802.11 b/g/n/ax/be
5 GHz2x2:2 with 802.11 a/n/ac/ax/be
6 GHz2x2:2 with 802.11 ax/be
BLE and Zigbee Built-inBLE 5.1 or 802.15.4 radio
Maxtransmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain
*Matterand thread support
802.11be:7.3 to 5765 Mbps

Supported data rates

802.11ax:7.3 to 2402 Mbps
802.11ac:6.5 to 1733 Mbps
802.11n:6.5 to 300 Mbps
802.11a/gand a: 6 to 54 Mbps
802.11b:1 to 11 Mbps
Max PHY Rate 2.4GHz: 574 Mbps
5 GHz:2882 Mbps
6 GHz:5765 Mbps
Antenna Omnidirectionalinternal antennas (peak gain)
2.4GHz: 5 dBi
5 GHz:6 dBi
6 GHz:6 dBi
BLEand Zigbee: 5 dBi
Maximum Radio Tx 2.4GHz: 24 dBm, max EIRP: 29 dBm

Power (combined Tx

5 GHz:25 dBm, max EIRP: 31 dBm

power across all Tx

6 GHz:25 dBm, max EIRP: 31 dBm
MIMO Support 2x2(2.4 GHz, 5 GHz, and 6 GHz) SU-MIMO
2x2(2.4 GHz, 5 GHz, and 6 GHz) MU-MIMO both in UL and DL direction

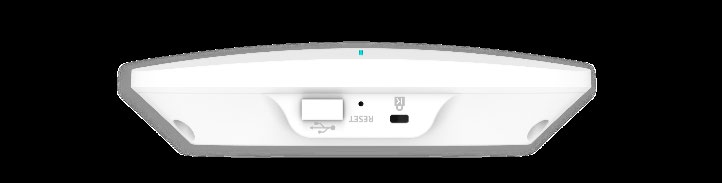

USB Interface 1 USB2.0 type A port, max 1.5 W power supply
1 100Mbps/1 Gbps/2.5 Gbps PoE port

Ethernet Interface

Power Maxpower consumption 25.5W (802.3at)
Typicalpower consumption with BLE/802.15.4 radio enabled: 10.6W
LLDPpower negotiation support
Dimensions 209.6mm x 209.6 mm x 45 mm
8.25in x 8.25 in x 1.77 in
Weight Weight:935 gm (2.06 lb)

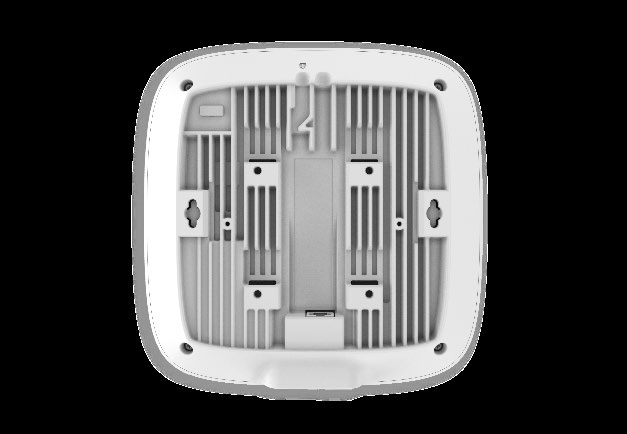

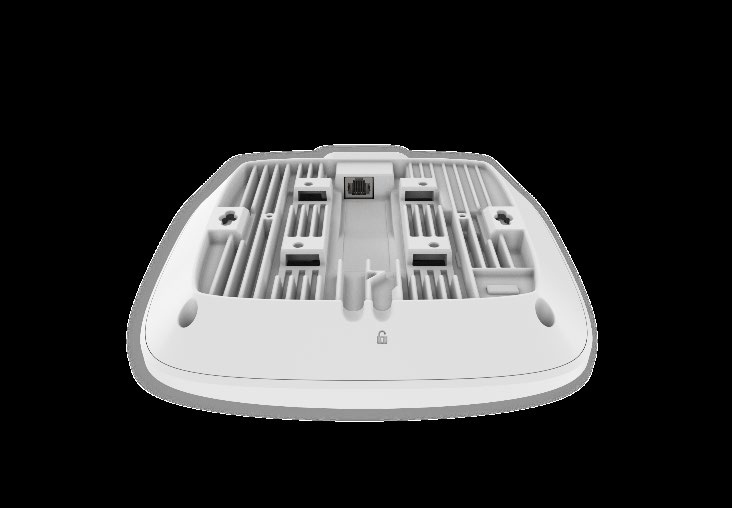

Mount Options Dropceiling T-bar, ceiling tile, 4" square electrical box, 4" round box, NA single gang box, EU single gang box,
wallmount
Physical Security Kensingtonlock slot
LEDs Multicolorstatus LED
Blue:Managed from cnMaestro
Green:Up and running, not managed from cnMaestro
Amber:Booting
Ambient Operation 0ºC- + 50ºC
Storage Temperature -20ºC- + 70ºC
Operating Humidity 95%RH non-condensing
Reliability MTBF8,29,316 hours at +25ºC operating temperature

*Supported in future release

Access Point Specifications,continued
Device cnMaestroCloud/On-Premises Network Management (version 5.1 and above)
Management Standaloneoperation mode
Web accesswith HTTPs/HTTP protocol
CLI accesswith SSH/telnet protocols
Certifications FCC, IC,CE EN 61000-4-2/3/5 Immunity

(Compliance)

E 60601-1-2UL 2043 Plenum
EN 60950-1EN 62311 Human Safety/RF Exposure
IEC 62368-1Safety WEEE
EN 60601-1-2Medical REACH and RoHS

Network Specifications

Security & Open,WPA, WPA2-PSK AES WPA2-ePSK/WPA2-Enterprise
WPA3-PSK(WPA3-SAE)/WPA3-ePSK/Enterprise/Enterprise-CNSA/OWE (Enhanced Open)
OSEN andPMF (802.11 W)
MAC authenticationwith local database or external database using RADIUS protocol
HotspotWEB authentication
Fast Roaming PMK, OKC,and 802.11r for fast layer 2 roaming

Support

SeamlessL2 roaming for wireless and guest clients across APs in the same L2 network
cnMaestro-assistedroaming for the guest clients
Wi-Fi Quality of WMM (packetmarking either with 802.1p or IP DSCP), WMM-PS, U-APSD
Multicastto unicast conversion
Auto-discoveryand self-healing Wireless MESH support on 2.4 GHz, 5 GHz, and 6 GHz band

MESH Support

MESHand Client SSIDs can co-exist on the same radio interface
SSID 16 SSIDsper radio, 48 SSIDs per AP
Client Capacity 256 clientsper radio, 768 clients per AP
Max clientconnections limit per SSID/radio/device
Sticky Client Optionto disconnect the client on minimum SNR threshold

Management

Dynamic RF Auto-Channelselection

Channel and Power

Auto-RFdynamic channel switch based on channel utilization and Wi-Fi/non-Wi-Fi interferences

Management

Auto-RFdynamic power adjustment with the neighboring APs transmit power
Wirelesspackets flood (excessive association, authentication, de-authentication, disassociation, and EAP) detection
RogueAP, Honeypot AP detection and termination
Wireless Users StandardRadius, Accounting, WISPr, and Cambium VSA attributes support

Policy Management

COA Messages(disconnect, VLAN ID, session, etc.) support
User groupswith RADIUS assigned filter rules
Wireless Devices Devicegrouping based on device fingerprinting with L2, L3, L4, and L7 access control rules

Policy Management

Network Specifications,continued
Radius and Per SSIDbased RADIUS and accounting server

Accounting Support

Accountinginterval with start, stop, and interim messages with standard/Cambium VSA accounting attributes
Up to 3RADIUS and accounting server with failover and load balancing option
Dynamicauthorization and disconnect using COA messages
VLAN Assignment Per SSIDbased 802.1q VLAN tagging
DynamicVLAN assignment from external RADIUS server
Local VLANpool
Radiusassigned VLAN pool
ePSK assignedVLAN ID
Network Specifications,continued
ACL and Per SSIDor device level, layer 2, 3 (IPv4 and IPv6), 4 and 7 access control rules with packet marking option
Applicationrecognition, packet marking, rate limiting, and option to drop and deny application/application category
Per SSIDDNS ACL option
Definecustom application based on IP address and monitor/control custom application traffic
Connection Per SSIDbasis option to log TCP, UDP and IP connection, and DNS query
NAT loggingto external syslog servers
IPv4 andIPv6

IP Support

WWAN,PPPoE, L2TPv2, L2GRE, & *VXLAN (*Will be supported in future releases)

Tunneling Protocols

SNMPv2 and v3 get operational mode

Support

Syslogmessages to external syslog server
DHCP Client and Optionto enable DHCP client on L3 VLAN interface
On-boardDHCP server with multiple DHCP pool options
Analytics and Optionto integrate Wi-Fi and BLE radios scan results with an external location analytics server through HTTP/HTTPs
Client Connection Exhaustiveclient life cycle analytics with Disconnection analytics
root causeanalysis Client dashboard with roaming history
Connectionsuccess and failure analytics
Guest Access cnMaestrohosted captive portal service Guest access onboarding using payment gateway
Multipleauthentication methods supported to on-board vendors (X)
guest user• PayPal®
cnMaestro X)Radius based authentication • IPpay
Click through with simple terms and conditions • Quickpay acceptance • Orange
Social login using Google®, Facebook®, • Orange MoneySM Twitter® (aka, X), and Office 365® • mPesa
SMS based authentication (X) Integration with the third-party captive portal vendors Voucher based access appliance
Microsoft® Azure AD and Google On-board captive portal service Workspace® (X) IP whitelist or walled garden list support
Option to limit guest users’ session, data quota limit, Sponsored guest access (X)
Self-registration access (X) speed limits supported using Radius, WISPr, Cambium VSA and cnMaestro-hosted guest portal policy
Services L2–L7 applicationvisibility & control, Wi-Fi calling control, WIDS/WIPS, NTP, Syslog, SNMP traps, DNS proxy, auto-off
on WANfailure, Open roaming (Will be supported in future releases)
API RESTfulmanagement and statistics API presence location APIs X7-35X Wi-Fi 7 Indoor Access Point

Standards

Wi-Fi Protocols 802.11 b:BPSK, QPSK, CCK
802.11 a/g/n:BPSK, QPSK, 16-QAM, 64-QAM
802.11 ac:BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11 ax:BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM
802.11be:BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
20/40/80/160/320MHz, DSSS, OFDM, OFDMA, MIMO, MU-MIMO
Multi-linkoperation (MLO), Multi Resource Units
Target waittime (TWT), BSS Coloring,
Transmitbeamforming (TxBF)
802.11n/acpacket aggregation: A-MPDU, A-MSDU
Maximumratio combining (MRC), Cyclic delay/shift diversity (CDD/CSD),
Space-timeblock coding (STBC), Low-density parity check (LDPC)
Passpoint3.0
IEEE 802.11b/g/n/ac/ax/be/d/h/i/k/r/u/w

Regulatory Information

2.412 to2.484 GHz ISM 5.925 to 6.425 GHz U-NII-5
5.150 to5.250 GHz U-NII-1 6.425 to 6.525 GHz U-NII-6
5.250 to5.350 GHz U-NII-2A 6.525 to 6.875 GHz U-NII-7
5.470 to5.725 GHz U-NII-2C 6.875 to 7.125 GHz U-NII-8
5.725 to5.850 GHz U-NII-3
Channels List 2.4 GHzchannels: 1 to 13
5 GHz channels:36 to 64, 100 to 144 and 149 to 165
6 GHz channels:1 to 233
EIRP limitations apply to the listedcountries.
ROW Individual country limits mayapply. Please contact your regional sales manager for country-specific regulations.
Europe, UK, USA, and CanadaRegulatory Details
2.4GHz (EIRP) 6 GHz (EIRP)
2400–2483.5 MHz 5945– 6425 MHz 6425– 7125 MHz
20dBm (100mW) 23 dBm (200mW) indoor not supported
UK 20dBm (100mW) 24 dBm (250mW) indoor not supported 36 dBm (4W) 30 dBm (1W) indoor 30 dBm (1W) indoor
Canada36 dBm (4W) 30 dBm (1W) indoor 30 dBm (1W) indoor 5 GHz
5150–5250 MHz 5250– 5350 MHz 5470– 5725 MHz 5725– 5875 MHz
23 dBm(200mW) 23 dBm (200mW) 30 dBm (1W) 14 dBm (25mW)
UK 23 dBm(200mW) 23 dBm (200mW) 30 dBm (1W) 23 dBm (200mW)
36 dBm(4W) 30 dBm (1W) 30 dBm (1W) 36 dBm (4W)
Canada* 23 dBm(200mW) 30 dBm (1W) 30 dBm (1W) 36 dBm (4W)
*Canada restricts the use of 5600-5650MHz for regulatory reasons X7-35X Wi-Fi 7 Indoor Access Point
Southeast Asia RegulatoryDetails 2.4 GHz (EIRP) 6 GHz (EIRP) 2400–2483.5 MHz 5925–6425 MHz 6425–7125 MHz
Indonesia 27dBm (500mW) indoor not supported not supported 36 dBm (4W) outdoor
Vietnam23 dBm (200mW) 26 dBm (400mW)
Malaysia27 dBm (500mW) 23 dBM (200mW) indoor
Singapore23 dBm (200mW) 24 dBm (250mW) indoor 14 dBm (25mW) outdoor
Thailand20 dBm (100mW) 24 dBm (250mW) indoor 14 dBm (25mW) outdoor 5 GHz (EIRP)
5150–5250MHz 5250–5350 MHz 5470–5725 MHz 5725–5825 MHz
Indonesia 23 dBm(200mW) indoor 23 dBm (200mW) indoor Not supported 23 dBm (200mW) indoor 36 dBm (4W) outdoor
23dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Philippines 26dBm (400mW) 26 dBm (400mW) 26 dBm (400mW) 26 dBm (400mW)
Malaysia* 30 dBm(1W) indoor 30 dBm (1W) indoor 5470– 5650 MHz 30 dBm (1W)
23dBm (200mW) 30 dBm (1W) outdoor
23dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Thailand 23dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
*Malaysia restricts the use of 5650-5725MHz for regulatory reasons. X7-35X Wi-Fi 7 Indoor Access Point

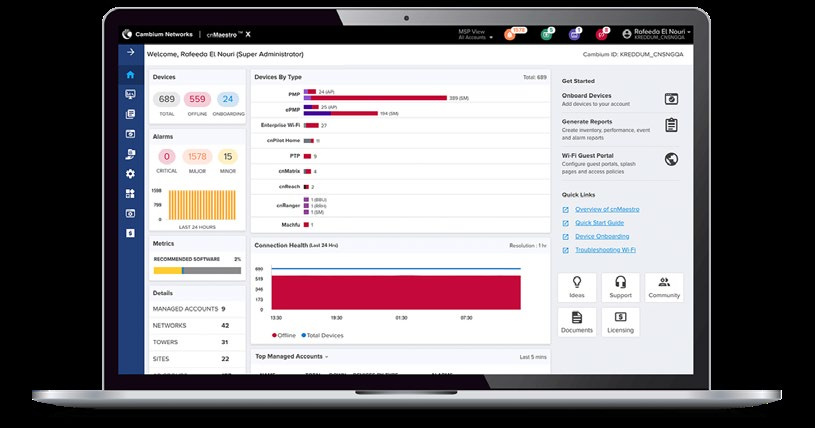

Management

To serve a growingmarket for advanced management and services functionality,
CambiumNetworks offers cnMaestro in two management tiers. cnMaestro X Paid subscription that includes advanced device management capabilities and upgrades to advanced features. Cambium Care Pro support included with 24x7 technical support with accelerated access to L2 engineers and regular software updates. License-free management that delivers a disruptive cnMaestro Essentials total cost of ownership (TCO) for organizations of all sizes. Click for more information. P565T3#y cnMaestro X P568TB4#y1 cnMaestro Essentials X7-35X Wi-Fi 7 Indoor Access Point

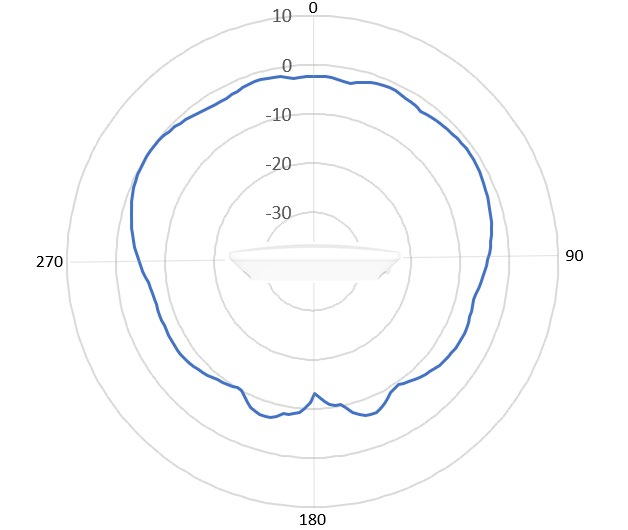

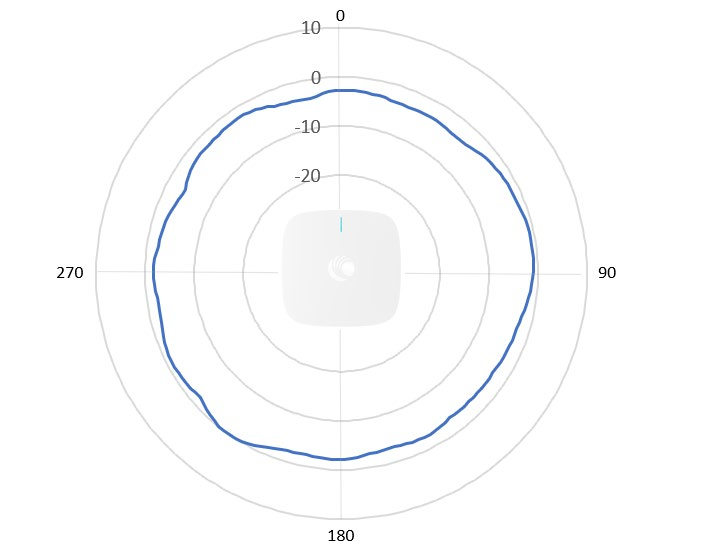

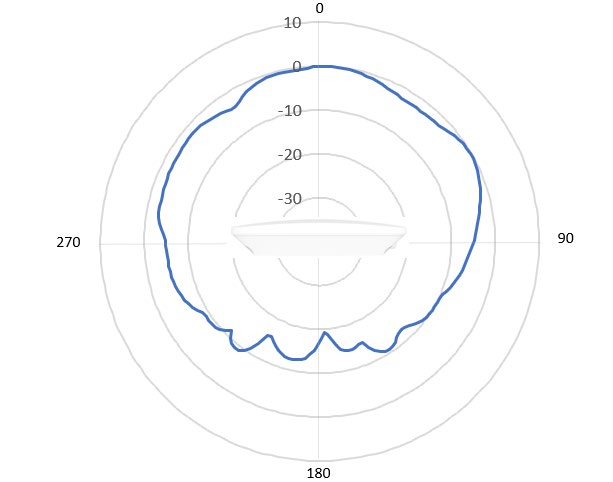

Antenna Patterns

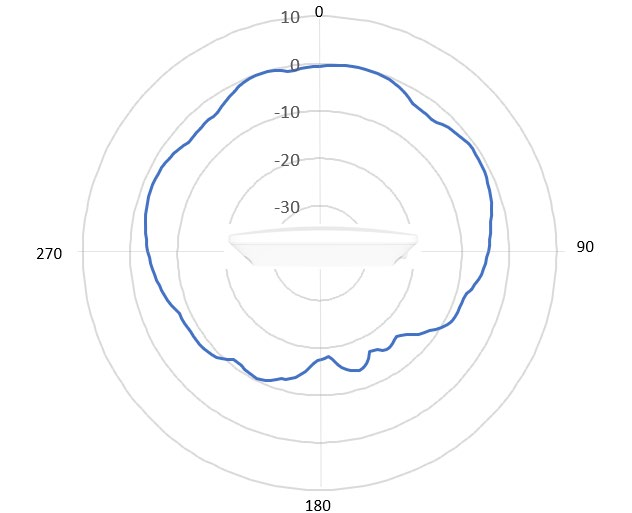

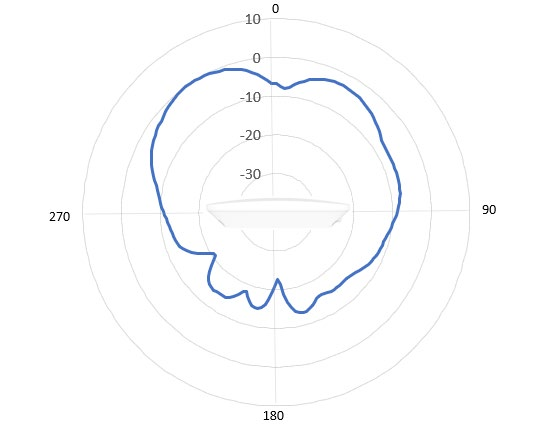

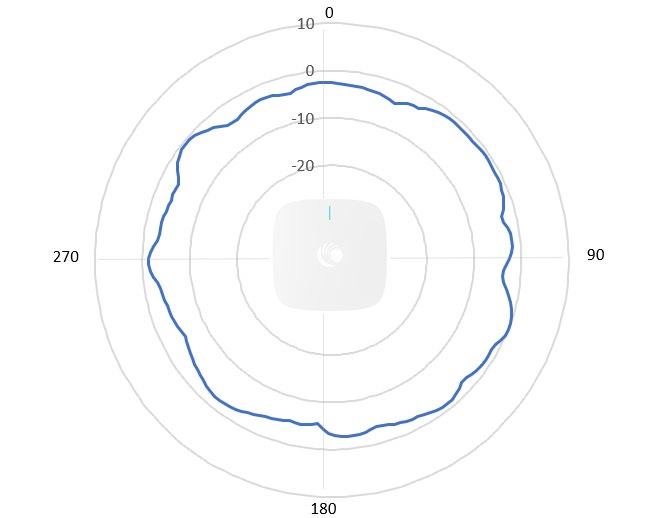

5 GHz Antenna NormalizedAzimuth Gain [dB] 5 GHz Antenna Normalized Elevation Gain [dB]

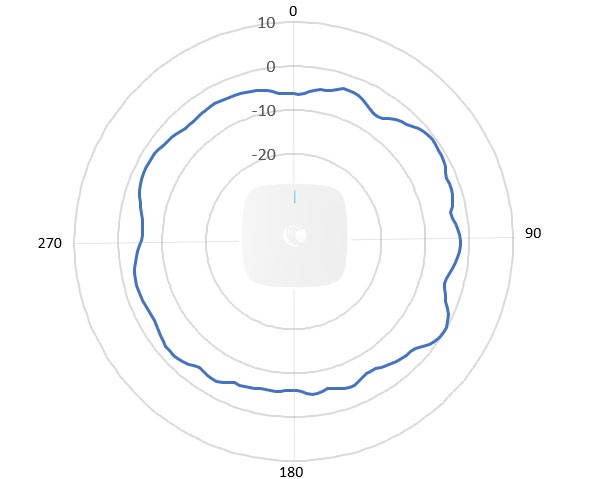

2 GHz Antenna NormalizedAzimuth Gain [dB] 2 GHz Antenna Normalized Elevation Gain [dB] X7-35X Wi-Fi 7 Indoor Access Point

Antenna Patterns, continued

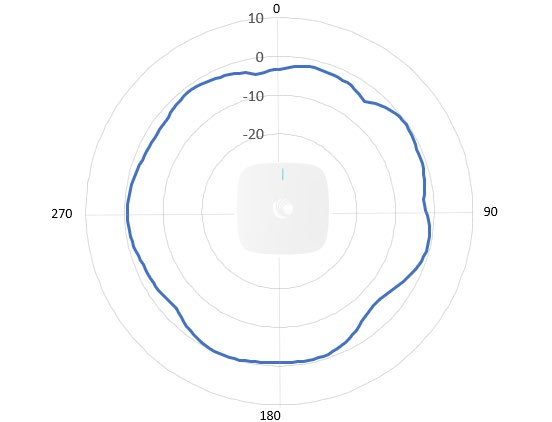

6 GHz Antenna NormalizedAzimuth Gain [dB] 6 GHz Antenna Normalized Elevation Gain [dB]
IoT Antenna NormalizedAzimuth Gain [dB] IoT Antenna Normalized Elevation Gain [dB] X7-35X Wi-Fi 7 Indoor Access Point X7-35X Wi-Fi 7 Indoor Access Point

Regulatory Model

X7-35XIndoor Tri-band Wi-Fi 7 AP 2x2. 6GHz radio enabled. 2.5GbE. CA
X7-35X-0A00-EU X7-35XIndoor Tri-band Wi-Fi 7 AP 2x2. 6GHz radio enabled. 2.5GbE. EU
X7-35XIndoor Tri-band Wi-Fi 7 AP 2x2. 6GHz radio disabled. 2.5GbE. ROW
X7-35X-0A00-US X7-35XIndoor Tri-band Wi-Fi 7 AP 2x2. 6GHz radio enabled. 2.5GbE. US
X7-35XIndoor Tri-band Wi-Fi 7 AP 2x2. 6GHz radio enabled. 2.5GbE. ROW
PoE,30.5W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
AX-X7-1BRKT-WW SpareMounting Bracket for X7 series enterprise access point. Compatible with X7-3 series, XE3-4, XV3-8
cnMaestroX 1-Year subscription for one X7-35X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-35X-1 for NBD advanced replacement hardware support.
cnMaestroX 3-Year subscription for one X7-35X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-35X-3 for NBD advanced replacement hardware support.
cnMaestroX 5-Year subscription for one X7-35X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-35X-5 for NBD advanced replacement hardware support.
cnMaestroX 1-Year renewal for one X7-35X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-35X-1 for NBD advanced replacement hardware support.
cnMaestroX 3-Year renewal for one X7-35X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-35X-3 for NBD advanced replacement hardware support.
cnMaestroX 5-Year renewal for one X7-35X AP. Creates one device Tier3 slot. Includes Cambium Care Pro

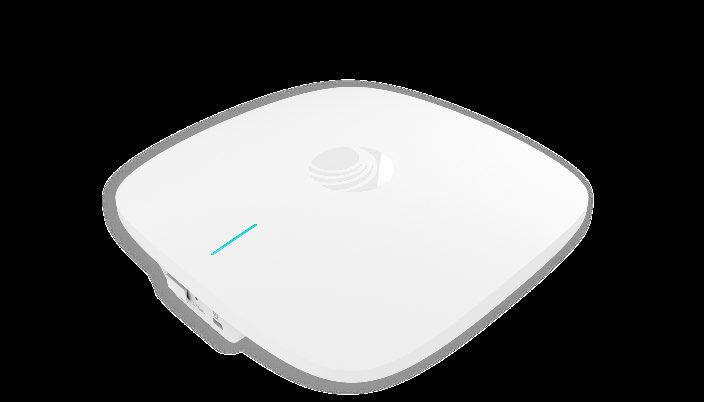

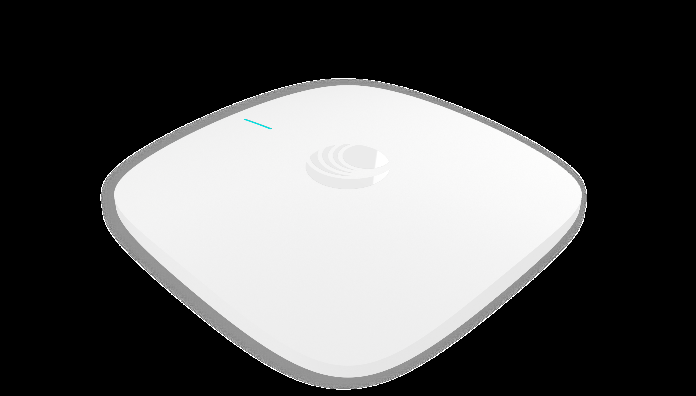

support.Order CCADV-UPG-X7-35X-5 for NBD advanced replacement hardware support. X7-35X Wi-Fi 7 Indoor Access Point

Cambium Care Support

CambiumCare Pro, 1-year support for one X7-35X. 24x7 TAC support, SW updates
CambiumCare Pro, 3-year support for one X7-35X. 24x7 TAC support, SW updates
CCPRO-SUP-X7-35X-5 CambiumCare Pro, 5-year support for one X7-35X. 24x7 TAC support, SW updates
CambiumCare Advanced, 1-year support for one X7-35X Wireless AP. 24x7 TAC support, SW updates, and NBDS
advancereplacement for HW
CambiumCare Advanced, 3-year support for one X7-35X Wireless AP. 24x7 TAC support, SW updates, and NBDS
advancereplacement for HW
CambiumCare Advanced, 5-year support for one X7-35X Wireless AP. 24x7 TAC support, SW updates, and NBDS
advancereplacement for HW
CambiumCare Advanced Add-on to cnMaestro X, 1-year support for one X7-35X. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CambiumCare Advanced Add-on to cnMaestro X, 3-year support for one X7-35X. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CambiumCare Advanced Add-on to cnMaestro X, 5-year support for one X7-35X. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW Limited Lifetime Warranty
CambiumNetworks X7-35X Wi-Fi 7 Access Point includes a limited
lifetimehardware warranty for a period of 5 years after end of sale

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads

Documentation & Resources

Download datasheets and technical documentation for the X7-35X.

Data Sheet

Download PDF →

Need Help?

Talk to a Pro →

Pricing Notes:

  • Pricing and product availability subject to change without notice.
