X7-55X
- Specs: 802.11be Tri-band 2+4+4 with SDR Radio Access Point and IoT support
- Tri-radio/Tri-band Wi-Fi 7
- 6 GHz (4x4), 5 GHz (4x4), 2.4 GHz (2x2)
- 17.9 Gbps aggregate data rate
- 5 GbE uplink port
- LPI (low power indoor) mode
- IOT radio to support many protocols
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview

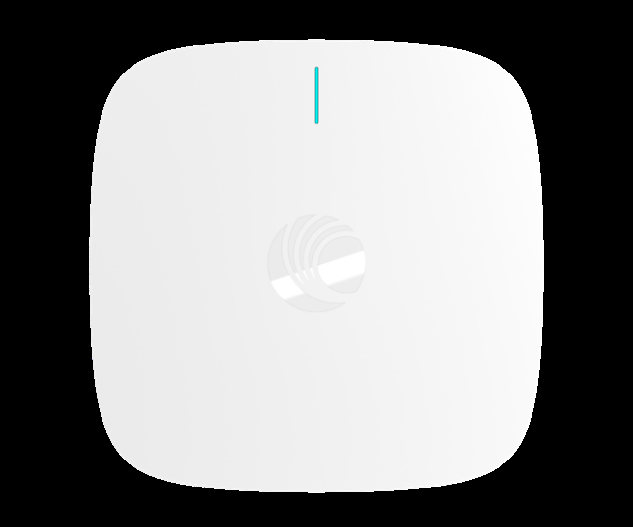

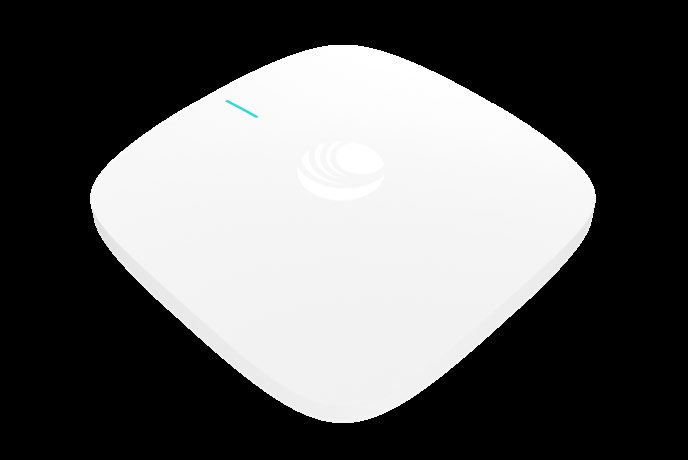

Cambium Networks X7-55X Wi-Fi 7 Indoor Access Point
The Cambium Networks X7-55X Wi-Fi 7 Indoor Access Point (AP) with its software-definable third radio is designed to deliver high-density and cutting-edge performance with flexibility for current and future demands at a price point suitable for any market. Power your network with the latest Wi-Fi technology.
Wi-Fi 7Indoor
Product Highlights
Great performance and density for Any Market The Cambium Networks’ X7-55X Wi-Fi Indoor Access Point (AP) with its software definable third radio is designed to deliver high density and cutting-edge performance with flexibility for current and future demands at a price point suitable for any market. Power your network with the latest Wi-Fi technology. The IoT radio is suited to support BLE, Zigbee, Matter or Thread and accommodate for any IoT requirement.1
Cloud and On-Premises Management

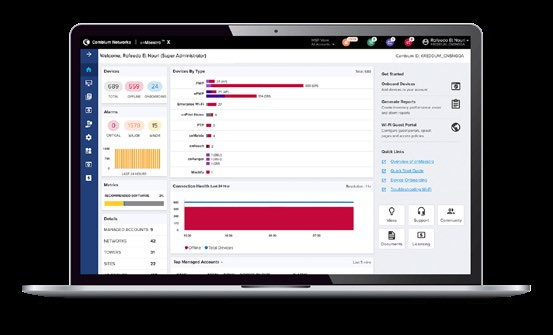

X7-55X operates using Cambium’s cnMaestro Network Management, accessible on both cloud and on-premises2 platforms. Aligned with Cambium’s ONE Network, cnMaestro facilitates the management of all devices through a user- friendly interface, streamlining control from backhaul to edge devices. This enables you to start managing your network right away, reducing training and troubleshooting time.
Fast Installation
The X7-55X Wi-Fi AP streamlines installation, saving you time and money. Its multi-functional mounting system easily installs the access point over multiple telecom and electrical junction boxes, on a suspended drop ceiling system, or to any flat surface. The recessed Ethernet port and trim mounting bracket enables an aesthetically pleasing installation and final finish. Plus, the new Wi-Fi junction box bracket is backwards compatible with the XV3-8 and XE3-4.
cnMaestro X Assurance3
Gain real-time insights into network health and troubleshoot client issues efficiently using AI-based analytics to move from reactive to proactive SLA management.
Some IoT protocols will be made available in future software versions. cnMaestro On-Premises support will be available in a future release. cnMaestro X Assurance is available with cnMaestro Cloud.
Ideal Applications
Ultra-high-density venues — stadiums, convention centers, and large campuses — demanding multi-gigabit Wi-Fi 7 throughput. Enterprise branch offices and education campuses deploying next-generation 802.11be infrastructure.

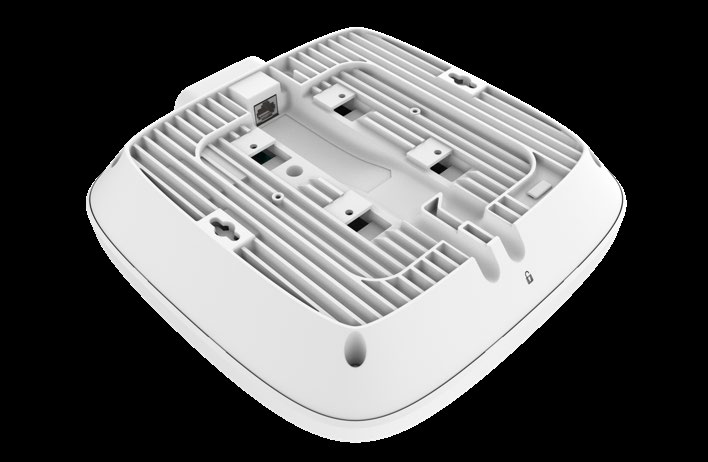

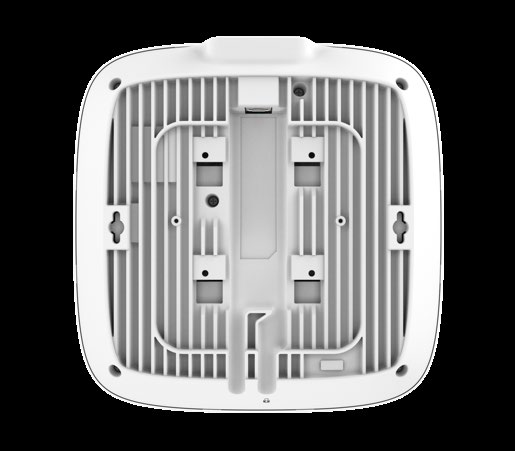

Product Images
17 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the X7-55X to ensure compatibility with your deployment.
Access Point Specifications
Radios2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be 5 GHz 4x4:4 with 802.11 a/n/ac/ax/be Software definable 5 or 6 GHz 4x4:4 with 802.11 a/n/ac/ax/be
IoT RadioBuilt-in BLE 5.1 or 802.15.4 IoT radio Max transmit power 20 dBm with the integrated 3 dBi omnidirectional antenna gain Zigbee, Matter, and Thread support*
Supported Data Rates802.11be: 7.3 to 11,530 Mbps 802.11ax: 7.3 to 4,804 Mbps 802.11ac: 6.5 to 3,466 Mbps 802.11n: 6.5 to 600 Mbps 802.11a/g and a: 6 to 54 Mbps 802.11b: 1 to 11 Mbps
Max PHY Rate2.4 GHz: 574 Mbps; 5 GHz: 5,764 Mbps; 6 GHz: 11,530 Mbps
AntennaOmnidirectional internal antennas (peak gain): 2.4 GHz: 5 dBi; 5 GHz: 6 dBi; 6 GHz: 7 dBi; IoT 2.4GHz: 3 dBi
Maximum Radio Tx Power*2.4 GHz: 25 dBm, max EIRP: 32 dBm
(combined Tx power across
all Tx chains)6 GHz: 26 dBm, max EIRP: 34 dBm
MIMO Support2x2 (2.4 GHz, 5 GHz, and 6 GHz) SU-MIMO 2x2 (2.4 GHz) MU-MIMO both in UL and DL direction 4x4 (5 GHz, and 6 GHz) MU-MIMO both in UL and DL direction

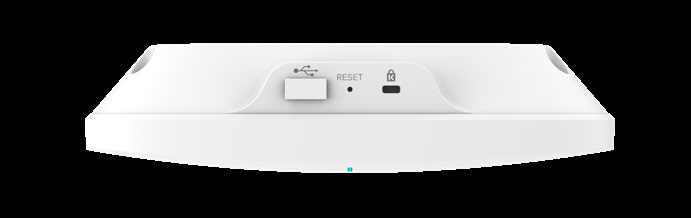

USB InterfaceOne USB 2.0 type A port, max 5 W power supply One 10/100 Mbps/ 1 / 2.5 / 5 Gbps PoE port
Ethernet Interface
PowerMax power consumption 33W (802.3bt) 802.3bt 802.3at 802.3af No Class Limited functionality according PoE (Class 6) (Class 4) (Class 3) detected delivered, see table. Radio 1 (2.4 GHz) on on off off Typical power consumption with BLE / Radio 2 (5 GHz) on on off off 802.15.4 radio enabled: 19W Radio 3 (SDR) on off off off LLDP power negotiation support USB on off off off IoT on on off on Ethernet on on on on
Dimensions240 mm x 240 mm x 50 mm (9.45 in x 9.45 in x 1.97 in) Weight: 1,600 g (3.52 lb)

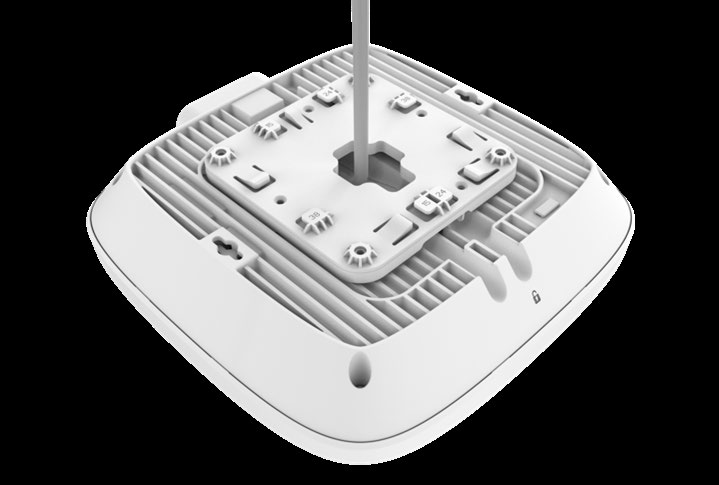

Mount OptionsDrop ceiling T-bar, ceiling tile, 4" square electrical box, 4" round box, NA single gang box, EU single gang box, wall or ceiling mount Kensington lock slot
Physical Security
LEDsMulticolor status LED Blue: Managed from cnMaestro Green: Up and running, not managed from cnMaestro Amber: Booting
Ambient Operation0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature-20ºC to 70ºC (-4ºF to 158ºF)
Operating Humidity95% RH non-condensing
ReliabilityMTBF 1,335,881 hours at +25ºC operating temperature and 357,922 at 50ºC operating temperature
*Will be supported in future releases
Access Point Specifications,continued
Device Management cnMaestroCloud / On-Premises management (version 5.2.1 and above)
Local access Webaccess with HTTPs / HTTP protocol
CLIaccess with SSH / telnet protocols, serial console port.
Certifications FCC,IC, CE, ANZ EN 300 328, FCC Part 15C, RSS-247 - 2.4 GHz RF
(Compliance)
IEC/UL62368-1 – Electrical Safety EN 301 893, EN 302 502, FCC Part 15E, RSS-247 - 5 GHz RF
EN60601-1-2 - Medical EN 303 687, FCC Part 15E, RSS-248 – 6 GHz RF
EN301 489 / EN 61000 - EMC EN 62311 - Human Safety/RF Exposure
UL2043 - Plenum WEEE, REACH, and RoHS - Environmental
Network Specifications
Security & Open,WPA-TKIP, WPA2-AES either Enterprise and PSK, Support for ePSK in local, Cloud or RADIUS
WPA3with PSK (WPA3-SAE), ePSK, Enterprise, Enterprise-CNSA, OWE (Enhanced Open)
OSENand PMF (802.11 W)
MACauthentication with local database or external database using RADIUS protocol
802.1Xwith EAP-TTLS, EAP-TLS / MSCHAPv2, PEAPv0 / PEAPv1 / EAP-PEAP / EAP-SIM/AKA/AKA’/FAST
MACauth fallback to guest portal
HotspotWEB authentication
PMK,OKC, and 802.11r for fast layer-2 roaming
Fast Roaming Support
SeamlessL2 roaming for wireless and guest clients across APs in the same L2 network
cnMaestro-assistedroaming for the guest clients
Wi-Fi Quality of Service WMM(packet marking either with 802.1p or IP DSCP), WMM-PS, U-APSD
Multicastto unicast conversion
MESH Support Auto-discoveryand self-healing wireless MESH support on 2.4 GHz, 5 GHz, and 6 GHz band
MESHand Client SSIDs can co-exist on the same radio interface
16SSIDs per radio, 48 SSIDs per AP
SSIDscheduling
Client Capacity 1280clients per AP; 256 on 2.4 GHz, 512 on 5 GHz, and 6 GHz
Maxclient connections limit per SSID / radio / device
Sticky Client Optionto disconnect the client on minimum SNR threshold
Management
Data Limit Clientbitrate/time/throughput limit per SSID
Dynamic RF Channel Auto-channelselection
and Power
Auto-RFdynamic channel switch based on channel utilization and Wi-Fi / non-Wi-Fi interferences
Management
Auto-RFdynamic power adjustment with the neighboring APs’ transmit power
WIDS and WIPS Wirelesspackets flood (excessive association, authentication, de-authentication, disassociation, and EAP) detection
RogueAP, Honeypot AP detection and termination
StandardRADIUS, Accounting, WISPr, and Cambium VSA attributes support
Management
COAmessages (disconnect, VLAN ID, session, etc.) support
Usergroups with RADIUS assigned filter rules
Wireless Devices Policy Devicegrouping based on device fingerprinting with L2, L3, L4, and L7 access control rules
Management
Network Specifications,continued
RADIUS and Accounting PerSSID based RADIUS authentication and accounting server
Support
Accountinginterval with start, stop, and interim messages with standard / Cambium VSA accounting attributes
Upto 3 RADIUS authentication and accounting server with failover and load balancing option
Dynamicauthorization and disconnect using CoA messages
VLAN Assignment PerSSID based 802.1q VLAN tagging
DynamicVLAN assignment from external RADIUS server, max 4096
LocalVLAN pool
RADIUSassigned VLAN pool
ePSKassigned VLAN ID, local, cloud or RADIUS assigned
PerSSID or device level, layer 2, 3 (IPv4 and IPv6), 4, and 7 access control rules with packet marking option
Applicationrecognition, packet marking, rate limiting, and option to drop and deny application / application
PerSSID DNS ACL option
Definecustom application based on IP address and monitor/control custom application traffic
Connection Logging PerSSID basis option to log TCP, UDP and IP connection, and DNS query
NATlogging to external syslog servers
IP Support IPv4and IPv6
Tunneling Protocols WWAN,PPPoE, L2TPv2, L2GRE, & VXLAN*
SNMP and Syslog SNMPv2 and v3 get operational mode
Support
Syslogmessages to external syslog server
DHCP Client and Server Optionto enable DHCP client on L3 VLAN interface
On-boardDHCP server with multiple DHCP pool options
Optionto integrate Wi-Fi and BLE radios scan results with an external location analytics server through
HTTP/HTTPspost
Client Connection and Exhaustiveclient life cycle analytics with Disconnection analytics
rootcause analysis Client dashboard with roaming history
Connectionsuccess and failure analytics
EasyPass (Guest Access cnMaestrohosted captive portal service IP whitelist or walled garden list support
Multipleauthentication methods supported to on-board Guest access on-boarding using payment gateway
guestuser vendors X
••
cnMaestro X)BYOD and IoT onboarding X PayPal®
•Microsoft® Azure AD & Google Workspace® login X • IPpay
•• Voucher-based, RADIUS-based, and paid access X Quickpay
•Self-registration via SMS/email X Integration with the third-party captive portal vendors
•Sponsored access X Session limits, data quotas, bandwidth control
•Click-through access with terms acceptance Custom splash pages with multi-language support
•Social login (Google®, Facebook®) Policy enforcement via RADIUS, WISPr, and cnMaestro- WiFi4EU (EU specific) hosted policies
Services L2–L7application visibility & control, Wi-Fi calling control, WIDS/WIPS, NTP, Syslog, SNMP traps, DNS proxy, auto-off
onWAN failure, Open roaming*
API RESTfulmanagement and statistics API presence location APIs
Standards
Wi-Fi Protocols 802.11 b:BPSK, QPSK, CCK
802.11 a/g/n:BPSK, QPSK, 16-QAM, 64-QAM
802.11 ac:BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11 ax:BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM
802.11be:BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
20/40/80/160/320MHz, DSSS, OFDM, OFDMA, MIMO, UL/DL MU-MIMO
Multi-linkoperation (MLO)*, multi-resource units
Target waittime (TWT), BSS coloring, long OFDM symbol, transmit beamforming (TxBF)
802.11n/acpacket aggregation: A-MPDU, A-MSDU
Maximumratio combining (MRC), cyclic delay/shift diversity (CDD/CSD), Space-time block coding (STBC), low-density
parity check(LDPC)
Passpoint3.0
IEEE 802.11a/b/g/n/ac/ax/be - d/e/h/i/k/r/u/v/w
Regulatory Information
Frequency Bands 2.412 GHzto 2.484 GHz ISM 5.925 GHz to 6.425 GHz U-NII-5
5.150 GHzto 5.250 GHz U-NII-1 6.425 GHz to 6.525 GHz U-NII-6
5.250 GHzto 5.350 GHz U-NII-2A 6.525 GHz to 6.875 GHz U-NII-7
5.470 GHzto 5.725 GHz U-NII-2C 6.875 GHz to 7.125 GHz U-NII-8
5.725 GHzto 5.855 GHz U-NII-3
5.855 GHzto 5.895 GHz U-NII-4
Channels List 2.4 GHzchannels: 1 to 13
5 GHz channels:36 to 64, 100 to 144, 149 to 177
6 GHz channels:1 to 233
EIRP limitations apply to the listedcountries.
ROW Individual country limits mayapply. Please contact your regional sales manager for country-specific regulations.
Europe, UK, USA, and CanadaRegulatory Details
2.4 GHz(EIRP) 6 GHz (EIRP)
2400–2483.5MHz 5945–6425 MHz 6425–7125 MHz
20 dBm(100mW) 23 dBm (200mW) indoor not supported
20 dBm(100mW) 24 dBm (250mW) indoor not supported
36 dBm(4W) 30 dBm (1W) indoor 30 dBm (1W) indoor
36 dBm(4W) 30 dBm (1W) indoor 30 dBm (1W) indoor 5 GHz
5150–5250MHz 5250–5350 MHz 5470–5725 MHz 5725–5875 MHz
Europe 23 dBm(200mW) 23 dBm (200mW) 30 dBm (1W) 36 dBm (4W)*
UK 23 dBm(200mW) 23 dBm (200mW) 30 dBm (1W) 23 dBm (200mW)
USA 36 dBm(4W) 30 dBm (1W) 30 dBm (1W) 36 dBm (4W)
Canada** 23 dBm(200mW) 30 dBm (1W) 30 dBm (1W) 36 dBm (4W)
*Selected countries in EU allow operationsat 36dBm in this band.
**Canada restricts the use of 5600-5650MHz for regulatory reasons. X7-55X Wi-Fi 7 Indoor Access Point
Southeast Asia RegulatoryDetails 2.4 GHz (EIRP) 6 GHz (EIRP) 2400–2483.5 MHz 5925–6425 MHz 6425–7125 MHz
27dBm (500mW) indoor not supported not supported 36 dBm (4W) outdoor 23 dBm (200mW)
Philippines26 dBm (400mW)
Malaysia27 dBm (500mW) 23 dBM (200mW) indoor
Singapore23 dBm (200mW) 24 dBm (250mW) indoor 14 dBm (25mW) outdoor
Thailand20 dBm (100mW) 24 dBm (250mW) indoor 14 dBm (25mW) outdoor 5 GHz (EIRP)
5150– 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5825 MHz
Indonesia 23 dBm(200mW) indoor 23 dBm (200mW) indoor Not supported 23 dBm (200mW) indoor 36 dBm (4W) outdoor
Vietnam 23dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Philippines 26dBm (400mW) 26 dBm (400mW) 26 dBm (400mW) 26 dBm (400mW)
Malaysia* 30 dBm(1W) indoor 30 dBm (1W) indoor 5470 – 5650 MHz 30 dBm (1W)
23dBm (200mW) 30 dBm (1W) outdoor
Singapore 23dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Thailand 23dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
*Malaysia restricts the use of 5650-5725MHz for regulatory reasons. X7-55X Wi-Fi 7 Indoor Access Point
Management
cnMaestro XX Assurance • Helps to quickly identify network-wide connectivity
• Advanced device managementcapabilities issues by isolating every element of the client’s
Deep packet inspection(DPI) application visibility lifecycle, either radio or network related
and Control for 2,400+apps • Gives an overview quality index of the network and
• RESTful managementand statistics API highlights each element’s contribution to easily identify the worst offender
Presence location pushAPIs • Provides insight of probable causes and proposes
• Graphic reports
Webhooks• Provides individual client connectivity visibility throughout the entire lifecycle of its connection to
• Cambium Care Profor 24x7 technical support easily identify each connection’s result and highlight the failure reason, should there be any
Accelerated accessto L2 engineers and regular EasyPass Portal with Additional Options • Self-registration: Form-based access • Sponsored guest: Guest ambassador-based access
Assesses the network’sconfiguration and identifies • Paid access: Monetize the Wi-Fi access
weak security settingsand proposes a fix to ensure
the network configurationis up to the top security • Microsoft Azure: Corporate user login
industry standards
License-free cloud managementthat delivers a disruptive total cost of ownership (TCO) for organizations of all sizes. Includes EasyPass
for OneClick or voucher-basedconnection as well as WiFi4EU access. P617TB9#y1 Find out more about cnMaestro X7-55X Wi-Fi 7 Indoor Access Point

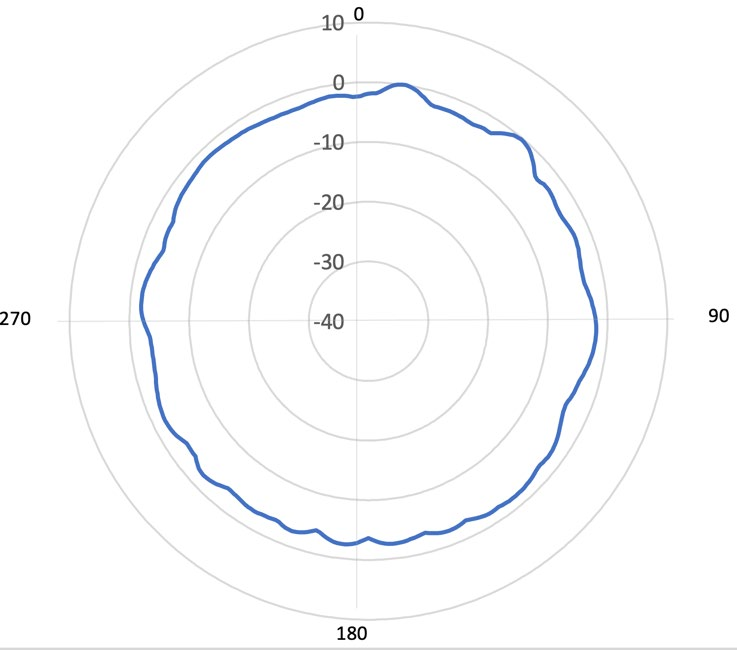

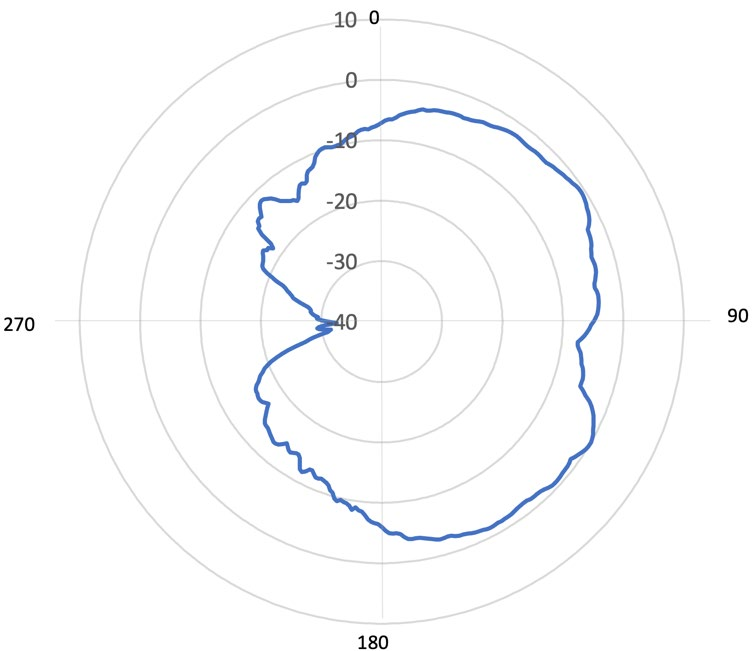

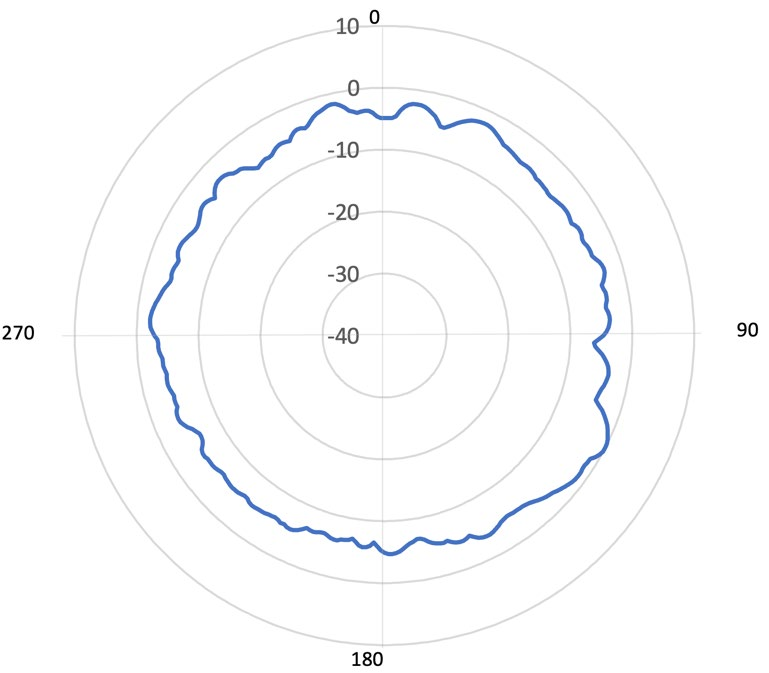

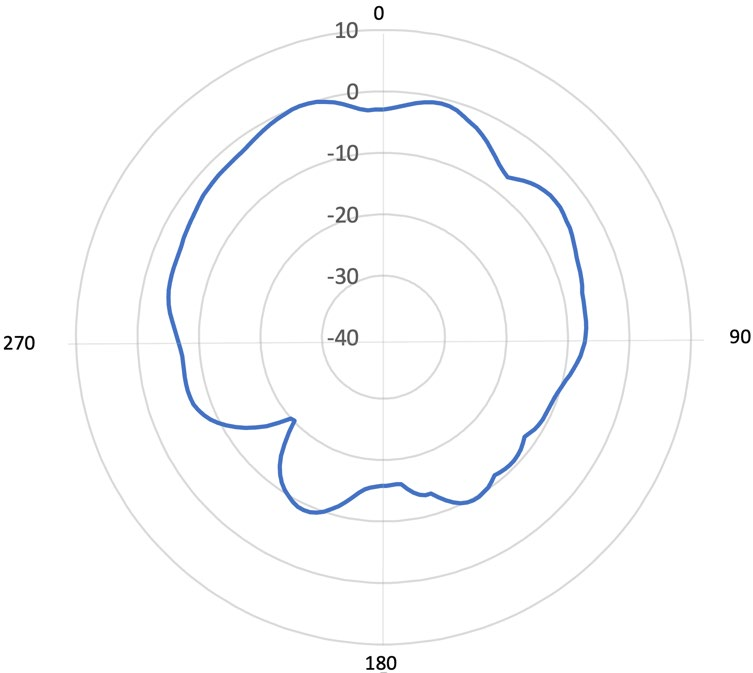

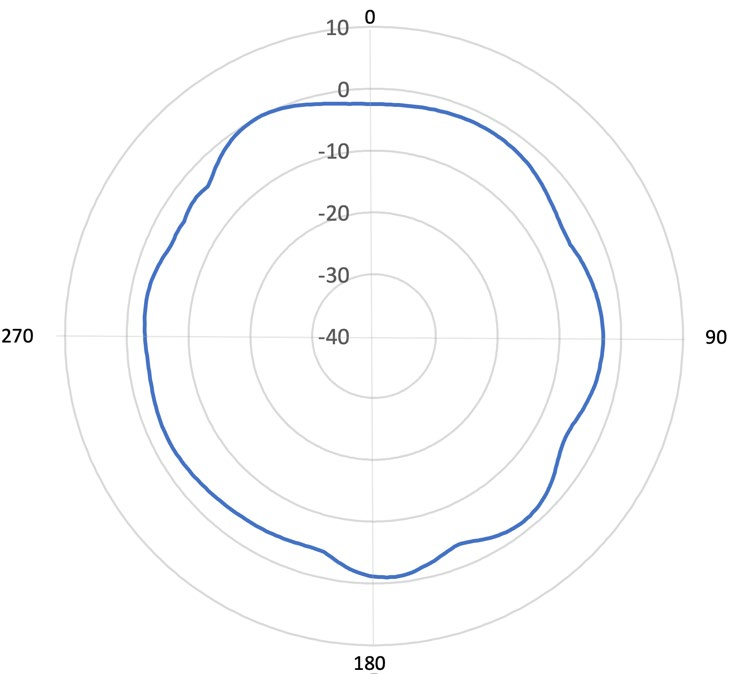

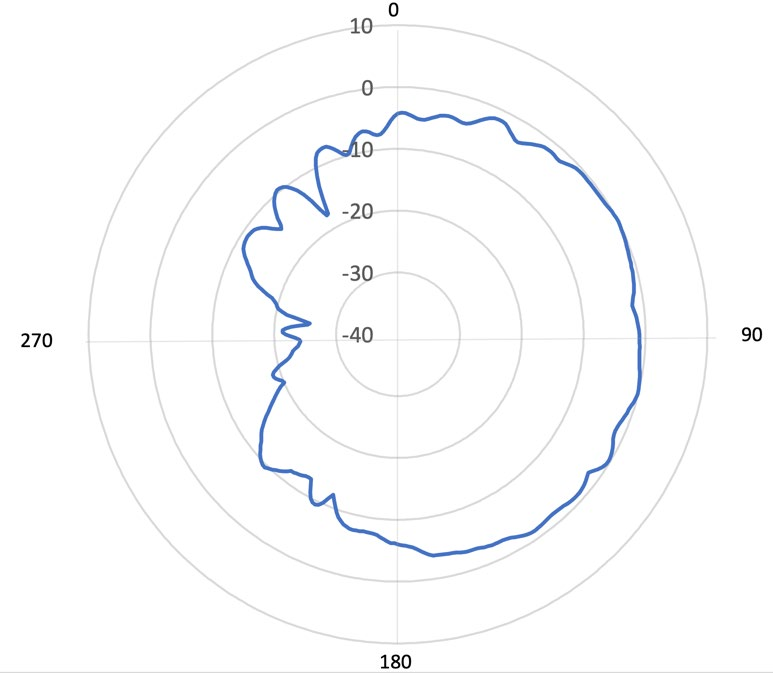

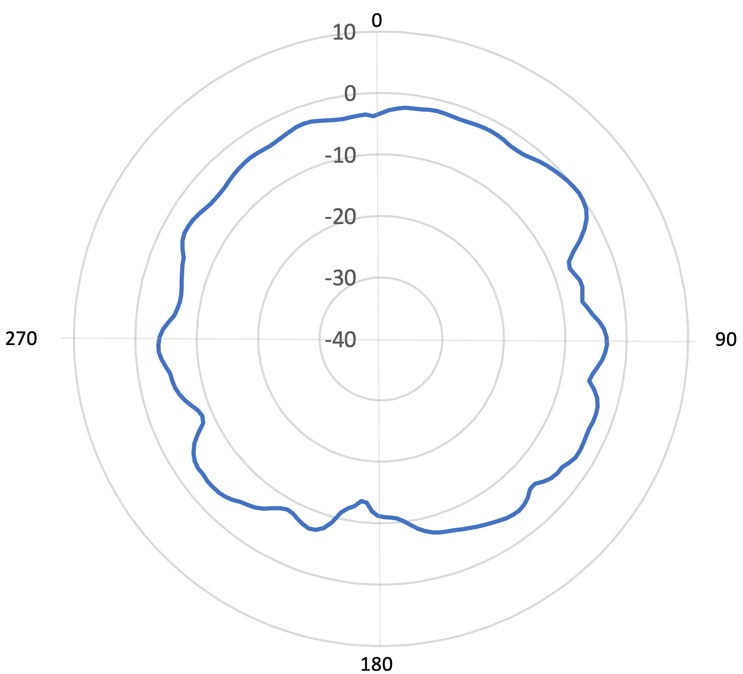

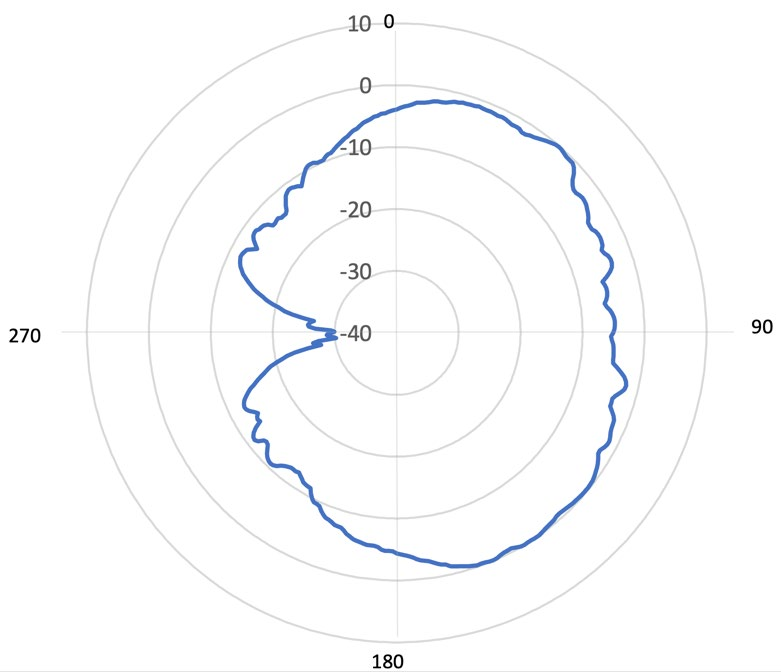

Antenna Patterns
5 GHz Antenna NormalizedAzimuth Gain [dB] 5 GHz Antenna Normalized Elevation Gain [dB]
2 GHz Antenna NormalizedAzimuth Gain [dB] 2 GHz Antenna Normalized Elevation Gain [dB] X7-55X Wi-Fi 7 Indoor Access Point
Antenna Patterns, continued
6 GHz Antenna NormalizedAzimuth Gain [dB] 6 GHz Antenna Normalized Elevation Gain [dB]
IoT Antenna NormalizedAzimuth Gain [dB] IoT Antenna Normalized Elevation Gain [dB] X7-55X Wi-Fi 7 Indoor Access Point X7-55X Wi-Fi 7 Indoor Access Point
Regulatory Model X7-55X
X7-55X-0A00-CA X7-55XIndoor Tri-band Wi-Fi 7 AP 2+4+4 with SDR, 5GbE. IoT radio. CA
X7-55X-0A00-EU X7-55XIndoor Tri-band Wi-Fi 7 AP 2+4+4 with SDR, 5GbE. IoT radio. EU
X7-55X-0A00-RW X7-55XIndoor Tri-band Wi-Fi 7 AP 2+4+4 with SDR, 5GbE. IoT radio, 6 GHz oper. disabled. ROW
X7-55X-0A00-US X7-55XIndoor Tri-band Wi-Fi 7 AP 2+4+4 with SDR, 5GbE. IoT radio. US
X7-55XIndoor Tri-band Wi-Fi 7 AP 2+4+4 with SDR, 5GbE. IoT radio, 6 GHz oper. enabled. ROW
N000000L142A PoE,60W, 56V, 5GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
PoE,60W, 56V, 10GbE DC Injector, Indoor, Energy Level 6 Supply
AX-X7-1BRKT-WW MountingBracket for X7 series enterprise access point. Compatible with X7 series, XE3-4, XV3-8
MSX-SUB-X7-55X-1 cnMaestroX 1-Year subscription for one X7-55X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-55X-1 for NBD advanced replacement hardware support.
MSX-SUB-X7-55X-3 cnMaestroX 3-Year subscription for one X7-55X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-55X-3 for NBD advanced replacement hardware support.
MSX-SUB-X7-55X-5 cnMaestroX 5-Year subscription for one X7-55X AP. Creates one device Tier3 slot. Includes Cambium Care Pro
support.Order CCADV-UPG-X7-55X-5 for NBD advanced replacement hardware support.
Cambium Care Support
CCPRO-SUP-X7-55X-1 CambiumCare Pro, 1-year support for one X7-55X. 24x7 TAC support, SW updates
CCPRO-SUP-X7-55X-3 CambiumCare Pro, 3-year support for one X7-55X. 24x7 TAC support, SW updates
CambiumCare Pro, 5-year support for one X7-55X. 24x7 TAC support, SW updates
CCADV-SUP-X7-55X-1 CambiumCare Advanced, 1-year support for one X7-55X Wireless AP. 24x7 TAC support, SW updates, and NBDS
advancereplacement for HW
CCADV-SUP-X7-55X-3 CambiumCare Advanced, 3-year support for one X7-55X Wireless AP. 24x7 TAC support, SW updates, and NBDS
advancereplacement for HW
CCADV-SUP-X7-55X-5 CambiumCare Advanced, 5-year support for one X7-55X Wireless AP. 24x7 TAC support, SW updates, and NBDS
advancereplacement for HW
CCADV-UPG-X7-55X-1 CambiumCare Advanced Add-on to cnMaestro X, 1-year support for one X7-55X. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CCADV-UPG-X7-55X-3 CambiumCare Advanced Add-on to cnMaestro X, 3-year support for one X7-55X. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW
CCADV-UPG-X7-55X-5 CambiumCare Advanced Add-on to cnMaestro X, 5-year support for one X7-55X. 24x7 TAC support, SW updates,
andNBDS advance replacement for HW Limited Lifetime Warranty
CambiumNetworks X7-55X Wi-Fi 7 Access Point includes a limited
lifetimehardware warranty for a period of 5 years after end of sale
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the X7-55X.
Data Sheet
Download PDF →Need Help?
Talk to a Pro →Pricing Notes:
- Pricing and product availability subject to change without notice.
