4.9 to 5 GHz Dual Pole 90 Degree Sector Antenna
  • Specs: Sector antenna solution for PTP 670/700 High Capacity MultiPoint (HCMP) radios that enables network operators to connect up to eight PTP radios to a single HCMP access point.
  • Sector antenna solution for PTP 670/700 High Capacity MultiPoint (HCMP) radios that enables network operators to connect up to eight PTP radios to a single HCMP access point.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks 4.9 to 5 GHz Dual Pole 90 Degree Sector Antenna

Sector antenna solution for PTP 670/700 High Capacity MultiPoint (HCMP) radios that enables network operators to connect up to eight PTP radios to a single HCMP access point.

Ideal Applications

Enterprise network deployments requiring reliable, high-performance Cambium Networks hardware. Cloud-managed network infrastructure with cnMaestro visibility and centralized policy control.

Product Images

4 photos

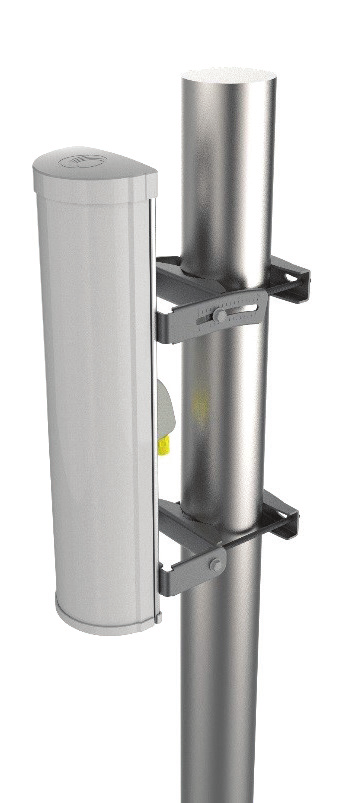

Product image 1

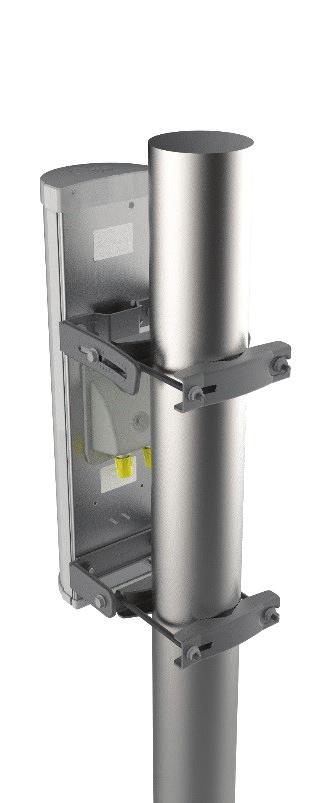

Product image 2

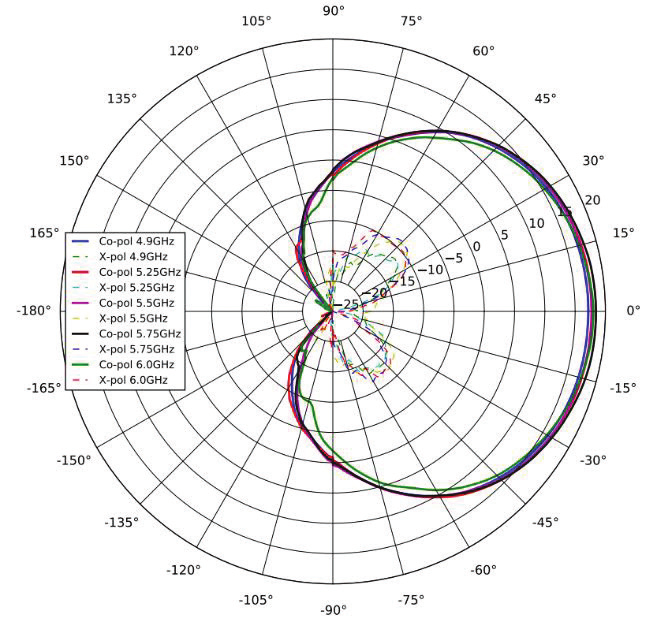

Product image 3

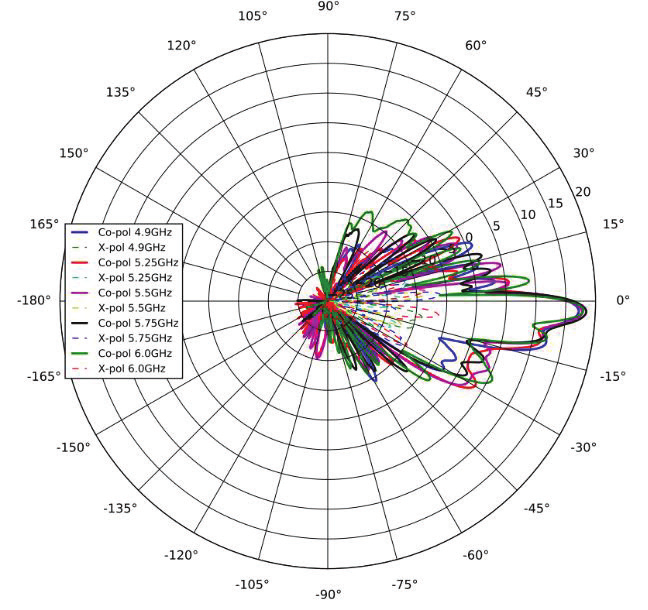

Product image 4
Technical Details

Hardware Specifications

Comprehensive technical data for the 4.9 to 5 GHz Dual Pole 90 Degree Sector Antenna to ensure compatibility with your deployment.

SPECIFICATIONS

Model NumberC050000D004A
Frequency Range4.9 GHz to 5.97 GHz
Gain17 dBi
3 dB Beamwidth – Azimuth90 degrees
6 dB Beamwidth – Azimuth120 degrees
3 dB Beamwidth – Elevation6 degrees
Electrical Downtilt-2 degrees
PolarizationHorizontal and Vertical
Port-to-Port Isolation; Cross Polarization> -30 dB; > -22 dB
Front-to-Back Ratio35 dB
Maximum Input Power5W
Input Impedance50 ohms
VSWR (Max)2:1
ConnectorsN-Type (Male)
Mounting Hardwaretower/pole mount Included mount for mast diameters 1.5” to 4.5” (4cm to 11.5cm), with -10 to +5 degrees of tilt; GEOMET Coating
Mounting AdjustmentAzimuth (+/- 180 degrees); Elevation (+5 / - 10 degrees)
Wind SpeedSurvival at < 209 km/hr
Physical Dimensions23.4”(H) x 6.2” (W) x 4.3 (D) (594mm x 157mm x 110mm)
Weight8.8 lbs. (4.0 kg)
EnvironmentalIP65; RoHS/WEEE Compliant
Radome MaterialUV Stabilizied ASA (UL Certified Material)
Shock/VibrationMIL-STD-810G Method 516.6 / MIL-STD-810G Method 514.6 procedures I/C24, II/C5
Operating Temp ; Humidity-40oC to 60oC (-40oF to 140oF); up to 95% humidity
Downloads

Documentation & Resources

Download datasheets and technical documentation for the 4.9 to 5 GHz Dual Pole 90 Degree Sector Antenna.

Data Sheet

Download PDF →
