Product Overview

Cambium Networks 5.25 – 5.85 GHz Standard Performance Single Polarity Parabolic Reflector Antenna

The Standard Performance Single Pole Parabolic Reflector Antenna is engineered to be rugged, cost effective and deliver reliable radio links

Product Highlights

Model Number RDH4513B

Description 5.25-5.85 GHZ, 3-FT (0.9M), SINGLE-POL

Ideal Applications

Enterprise network deployments requiring reliable, high-performance Cambium Networks hardware. Cloud-managed network infrastructure with cnMaestro visibility and centralized policy control.

Product Images

3 photos
Product image 1

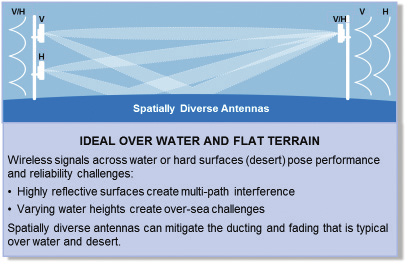

Product image 2

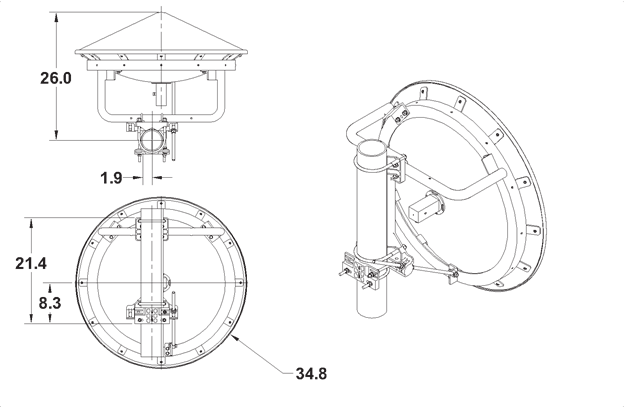

Product image 3
Technical Details

Hardware Specifications

Comprehensive technical data for the 5.25 – 5.85 GHz Standard Performance Single Polarity Parabolic Reflector Antenna to ensure compatibility with your deployment.

SPECIFICATIONS

Operating Frequency Band5.25 - 5.85 GHz
Half Power Beamwidth, Horizontal4.2 degrees
Half Power Beamwidth, Vertical4.2 degrees
Cross-Polarization Discrimination30 dB
Front to Back Ratio (F/B)40 dB
Gain, Low Frequency32 dBi
Gain, Mid Frequency32.5 dBi
Gain, High Frequency33 dBi
VSWR1.5:1
Return Loss-14 dB
Fine Azimuth Adjustment+/- 10 degrees
Fine Elevation Adjustment+/- 25 degrees
Mounting Pipe Diameter, Min4.5 inch | 11.4 cm
Mounting Pipe Diameter, Max4.5 inch | 11.4 cm
Net Weight35 lbs | 15.8 kg 43 lbs | 19.4 Kg with optional radome
Wind Velocity Operational90 mph | 145 km/h
Wind Velocity Survival Rating125 mph | 201 km/h
Mechanical ConfigurationSP3
Axial Force (FA)492 lbs | 2189 N 271 lbs | 1206 Nm with optional radome
Side Force (FS)40 lbs | 178 N 64 lbs | 285 Nm with optional radome
Twisting Moment (MT)545 ft-lbs | 739 Nm 394 lbs | 534 Nm with optional radome
Operating Temperature Range-40 to +60 C

(if waveguide interface)

Moldel NumberRRDN7141B
Description3-FT (0.9M), MOLDED RADOME, UV INHIBITED

REGULATORY COMPLIANCE

RoHS-compliantYes
Package TypeWood Crate
Gross Weight78 lbs | 35.3 kg
Dimensions, L x W x H40 x 17 x 44 in | 101 x 43 x 140 cm
Shipping Volume17.31 cu ft | 0.49 cu m 5.25 - 5.85 GHz Standard Performance Single Polarity Parabolic Reflector Antenna SPECIFICATION SHEET RDH4513B 5.25-5.85 GHZ, 3-FT (0.9M), SINGLE-POL
5.25 - 5.85 GHz Standard PerformanceSingle Polarity Parabolic Reflector Antenna v0.
