Product Overview

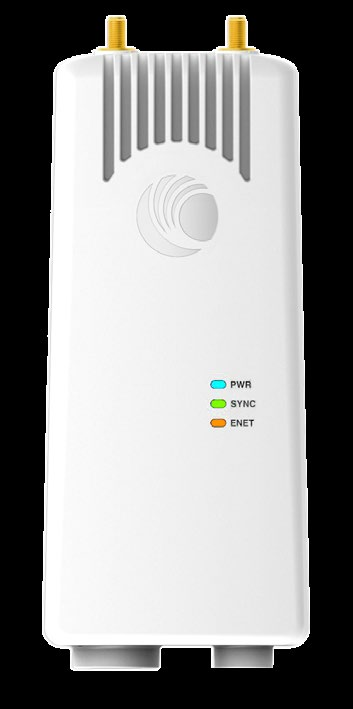

Cambium Networks 5 GHz PMP 450b Connectorized Subscriber Module
The PMP 450b Subscriber Module supports frequencies from 4.9 – 5.925 GHz and provides 300 Mbps aggregate throughput in a 40 MHz channel.
PMP 450Subscriber
Ideal Applications
Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.
Product Images
10 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the 5 GHz PMP 450b Connectorized to ensure compatibility with your deployment.
Radio Model Numbers
Global*ROW FCC ISED EU No Encryption
Connectorized– C050045B041A C050045B042A C050045B043A C050045B044A C050045B045A
Mid-Gain (17 dBi) C050045C011AC050045B031A C050045B032A C050045B033A C050045B034A C050045B035A
High-Gain C050045C012AC050045B021A C050045B022A C050045B023A C050045B024A C050045B025A
(radio only)
4-Pack High-Gain N050045D002AN050045D002A N050045D002A N050045D002A N050045D002A N050045D002A
*Global models are restricted to SM-onlyoperation and cannot function as point-to-point (PTP) or backhaul.
Spectrum
Channel Spacing Configurableon 2.5 MHz increments
Frequency Range 4900–5925MHz
Channel Width 5 MHz,10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
Interface
MAC (Media Access CambiumNetworks proprietary
2x2 MIMOOFDM
Physical Layer
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Ethernet Interface
IPv4, IPv6,UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Protocols Used
IPv4/IPv6(dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™
Management
VLAN 802.1ad(DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Security
Encryption FIPS-197128-bit AES, 256-bit AES (requires optional license for attached access point)
Antenna
Integrated Antenna17 dBi 24 dBi
3 dB Beamwidth –15º 7º
3 dB Beamwidth –30º 7º Dual linear, H + V Dual linear, H + V >20 dB >25 dB
Cross Polarization15 dB 15 dB 5 GHz 450b Subscriber and Backhaul
Modulation Levels (Adaptive)MCS Signal-to-Noise Required (SNR in dB)
2xQPSK 10
4x16QAM 17
6x64QAM 24
8x256QAM 32
Maximum Up to 64km (40 mi) in point-to-multipoint (PMP) mode, up to 200 km (124 mi) in point-to-point (PTP) mode
Latency 3–5 ms,typical
GPS Yes, synchronizedby access point or via 3.5 mm port using cnPulse (for PTP mode)
Quality of Service DiffserveQoS
Physical
Antennan/a n/a Optional radome: N000900L021A EN 61000-4-5: 10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air > 40 Years > 40 Years > 40 Years
EnvironmentalIP67 IP55 IP55, Optional glands to enhance to IP67 (N000000L135A) 200 kph (124 mph) 200 kph (124 mph) 200 kph (124 mph) -40°C to 60°C (-40°F to 140°F), 0–100% non-condensing
Weight0.9 kg (2 lb) 0.6 kg (1.4 lb) 3.1 kg (7 lb)
includingmounting bracket including mounting bracket including mounting bracket
Dimensions24 x 4 x 9 cm 12.5 x 24.8 x 12 cm Diameter 45 x 28 cm (9.5 x 1.5 x 3.5 in) (4.9 x 9.8 x 4.7 in) (17.8 in x 11.2 in)
Pole Diameter2.5 cm to 7.6 cm 2.5 cm to 7.6 cm (1 in to 3 in) 2.5 cm to 7.6 cm (1 in to 3 in) (1 in to 3 in) ± 20 degrees mechanical tilt ± 20 degrees mechanical tilt
Power9 W typical, 12 W peak 9 W typical, 12 W peak 9 W typical, 12 W peak
Input Voltage20–32 VDC 20–32 VDC 20–32 VDC 5 GHz 450b Subscriber and Backhaul
Transmit Power 54 dB dynamicrange (to EIRP limit by region) (1 dB step)
Maximum Transmit +27 dBm(MIMO, combined V+H)
Power Control ATPC (AutomaticTransmit Power Control) at system level;, all subscribers implement ATPC
Certifications
ISED Canada109W-0042 109W-0032 109W-0042
FCC IDZ8H89FT0042 Z8H89FT0032 Z8H89FT0042
ETSIEN 301 893 v2.1.1 EN 301 893 v2.1.1 EN 301 893 v2.1.1 EN 302 502 v2.1.1 EN 302 502 v2.1.1 EN 302 502 v2.1.1 Mid-Gain 17 dBi High-Gain 24 dBi 5 GHz 450b Subscriber and Backhaul

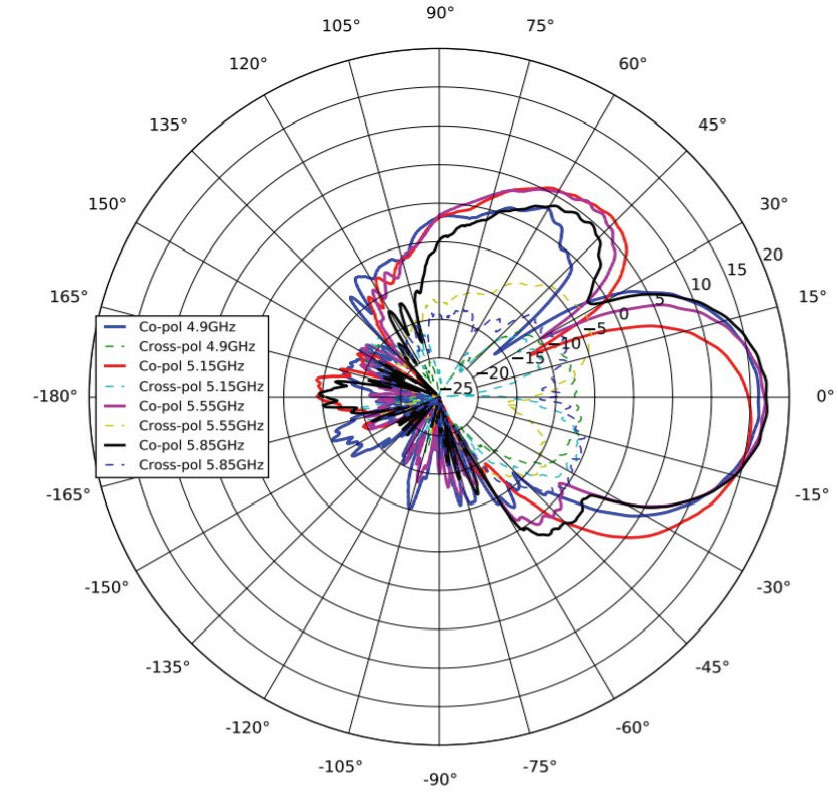

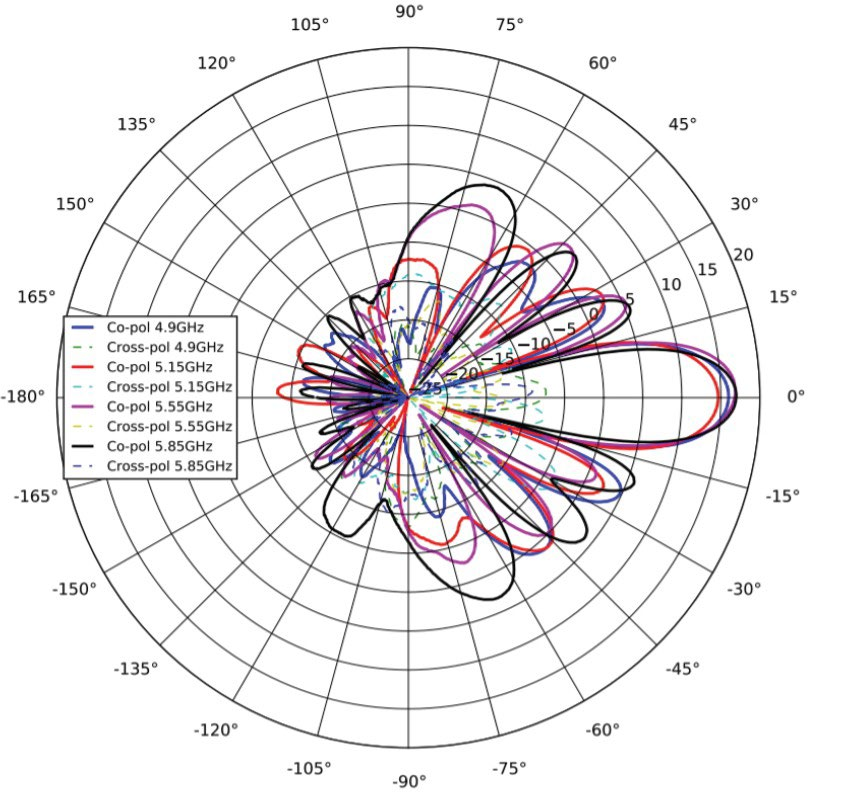

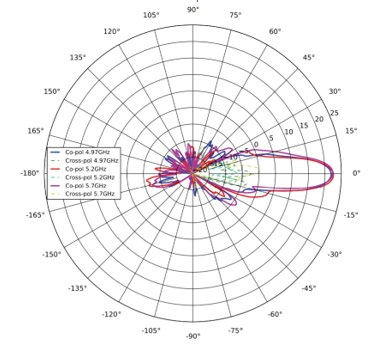

5 GHz 450b Mid-Gain AntennaPatterns
Azimuth,Vertical Elevation, Vertical

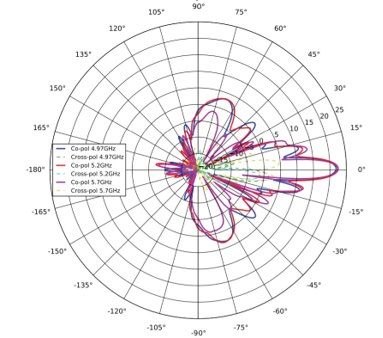

5 GHz 450b High-GainAntenna Patterns
Azimuth,Vertical Elevation, Vertical
