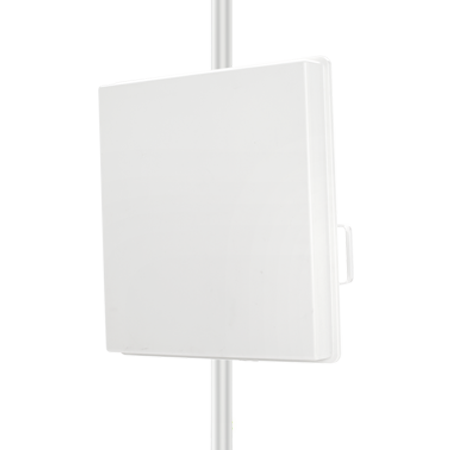

Cambium Networks 5 GHz PMP 450m Fixed Wireless Access Point

Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage.

Talk to a Pro

5 GHz PMP 450m

Specs: Subscriber and Backhaul

cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Product Overview

Cambium Networks 5 GHz PMP 450m Fixed Wireless Access Point

cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.

PMP 450

Product Highlights

by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.

until additional capacity is actually required. A 30-day trial of MU-MIMO operation is included, and a simple license key can permanently enable MU-MIMO operation when needed.

equipment by continuing to utilize existing Subscriber Modules (all platform subscribers work with the 450m and cnMedusa technology, including prior generation modules)

Ideal Applications

Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale.

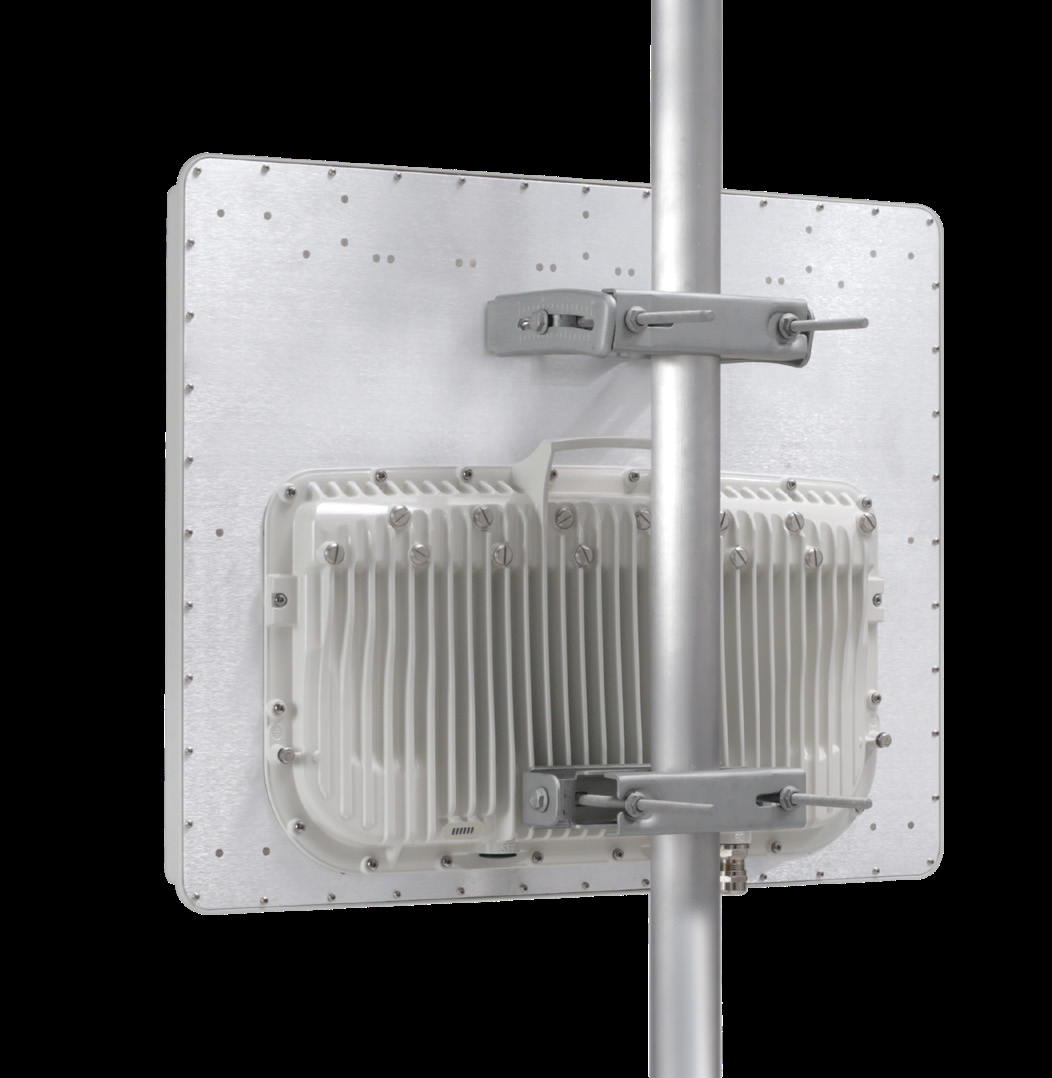

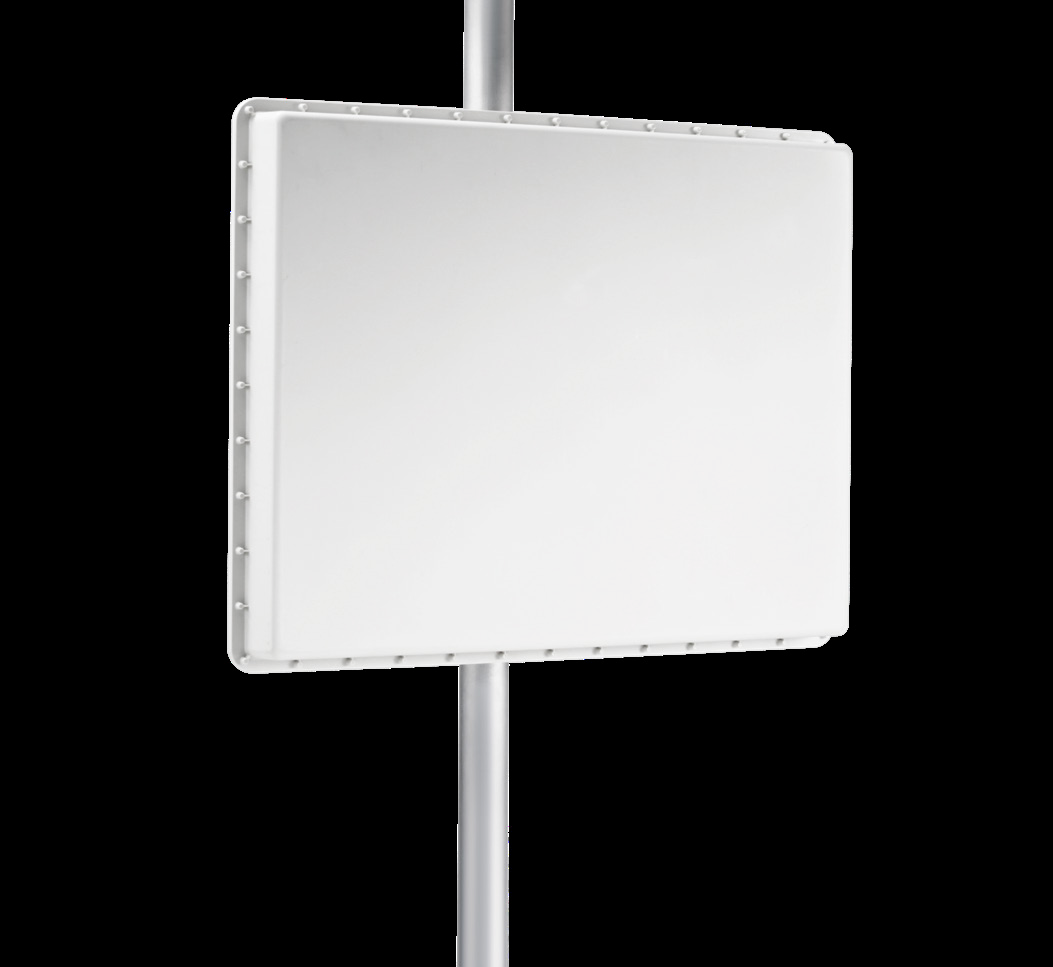

Product Images

2 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the 5 GHz PMP 450m to ensure compatibility with your deployment.

Specifications

Product Model NumbersRoW US EU No Encryption ISED

Integrated 90º SectorC050045A101A C050045A102A C050045A103A C050045A104A C050045A105A

Limited VersionC050045A111A C050045A112A C050045A113A C050045A114A C050045A115A

Spectrum

Frequency Range5150-5925 MHz (4940-4990 MHz with optional license, C000045K149A)

Channel Width5, 10, 15, 20, 30 and 40 MHz

Interface

MAC (Media Access Control)Cambium Networks proprietary

Physical Layer14 x 14 Multi-User MIMO OFDM

Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support up to 2.5NBase-T

Protocols UsedIPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP HTTP, HTTPS, Telnet, FTP, SNMP v3

Network Management

VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Security

Encryption256-bit AES (Requires Optional License) 5 GHz PMP 450m Access Point

Subscribers Per SectorUp to 238

ARQYes

Modulation Levels (Adaptive)MCS Signal to Noise Required (SNR, in dB)

2xQPSK 10

4x16 QAM 17

6x64 QAM 24

8x256 QAM 32

Ultimate Sensitivity-94 dBm

Maximum Deployment RangeUp to 64 km (40 miles)

Latency10 ms, typical

GPS SynchronizationYes, via Autosync (CMM5 or UGPS)

Quality of ServiceDiffserve QoS

Antenna

Beam width - Azimuth90° integrated sector (dual polarity, H+V, 3dB rolloff), 120° (6dB rolloff)

Beam width - Elevation2° Electrical Downtilt, 8° Elevation Beamwidth and Null Fill down to -30°

Maximum EIRP+ 45 dBm (or up to maximum allowed by regulation)

Physical

Antenna ConnectionIntegrated Sector Array

Surge Suppression (with LPU)EN61000-4-5: 10/700μs, 2 kV voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000065L007C

Mean Time Between Failure> 40 Years

EnvironmentalIP67, IP66

Temperature / Humidity-40°C to 60°C (-40°F to 140°F), 0-95% non-condensing

WeightIntegrated - Approx. 14.2 kg (31.31 lbs)

Wind Survival200 kph (124 mph)

Wind Loading - Front Facing@144 kph / 90 mph: 376 N @177 kph / 110 mph: 562 N @200 kph / 124 mph: 780 N

Dimensions (Diameter x Depth)Integrated - 52 x 65 x 11 cm (20.3 x 25.7 x 4.4 in)

Power Consumption70 W typical, 80 W peak (up to 110 W max with AUX port PoE enabled)

Input Voltage40 - 60 VDC

MountingPole mount with included brackets (1.25 in to 4 in pole diameter) 5 GHz PMP 450m Access Point

Certifications

ISED Canada 109A0-50450M(5.1*, 5.2, 5.4, 5.8 GHz)

FCC ID QWP-50450M(4.9*, 5.1, 5.2, 5.4, 5.8 GHz)

CE EN 301893 v2.1.1

EN 302502 v2.1.1

5 GHz 450m AntennaPatterns (Sector Mode) MedusaElevation MedusaAzimuth 105 75

105° 75 ° ° ° ° ° 120 60

12060

°° ° °

13545 135 45

°° ° ° 150 30

15030 ° °

°°

5200HC5200HC 5200HX 5200VC

16515 165 5 2 0 0 V X 15

°° ° ° 5 3 0 0 H C

5300HX5300HX

5300VC5300VC

5 3 0 0 V X5 3 0 0 V X 118800 35 0

11880035 0

5 6 0 0 H C- °° 5 6 0 0 H C -

- °°-

5600HX5600HX 30 5600VC -

5600VC- 25 5600VX 25 -

5 8 0 0 H C- 5 8 0 0 H C

16515 165 15 20 20

- ° 5 8 0 0 H X- ° - ° 5 8 0 0 H X - ° - -

5800VC5800VC 15 15

5800VX- 5800VX - 10 10

15030 150 30 - -

- °- ° - ° - ° 5 5 - - 0 0

13545 135 45

- °- ° - ° - ° 5 5

12010 60 120 10 60

- °- ° - ° - °

10515 75 105 15 75

-° 90 - ° - ° 90 - ° - ° - °

5GHz Azimuth 5 GHz Elevation
