Cambium Networks 5Ghz Bridge-in-a-Box 1GB
Pre-paired 5 GHz 1 Gbps wireless bridge kit for plug-and-play building-to-building links.
Talk to a Pro
5Ghz Bridge-in-a-Box 1GB
- Specs: Pre-Paired Plug-and-Play 5 GHz 1 Gbps Point-to-Point Wireless Bridge Kit
- Pre-paired plug-n-play link for easy
- Four models that each include 2 wireless
- Speed ranges from 600 Mbps (UHD Pro) to
- Range from 150 m (1Gb) to 8 km (UHD Pro
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks 5Ghz Bridge-in-a-Box 1GB
Pre-paired plug-n-play 1 Gbps throughput in each direction up to 5 kilometers.
Product Highlights
High-Speed Connectivity Made Easy
Thousands of small businesses and residential customers
network from wherever you have an Ethernet port to wherever you need one—from feet to miles away (20 meters to kilometers). The modules are easy to deploy
GHz GHz GHz GHz
Up to Gbps Up to 1.8 Gbps Up to Up to 1Gbps
Enterprise/ Enterprise/ Industrial Enterprise/ Prosumer Industrial Industrial Range: Range: Range: Range: m / ft km / 0.6 mi km / mi km / mi IP66/67 IP66/67 IP67 IP
Ideal Applications
Plug-and-play 5 GHz 1 Gbps point-to-point links for buildings up to 150 m apart. Fast deployment for SMB networks, outbuildings, and pop-up operations.
Product Images
6 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the 5Ghz Bridge-in-a-Box 1GB to ensure compatibility with your deployment.
Specifications
Bridge-in-a-Box1Gb Bridge-in-a-Box 2 Gb Bridge-in-a-Box UHD Pro 5 GHz Bridge-in-a-Box 1Gb
Wireless Standard 802.11aystandard 802.11ay standard ePTP proprietary ePTP proprietary protocol; supports lower protocol; supports lower latencies, longer ranges, latencies, longer ranges, higher reliability higher reliability
Wired Interface 1 x 100/1000BaseT with 1 x 2.5 GbE PoE Input Gigabit/fast Ethernet Gigabit/fast Ethernet PoE In 1 x 2.5 GbE PoE 802.3at (100/1000 BaseT) (100/1000 BaseT) Output
FunctionsN/A N/A Traffic prioritization using Traffic prioritization using QoS (Quality of Service), QoS (Quality of Service), WEP security WEP security
Radio Power Upto 38 dBm EIRP Up to 49 dBm EIRP Up to 28 dBm EIRP Up to 28 dBm EIRP
Antenna22.5 dBi 34.5 dBi 19 dBi 18 dBi
EnvironmentalIP66/67 IP66/67 IP67 IP55
Operating -40ºCto 60ºC -40ºC to 60ºC -30ºC to 60ºC -30ºC to 55ºC
(-40ºFto 140ºF) (-40ºF to 140ºF) (-22ºF to 140ºF) (32ºF to 104ºF)
Mounting 25mm to 70 mm 25 mm to 70 mm Included pole mount, Included pole mount,
(1in to 2.75 in) (1 in to 2.75 in) supporting supporting 2.5 cm to 4.1 cm 2.5 cm to 4.1 cm Bracket provides fine (1.0 in to 1.6 in) (1.0 in to 1.6 in) adjustment of up to +/-20° in elevation
128-bitAES encryption 128-bit AES encryption 128-bit AES encryption, 128-bit AES encryption,
Specifications
Bridge-in-a-Box1Gb Bridge-in-a-Box 2 Gb Bridge-in-a-Box UHD Pro 5 GHz Bridge-in-a-Box 1Gb
57–66GHz 57–66 GHz 4910–5970 MHz* 5150–5920 MHz* N/A N/A Configurable in Configurable in 5 MHz increments 5 MHz increments
Channel Bandwidth 2.16GHz, 4.32 GHz 2.16 GHz, 4.32 GHz 5 | 10 | 20 | 40 | 80 MHz 20 | 40 | 80 MHz
Ethernet Interface 1 x 100/1000BaseT with 1 x 2.5 GbE PoE Input 10/100/1000 BaseT, 10/100/1000 BaseT, 1 x 2.5 GbE PoE 802.3at PoE In compatible with Cambium compatible with Cambium Output PoE & standard PoE PoE & standard PoE pinouts pinouts
Protocols IPv4, IPv6,Layer2 Bridge, IPv4, IPv6, Layer2 Bridge, IPv4/IPv6 (Dual Stack), UDP, IPv4/IPv6 (Dual Stack), UDP,
Layer3IPv6 Routing, Layer3 IPv6 Routing, TCP, ICMP, SNMPv2c, NTP, TCP, ICMP, SNMPv2c, NTP,
Open/RDistributed Open/R Distributed STP, IGMP, SS STP, IGMP, SS
NetworkingNetworking

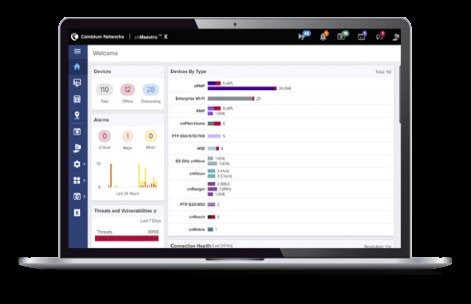

Network cnMaestro,HTTP, HTTPS, cnMaestro, HTTP, HTTPS, IPv4/IPv6, HTTPs, IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium SNMPv2c, SSH, Cambium
Management SNMPv2c & v3 SNMP v2c & v3 Networks cnMaestro™ Networks cnMaestro
VLAN 802.1ad(QinQ), 802.1Q 802.1ad (QinQ), 802.1Q 802.1Q with 802.1p priority 802.1Q with 802.1p priority
with802.1p priority with 802.1p priority Yes Yes Yes Yes
MCS-0(BPSK) to MCS-10 MCS-0 (BPSK) to MCS-12 MCS-0 (BPSK) to MCS-9 MCS-0 (BPSK) to MCS-11
(16-QAM-3/4)(16-QAM-3/4) (256 QAM-5/6) (1024 QAM-5/6)
Surge Suppression2KV 2KV 2KV 2KV
Weight 0.46kg (1.01 lb) 1.9 kg (4.2 lb) with 1.45 kg (3.2 lb) with 2.76 kg (6.1 lb) with mounting bracket mounting bracket mounting bracket
Wind Survival 200km/h (124 mph) 200 km/h (124 mph) 180 km/h (112 mph) 180 km/h (112 mph)
Dimensions H x W x 169x 100 x 54 mm With integrated bracket: Without mounting bracket: Without mounting bracket:
(6.65x 3.94 x 2.13 in) 249 x 166 x 220 mm 278 x 278 x 45 mm 180 x 210 x 39 mm (9.8 x 6.6 x 8.6 in) (10.9 x 10.9 x 1.8 in) (7 x 8.2 x 1.5 in) Without integrated bracket: 249 x 166 x 166 mm (9.8 x 6.5 x 6.6 in)
Power10W 18W 12W 13W
Consumption(48W when using PoE (Up to 15W in extreme cold output port) temperatures when heater is activated)
FCCID QWP-60V1000QWP-60V2000 Z8H89FT0048 Z8H89FT0088
Industry Canada 109AO-60V1000109AO-60V2000 109W-0048 109W-0088
CE 57–66GHz: 57–66 GHz: 5.4 GHz: EN 301 893 V2.1.1 5.4 GHz: EN 301 893 V2.1.1
EN 302567 V2.1.1 EN 302 567 V2.1.1 5.8 GHz: EN 302 502 5.8 GHz: EN 302 502
57–71GHz: 57–71 GHz: V2.1.1 V2.1.1
EN 303722 V0.0.4 EN 303 722 V1.2.1
*Exact frequencies as allowed by localregulations Bridge-in-a-Box
Bridge-in-a-Box 1Gb OrderingInformation
60 GHzBridge-in-a-Box 1Gb with US cord
C600510C003A 60 GHzBridge-in-a-Box 1Gb with EU cord
C600510C004A 60 GHzBridge-in-a-Box 1Gb with UK cord
C600510C008A 60 GHzBridge-in-a-Box 1Gb with ANZ cord
C600510C009A 60 GHzBridge-in-a-Box 1Gb with Brazil cord
C600510C010A 60 GHzBridge-in-a-Box 1Gb with Argentina cord
C600510C011A 60 GHzBridge-in-a-Box 1Gb with China cord
C600510C012A 60 GHzBridge-in-a-Box 1Gb with South Africa cord
C600510C013A 60 GHzBridge-in-a-Box 1Gb with India cord
60 GHzBridge-in-a-Box 1Gb with no cord
C600510C016A 60 GHzBridge-in-a-Box 1Gb with Israel cord - Israel Only
Bridge-in-a-Box 2Gb OrderingInformation
C600510C020B 60 GHzBridge-in-a-Box 2Gb with US cord
C600510C026B 60 GHzBridge-in-a-Box 2Gb with Israel cord - Israel Only
C600510C027B 60 GHzBridge-in-a-Box 2Gb with South Africa cord
C600510C028B 60 GHzBridge-in-a-Box 2Gb with India cord
C600510C029B 60 GHzBridge-in-a-Box 2Gb with no cord
C600510C030B 60GHzcnWave V2000 Client Node no power supply, no cord
C600510C031B 60 GHzBridge-in-a-Box 2Gb with EU cord
C600510C032B 60 GHzBridge-in-a-Box 2Gb with UK cord
C600510C033B 60 GHzBridge-in-a-Box 2Gb with ANZ cord
C600510C034B 60 GHzBridge-in-a-Box 2Gb with Brazil cord
C600510C035B 60 GHzBridge-in-a-Box 2Gb with Argentina cord
Bridge-in-a-Box UHD PROOrdering Information
C058900B901A Bridge-in-a-BoxUHD PRO 5 GHz (FCC) (US cord)
C050900B901A Bridge-in-a-BoxUHD PRO 5 GHz (IC) (Canada/US cord)
C050900B902A Bridge-in-a-BoxUHD PRO 5 GHz (EU) (EU cord)
C050900B903A Bridge-in-a-BoxUHD PRO 5 GHz (EU) (UK cord)
Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (no cord)
C050900B905A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (US cord)
C050900B906A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (EU cord)
C050900B907A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (UK cord)
C050900B908A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (India cord)
Bridge-in-a-BoxUHD PRO 5 GHz (India) (India cord)
C050900B910A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (China cord)
C050900B911A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (Brazil cord)
C050900B912A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (Argentina cord)
C050900B913A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (ANZ cord)
C050900B914A Bridge-in-a-BoxUHD PRO 5 GHz (ROW) (South Africa cord) Bridge-in-a-Box
5 GHz Bridge-in-a-Box 1Gbps Ordering Information
Bridgein a Box 1Gb 5 GHz (EU) (EU cord)
Bridgein a Box 1Gb GHz (EU) (UK cord)
C050940B132A Bridgein a Box 1Gb 5 GHz (FCC) (US cord)
C050940B134A Bridgein a Box 1Gb 5 GHz (IC) (Canada/US cord)
Bridgein a Box 1Gb 5 GHz (India) (India cord)
Bridgein a Box 1Gb 5 GHz (ROW) (ANZ cord)
Bridgein a Box 1Gb 5 GHz (ROW) (Argentina cord)
Bridgein a Box 1Gb 5 GHz (ROW) (Brazil cord)
C050940B531A Bridgein a Box 1Gb 5 GHz (ROW) (China cord)
C050940B231A Bridgein a Box 1Gb 5 GHz (ROW) (EU cord)
Bridgein a Box 1Gb 5 GHz (ROW) (India cord)
Bridgein a Box 1Gb 5 GHz (ROW) (no cord)
Bridgein a Box 1Gb 5 GHz (ROW) (South Africa cord)
C050940B331A Bridgein a Box 1Gb 5 GHz (ROW) (UK cord)
C050940B131A Bridgein a Box 1Gb 5 GHz (ROW) (US cord)
Bridgein a Box 1Gb 5 GHz (Indonesia) (EU cord)
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works. ‘
