Cambium Networks cnReach N550 900 MHz Narrowband Fixed Wireless

900 MHz narrowband IoT radio for utility SCADA and AMI.

Cambium Networks cnReach N550 900 MHz Narrowband Fixed Wireless
Talk to a Pro
Contact Us 855-958-0754 Email Sales
cnReach N550 900 MHz Narrowband
  • Specs: cnReach N550 900 MHz Radio
  • The cnReach N550 900 MHz radio can be configured for either licensed MAS or unlicensed ISM operation and with extensive I/O eases the migration to a reliable all-IP network.
  • Adaptive modulation and access point synchronization reduce self-interference and enable scalability in dense environments.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks cnReach N550 900 MHz Narrowband Fixed Wireless

The cnReach N550 900 MHz radio can be configured for either licensed MAS or unlicensed ISM operation and with extensive I/O eases the migration to a reliable all-IP network. Adaptive modulation and access point synchronization reduce self-interference and enable scalability in dense environments.

Product Highlights

re- and-forward applications.

For outdoor critical infrastructure operations, cnReach™ transports process monitoring and control data from remote sensors or RTU/PLCs back to the operations center, supporting real-time automated decision making and on- going analytics.

Sophisticated network planning with LINKPlanner, a no- charge planning tool enabling network designers to predict both capacity and availability of networks crossing all of Cambium’s technologies

Covering large geographic areas, hard-to-reach terrain, and challenging spectrum environments, cnReach delivers reliable, secure connectivity to the petrochemical, electric utility, water/wastewater/stormwater, and transportation industries. cnReach eases the migration to modern networks by combining legacy serial and analog/digital I/O with TCP/IP and Ethernet connectivity.

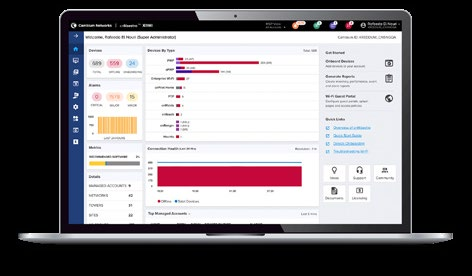

Supported by cnMaestro Network Management

software for monitoring the status of entire networks carrying traffic across sensors

Fully integrated into the single-pane-of-glass cnMaestro™ Network Management platform, cnReach helps bridge the IT/OT sides of complex organizations.

Combining cnReach’s licensed and unlicensed narrow- band radios with Cambium Networks’ broadband technologies, industrial organizations are delivering end-to- end industrial internet of things (IIoT) solutions today.

Ideal Applications

900 MHz narrowband IoT/SCADA radio for utility AMI, substation telemetry, oil & gas monitoring, and industrial sensor networks over long distances.

Product Images

2 photos
Product image 1
Product image 2
Technical Details

Hardware Specifications

Comprehensive technical data for the cnReach N550 900 MHz Narrowband to ensure compatibility with your deployment.

Radio Specifications

Frequency Range 896–901MHz and 935–940 MHz
Output TX Power 10mW to3W (10 dBm to 34.7 dBm)
Modulations MSK / QPSK/ 8PSK / 16QAM / 32QAM / 64QAM
Capacity* 10 Kbpsup to 105 Kbps
Channel 12.5 / 25(contact Cambium Networks for 50 kHz and 100 kHz options)
Range Up to 110km / 70 mi
Packet Handling Layer 2bridge, layer 3 static routes, VLAN support
Error Correction Up to 32-bitCRC, retransmit on error
Data Encryption 128/256-bitAES

Radio Specifications

Frequency Range 902–928MHz (915–928 MHz in Australia) 928–960 MHz
Output TX Power 10mW to1W (10 dBm to 30 dBm) 10mW to 4W (10dBm to 36dBm)
Step Size 50mW50mW
Modulations MSK / 2FSK/ BPSK / QPSK / 8PSK / 16PSK / 16QAM / MSK / 4FSK / QPSK / 8PSK / 16QAM / 32QAM / 64QAM
Capacity* 57 kbpsup to 4.4 Mbps 10 kbps up to 210 kbps
Channel FHSS: 76/ 154 / 207 / 310 kHz 12.5 / 25 / 50 kHz
DTS: 600/ 1200 kHz
Range Up to 110km / 70 mi Up to 110 km / 70 mi
Packet Handling Layer 2bridge, layer 3 static routes, VLAN support Layer 2 bridge, layer 3 static routes, VLAN support
Error Correction Up to 32-bitCRC, retransmit on error Up to 32-bit CRC, retransmit on error
Data Encryption 128/256-bitAES 128/256-bit AES cnReach N550 896/935 MHz
Receive Sensitivity (MASMode) 12.5 kHz Channel 25 kHz Channel 50 KHz Channel
Rx SensitivityCapacity* Rx Sensitivity Capacity* Rx Sensitivity Capacity*
(dBm)(Kbps) (dBm) (Kbps) (dBm) (Kbps)
-11410 -115 19 -112 39
-10823 -110 36 -108 71
-10134 -105 52 -101 101
-9745 -100 70 -98 137
-9157 -96 87 -93 175
---- -91 105 -84 210
*Capacities are over-the-air signalingrates. Usable throughput varies based on payload size, uplink/downlink ratio, and protocol. UDP traffic is typically 55%–60%
Receive Sensitivity (ISMMode)
76 KHzChannel 154 KHz Channel 207 KHz Channel 310 KHz Channel
Rx SensitivityCapacity* Rx Sensitivity Capacity* Rx Sensitivity Capacity* Rx Sensitivity Capacity*
(dBm)(Kbps) (dBm) (Kbps) (dBm) (Kbps) (dBm) (Kbps)
-11410 -115 19 -112 39 -106 229
Receive Sensitivity (ISMMode) 600 KHz Channel 1200 KHz Channel
Rx Sensitivity(dBm) Capacity* (Kbps) Rx Sensitivity (dBm) Capacity* (Kbps) -101 530 -99 884 -98 1061 -97 1768 -93 1591 -91 2651 -90 2121 -88 3535 -84 2651 -82 4419
*Capacities are over-the-air signalingrates. Usable throughput varies based on payload size, uplink/downlink ratio, and protocol. UDP traffic is typically 55%–60%

Remote management via SNMP

Support for configuration files,remote software upgrades
Built-in diagnostic tools via webinterface such as RF ping and RF throughput cnReach N550 896/935 MHz

Ethernet Interfaces

10/100BaseT,full duplex, rate auto negotiated (802.3 compliant)

Serial Interfaces 2 x RJ-45

RS-232/422/485,up to 230.4 kbps
Analog/Digital I/O 8 pinsfor analog input/output and digital input/output
RF / Antenna TNC RFconnectors (1 or 2 depending on single- or dual-radio configuration)
Input Power 10–32VDCwith reverse polarity protection
Power ConsumptionISM (1W) MAS (3W)
TransmitReceive Idle Transmit Receive Idle
Single Radio611 266 194 495 380 210 860 380 215 580 421 293

Dual Radio

Dimensions 168 x876 x 466 mm (6.625 x 3.45 x 1.835 in)
Weight Single-radioconfiguration: 0.70 kg (1.54 lb)
Dual-radioconfiguration: 0.73 kg (1.61 lb)
-40°Cto 75°C (-40°F to 167°F)
Humidity 95% operatinghumidity at 60°C non-condensing
HAZLOC UL-approvedto Class 1 / Div 2
Deployment Point-to-point(PTP), point-to-multipoint (PMP), repeater (REP) – single or dual radio US/Canada (FCC/IC) Australia
N550 900 MHz NB-N550910B-USNB-N550910B-AU
NB-N550911B-USNB-N550911B-AU
N550 900 MHz Dual NB-N550920B-USNB-N550920B-AU
N550 900 MHz Dual NB-N550921B-USNB-N550921B-AU
N550 IO Expander NB-N550001A-USNB-N550001A-AU

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads

Documentation & Resources

Download datasheets and technical documentation for the cnReach N550 900 MHz Narrowband.

Data Sheet

Download PDF →
