Cambium Networks cnWave 60 GHz V1000 Client Node

Dense enterprise environments leveraging the clean, uncongested 6 GHz band for interference-free, low-latency connectivity.

cnWave 60 GHz V1000 Client Node
  • Specs: Fixed Wireless Node
  • The V1000 Client Node is featured with wide-range, 80º beamforming for easy installation.
  • Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks cnWave 60 GHz V1000 Client Node

The V1000 Client Node is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

60 GHz

Product Highlights

deployments

Cambium Networks’ cnWave GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.

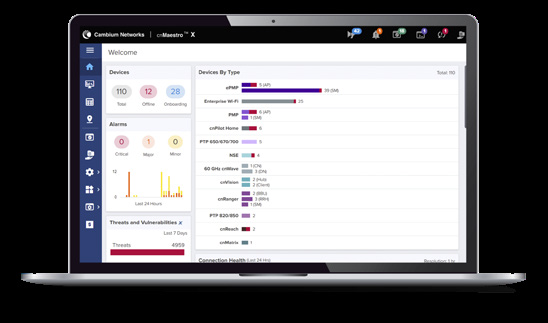

Cloud and on-premises management

cnWave GHz operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to Gbps with Gbps in the uplink direction and Gbps in the downlink direction.

Ideal Applications

Dense enterprise environments leveraging the clean, uncongested 6 GHz band for interference-free, low-latency connectivity. Healthcare, education, and hospitality networks requiring reliable high-throughput wireless across large deployments.

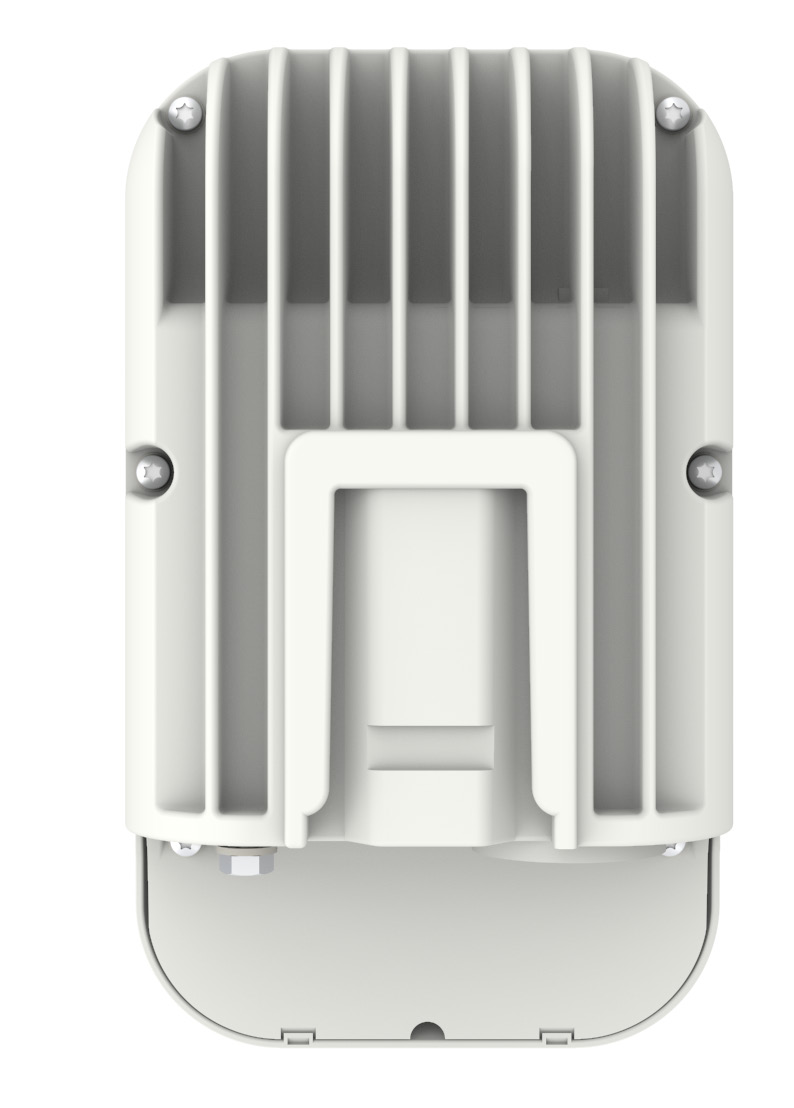

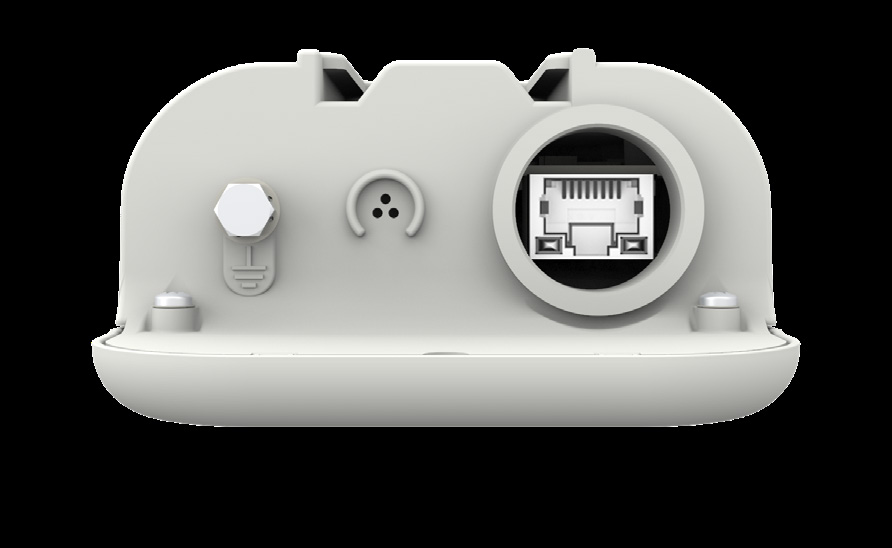

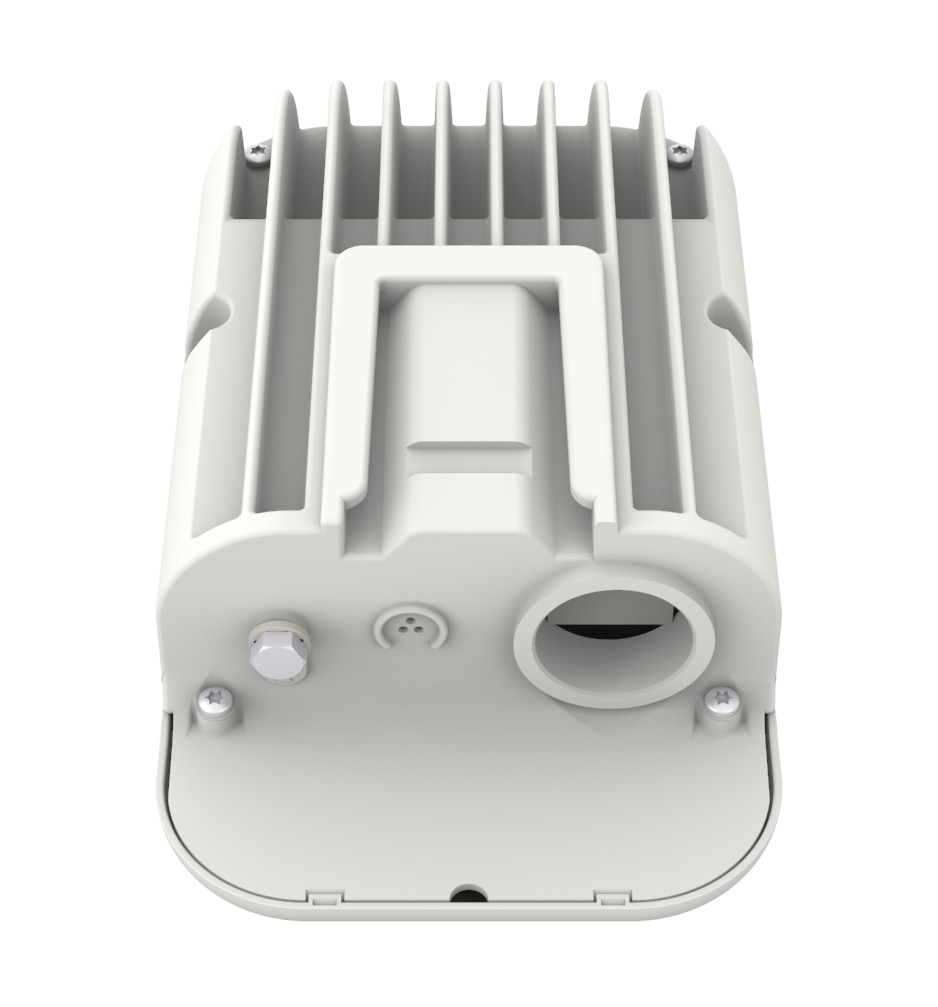

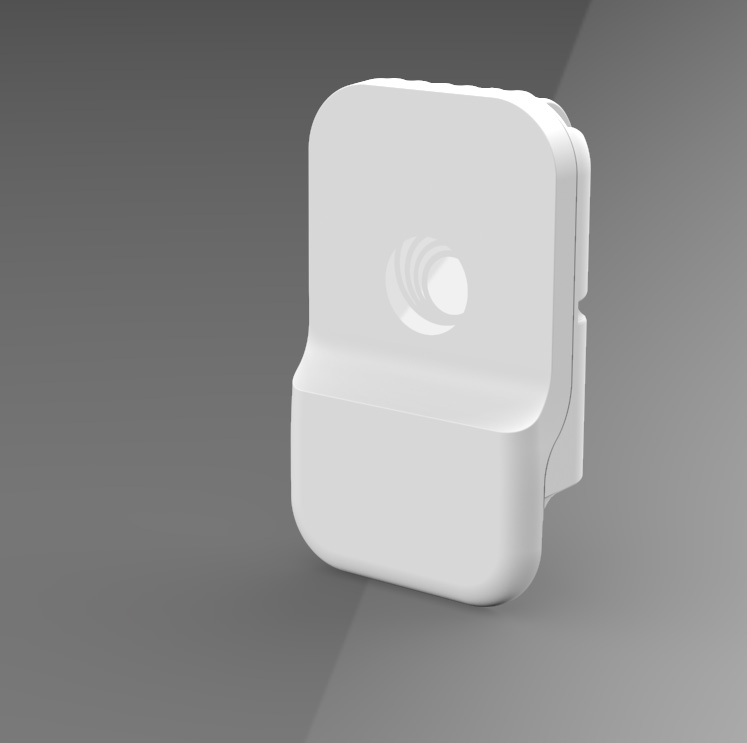

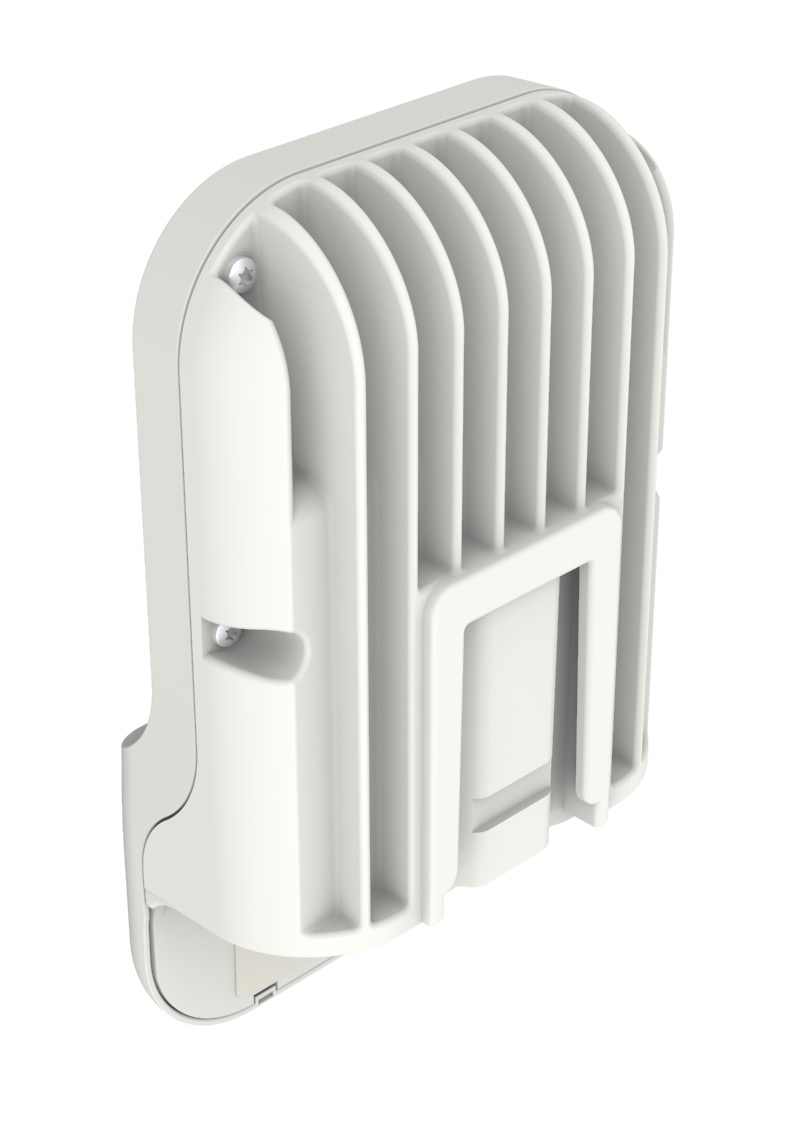

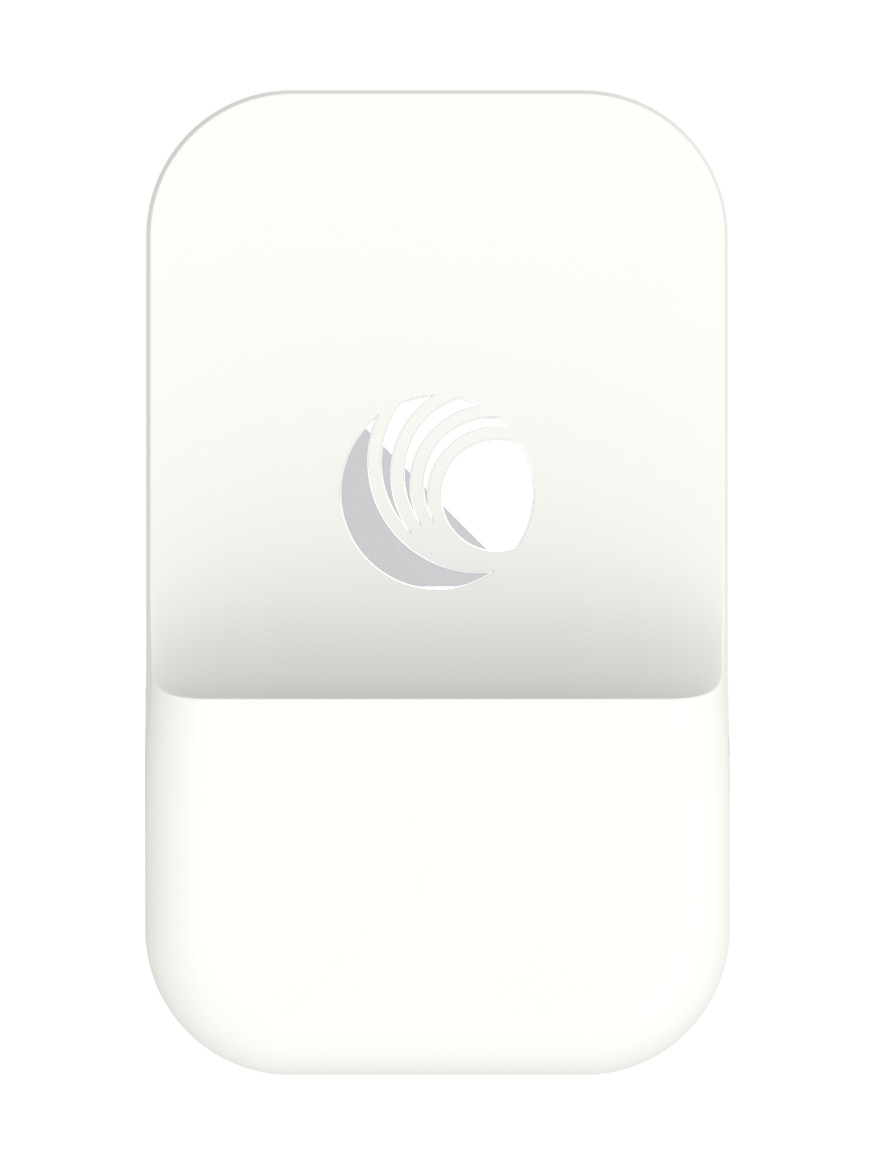

Product Images

8 photos
Technical Details

Hardware Specifications

Comprehensive technical data for the cnWave 60 GHz V1000 Client Node to ensure compatibility with your deployment.

Specifications

SpectrumPerformance
FrequencyModulation &
57 to 66GHz in a single SKU MCS-0 (BPSK) to MCS-10 (16-QAM) Coding Schemes
2.16 GHz,4.32 GHz* < 1 ms
Channel WidthLatency
Carrier Bonding* Up to 2adjacent channels Maximum EIRP 38 dBm
PMP Clientor PTP Antenna Gain 22.5 dBi

Interface

Channel Access TDMA/TDDType Integrated
EthernetBeamforming
1 x 100/1000BaseT with PoE In +/- 40º azimuth, +/- 20º elevation
InterfaceScan Range Beam Width 12º

Networking

Protocols IPv4, IPv6,Layer2 Bridge, Layer3 IPv6
Supported Routing,Open/R Distributed Networking Powering

Network

cnMaestro,HTTP, HTTPS, SNMP v2c & v3 Type

Management

1,900 bytes10W Consumption
VLAN 802.1ad(QinQ), 802.1Q with 802.1p priority Physical Environmental IP66/67

Security

Encryption 128-bit AESTemperature -40ºC to 60ºC (-40ºF to 140ºF)
FirmwareMean Time
SignedFirmware Images > 40 years
SecurityBetween Failure
*Weight 0.46 kg (1.01 lbs) 169 mm x 100 mm x 54 mm Dimensions H x W x D (6.65 in x 3.94 in x 2.13 in) 200 km/h (124 mi/h) Wind Survival cnWave™ 60 GHz V1000 Client Node DDAATTAA SSHHEEEETT ccnnWWaavvee™™ 6600 GGHHzz VV11000000 CClliieenntt NNooddee
cnWave60 GHz V1000 Client Node with US cord
C600500C003A cnWave60 GHz V1000 Client Node with EU cord
cnWave60 GHz V1000 Client Node with UK cord
C600500C008A cnWave60 GHz V1000 Client Node with ANZ cord
cnWave60 GHz V1000 Client Node with Brazil cord
C600500C010A cnWave60 GHz V1000 Client Node with Argentina cord
cnWave60 GHz V1000 Client Node with China cord
C600500C012A cnWave60 GHz V1000 Client Node with South Africa cord
cnWave60 GHz V1000 Client Node with India cord
C600500C014A cnWave60 GHz V1000 Client Node with no cord
cnWave60 GHz V1000 Client Node with Israel cord - Israel Only
C600500C017A cnWave60 GHz V1000 Client Node with no cord no power supply

About Cambium Networks

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital experiences,
and device connectivity, withcompelling economics. Our ONE Network platform simplifies management of Cambium Networks’ wired and
wireless broadband and networkedge technologies. Our customers can focus more resources on managing their business rather than the
network. We deliver connectivitythat just works. 3800 Golf Road Suite 360, Rolling Mceaadmobwisu,m Illnineotisw 6o0r0k0s.8c oUmSA
Downloads

Documentation & Resources

Download datasheets and technical documentation for the cnWave 60 GHz V1000 Client Node.

Data Sheet

Download PDF →
