Cambium Networks ePMP Force 200
5 GHz AR5-25 High Gain Radio


Cambium Networks ePMP Force 200

Cambium Networks Products
ePMP 2000 Interferences
ePMP 5 GHz Force 200 AR5-25 High Gain Radio (FCC) (US cord)
#C058900C062A
Our Price: $159.85
ePMP 2.4 GHz Force 200 AR2-25 High Gain Radio (US cord)
#C024900C161A
Our Price: $171.35

Click here to jump to more pricing!

Overview:

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 and 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 25 dBi antenna. Configurable Modes of operation ensure robust adaptivity…

Features:

  • Cambium Networks’ ePMP Force 200 is designed to operate in high interference environments and provides superior throughput of over 200 Mbps of real user data.
  • Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
  • QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of traffic priority.
  • Long deployment range is enabled by a high gain antenna combined with 30 dBm of transmit power.
  • This platform can be configured as a Subscriber Module or a high gain PTP radio.

ePMPePMP 2000 Solutions:

So long, interference

Cambium Networks’ ePMP 2000 takes interferencetolerant, high performance, and reliable wireless broadband to a new level with innovative technology and proven, deployed-worldwide equipment, keeping you and your customers happy for an affordable price.

ePMP 2000 is built from the ground up to provide high performance, reliably, in real-world interference-heavy environments. Powered by innovative Hypure™ technology, ePMP 2000 incorporates Smart Beamforming and Intelligent Filtering to help you deliver the services your customers expect in the face of heavy interference.

With the feature-rich ePMP foundation including frequency reuse enabled by GPS Synchronization, eFortify, 120 active subscribers per access point and 200+ Mbps of real-world achievable throughput, ePMP 2000 is designed, built and tested to reliably connect people, places, and things.

Example Use Cases

Wireless Service Providers (WISPs)

  • Rural connectivity
  • Municipal connectivity
  • Enterprise and campus connectivity

Enterprise

  • Wireless video surveillance networks
  • Industrial and mining applications
  • LAN extension

End-to-End Performance

ePMP encompasses a comprehensive range of subscriber modules, access points, and sector antennas to make sure your network performs at its best, from end-to-end.

Top Line Specifications

  • Reliable, consistent performance in real-world conditions
  • 5, 10, 20, and 40 MHz channel bandwidths
  • 200+ Mbps of real-world throughput
  • Up to 120 active subscribers per access point
  • Secure over-the-air communications (128-bit AES encryption)
  • Industry leading frequency reuse via GPS Synchronization
  • Configurable QoS for voice, video, and data
  • Up to 64km deployment range
  • Point-to-point and point-to-multipoint options (software configurable)
  • End-to-end cloud management with cnMaestro™

Why ePMP?

Consistent Performance
With industry-leading tolerance to handle outside interference, Automatic Transmit Power Control to control self-interference, and a proven worldwide ePMP MAC scheduling algorithm, ePMP provides consistent performance, no matter how many subscribers are connected. And thanks to Air Fairness, when one subscriber is performing poorly, it doesn’t drag the rest down.

Frequency Refuse
Take that precious spectrum and multiply it across your network. With frequency reuse enabled by GPS Synchronization, ePMP scales to more customers with less spectrum, letting you expand your business while keeping your customers happy. Deployed worldwide and proven over years, it’s the secret ingredient to a scalable network.

Return on Investment
Many operators find when they deploy a network, as it expands over time, they have to redesign it with new equipment once the number of subscribers reaches a certain point, ruining their return on investment plans. With ePMP, affordable doesn’t mean cheap; build your network to last, from the start.

Application Flexibility
Configurable Quality of Service for voice, video, and data lets you offer the services your customers want at the level of service they need. Combined with adaptable modes of configuration that let you support many combinations of bandwidth allocation and latency, a network built on ePMP can handle any application.

Security
Wireless networks are insecure, right? Well, they don’t have to be. With 128-bit AES encryption for all data transmitted across the wireless link, L2 and L3 firewall functionality, and secure management interfaces, ePMP won’t be the weak link in your security chain.

Reliability
By combining highly reliable software, hardware and protocols, ePMP is designed to provide the best service possible for your customers for the long term. Industrial design and industrial-grade components mean your network stays up.

What is Hypure?

ePMP 2000 uses innovative Hypure technology from Cambium Networks. It’s comprised of Smart Beamforming and Intelligent Filtering.


Smart Beamforming

With the optional ePMP 2000 Smart Antenna, Smart Beamforming virtually eliminates the impact of uplink co-channel interference. This has a dramatic effect on the network capacity, with up to 8x uplink throughput increases over ePMP 1000 in real-world conditions. By improving the uplink capacity, overall network performance is substantially increased.

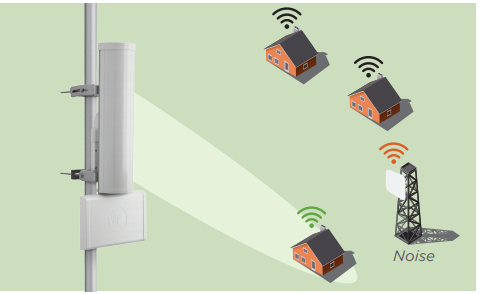

Smart Beamforming dynamically creates a narrow, targeted beam to each subscriber, blocking out interference from other sources.

Smart Beamforming


Intelligent Filtering

Built into the ePMP 2000 Access Point, Intelligent Filtering offers up to 20% uplink throughput increases over ePMP 1000 in real-world conditions. By blocking out adjacent channel interference, your network can focus on the signals it wants to hear rather than being distracted by all the noise around them.

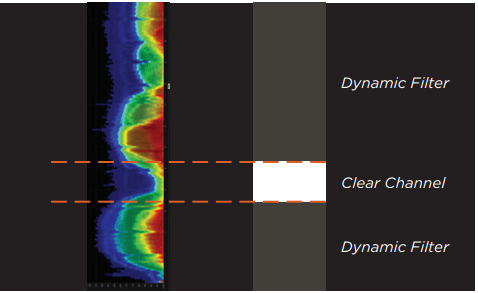

Intelligent Filtering creates a dynamic filter, which wraps around the channel in use, shielding it from others.

Intelligent Filtering


Specifications:


ePMP Force 200 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range 2.4 GHz Model: 2402 – 2472 MHz 5 GHz Model: 4910 - 5970 MHz
Channel Width 5 | 10 | 20 | 40 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary
Physical Layer 2x2 MIMO/OFDM
Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
GPS Synchronization Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range -15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Wind Survival 145 km/hour (90 mi/hour)
Weight 2.4 GHz Model: 2.8 kg (6.2 lbs)
5 GHz Model: 2.3 kg (5.1 lbs)
Dimensions (Dia x Depth) 47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range 6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption 10 W Maximum, 5 W Typical
Input Voltage 10 to 30 V
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID 2.4 GHz: Z8H80FT0019 / 5 GHz: Z8H80FT0015
Industry Canada Cert 2.4 GHz: 109W-0019 / 5 GHz: 109W-0015
CE 5 GHz: EN 302 502 v1.2.1
5 GHz: EN 301 893 v1.7.1

Antenna Patterns:


Antenna Specifications 2.4 GHz Specifications
Frequency Range 2402 – 2472 MHz
Antenna Type Dish
Peak Gain 17 dBi
3dB Beamwidth-Azimuth 17°
3dB Beamwidth-Elevation 17°
Front-To-Back Isolation >20 dB
Cross Polarization >15 dB

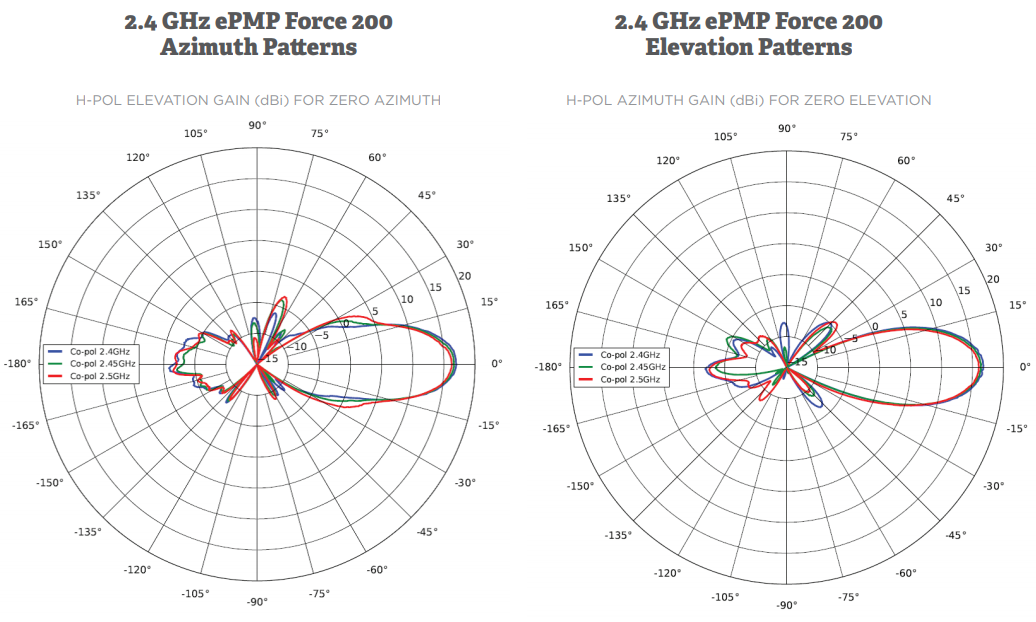

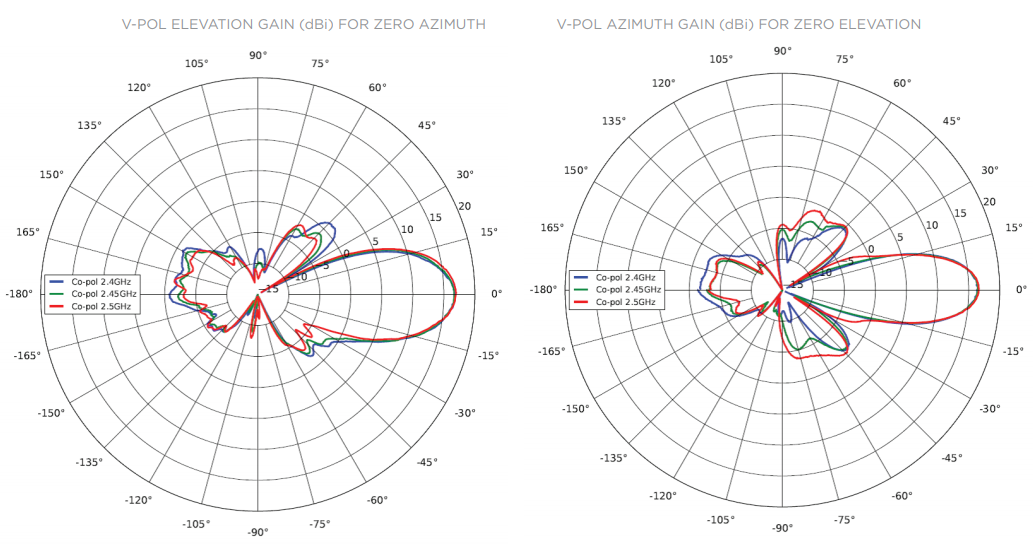

2.4 GHz ePMP Force 200 Azimuth and Elevation Patterns

2.4 GHz ePMP Force 200 Azimuth and Elevation Patterns

Antenna Specifications 5 GHz Specifications
Frequency Range 5150 – 5970 MHz
Antenna Type Dish
Peak Gain 25 dBi
3dB Beamwidth-Azimuth
3dB Beamwidth-Elevation
Front-To-Back Isolation >25 dB
Cross Polarization >15 dB

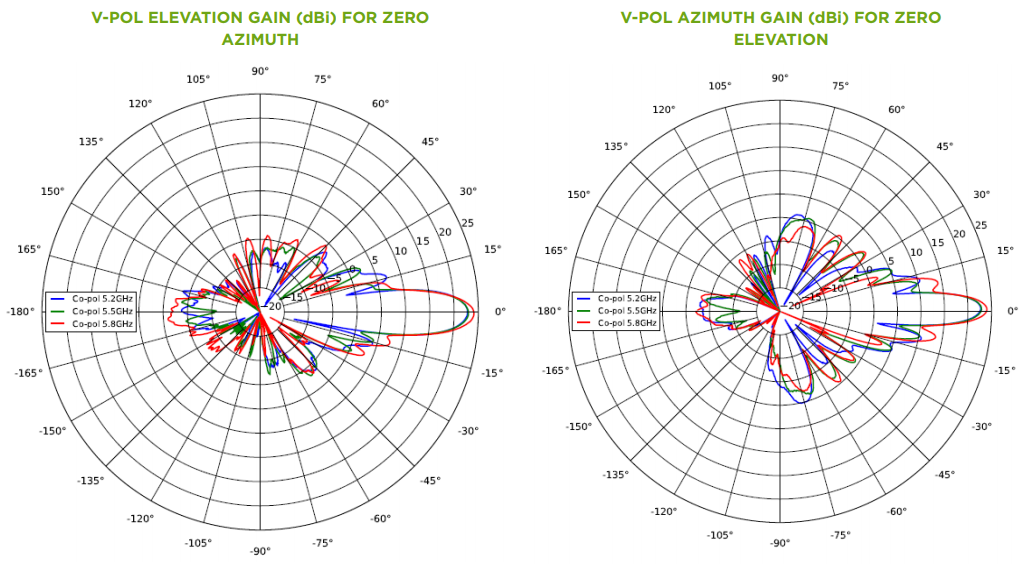

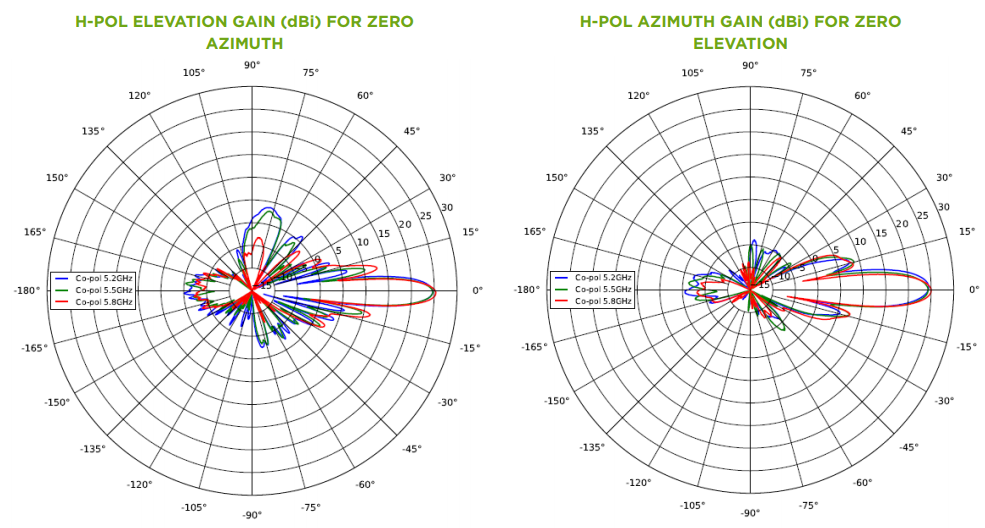

5 GHz ePMP Force 200 Azimuth and Elevation Patterns

5 GHz ePMP Force 200 Azimuth and Elevation Patterns

Views:

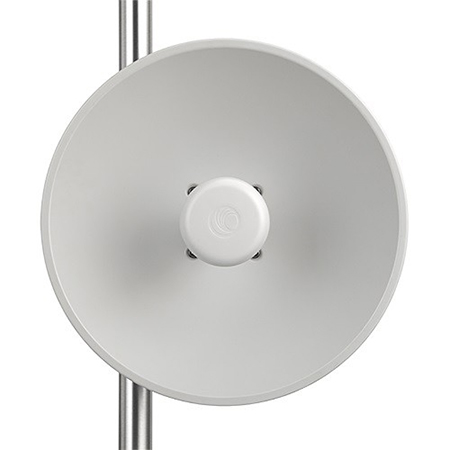

Front View

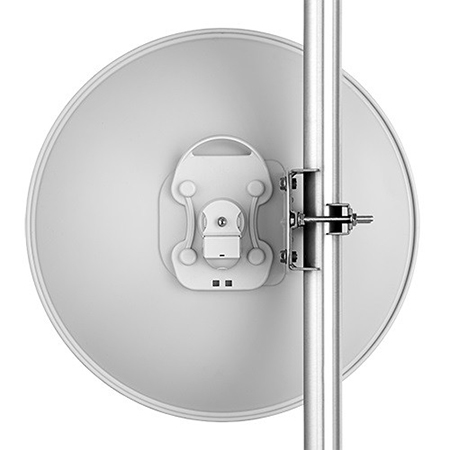

Rear View

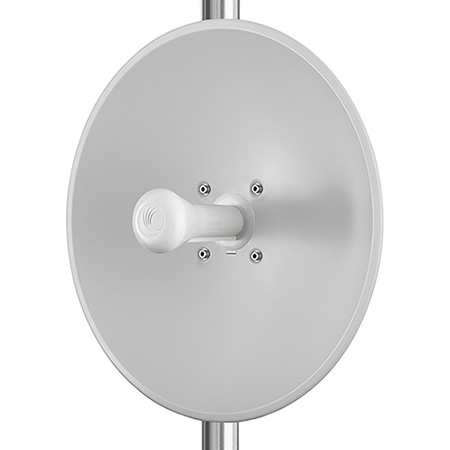

Angled View

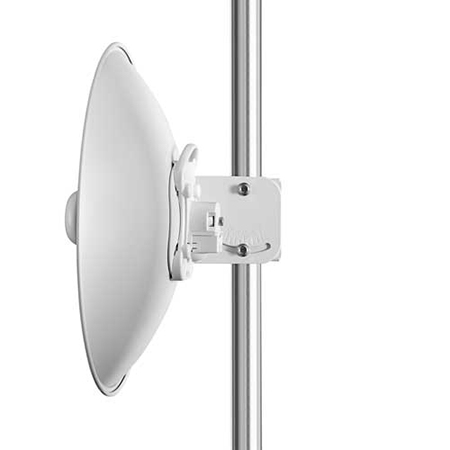

Side View

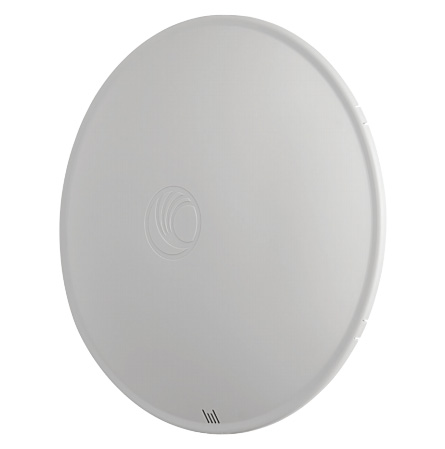

With Optional Radome Sold Separately
With Optional Radome
Sold Separately


Documentation:

Download the Cambium Networks ePMP Force 200 Datasheet (.PDF)
