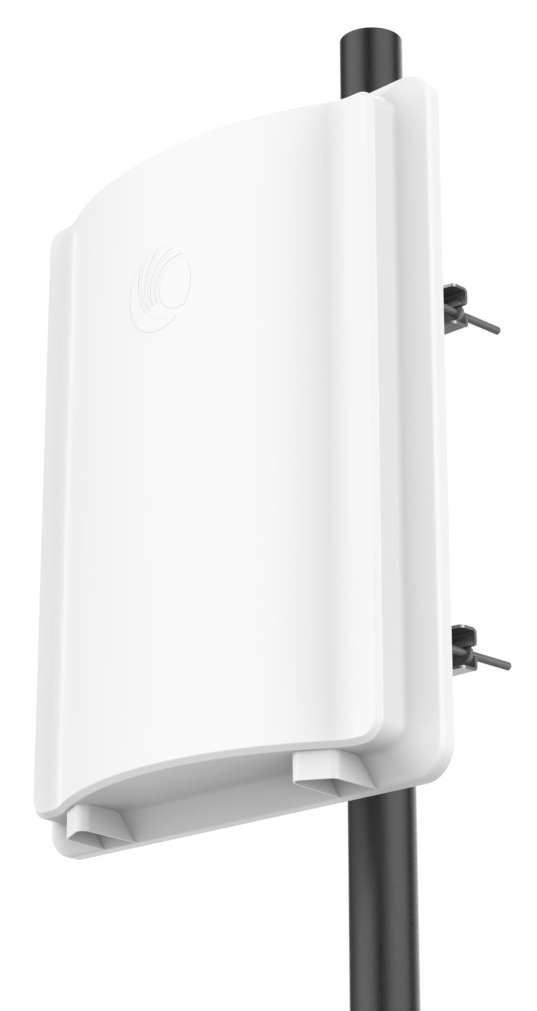

ePMP 4500 / 4500C / 4500L 5 GHz

Specs: ePMP 4500 Series Access Points

Gbps capacity leveraging 80 MHz channels and 802.11ax technology spanning from 4910-6135 MHz.
Integrated (4500) or Connectorized (4500C / 4500L) options available.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Product Overview

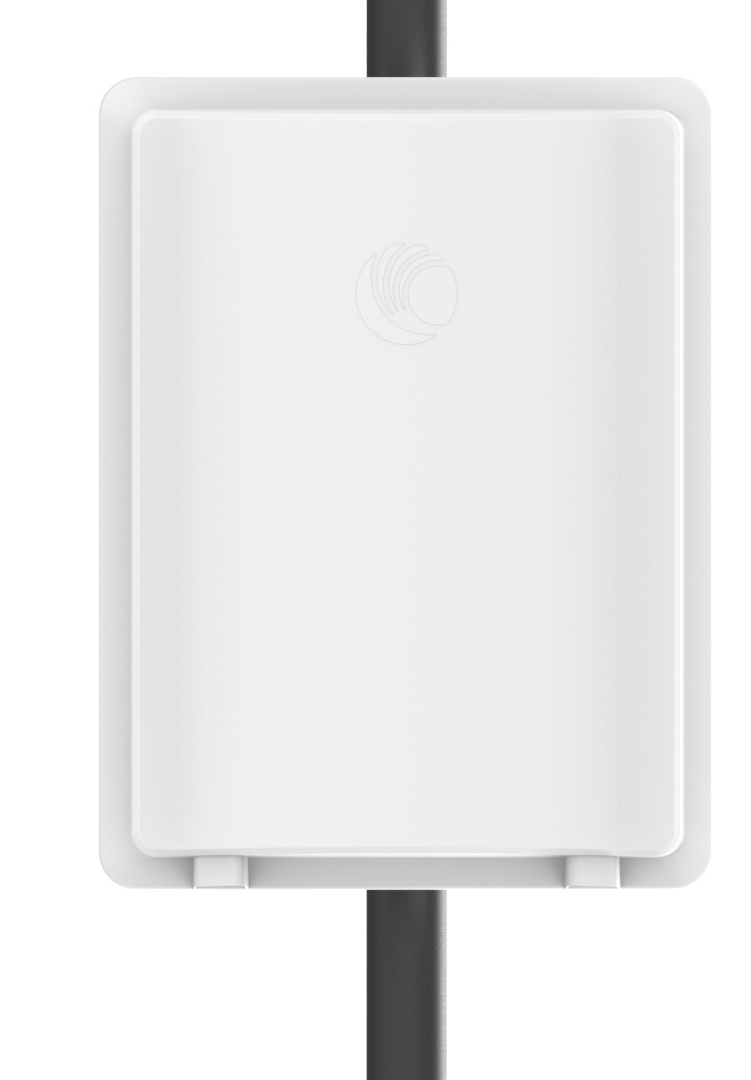

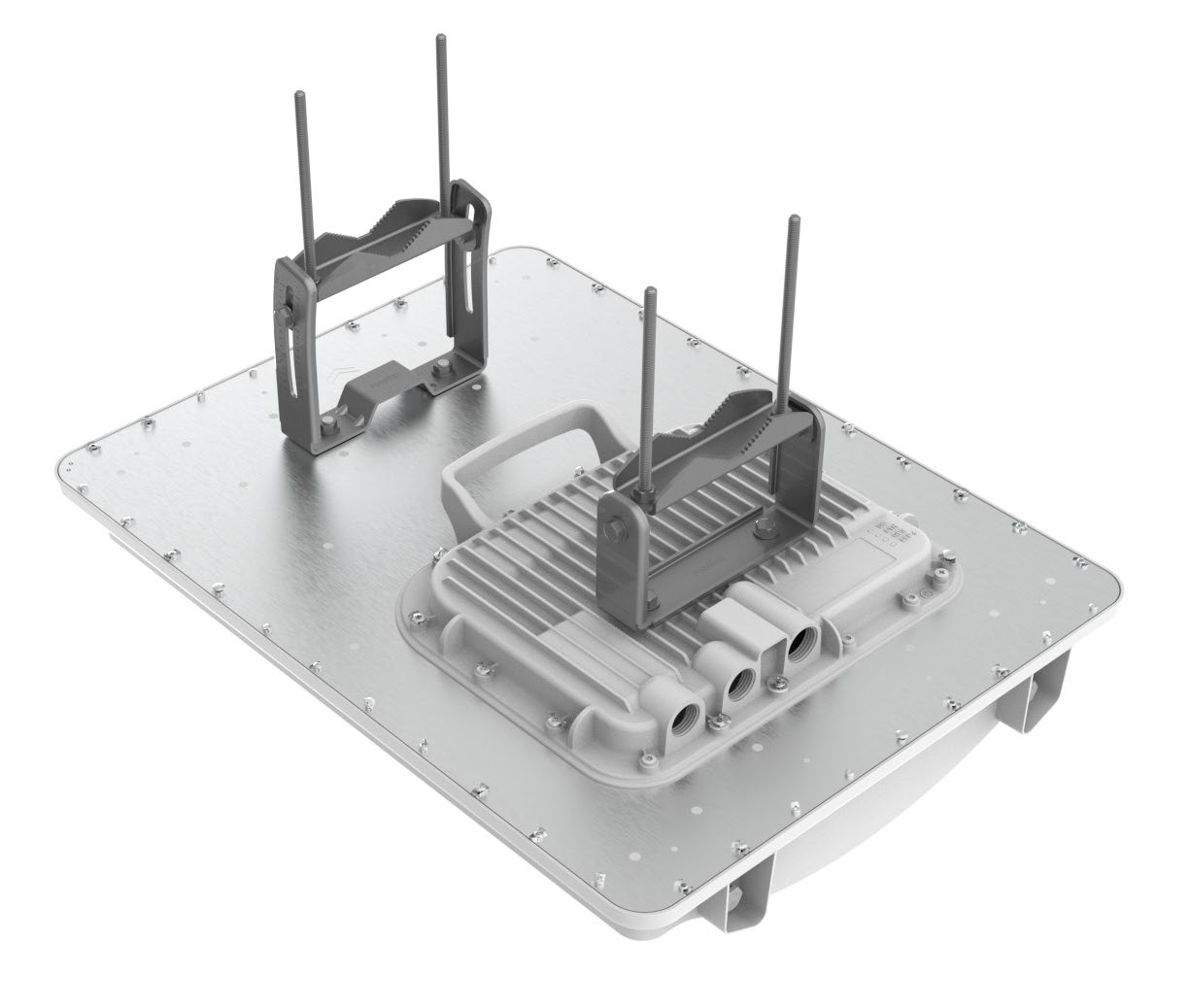

Cambium Networks ePMP 4500 / 4500C / 4500L 5 GHz Fixed Wireless Access Point

Gbps capacity leveraging 80 MHz channels and 802.11ax technology spanning from 4910-6135 MHz. Integrated (4500) or Connectorized (4500C / 4500L) options available.

PMP 450

Product Highlights

High Performance, Scalability, Reliability

Cambium Networks ePMP™ product line has set the standard for high performance, scalability, and reliability in harsh interference environments, all at a compelling price. ePMP Access Points (AP) interoperate with Force Subscriber Modules (SM) (Force 400C, Force 425, Force 4525, Force 4525L and Force 4518) and support backwards compatibility to all Force Series Subscriber modules. A sophisticated scheduling and Quality of Service (QoS) engine combined with TDD synchronization allows ePMP APs to deliver consistently high-quality service plans to a large number of end users.

The ePMP delivers multi-Gbps capacity and supports up to subscriber modules. Featuring 8x8 MU-MIMO, the GHz ePMP can transmit to Force SMs at the same time. This effectively triples the capacity of 2x2 systems and in the process, increases link budgets by dB with downlink beamforming. The ePMP has an integrated 90º 8x8 MU-MIMO sector antenna. With TDD synchronization, ePMP networks can scale to thousands of end users leveraging a small number of channels.

All ePMP Series APs are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge with cnMaestro X premium features optional available with a subscription.

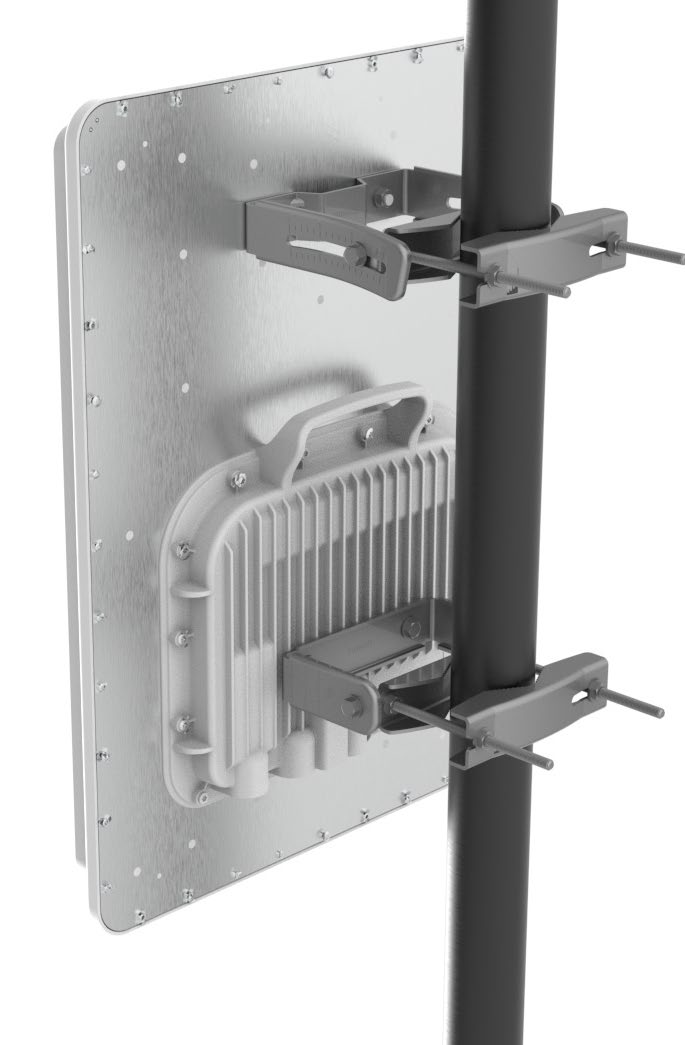

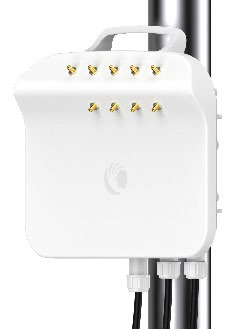

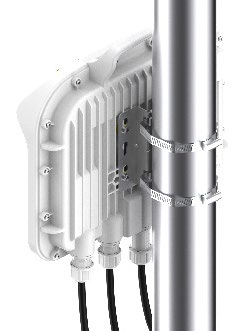

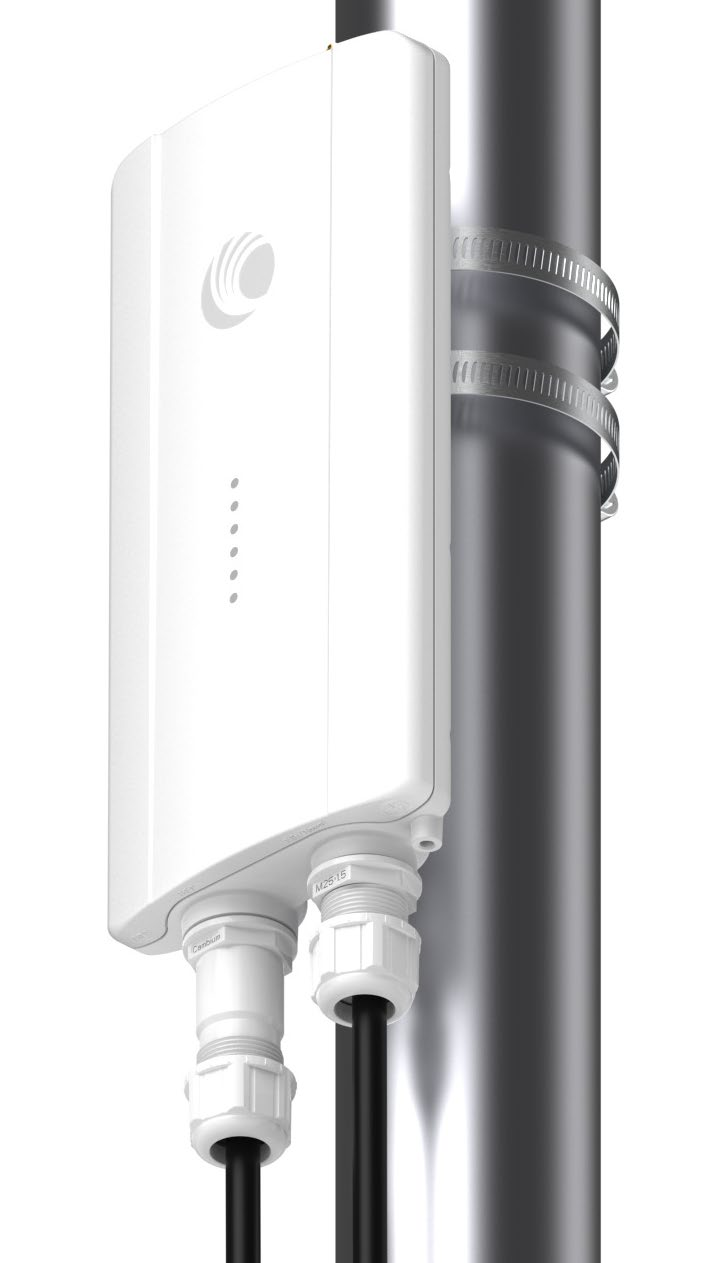

ePMP 4500C

The ePMP 4500C features the same radio as ePMP but without the integrated antenna, allowing the end user to install their own sectored antennas or horns.

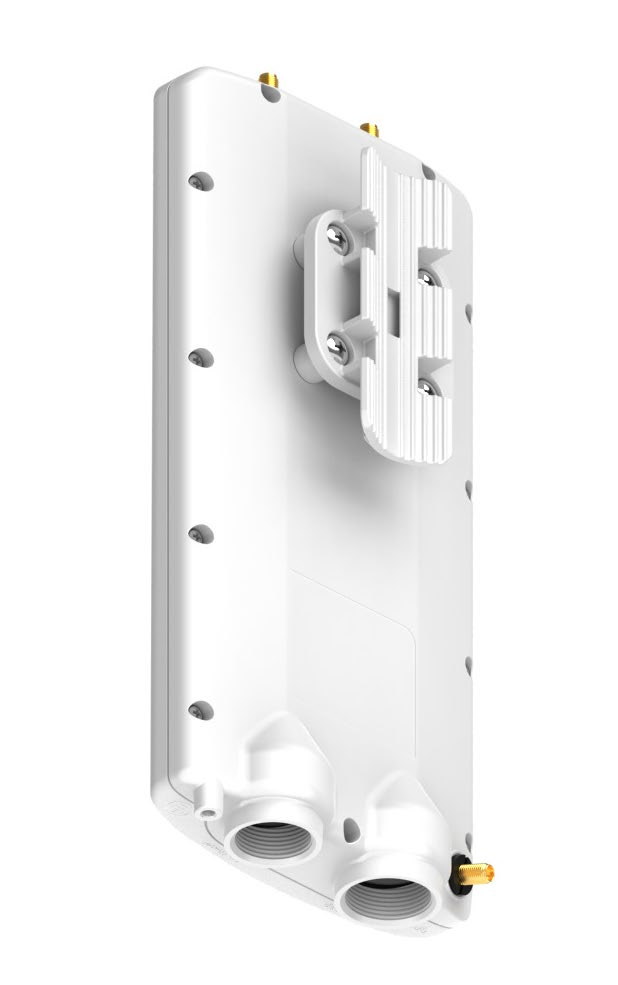

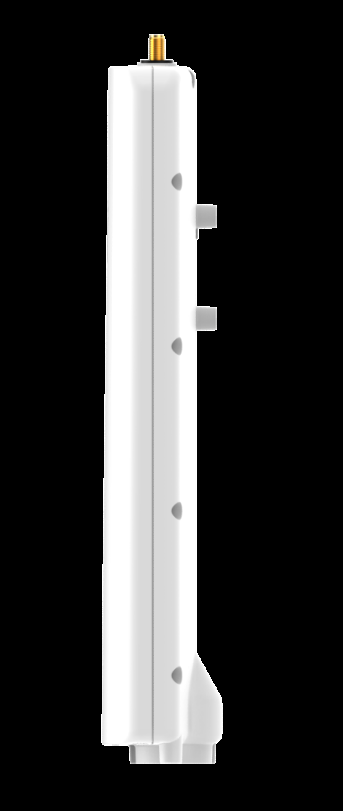

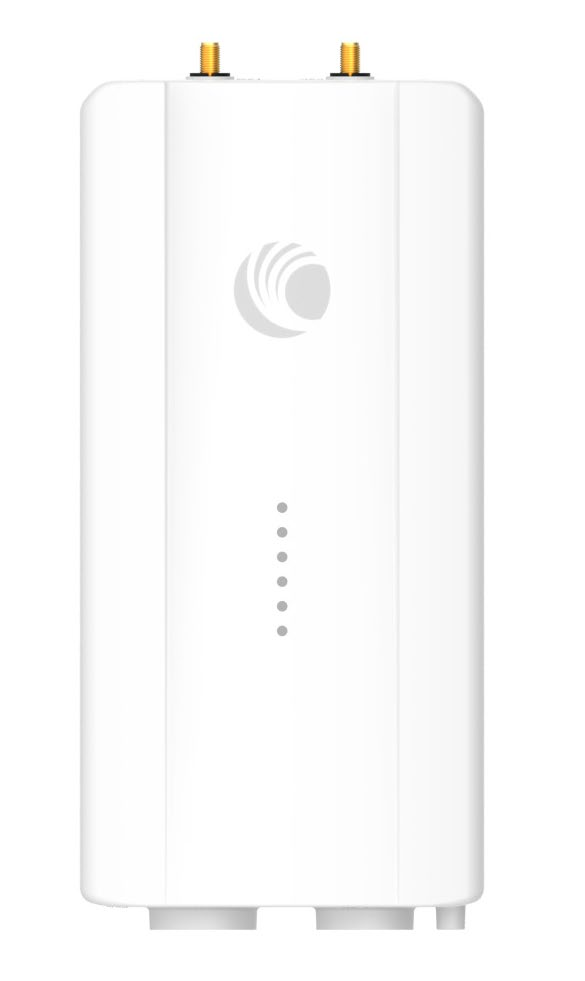

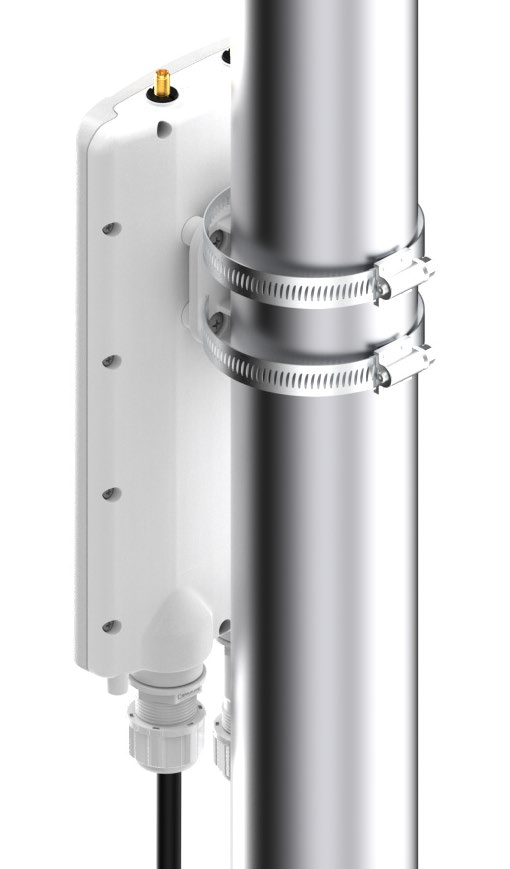

ePMP 4500L

The ePMP 4500L 2x2 MIMO AP is connectorized with two RP-SMA for use with Cambium 90º/120º Degree Sector Antenna. This unit is also compatible with RF Elements Twistport™ adaptor for ePMP. Featuring the latest 1024QAM and MHz channel bandwidth technology, these access points deliver performance up to Gbps.

Ideal Applications

High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities. Deployments requiring BSS Coloring and OFDMA for efficient spectrum use in congested RF environments.

Product Images

25 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP 4500 / 4500C / 4500L 5 GHz to ensure compatibility with your deployment.

Spectrum and Interface

Channel Width 20 | 40| 80 MHz 20 | 40 | 80 MHz 20 | 40 | 80 MHz

Proprietary Physical 8x8 MU-MIMO/OFDMAbased on 8x8 MU-MIMO/OFDMA based on 2x2 MIMO/OFDMA based on

802.11axunderlying technology 802.11ax underlying technology 802.11ax underlying technology

Configurablein Configurable in Configurable in

5 MHzincrements 5 MHz increments 5 MHz increments

Frequency Range ROW4920–6180 MHz ROW 4920–6180 MHz ROW 4920–6180 MHz

FCC/IC5180–5885 MHz FCC/IC 5180–5885 MHz FCC/IC 4920–5885 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)

MAC Layer (Media Cambiumproprietary Cambium proprietary Cambium proprietary

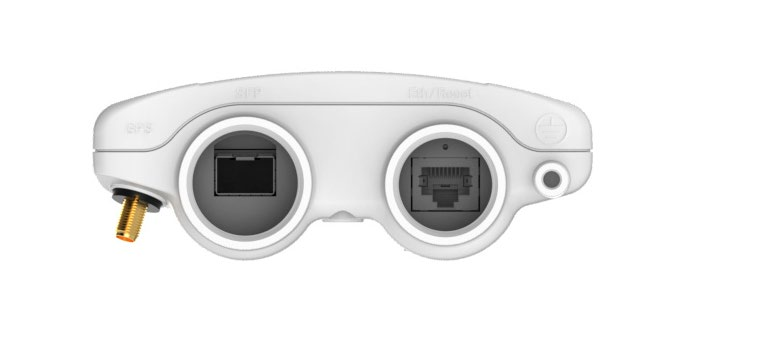

Ethernet Interfaced 100/1000BaseT, rate auto 100/1000 BaseT, rate auto 100/1000 BaseT, rate auto

negotiated,802.3bt compliant & negotiated, 802.3bt compliant & negotiated, 802.3at compliant &

Aux SFP+port Aux SFP+ port Aux SFP+ port 56V 30W PoE (included), standard

Supported Powering 56V60W PoE (included), standard 56V 60W PoE (included), standard

Methods 802.3btPoE Supply, or cnMatrix 802.3bt PoE Supply, or cnMatrix 802.3at PoE Supply, or cnMatrix

TowerSwitch, or wired DC input Tower Switch, or wired DC input Tower Switch

Protocols Used IPv4/IPV6,UDP, TCP, IP, ICMP, IPv4/IPV6, UDP, TCP, IP, ICMP, IPv4/IPV6, UDP, TCP, IP, ICMP,

SNMPv2c,HTTPs, STP, SSH, IGMP SNMPv2c, HTTPs, STP, SSH, IGMP SNMPv2c, HTTPs, STP, SSH, IGMP

snoopingsnooping snooping

Network Management HTTPS,SNMPv2c, SSH HTTPS, SNMPv2c, SSH HTTPS, SNMPv2c, SSH

802.1Qwith 802.1p priority 802.1Q with 802.1p priority 802.1Q with 802.1p priority ePMP 4500 ePMP 4500C ePMP 4500L

Subscribers per Sector Upto 120 Up to 120 Up to 120

ARQ YesYes Yes

Nominal Receive MCS0 = -91 dBm to MCS 11 MCS 0 = -91 dBm to MCS 11 MCS 0 = -93 dBm to MCS 11

Sensitivity (w/FEC) @20 (1024QAM-5/6) = -62 dBm (per (1024 QAM-5/6) = -62 dBm (per (1024 QAM-5/6) = -63 dBm (per

MHz Channel chain)chain) chain)

Nominal Receive MCS0 = -88 dBm to MCS 11 MCS 0 = -88 dBm to MCS 11 MCS 0 = -90 dBm to MCS 11

Sensitivity (w/FEC) @40 (1024QAM-5/6) = -59 dBm (per (1024 QAM-5/6) = -59 dBm (per (1024 QAM-5/6) = -60 dBm (per

MHz Channel chain)chain) chain)

Nominal Receive MCS0 = -85 dBm to MCS 11 MCS 0 = -85 dBm to MCS 11 MCS 0 = -87 dBm to MCS 11

Sensitivity (w/FEC) @80 (1024QAM-5/6) = -57dBm (per (1024 QAM-5/6) = -57dBm (per (1024 QAM-5/6) = -57dBm (per

MHz Channel chain)chain) chain)

Modulation Levels MCS0 (BPSK) to MCS 0 (BPSK) to MCS 0 (BPSK) to

MCS11 (1024 QAM-5/6) MCS 11 (1024 QAM-5/6) MCS 11 (1024 QAM-5/6)

GPS Yes,via internal GPS or Yes, via internal GPS or Yes, via internal GPS

Synchronization CambiumSync Cambium Sync

QoS Threelevel priority (voice, high, Three level priority (voice, high, Three level priority (voice, high,

(Quality of Service) low)with packet classification by low) with packet classification by low) with packet classification by

DSCP,COS, VLAN ID, IP & MAC DSCP, COS, VLAN ID, IP & MAC DSCP, COS, VLAN ID, IP & MAC

address,broadcast, multicast, address, broadcast, multicast, address, broadcast, multicast, and

andstation priority and station priority station priority, mir/cir support

Transmit Power Range 0 to+34 dBm (combined, to 0 to +33 dBm (combined, to 0 to +28 dBm

regionalEIRP limit) (1 dB interval) regional EIRP limit) (1 dB interval) (combined, to regional EIRP limit) (1 dB interval)

Integrated8x8 MU-MIMO 90º N/A 90º/120º 2x2 Sector Antenna

Antenna

Sector17 dBi gain (C050900D021B) ePMP 4500 Series Access Points

Physical

Surge Suppression 1 jouleintegrated 1 joule integrated 1 joule integrated

Environmental IP67IP67 IP67/68

Temperature -40°Cto 55°C (-40°F to 131°F) -40°C to 55°C (-40°F to 131°F) -40°C to 55°C (-40°F to 131°F)

Weight 14.66kg (32.32 lb) with clamp TBD kg (TBD lb) with clamp 1.3 kg (2.9 lb)

Dimensions (H x W x D) 643x 487 x 157 mm 356 x 284 x 74 mm 256 x 125 x 47 mm

(25.3x 19.2 x 6.2 in) (14.0 x 11.2 x 2.9 in) (10.1 x 4.9 x 1.9 in)

Power Consumption 32Wmaximum 32W maximum 28W maximum

Input Voltage 44Vto 59V 44V to 59V 44V to 59V

Sector Antenna Integrated90º Sector 8 x 50 ohm, RP (Reverse Polarity) 2 x 50 ohm, RP (Reverse Polarity)

ConnectionSMA SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP

Antenna Gain 17dBN/A N/A

3dB Beamwidth Azimuth 85°N/A N/A

3dB Beamwidth Elevation 5.5°N/A N/A

Front/Back Ratio 32dB N/A N/A

Port-Port Isolation >30dB N/A N/A

GPS Antenna Connection1 x 50 ohm, SMA; external GPS 1 x 50 ohm, SMA; external GPS

1 x50 ohm, SMA; Integrated GPS External GPS Puck included in External GPS Puck included in

Security

Specs in this table apply toall models, except where noted.

Encryption128-bit AES (CCMP mode)

Certifications

Z8H89FT0065Z8H89FT0065 Z8H89FT0062

109W-0065109W-0065 109W-0062

SeeCambium website for See Cambium website for See Cambium website for

Declarationof Conformity Declaration of Conformity Declaration of Conformity ePMP 4500 Series Access Points ePMP 4500 ePMP 4500 Series Access Points ePMP 4500C ePMP 4500 Series Access Points ePMP 4500L ePMP 4500 Series Access Points

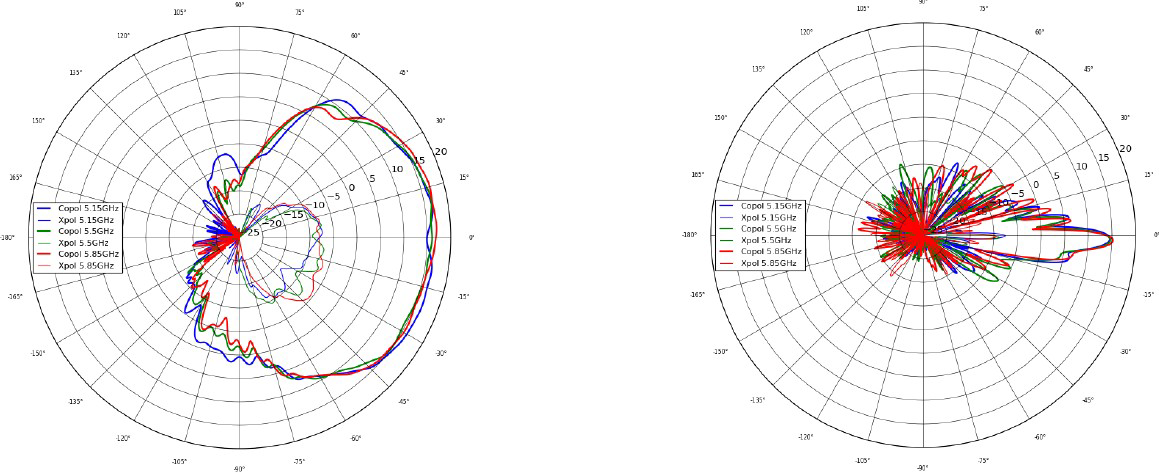

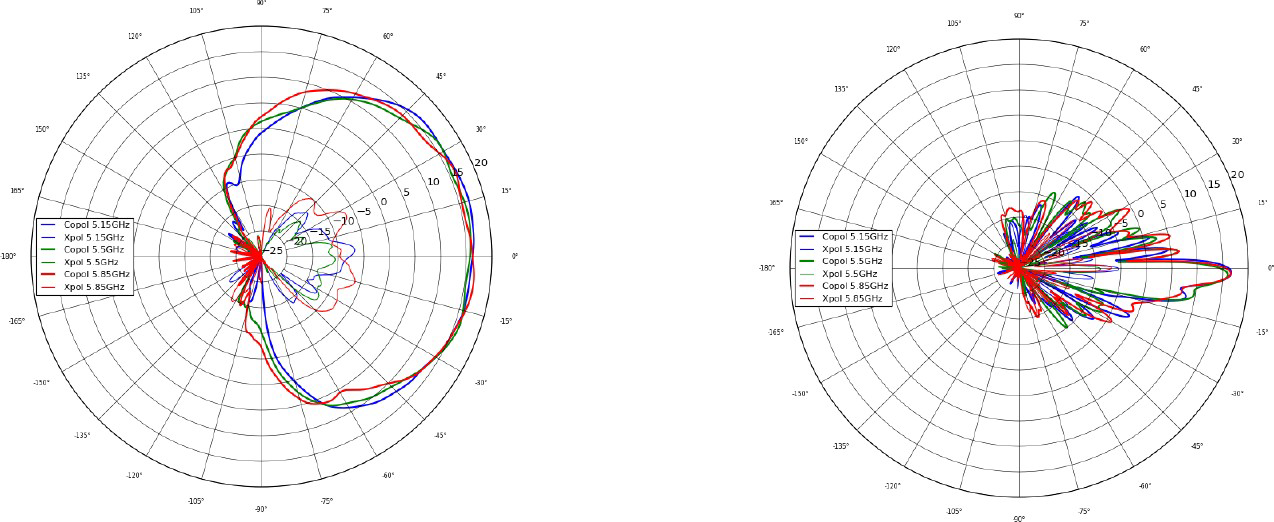

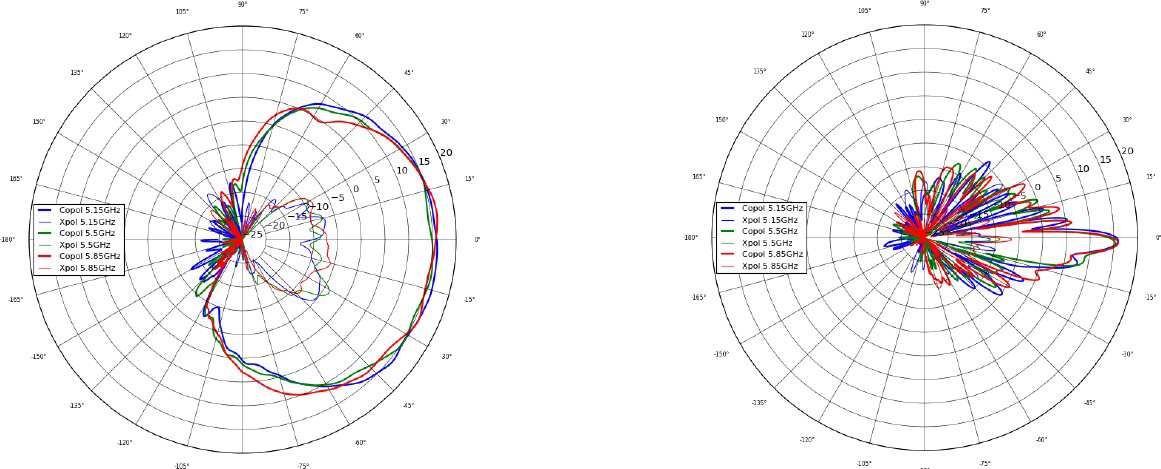

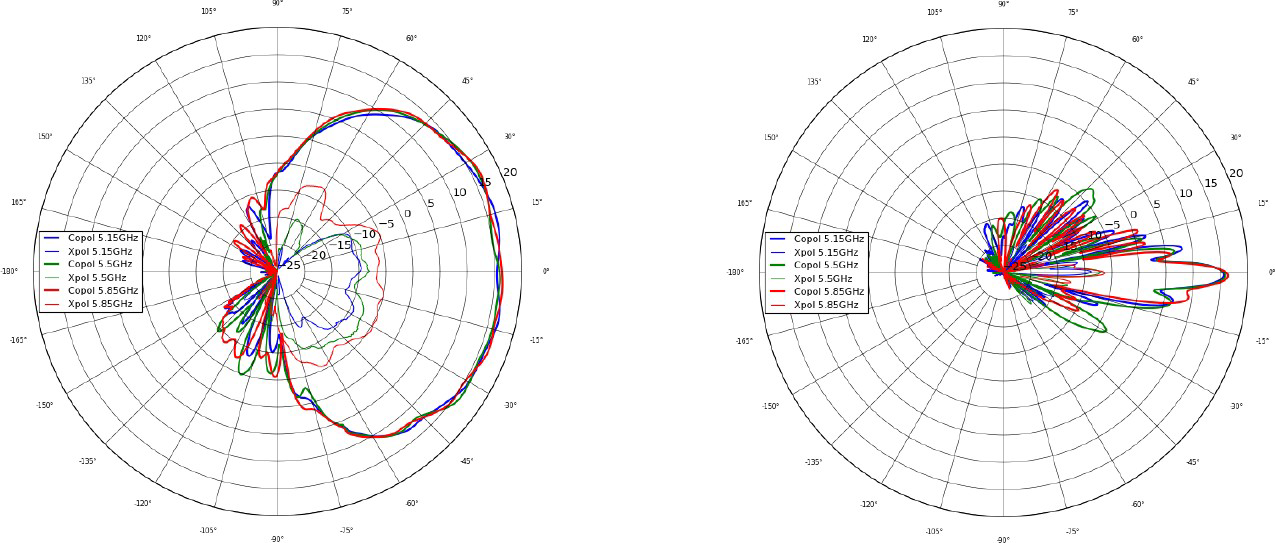

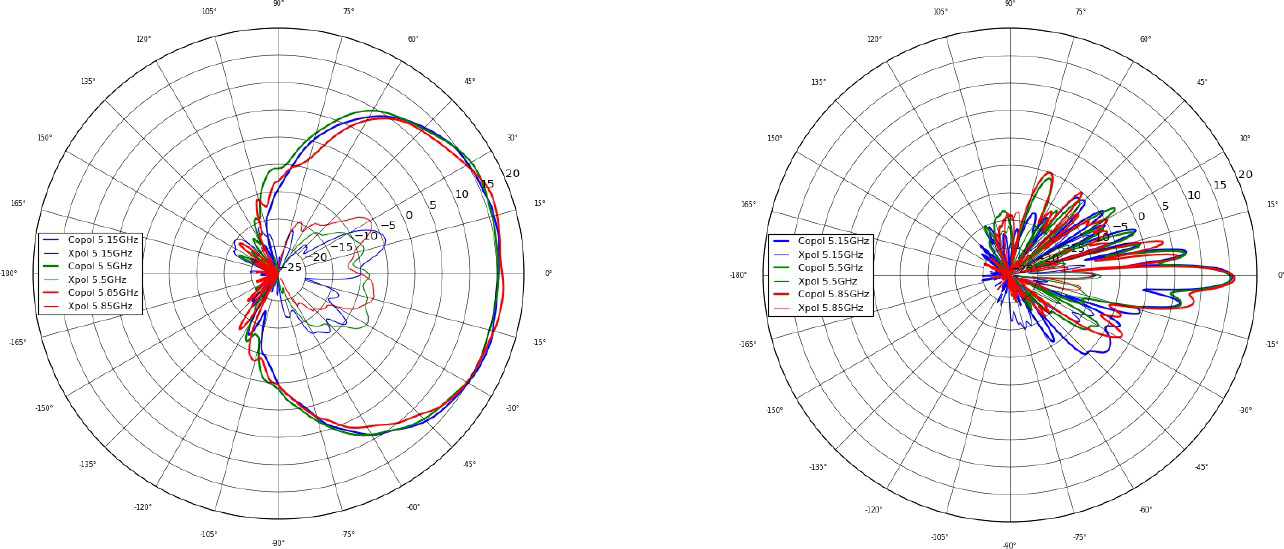

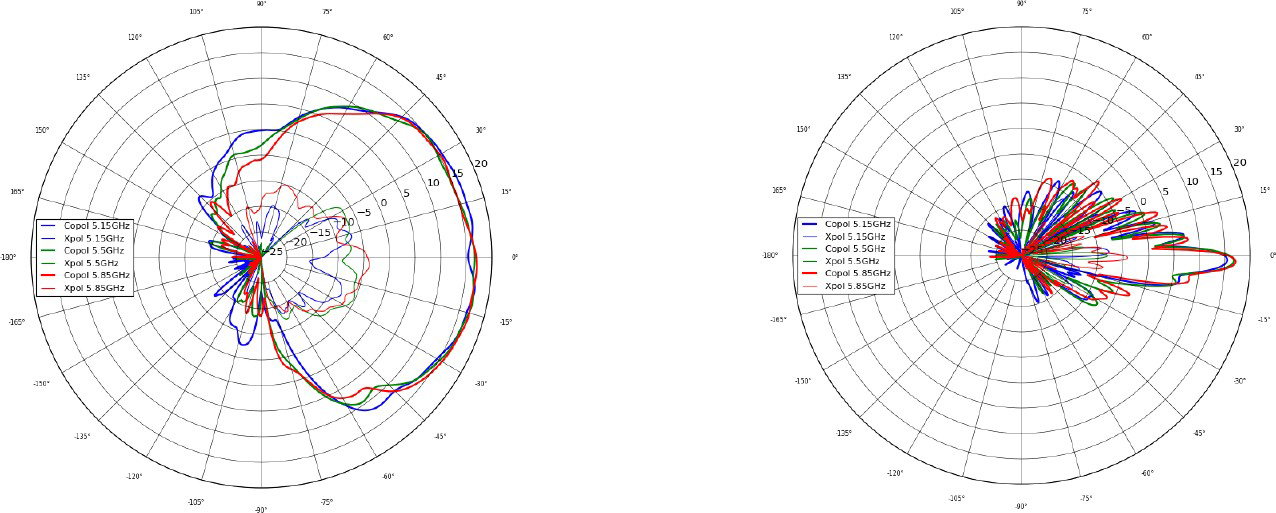

Antenna Patterns

CH 0 Horizontal Polarization,Azimuth CH 0 Horizontal Polarization, Elevation

CH 1 Vertical Polarization,Azimuth CH 1 Vertical Polarization, Elevation ePMP 4500 Series Access Points

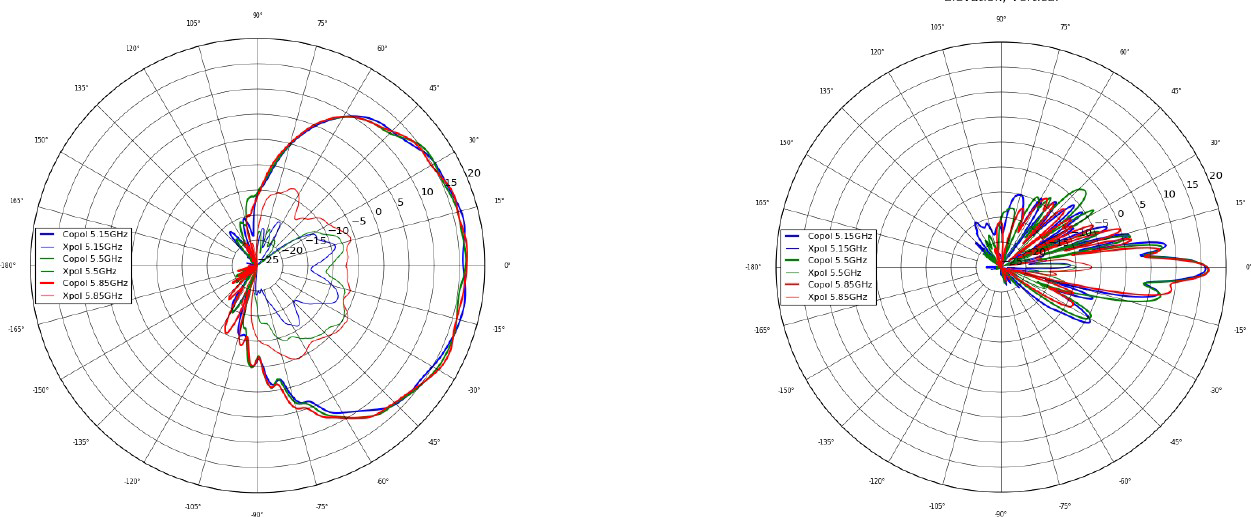

Antenna Patterns, continued

CH 2 Horizontal Polarization,Azimuth CH 2 Horizontal Polarization, Elevation

CH 3 Vertical Polarization,Azimuth CH 3 Vertical Polarization, Elevation ePMP 4500 Series Access Points

Antenna Patterns, continued

CH 4 Horizontal Polarization,Azimuth CH 4 Horizontal Polarization, Elevation

CH 5 VerticalPolarization, Azimuth CH 5 Vertical Polarization, Elevation ePMP 4500 Series Access Points

Antenna Patterns, continued

CH 6 Horizontal Polarization,Azimuth CH 6 Horizontal Polarization, Elevation

CH 7 Vertical Polarization,Azimuth CH 7 Vertical Polarization, Elevation ePMP 4500 Ser ies Access Points

ePMP4500 ePMP 4500C

C050940A021D ePMP 45005 GHz 8x8 Access Point Radio C050940A011D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (nocord) (no cord)

C050940A121D ePMP 45005 GHz 8x8 Access Point Radio C050940A111D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (UScord) (US cord)

C058940A124D ePMP 45005 GHz 8x8 Access Point Radio C058940A114D ePMP 4500C 5 GHz Access Point Radio (IC)

(IC) (Canada/UScord) (Canada/US cord)

C050940A221D ePMP 45005 GHz 8x8 Access Point Radio C050940A211D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (EUcord) (EU cord)

C050940A223D ePMP 45005 GHz 8x8 Access Point Radio C050940A213D ePMP 4500C 5 GHz Access Point Radio (EU)

(EU) EUcord) (EU cord)

C050940A321D ePMP 45005 GHz 8x8 Access Point Radio C050940A311D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (UKcord) (UK cord)

C050940A323D ePMP 45005 GHz 8x8 Access Point Radio C050940A313D ePMP 4500C 5 GHz Access Point Radio (EU)

(EU) (UKcord) (UK cord)

C050940A421D ePMP 45005 GHz 8x8 Access Point Radio C050940A411D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (Indiacord) (India cord)

C050940A425D ePMP 45005 GHz 8x8 Access Point Radio C050940A415D ePMP 4500C 5 GHz Access Point Radio (India)

(India) (IndiaCord) (India Cord)

C050940A521D ePMP 45005 GHz 8x8 Access Point Radio C050940A511D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (Chinacord) (China cord)

C050940A621D ePMP 45005 GHz 8x8 Access Point Radio C050940A611D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (Brazilcord) (Brazil cord)

C050940A721D ePMP 45005 GHz 8x8 Access Point Radio C050940A711D ePMP 4500C 5 GHz Access Point Radio (ROW)

(ROW) (Argentinacord) (Argentina cord)

ePMP 45005 GHz 8x8 Access Point Radio ePMP 4500C 5 GHz Access Point Radio (ROW)

C050940A821DC050940A811D

(ROW) (ANZcord) (ANZ cord)

ePMP 45005 GHz 8x8 Access Point Radio ePMP 4500C 5 GHz Access Point Radio (ROW)

C050940A921DC050940A911D

(ROW) (SouthAfrica cord) (South Africa cord)

ePMP 45005 GHz 8x8 Access Point Radio ePMP 4500C 5 GHz Access Point Radio (FCC)

C050940AZ21DC058940A112D

(ROW) (NoPSU) (US cord)

C058940A122D ePMP 45005 GHz 8x8 Access Point Radio C050940A216BD ePMP 4500C 5 GHz Access Point Radio

(FCC) (UScord) (Indonesia) (EU Cord)

C050940A226D ePMP 45005 GHz 8x8 Access Point Radio

(Indonesia)(EU Cord) ePMP 4500 Series Access Points ePMP 4500L

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (no cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (US cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (IC) (Canada/US cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (EU cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (EU) (EU cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (UK cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (EU) (UK cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (India cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (India) (India Cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (China cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (Brazil cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (Argentina cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (ANZ cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (ROW) (South Africa cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (FCC (US cord)

ePMP 4500L5 GHz 2x2 Access Point Radio (Indonesia) (EU Cord)

About Cambium Networks

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital

experiences and deviceconnectivity with compelling economics. Our ONE Network platform simplifies management of Cambium

Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing

their business rather thanthe network. We make connectivity that just works.
