Cambium Networks ePMP 6 GHz Force 4600C Connectorized Fixed Wireless Subscriber Module

Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity.

Cambium Networks ePMP 6 GHz Force 4600C Connectorized Fixed Wireless Subscriber Module
Talk to a Pro
Contact Us 855-958-0754 Email Sales
ePMP 6 GHz Force 4600C Connectorized
  • Specs: ePMP 6 GHz Force 4600C
  • Gbps capacity leveraging 160 MHz channels and 802.11ax technology spanning from 5.925 GHz to 7.125 GHz.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks ePMP 6 GHz Force 4600C Connectorized Fixed Wireless Subscriber Module

Gbps capacity leveraging 160 MHz channels and 802.11ax technology spanning from 5.925 GHz to 7.125 GHz.

ePMPSubscriber

Product Highlights

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. Cambium Networks ePMP™ Force 4600C Subscriber Modules (SM) meet this demand offering high performance and low latency across both point- to-multipoint (PMP) and point-to-point (PTP) deployments.

Ideal Applications

Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity. Challenging RF environments where beam-forming and MU-MIMO improve link quality and consistency.

Product Images

5 photos

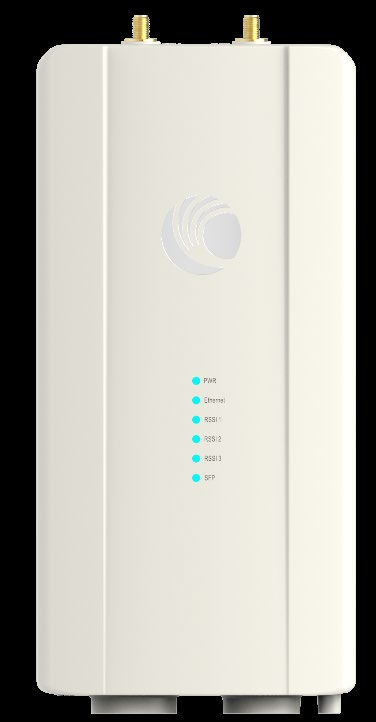

Product image 1

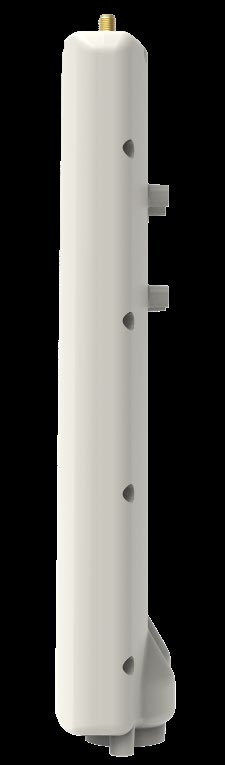

Product image 2

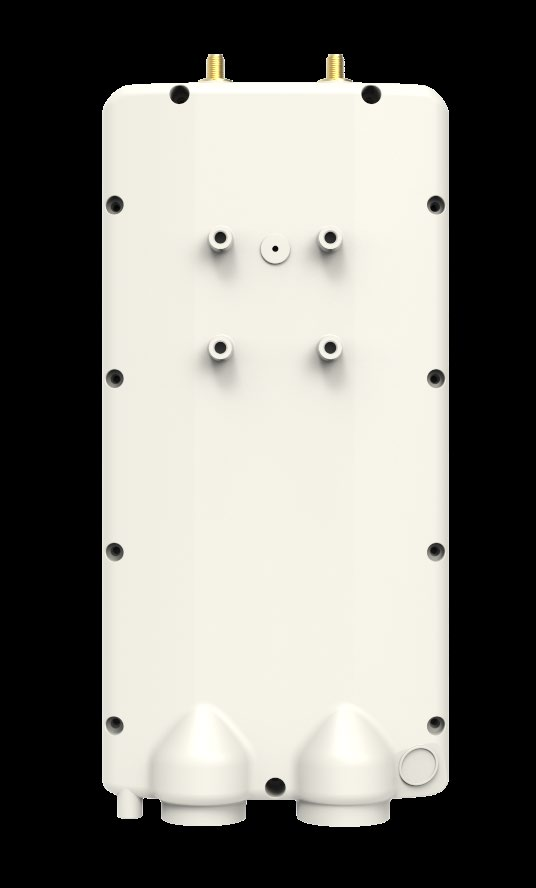

Product image 3
Product image 4
Product image 5
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP 6 GHz Force 4600C Connectorized to ensure compatibility with your deployment.

Spectrum

Channel Width MHzePMP air interface with 2x2 MIMO/OFDMA

Proprietary Physical Layer

Channel SpacingConfigurable in 5 MHz increments MHz1,2
Frequency Range5725–7125 1 Allowable frequencies and bands are dictated by individual country regulations. Operation under AFC (Automatic Frequency Coordination) control in FCC jurisdictions. 2 Performance of radio from 5725–5925 MHz is TBD. Cambium proprietary 100/1000 BaseT, rate auto negotiated, 802.3at compliant; SFP+ port

Protocols Used

Network ManagementHTTP/HTTPS, SNMPv1/2, SNMPv3, SSH
VLAN802.1Q with 802.1p priority Yes
Nominal Receive SensitivityMCS 0 = -92 dBm to MCS 13 (4096 QAM-5/6) = -53 dBm (per chain) MCS 0 = -89 dBm to MCS 13
(w/FEC) @40 MHz Channel(4096 QAM-5/6) = -50 dBm (per chain) MCS 0 = -86 dBm to MCS 13
(w/FEC) @80 MHz Channel(4096 QAM-5/6) = -47 dBm (per chain) MCS 0 = -83 dBm to MCS 13
(w/FEC) @160 MHz Channel(4096 QAM-5/6) = -44 dBm (per chain)
Modulation Levels (Adaptive)MCS 0 (BPSK) to MCS 13 (4096 QAM-5/6)
GeolocationIntegrated GPS with antenna puck +3 to +28 dBm (combined, to regional EIRP limit)

Transmit Power Range

QoS (Quality of Service)Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast, multicast, and station priority

Physical

Surge Suppression1 Joule Integrated
EnvironmentalIP67
Temperature-40°C to 55°C (-40°F to 131°F)
Weight0.73 kg (1.61 lb) without bracket
Dimensions (Dia x Depth)256 x 125 x 47 mm (10.1 x 4.9 x 1.9 in) Center: 3.1 to 7.6 cm (1.25 to 3.0 in)
Power Consumption28W
Input Voltage44V–59V External Dish, 2 x 50 ohm, RP SMA (reverse polarity)

Antenna

GPS Antenna Connection1 x 50 ohm, SMA; external GPS GPS Puck Antenna: Part # N000900L030A 6 GHz Force 4600C Series Subscriber Module

Certifications

FCC Regulatory Part #C068940P151A
ETSI Regulatory Part #C060940P051A
Industry Canada Cert109W-0069 Side Back 6 GHz Force 4600C Series Subscriber Module
C060940C021A ePMP6 GHz Force 4600C SM Radio (ROW) (no cord)
C060940C121A ePMP6 GHz Force 4600C SM Radio (ROW) (US cord)
C060940C221A ePMP6 GHz Force 4600C SM Radio (ROW) (EU cord)
ePMP6 GHz Force 4600C SM Radio (EU) (EU cord)
C060940C321A ePMP6 GHz Force 4600C SM Radio (ROW) (UK cord)
C060940C323A ePMP6 GHz Force 4600C SM Radio (EU) (UK cord)
C060940C421A ePMP6 GHz Force 4600C SM Radio (ROW) (India cord)
C060940C425A ePMP6 GHz Force 4600C SM Radio (India) (India Cord)
C060940C521A ePMP6 GHz Force 4600C SM Radio (ROW) (China cord)
C060940C621A ePMP6 GHz Force 4600C SM Radio (ROW) (Brazil cord)
ePMP6 GHz Force 4600C SM Radio (ROW (Argentina cord)
C060940C821A ePMP6 GHz Force 4600C SM Radio (ROW) (ANZ cord)
C060940C921A ePMP6 GHz Force 4600C SM Radio (ROW) (South Africa cord)
C060940CZ21A ePMP6 GHz Force 4600C SM Radio (ROW) (No PSU)
C068940C122B ePMP6 GHz Force 4600C SM Radio (FCC/IC) (US Cord)
C060940C226A ePMP6 GHz Force 4600C SM Radio (Indonesia (EU Cord)

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional
digital experiences anddevice connectivity with compelling economics. Our ONE Network platform simplifies management of
Cambium Networks’ wiredand wireless broadband and network edge technologies. Our customers can focus more resources
on managing their businessrather than the network. We make connectivity that just works.
Downloads

Documentation & Resources

Download datasheets and technical documentation for the ePMP 6 GHz Force 4600C Connectorized.

Data Sheet

Download PDF →
