Cambium Networks ePMP 6 GHz Force 4625 Fixed Wireless Subscriber Module
Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity.
Talk to a Pro
ePMP 6 GHz Force 4625
- Specs: ePMP 6 GHz Force 4625 Series
- Gbps capacity leveraging 160 MHz channels and 802.11ax technology spanning from 5.925 GHz to 7.125 GHz.
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks ePMP 6 GHz Force 4625 Fixed Wireless Subscriber Module
Gbps capacity leveraging 160 MHz channels and 802.11ax technology spanning from 5.925 GHz to 7.125 GHz.
ePMPSubscriber
Product Highlights
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. Cambium Networks ePMP™ Force Subscriber Modules (SM) meets this demand offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.
Provides high-capacity in PTP and PMP applications, meeting the requirements of enterprise, industrial, government, and service provider users.
Ideal Applications
Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity. Challenging RF environments where beam-forming and MU-MIMO improve link quality and consistency.
Product Images
8 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the ePMP 6 GHz Force 4625 to ensure compatibility with your deployment.
Spectrum
Channel Width MHzePMP air interface with 2x2 MIMO/OFDMA
Proprietary Physical Layer
Channel SpacingConfigurable in 5 MHz increments MHz1
Frequency RangeForce 4625: 5925–7125 1 Allowable frequencies and bands are dictated by individual country regulations. Operation under AFC (Automatic Frequency Coordination) control in FCC jurisdictions.
MAC LayerCambium proprietary
Ethernet Interface100/1000 BaseT, rate auto negotiated
Protocols UsedIPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP snooping
Network ManagementHTTP/HTTPS, SNMPv1/2, SNMPv3, SSH
VLAN802.1Q with 802.1p priority
ARQYes
Nominal Receive SensitivityMCS 0 = -92 dBm to MCS 11
(w/FEC) @20 MHz Channel(1024 QAM-5/6) = -61 dBm (per chain)
Nominal Receive SensitivityMCS 0 = -89 dBm to MCS 11
(w/FEC) @40 MHz Channel(1024 QAM-5/6) = -58 dBm (per chain)
Nominal Receive SensitivityMCS 0 = -86 dBm to MCS 11
(w/FEC) @80 MHz Channel(1024 QAM-5/6) = -55 dBm (per chain)
Nominal Receive SensitivityMCS 0 = -86 dBm to MCS 11
(w/FEC) @160 MHz Channel(1024 QAM-5/6) = -51 dBm (per chain)
Modulation Levels (Adaptive)MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
GeolocationExternal USB GPS receiver
Transmit Power Range+3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
QoS (Quality of Service)Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast, and station priority
Physical
Surge Suppression1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to 55°C (-22°F to 131°F)
Weight2.76 kg (6.1 lb)
Dimensions (Dia x Depth)472 x 472 x 296 mm (18.5 x 18.5 x 11.7 in) Center: 3.1 to 7.6 cm (1.25 to 3.0 in)
Power Consumption13W (up to 15W in extreme cold temperatures when heater is activated)
Input Voltage44V–59V
Antenna25 dBi Integrated Dish
GPS Antenna ConnectionExternal USB GPS receiver with integrated antenna for regions requiring geolocation GPS Integrated Receiver: Part # N000940L001A Force 4625 Subscriber Module
Certifications
FCC Regulatory Part #C068940P142A
ETSI Regulatory Part #C060940P041A

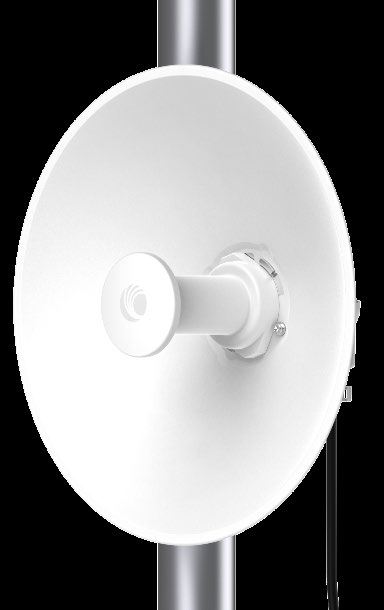

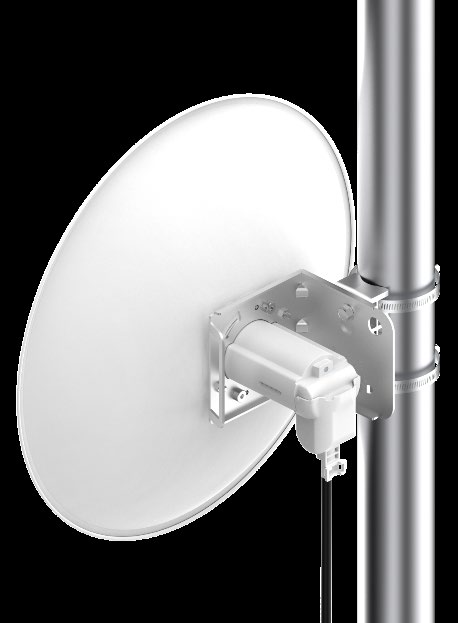

Industry Canada Cert109W-0075 Front Back Force 4625 Subscriber Module

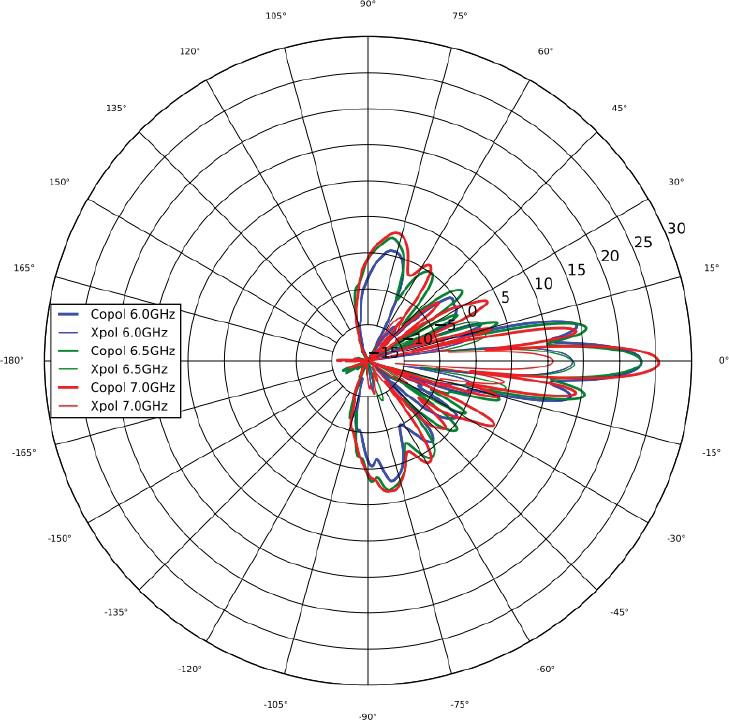

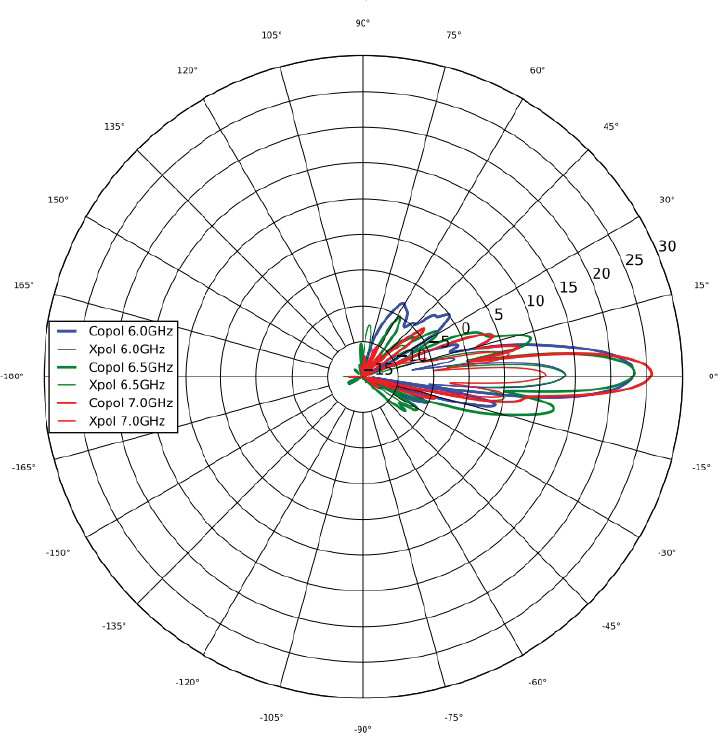

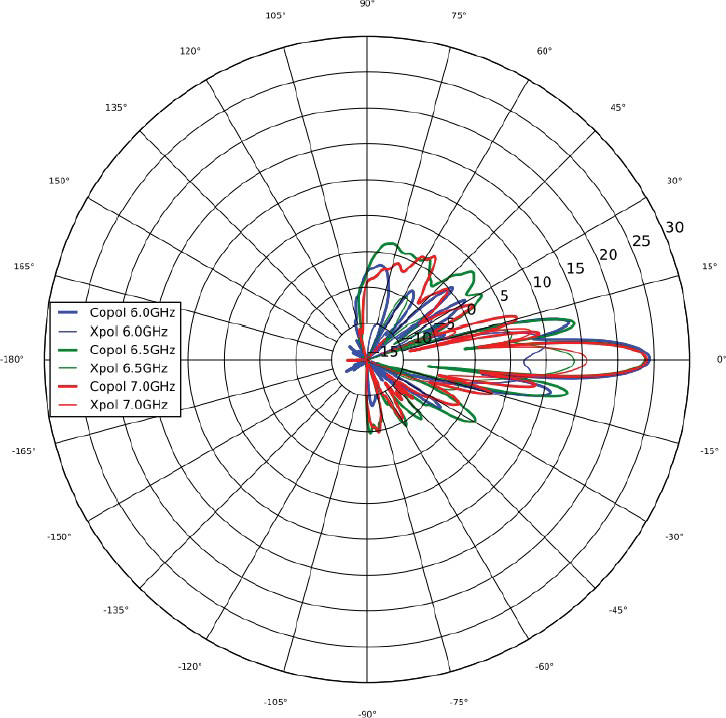

Force 4625 AntennaPatterns
AzimuthAzimuth
ElevationVertical
ElevationElevation
HorizontalVertical Force 4625 Subscriber Module
C060940M041A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (no cord)
C060940M141A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (US cord)
C060940M241A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (EU cord)
C060940M243A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (EU) (EU cord)
C060940M341A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (UK cord)
C060940M343A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (EU) (UK cord)
C060940M441A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (India cord)
ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (India) (India Cord)
ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (China cord)
C060940M641A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (Brazil cord)
C060940M741A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (Argentina cord)
C060940M841A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (ANZ cord)
C060940M941A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (ROW) (South Africa
C068940M142B ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (FCC/IC) (US Cord)
C060940M246A ePMP6 GHz Force 4625 SM 4-Pack packaging, priced per radio (Indonesia) (EU Cord)
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the ePMP 6 GHz Force 4625.
