Cambium Networks ePMP Force 130 5 GHz

Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity.

Cambium Networks ePMP Force 130 5 GHz
Talk to a Pro
Contact Us 855-958-0754 Email Sales
ePMP Force 130 5 GHz
  • Specs: Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.
  • Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments.
  • As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks ePMP Force 130 5 GHz

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

ePMPCPE

Product Highlights

INTERFACE

MAC (Media Access Control) Layer Cambium Proprietary

Ethernet Interface 10/100 BaseT

Protocols Used IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH,

Ideal Applications

Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity. Challenging RF environments where beam-forming and MU-MIMO improve link quality and consistency.

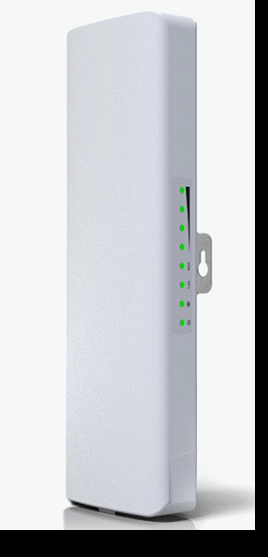

Product Images

2 photos
Product image 1
Product image 2
Technical Details

Hardware Specifications

Comprehensive technical data for the ePMP Force 130 5 GHz to ensure compatibility with your deployment.

SPECIFICATIONS

ARQYes
Nominal Receive SensitivityMCS0 -88 dBm to MCS15 = -70 dBm at MCS7 for 20 MHz
Nominal Receive SensitivityMCS0 = -86 dBm to MCS15 = -68 dBm at MCS7 for 40 MHz
Modulation Levels(Adaptive)MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of ServiceThree level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range+3 to 28 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Gain14 dBi

PHYSICAL

Surge Suppression1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to +55°C (-22°F to +122°F)
Weight0.35 kg (0.88 lbs)
Wind Survival125 km/hour (78 mi/hour)
Dimensions (H x W x D)235 x 77 x 58 mm
Pole Diameter Range3.8 cm – 6.4 cm (1.5 in – 2.5 in)
Power Consumption8 W Maximum, 5 W Typical 24 V; uses standard passive PoE injectors at 24V. Not compatible with 29V supplies

SECURITY

Encryption128-bit AES (CCMP mode)

CERTIFICATIONS

CEDoC pending
PART NUMBERDESCRIPTION
C050900C502AePMP 5 GHz Force 130 SM (EU) (EU cord)
C050900C503AePMP 5 GHz Force 130 SM (EU) (UK cord)
C050900C504AePMP 5 GHz Force 130 SM (ROW) (no cord)
C050900C505AePMP 5 GHz Force 130 SM (ROW) (US cord)
C050900C506AePMP 5 GHz Force 130 SM (ROW) (EU cord)
C050900C507AePMP 5 GHz Force 130 SM (ROW) (UK cord)
C050900C508AePMP 5 GHz Force 130 SM (ROW) (India cord)
C050900C509AePMP 5 GHz Force 130 SM (India) (India cord)
C050900C510AePMP 5 GHz Force 130 SM (ROW) (China cord)
C050900C511AePMP 5 GHz Force 130 SM (ROW) (Brazil cord)
C050900C512AePMP 5 GHz Force 130 SM (ROW) (Argentina cord)
C050900C513AePMP 5 GHz Force 130 SM (ROW) (ANZ cord)
C050900C514AePMP 5 GHz Force 130 SM (ROW) (South Africa cord)
C050900C515AePMP 5 GHz Force 130 SM (ROW) (No PSU) ePMP™ Force 130 SPECIFICATION SHEET

SPECIFICATIONS

ANTENNA SPECIFICATIONS5 GHZ SPECIFICATION
Frequency Range5.150 – 5.970 MHz
Antenna TypeFlat panel
Peak Gain14 dBi
3dB Beamwidth-Azimuth45 degrees
3dB Beamwidth-Elevation15 degrees
Downloads

Documentation & Resources

Download datasheets and technical documentation for the ePMP Force 130 5 GHz.

Data Sheet

Download PDF →
