Cambium Networks ePMP Force 200 5 GHz
Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity.
Talk to a Pro
ePMP Force 200 5 GHz
- Specs: The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data.
- The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data.
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks ePMP Force 200 5 GHz
The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data.
ePMPCPE
Product Highlights
PRODUCT
Part Numbers See below for complete list of part numbers and model numbers
SPECTRUM
Channel Spacing Configurable on MHz increments
Ideal Applications
Subscriber-end CPE for ePMP fixed wireless networks delivering reliable last-mile broadband connectivity. Challenging RF environments where beam-forming and MU-MIMO improve link quality and consistency.

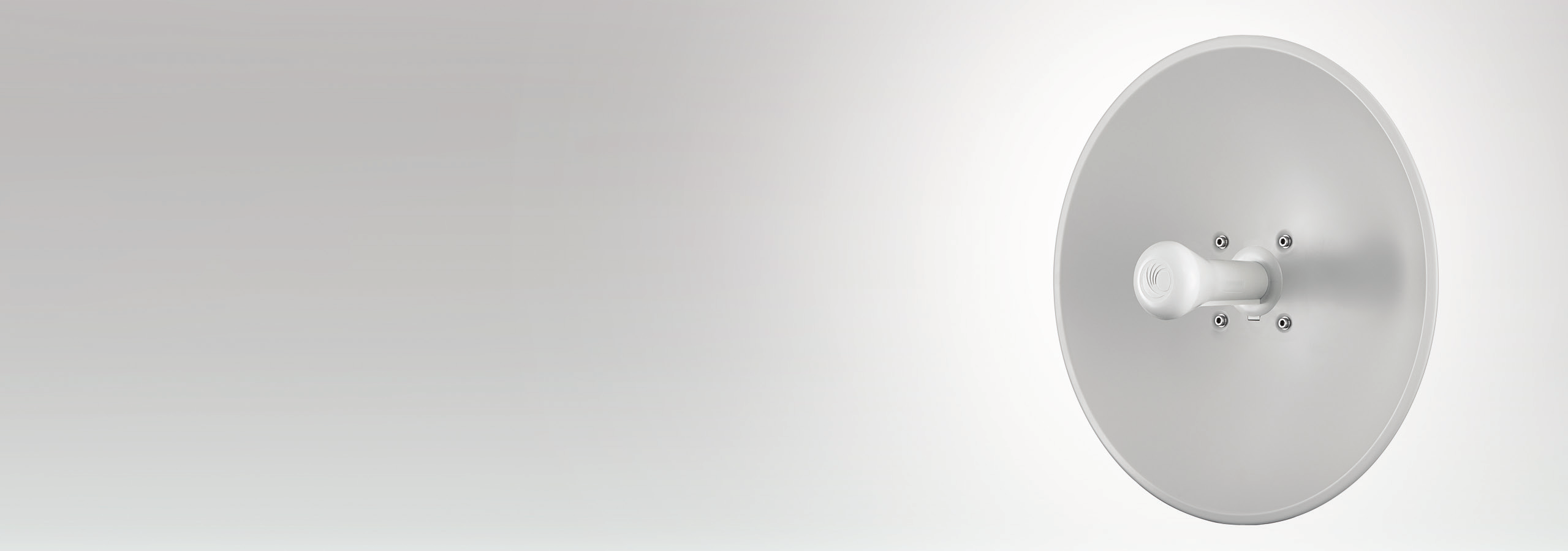

Product Images
9 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the ePMP Force 200 5 GHz to ensure compatibility with your deployment.
INTERFACE
MAC (Media Access Control) LayerCambium Proprietary
Proprietary Physical Layer2x2 MIMO/OFDM
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols UsedIPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network ManagementIPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN802.1Q with 802.1p priority
ARQYes
Nominal Receive Sensitivity (w/FEC)@20 MHz Channel MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of ServiceThree level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Surge Suppression1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Weight2.4 GHz Model: 2.8 kg (6.2 lbs) 5 GHz Model: 2.3 kg (5.1 lbs)
Wind Survival145 km/hour (90 mi/hour)
Dimensions (Dia x Depth)47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range6.4 cm - 7.6 cm (2.5 in - 3 in)
Power Consumption10 W Maximum, 5 W Typical
Input Voltage10 to 30 V
SECURITY
Encryption128-bit AES (CCMP mode)
CERTIFICATIONS
FCCID2.4 GHz: Z8H89FT0019 / 5 GHz: Z8H89FT0015
Industry Canada Cert2.4 GHz: 109W-0019 / 5 GHz: 109W-0015
CE5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1
PART NUMBER (for ordering)DESCRIPTION MODEL NUMBER (for regulatory)
C058900C062AePMP 5 GHz Force 200AR5-25 High Gain Radio (FCC) (US cord) C058900P062A
C050900C061AePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (no cord) C050900P061A
C050900C063AePMP 5 GHz Force 200AR5-25 High Gain Radio (EU) (EU cord) C050900P061A
C050900C161AePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (US cord) C050900P061A
C050900C261AePMP 5 GHz Force 200AR5-25 High Gain Radio (ROW) (EU cord) C050900P061A
C024900C161AePMP 2.4 GHz Force 200AR2-25 High Gain Radio (US cord) C024900P161A
C024900C261AePMP 2.4 GHz Force 200AR2-25 High Gain Radio (EU cord) C024900P161A
N000900L021AePMP Force 200 Radome na ePMP™ Force 200 for 2.4 GHz and 5 GHz SPECIFICATION SHEET
SPECIFICATIONS
ANTENNA SPECIFICATIONS2.4 GHZ SPECIFICATION
Frequency Range2402 – 2472 MHz
Antenna TypeDish
Peak Gain17 dBi
3dB Beamwidth-Azimuth17°
3dB Beamwidth-Elevation17°
Front-To-Back Isolation>20 dB
Cross Polarization>15 dB

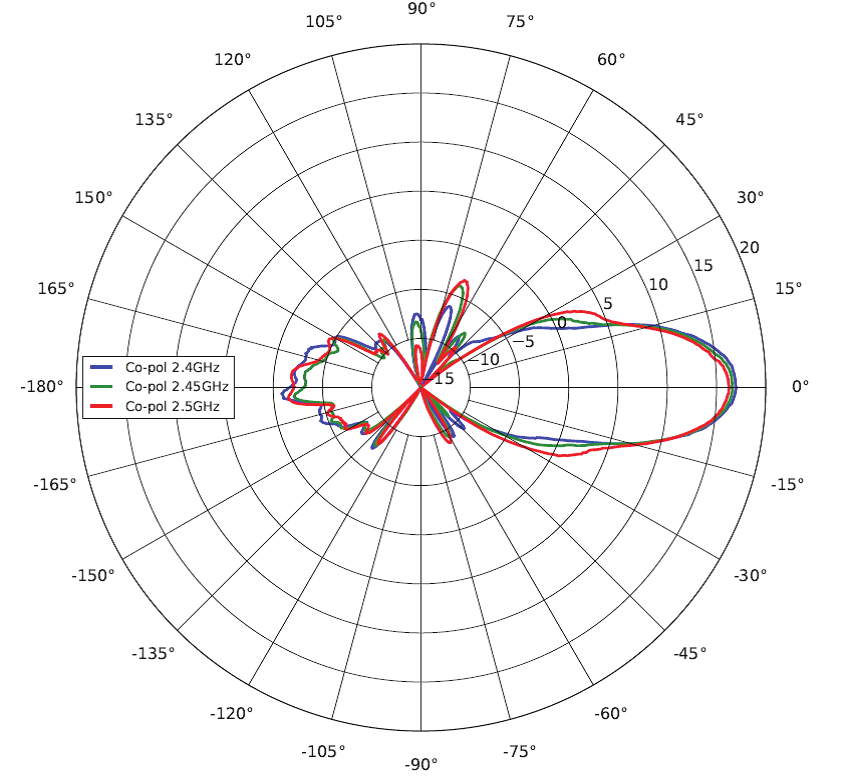

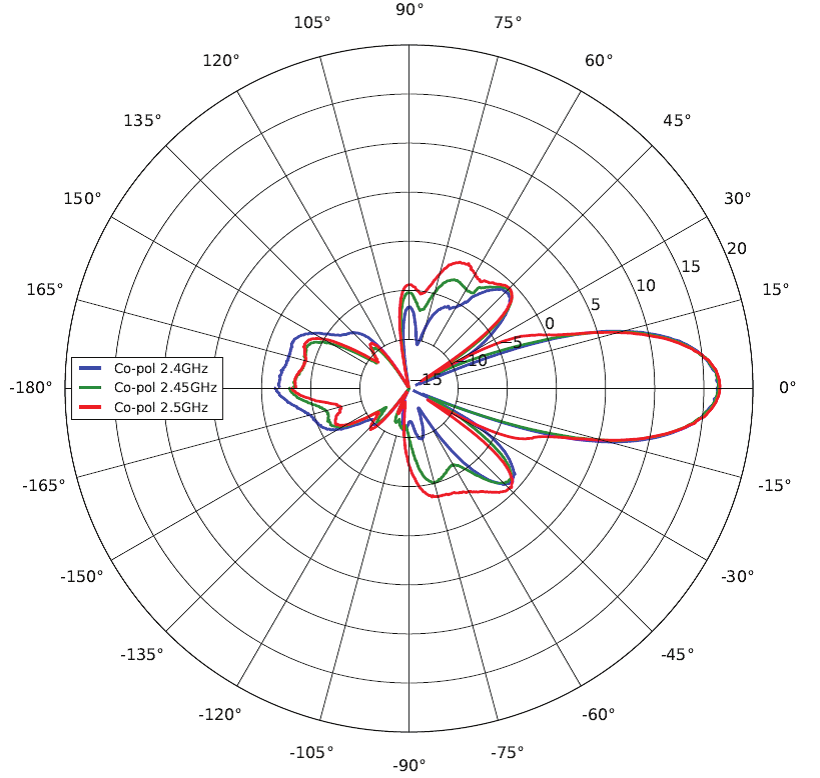

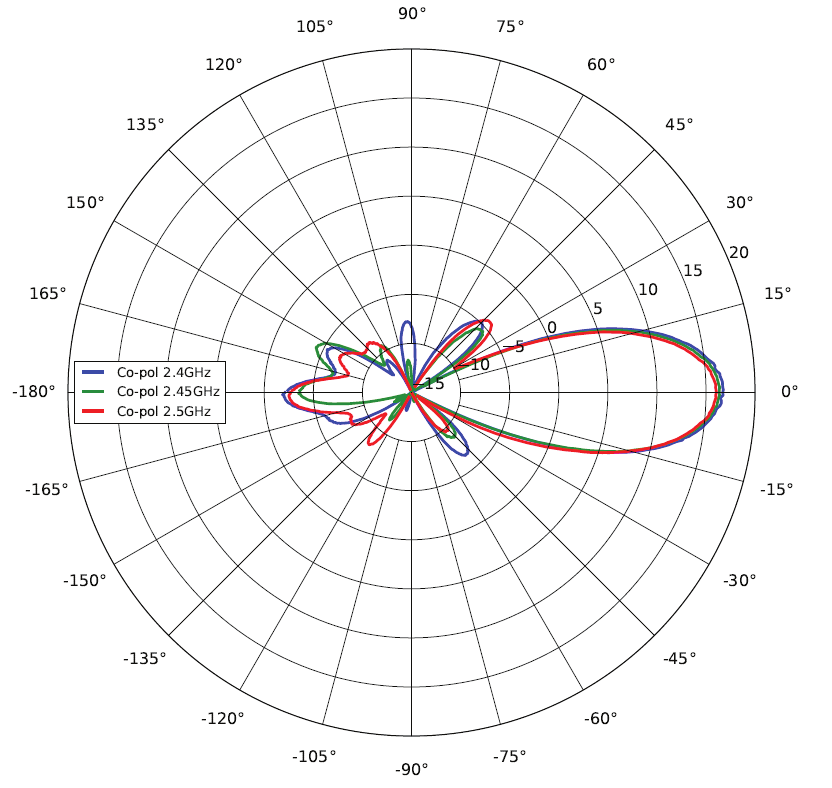

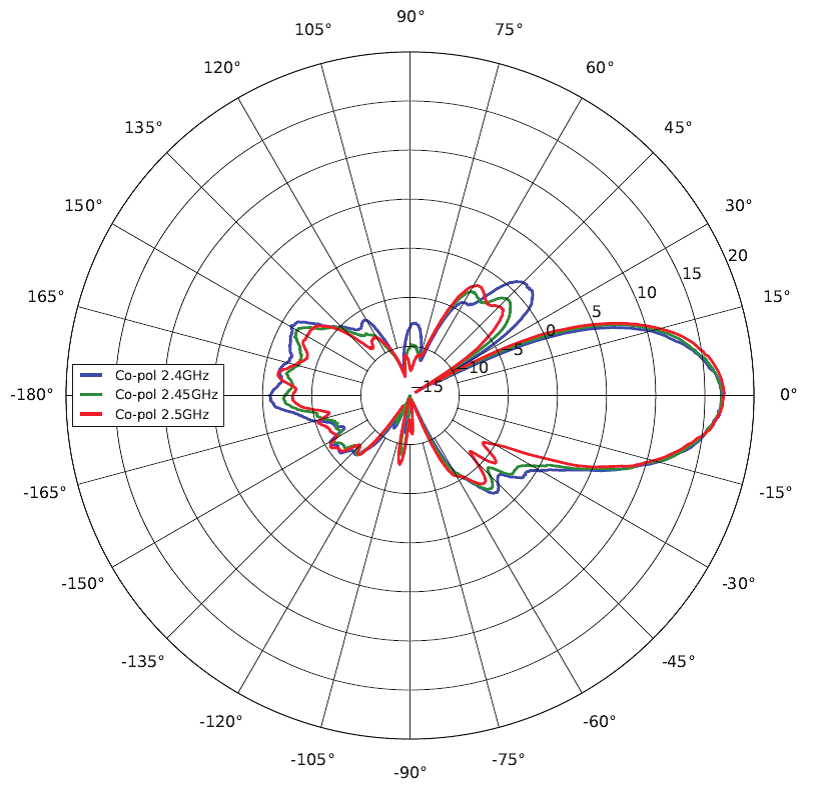

ANTENNA PATTERNS
2.4 GHzePMP Force 200 2.4 GHz ePMP Force 200
AzimuthPatterns Elevation Patterns
H-POL ELEVATIONGAIN (dBi) FOR ZERO AZIMUTH H-POL AZIMUTH GAIN (dBi) FOR ZERO ELEVATION
V-POL ELEVATIONGAIN (dBi) FOR ZERO AZIMUTH V-POL AZIMUTH GAIN (dBi) FOR ZERO ELEVATION ePMP™ Force 200 for 2.4 GHz and 5 GHz SPECIFICATION SHEET
SPECIFICATIONS
ANTENNA SPECIFICATIONS5 GHZ SPECIFICATION
Frequency Range5150 – 5970 MHz
Antenna TypeDish
Peak Gain25 dBi
3dB Beamwidth-Azimuth7°
3dB Beamwidth-Elevation7°
Front-To-Back Isolation>25 dB
Cross Polarization>15 dB

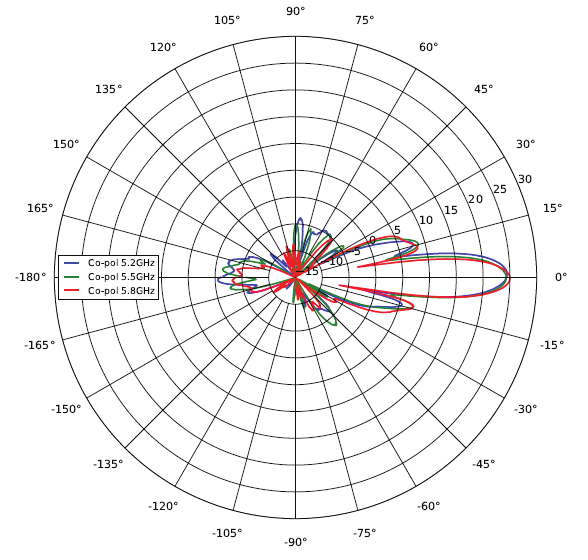

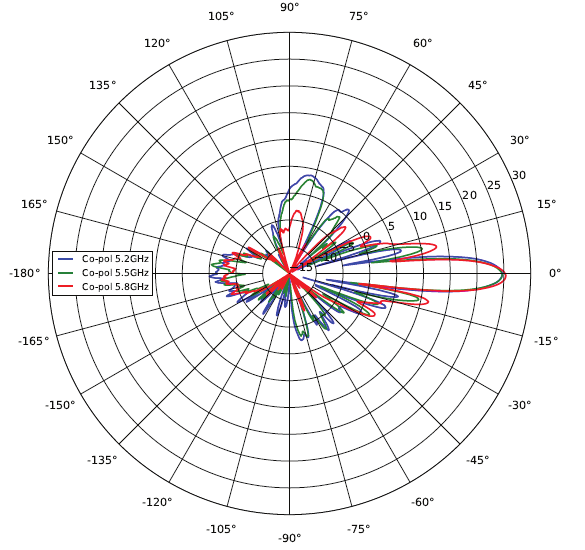

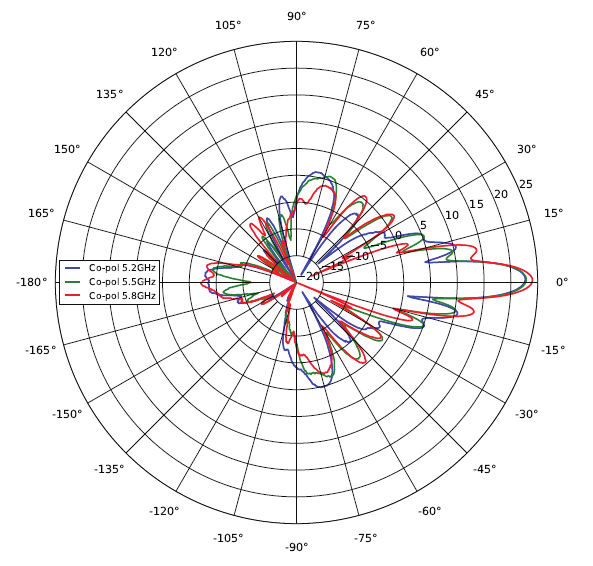

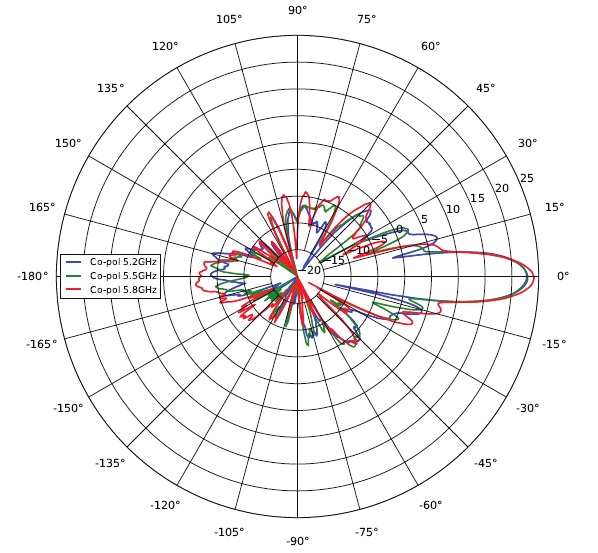

ANTENNA PATTERNS
ePMPForce 200 ePMP Force 200
AzimuthPatterns Elevation Patterns
H-POL ELEVATIONGAIN (dBi) FOR ZERO AZIMUTH H-POL AZIMUTH GAIN (dBi) FOR ZERO ELEVATION
V-POL ELEVATIONGAIN (dBi) FOR ZERO AZIMUTH V-POL AZIMUTH GAIN (dBi) FOR ZERO ELEVATION
SS ePMP™ Force 200 for 2.4 GHz and5 GHz 06222018
Downloads
Documentation & Resources
Download datasheets and technical documentation for the ePMP Force 200 5 GHz.
Data Sheet
