Cambium Networks ePMP MP 3000 MicroPOP Fixed Wireless Access Point

backward compatibility to Force

Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP Access Point series is the third generation based on 802.11ac Wave techology. ePMP Access Points interoperate with Force Subscriber Modules (SM) and supports backward compatiblity. ePMP Access Points can deliver up to Mbps aggregate to each Force SM. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP and 3000L to deliver consistently high-quality service plans to a large number of end users.

in the process, increases link budgets by dB with downlink beamsteering. The ePMP can be fitted with either a 90º MU-MIMO sector or a 60º MU-MIMO horn antenna. An optional smart uplink beamsteering antenna can be added for additional uplink isolation. For additional interference mitigation, the ePMP supports dynamic filtering for neighboring channel interference. With TDD synchronization, ePMP networks can scale to thousands of end users leveraging a small number of channels.

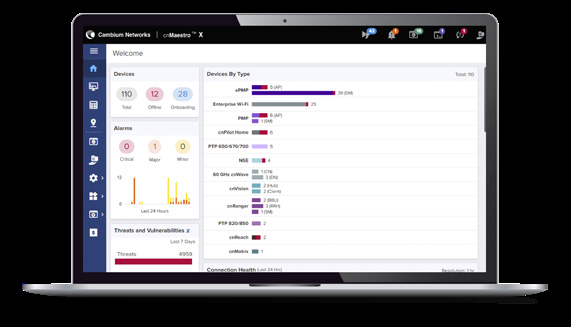

All ePMP Access Points are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.

ePMP 3000L

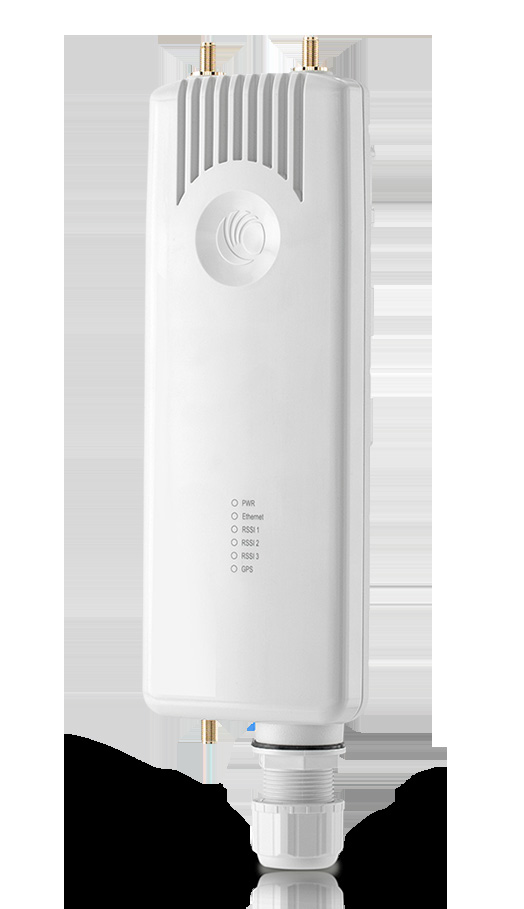

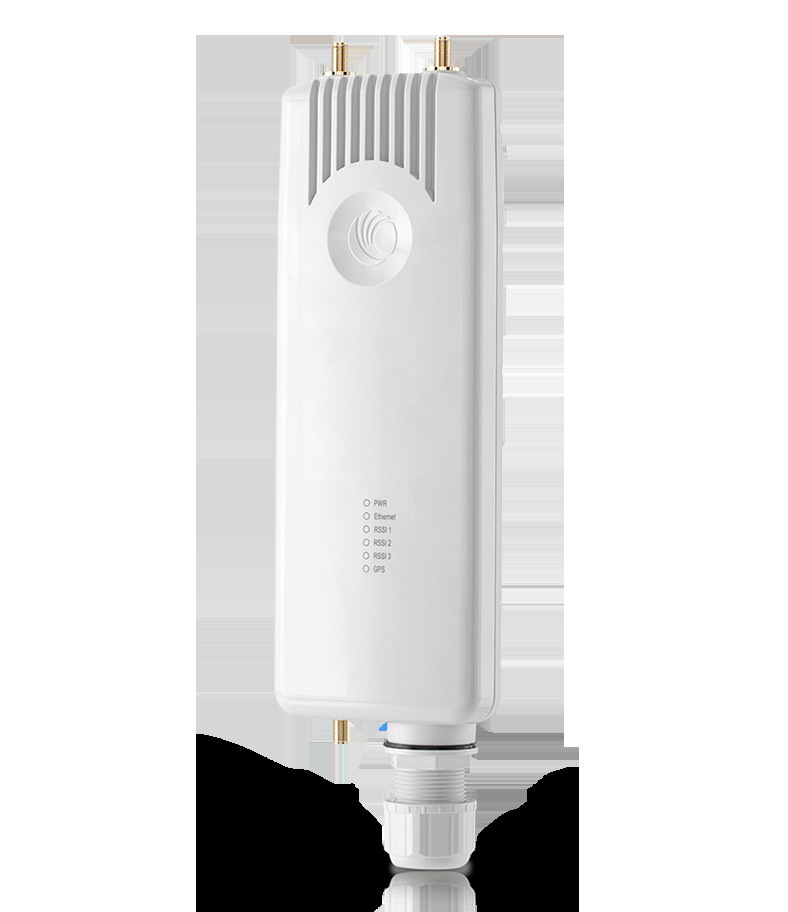

The ePMP 3000L is a 2x2 MIMO Access Point that delivers up to Mbps to as many as end users. The ePMP 3000L supports GPS synchronization for mitigating self-interference and increasing subscriber density. The ePMP 3000L can be deployed with either the 90º MIMO sector antenna or any third-party 2x2 horn, dish or sector antenna.

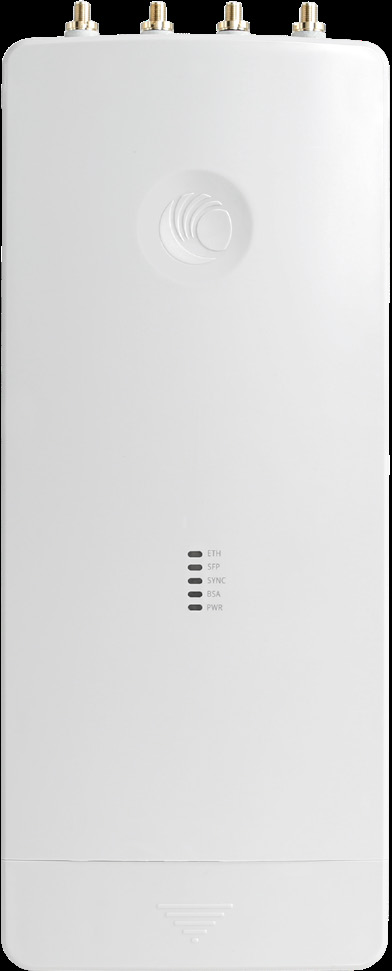

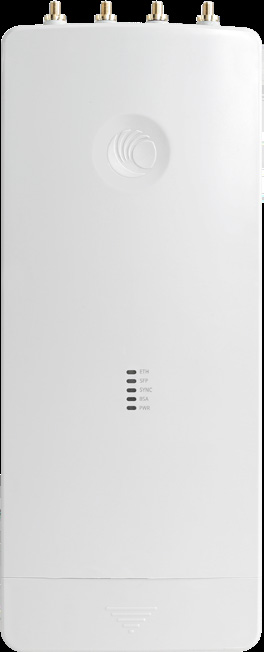

The flagship product is the ePMP 3000, which can deliver 1.2 Gbps serving or more subscribers. Featuring 4x4 MU-MIMO and dual overlapping sectors, the ePMP can transmit to two SM’s at the same time. This effectively doubles the capacity of 2x2 systems and

ePMP MicroPOP

The ePMP MicroPOP can be deployed as a complement to the ePMP or ePMP 3000L for low-density, short-range applications as a hole filler or to inject capacity in a small area. The MicroPOP has an integrated omni antenna but does not support synchronization.
