Indoor or Outdoor ONT
  • Specs: Fiber SGX00/SGT00 and SXX00/SXT00 ONT
  • ONTs feature a robust design that can withstand harsh environmental conditions while delivering multi-gigabit symmetric speeds.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

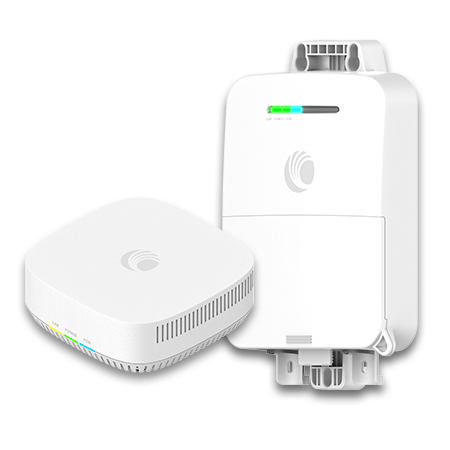

Cambium Networks Indoor or Outdoor ONT

ONTs feature a robust design that can withstand harsh environmental conditions while delivering multi-gigabit symmetric speeds.

OutdoorFiber

Product Highlights

management

FTTx Re-imagined: Simple, Reliable, Efficient

Deliver reliable symmetric gigabit speed connectivity with indoor and outdoor fiber Optic Network Terminals (ONT). Designed for service providers to connect business and residential subscribers with a focus on providing exceptional performance and a low Total Cost of Ownership (TCO), these ONTs feature a robust design that can withstand harsh environmental conditions. With multiple PON technologies, including GPON and XGS-PON, and gigabit or multi-gigabit speed options, the ONT makes network expansion easy.

With simplified zero-touch configurations and a user-friendly unified management system, your team can focus on growth instead of managing multiple complex systems.

Ideal Applications

High-capacity fiber backhaul and enterprise WAN aggregation requiring dense SFP port density. Service provider edge and data-center interconnect deployments with optical transport requirements.

Product Images

14 photos

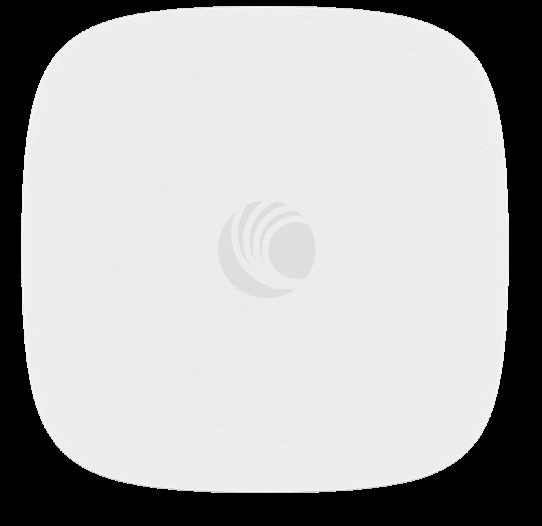

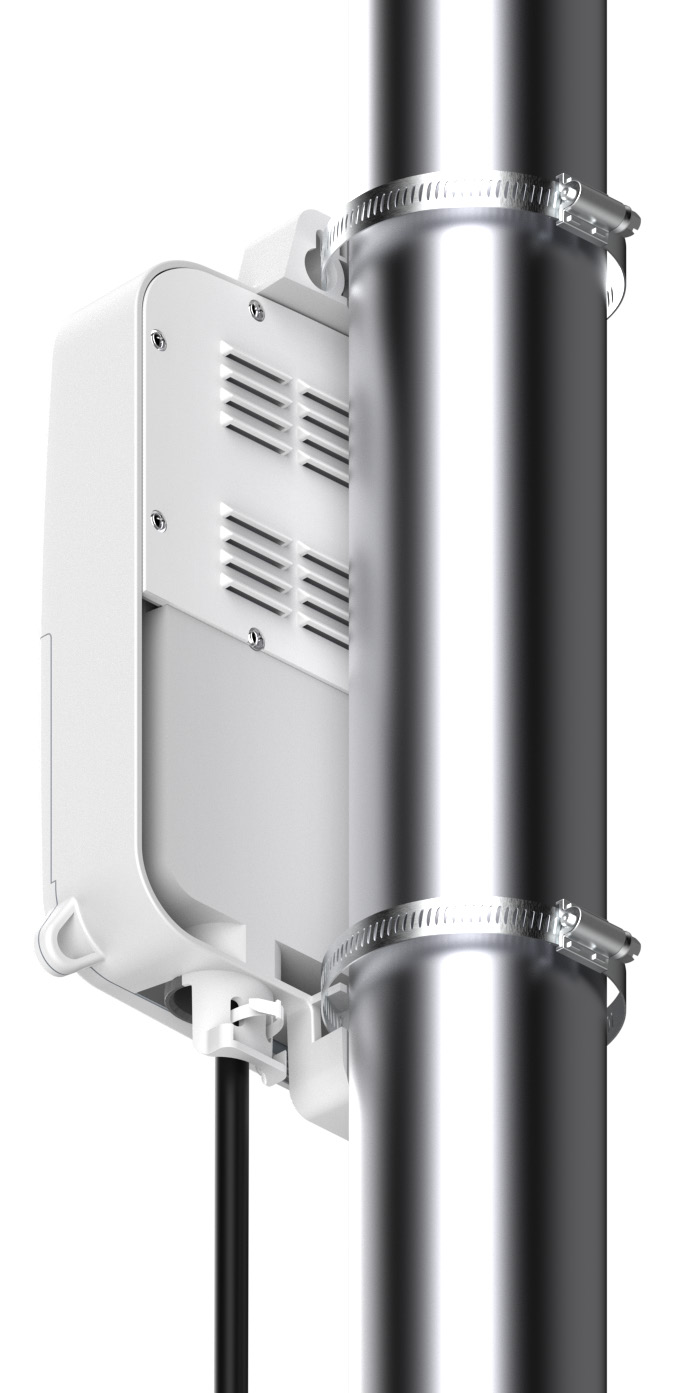

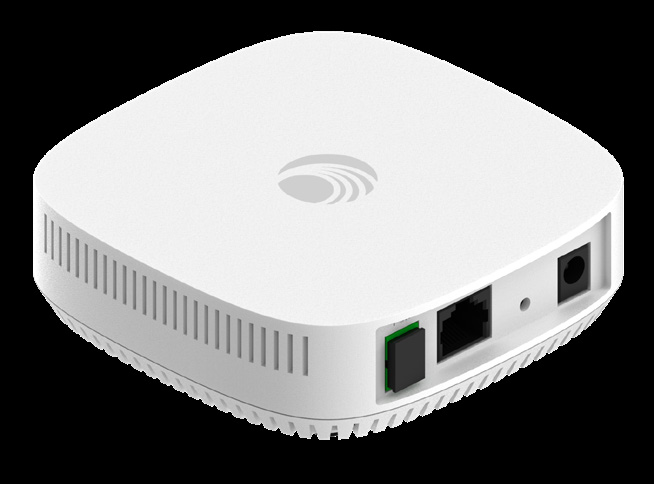

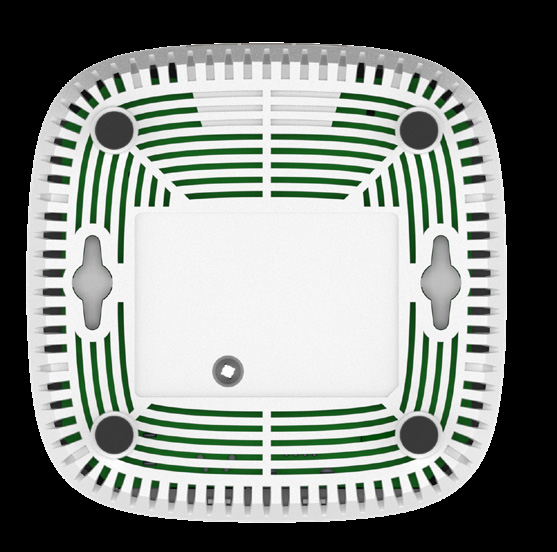

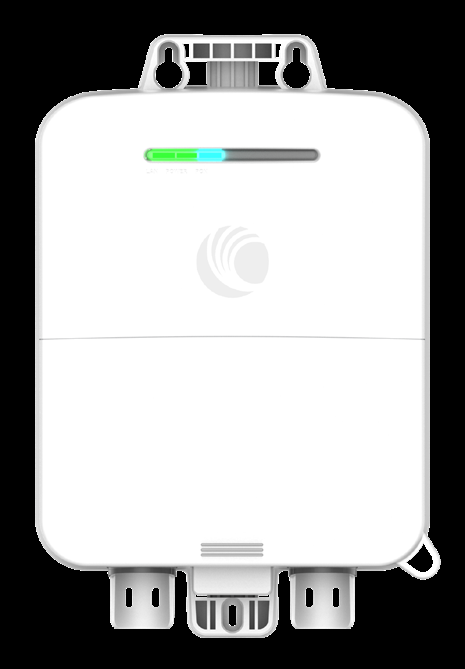

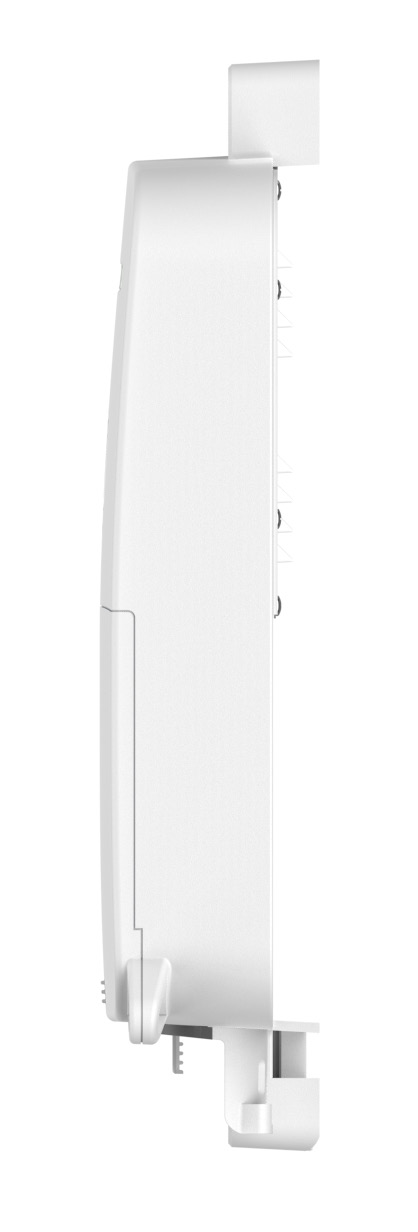

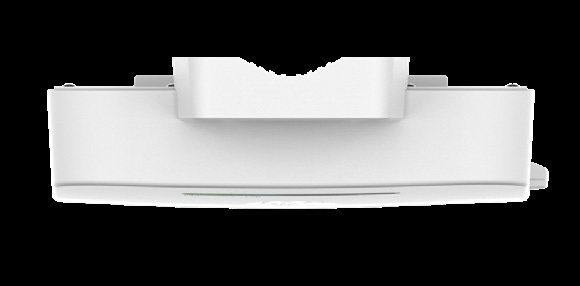

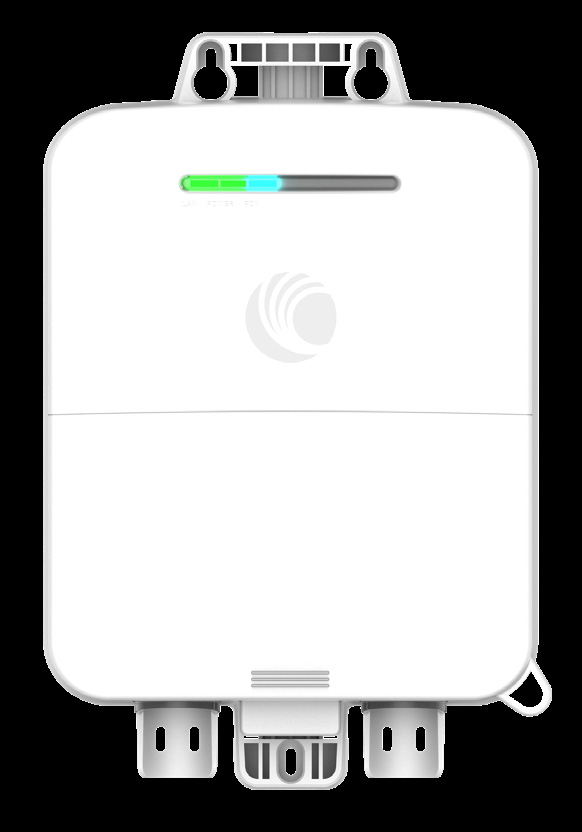

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Technical Details

Hardware Specifications

Comprehensive technical data for the Indoor or Outdoor ONT to ensure compatibility with your deployment.

Specifications

Note: Some features will be includedin subsequent firmware releases.

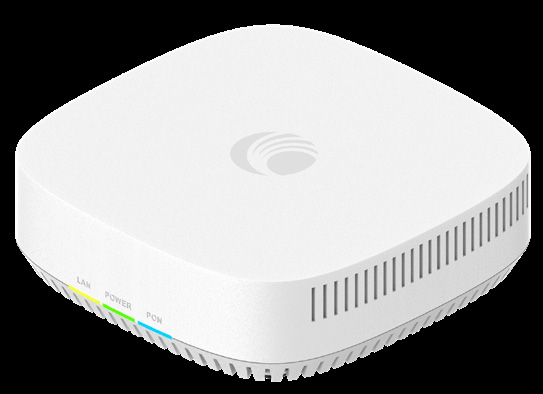

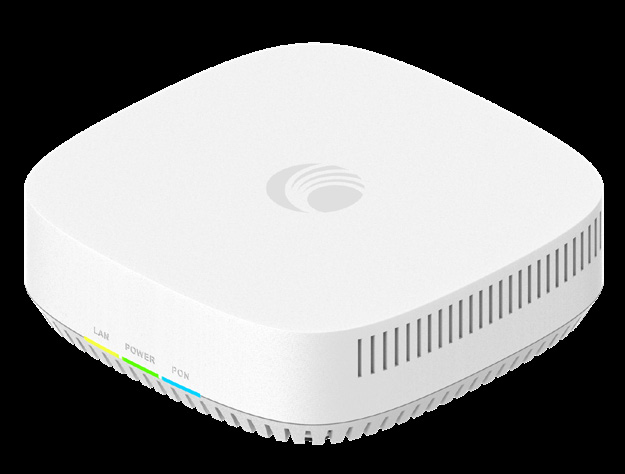

SGX00 Gigabit IndoorGPON SXX00 Multi-gigabit Indoor XGS-PON
GPON:2.488 / 1.244 Gbps XGS-PON: 9.95 / 9.95 Gbps
PONPON
Wavelength:D: 1490 nm, U: 1310 nm Wavelength: D: 1577 nm, U: 1270 nm
TX Power:Class B+ (0.5–5 dBm) TX Power: Class B+ 4–9 dBm
RX Sensitivity:-28 to -8 dBm RX Sensitivity: -28 to -8 dBm
LAN LAN 10/100/1000Base-T Ethernet LAN 10/100/1000/2500 Base-T Ethernet
Dimensions 4.15 x 4.15x 1.3 in (105 x 105 x 33mm) Dimensions 4.15 x 4.15 x 1.3 in (105 x 105 x 33mm)
IndoorIndoor
Environment 32° to 113ºF(0° to 45ºC) Environment 32° to 113ºF (0° to 45ºC)
10% to95% non-condensing 10% to 95% non-condensing
Power 12V DC1A included Power 12V DC 1A included

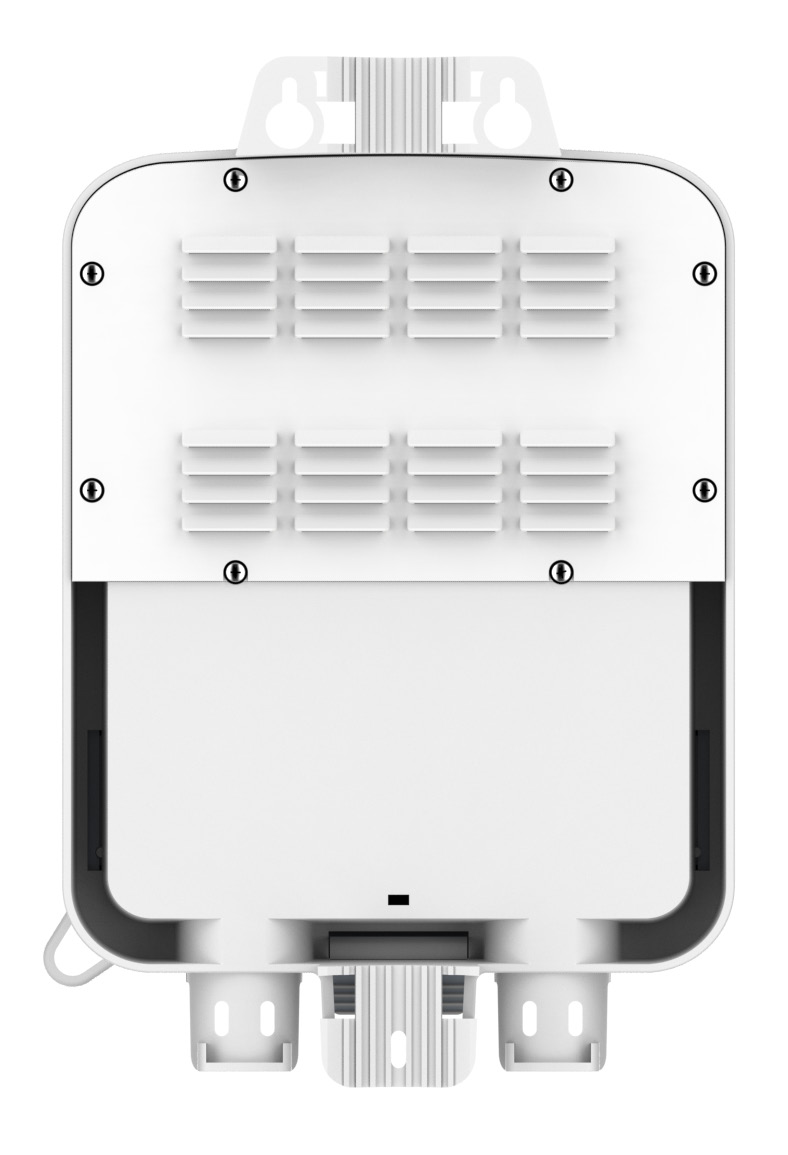

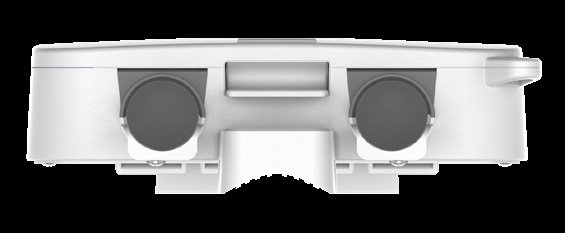

SGT00 Gigabit OutdoorGPON SXT00 Multi-gigabit Outdoor XGS-PON
GPON:2.488 / 1.244 Gbps XGS-PON: 9.95 / 9.95 Gbps
PONPON
Wavelength:D: 1490 nm, U: 1310 nm Wavelength: D: 1577 nm, U: 1270 nm
TX Power:Class B+ (0.5–5 dBm) TX Power: Class B+ 4–9 dBm
RX Sensitivity:-28 to -8 dBm RX Sensitivity: -28 to -8 dBm
LAN LAN 10/100/1000Base-T Ethernet LAN 10/100/1000/2500 Base-T Ethernet
Dimensions 8.8 x 12x 3.14 in (224 x 305 x 80mm) Dimensions 8.8 x 12 x 3.14 in (224 x 305 x 80mm)
IP55 OutdoorIP55 Outdoor
Environment -22° to140ºF (-30° to 60ºC) Environment -22° to 140ºF (-30° to 60ºC)
10% to95% non-condensing 10% to 95% non-condensing
30V DC0.5A Cambium PoE included 30V DC 0.5A Cambium PoE included
PowerPower
Standardpolarity PoE supported Standard polarity PoE supported

Regulatory

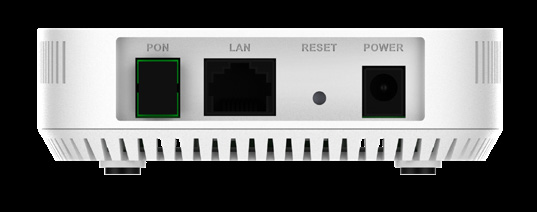

FCC, ICES, EN, IEC, CAN/CSA,ETSI, ANSI/UL, AS/NZS (details in product documentation) Fiber SGX00/SGT00 and SXX00/SXT00 ONT Front Panel
About CambiumNetworks
Cambium Networksenables service providers, enterprises, industrial organizations, and governments to deliver exceptional
digital experiences,and device connectivity, with compelling economics. Our ONE Network platform simplifies management of
Cambium Networks’wired and wireless broadband and network edge technologies. Our customers can focus more resources
on managing theirbusiness rather than the network. We deliver connectivity that just works. 3800 Golf Road Suite 360, Rolling Meadows, Illinois 60008 USA
Downloads

Documentation & Resources

Download datasheets and technical documentation for the Indoor or Outdoor ONT.

Data Sheet

Download PDF →
