Product Overview

Cambium Networks Intelligent Positioners

Intelligent Positioners allow for the quick deployment of nomadic wireless broadband.

Product Highlights

minutes

The Intelligent Positioner for Nomadic Wireless Broadband is part of Cambium Networks’ Intelligent Positioning Systems portfolio. The Intelligent Positioning Systems portfolio supports rapid deployment of broadband connectivity. Examples include quickly deploying a PMP 450i in the field to support work at a new oil pad location or quickly deploying both ends of a PTP 820E link to establish gigabit per second throughput to a mining location.

With the Intelligent Positioner for Nomadic Wireless Broadband, networks based on PMP/PTP 450i or PTP can be initially set up and then periodically moved to new locations safely and quickly – while continuing to provide optimal radio positioning and link reliability at all locations. The Intelligent Positioner for Nomadic Wireless Broadband scans the horizon and automatically locks onto the RF signal of the intended radio at the remote end with minimal human intervention. Optimal alignment of the radios occurs in minutes.

Ideal Applications

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale. ISP last-mile buildouts requiring scalable point-to-multipoint architecture with high spectral efficiency.

Product Images

8 photos

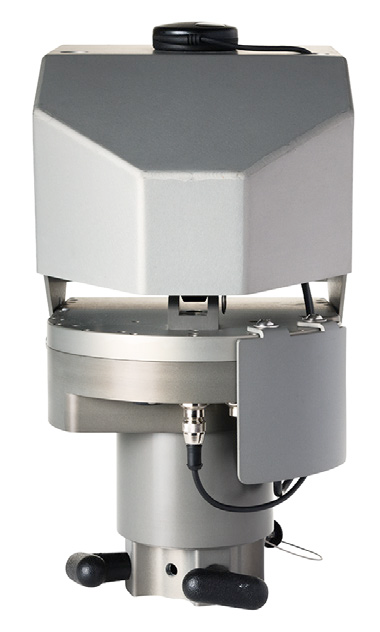

Product image 1

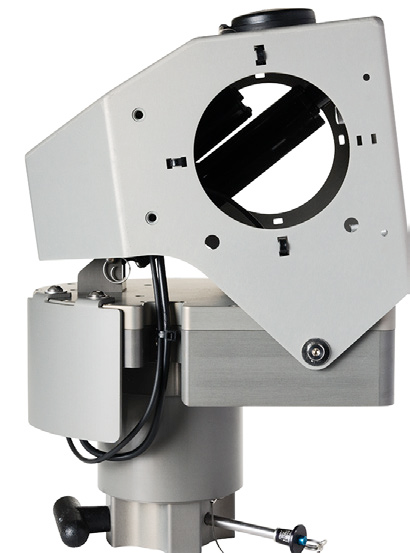

Product image 2

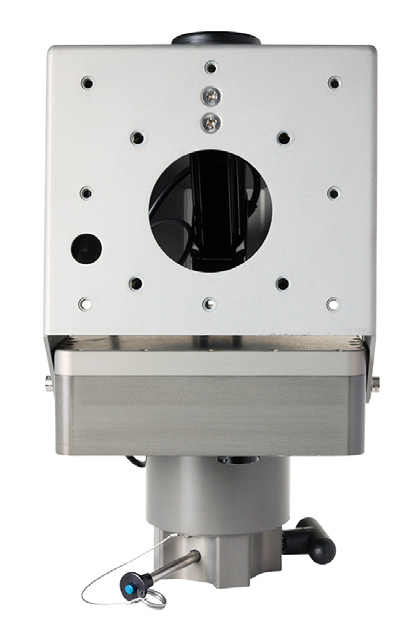

Product image 3

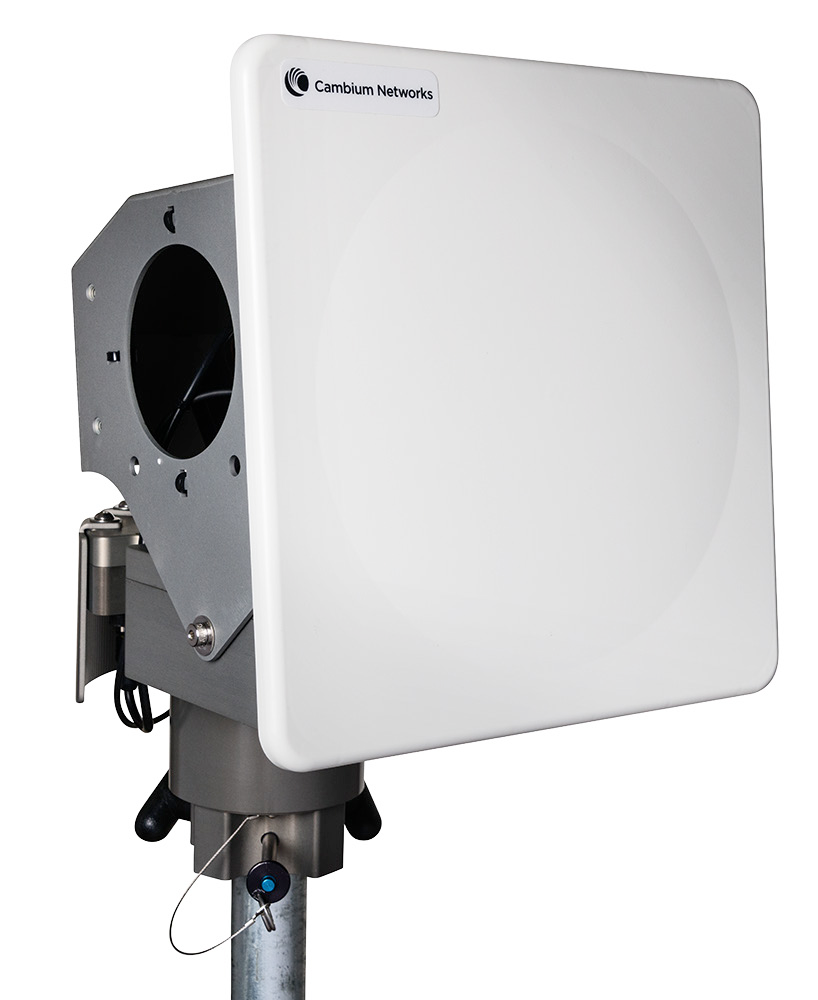

Product image 4

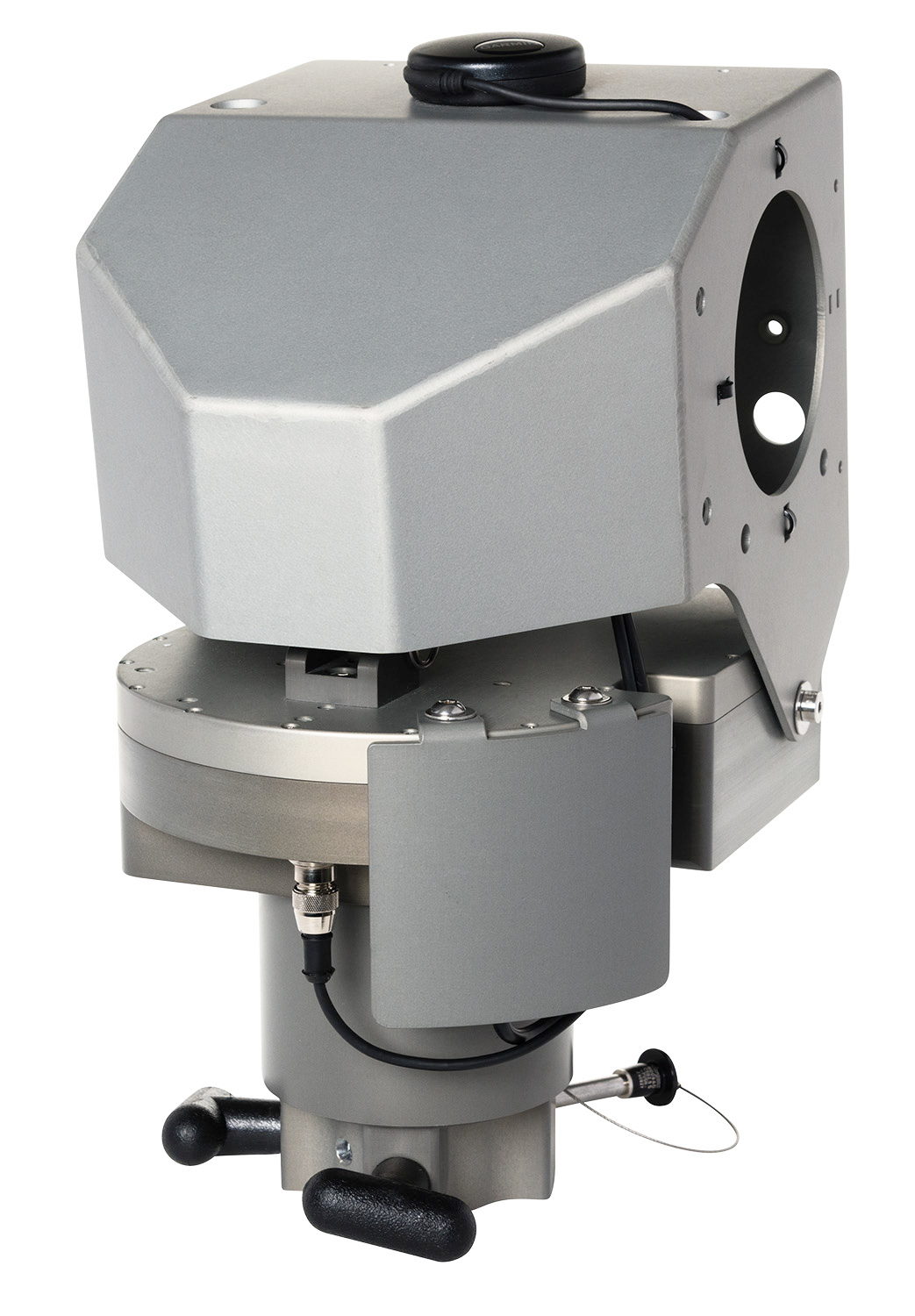

Product image 5

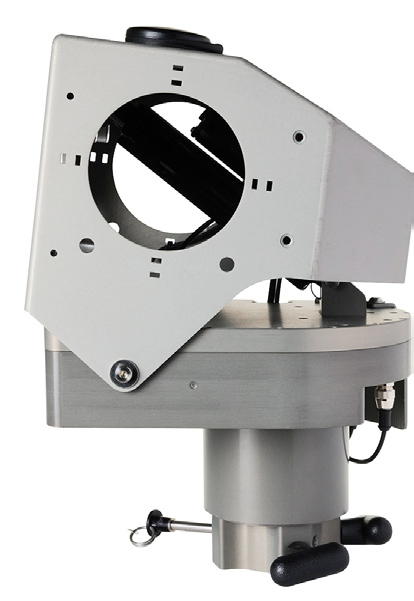

Product image 6

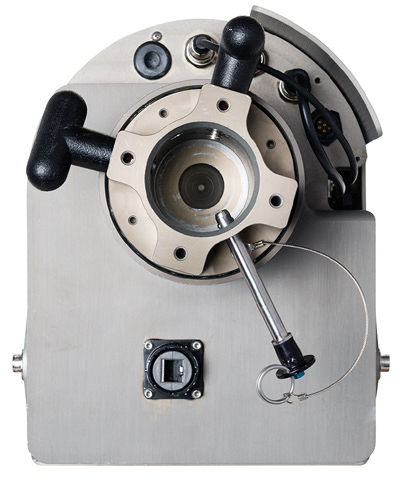

Product image 7

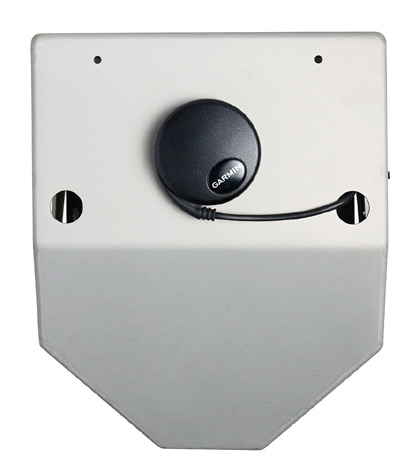

Product image 8
Technical Details

Hardware Specifications

Comprehensive technical data for the Intelligent Positioners to ensure compatibility with your deployment.

Specifications

APPLICATIONSKEY FEATURES
• Oil and Gas Industryfor well-head re-locations • Positions antenna to realize maximum signal strength
and turnaroundsreceived from remote radio in minutes • Provides azimuth range of 400° (+-200°) and
• Mining operations formining re-locations elevation range of 40° (+-20°) • Compatible with Cambium Networks PMP/PTP 450i or PTP 670
• Service Providers deployingCell on Wheels for
adding LTE and Wi-Ficoverage for temporary Finds specified Access Point when several access •
event hostingpoints are present • Simplicity in configuration and achieving optimal
• Disaster Recovery scenariosfor private position via an integrated web-based user

enterprise networks

Intelligent PositionerSpecifications
Model NumberC000000H002A
Physical Dimensions43 cm H x 22 cm W x 27 cm D (16.72 in x 8.69 in x 10.79 in)
Weight8 kg (18 lbs) Passive Power Over Ethernet Type
PowerInput Voltage 48 VDC to 56 VDC 2.5 W to 30 W Operational -30°C to 60°C (-22°F to 140°F) Survival -40°C to 70°C (-40°F to 158°F) 400° (+/- 200°) 40° (+/-20°)
Positional TravelAzimuth Elevation Up to 4.5° / second with no load Up to 4° / second with no load
Positioner Drive RateAzimuth Elevation
Payload20kg (45lbs)
Positioner MaterialsAluminum with stainless steel hardware / Hard coat anodize Clamps standard to a 5 cm (2in) diameter mast, optional table mount with four holes are in a square mounted 8.53 cm (3.36 in) apart Web-based interface (HTTP), SNMPv2, SNMPv3

Management

Ethernet10/100
SerialRS-485 Intelligent Positioner for Nomadic Broadband

Certifications

CISPR CISPR 32:2015AMD1:2019

ABOUT CAMBIUM NETWORKS

Cambium Networks empowersmillions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and
government network operatorsas well as broadband service providers to connect people, places and things. With a single network architecture
spanning fixed wireless andWi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end
cloud management transformsnetworks into dynamic environments that evolve to meet changing needs with minimal physical human
intervention. Cambium Networksempowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work.
