Cambium Networks Lightning Protection Unit

In-line Ethernet surge protection for outdoor Cambium radios.

Cambium Networks Lightning Protection Unit
Talk to a Pro
Contact Us 855-958-0754 Email Sales
Lightning Protection Unit
  • Specs: Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m.
  • Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks Lightning Protection Unit

Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m.

Product Highlights

cabling is diverted away from the ODU. When installed correctly with the recommended grounding practices (i.e. using solid shielded CAT5e cable), the PTP-LPU quickly shunts the excess current to ground (typically within five nanoseconds). By grounding the power surges before they can harm the units, the Cambium Networks PTP-LPU provides radios the best protection from the harmful effects of lightning. The PTP-LPU’s connections and enclosure are designed for IP 66/67 water and dust protection so they can be installed in the most difficult terrain and environmental conditions.

Ideal Applications

In-line Ethernet surge protection for outdoor Cambium radios mounted on towers, rooftops, and exposed structures. Recommended on every outdoor link to protect indoor equipment from lightning-induced transients.

Product Images

1 photo
Product image 1
Technical Details

Hardware Specifications

Comprehensive technical data for the Lightning Protection Unit to ensure compatibility with your deployment.

Specifications

FEATUREDESCRIPTION
MODEL NUMBERC000065L007A
TRANSFER RATE1000 Base T
CONNECTORSRJ 45
PROTECTION MODELine-to-line and line-to-ground
RESPONSE TIME5 nanoseconds typical
MOUNTINGPole mount 1-3” (25-75 mm) or wall mount
METAL ENCLOSUREProjected 10-year operational life
DIMENSIONS (INCLUDING GLANDS)6.3” Length (16 cm), 4” (10 cm) Width, 3.5” (9 cm) Height
WEIGHT1.5 lbs (700 g)
WIND LOADING150 mph (242 kph)
OPERATING TEMPERATURE-40° F (-40° C) to +140° F (+60° C)
HUMIDITY100% condensing
SURGE RATING10/1000us 150 Amps min, 8/20us 1500 Amps min
ENVIRONMENTAL PROTECTIONIP66/ IP67 (Dust and Water Intrusion Protection)

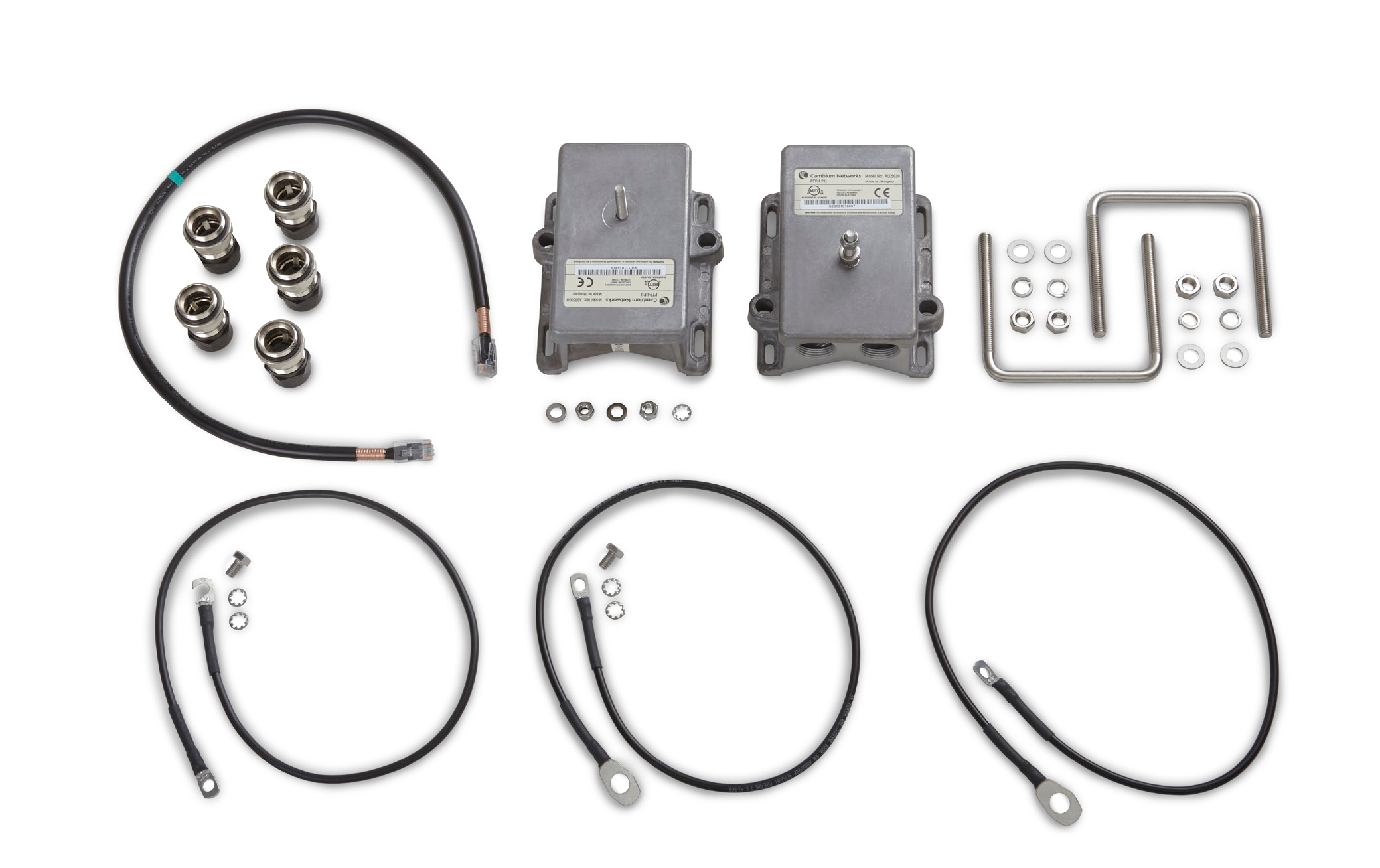

LPU and GroundingKit
ODU to top LPU drop cableLPUs LPU mounting U-bolts, nuts, and washers Cable glands LPU grounding point nuts and washers Bottom LPU to
ODUto top ODU to grounding system
LPUground grounding ground cable
cablesystem ground cable ODU grounding point bolts and washers
Downloads

Documentation & Resources

Download datasheets and technical documentation for the Lightning Protection Unit.

Data Sheet

Download PDF →
