Product Overview

Cambium Networks LINKPlanner

LINKPlanner allows you to model “what if” scenarios for fixed wireless technologies – based on geography, distance, antenna height, and more.

Product Highlights

Predictable Performance. Shorter Installation Time. Wireless network operators are constantly looking at how to reduce the total cost of ownership of the network in order to increase their return on investment. Keeping costs down starts with selecting the right equipment with the correct configuration for the desired performance and reliability. Cambium Networks has developed the LINKPlanner tool to simplify the design of these networks whether they are point-to-point (PTP) or point-to-multipoint (PMP). By designing the network with predictable performance up-front, the cost of procurement, installation, configuration, and ongoing support can be minimized.

Conduct “what if” scenarios based on geography, distance, antenna height, and transmit power and instantly see the effects on performance.

Optimize Your Needs.

Designed for use with our PTP and PMP solutions, LINKPlanner allows you to easily and quickly design networks for optimal deployment and cost effectiveness. As a cloud version, LINKPlanner is a free, easy-to- use link design tool that can be accessed at

Ideal Applications

RF path planning and link budget modeling for Cambium fixed wireless deployments — PMP, PTP, and ePMP. Essential for WISP network design, BEAD program documentation, and pre-deployment interference analysis.

Product Images

4 photos
Product image 1
Product image 2
Product image 3
Product image 4
Technical Details

Hardware Specifications

Comprehensive technical data for the LINKPlanner to ensure compatibility with your deployment.

Specifications

LINKPlanner performance reportsgive confidence that your chosen LINKPlanner then automatically imports a path profile to which you can
system will meet your needs andprovide installers with configuration add additional obstructions to accurately model the environment.
guidelines that enable them to quicklydeploy the network. Thousands By modifying system characteristics, such as antenna type and height,
of Cambium customers have obtainedaccurate link performance you can obtain the optimal configuration to achieve the performance
projections using the LINKPlannertool. you need to meet your throughput and availability requirements. You’ll also see projected system gain margin and path loss for the link.
The first step in link design is toenter information about the sites you
want to connect. The recommendedmethod to insert sites into a
project is to import the latitude andlongitude information from sources
such as Google Earth mappingservice.
Aggregate IP Throughput413.12 Mbps 100.0000%
System Gain Margin30.03 dB
Free Space Path Loss119.62 dB
Gaseous Absorption Loss0.04 dB
Excess Path Loss0.00 dB
Total Path Loss119.65 dB

Performance to AP–Airport

Predicted Receive Power-75 dBm ± 7 dB

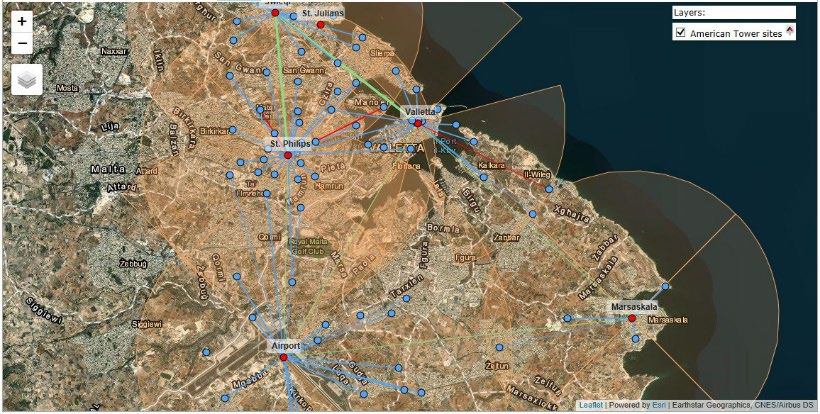

Maximum Usable ModeMCS-11 (16 QAM 0.5) Online network view.
Predicted Receive Power-47 dBm ± 5 dB 188.84 Mbps While LINKPlanner projections have proven to be extraordinarily
Mean IP Required150.0 Mbps accurate, such precision depends on obtaining accurate and 126% complete path data. Based on the path data provided, LINKPlanner
Minimum IP Required100 Mbps reports can predict after-deployment performance and provide your
Minimum IP Availability99.9900%
Requiredinstallers with the information they need to successfully install the links
Minimum IP Availability99.9990% in your network. LINKPlanner

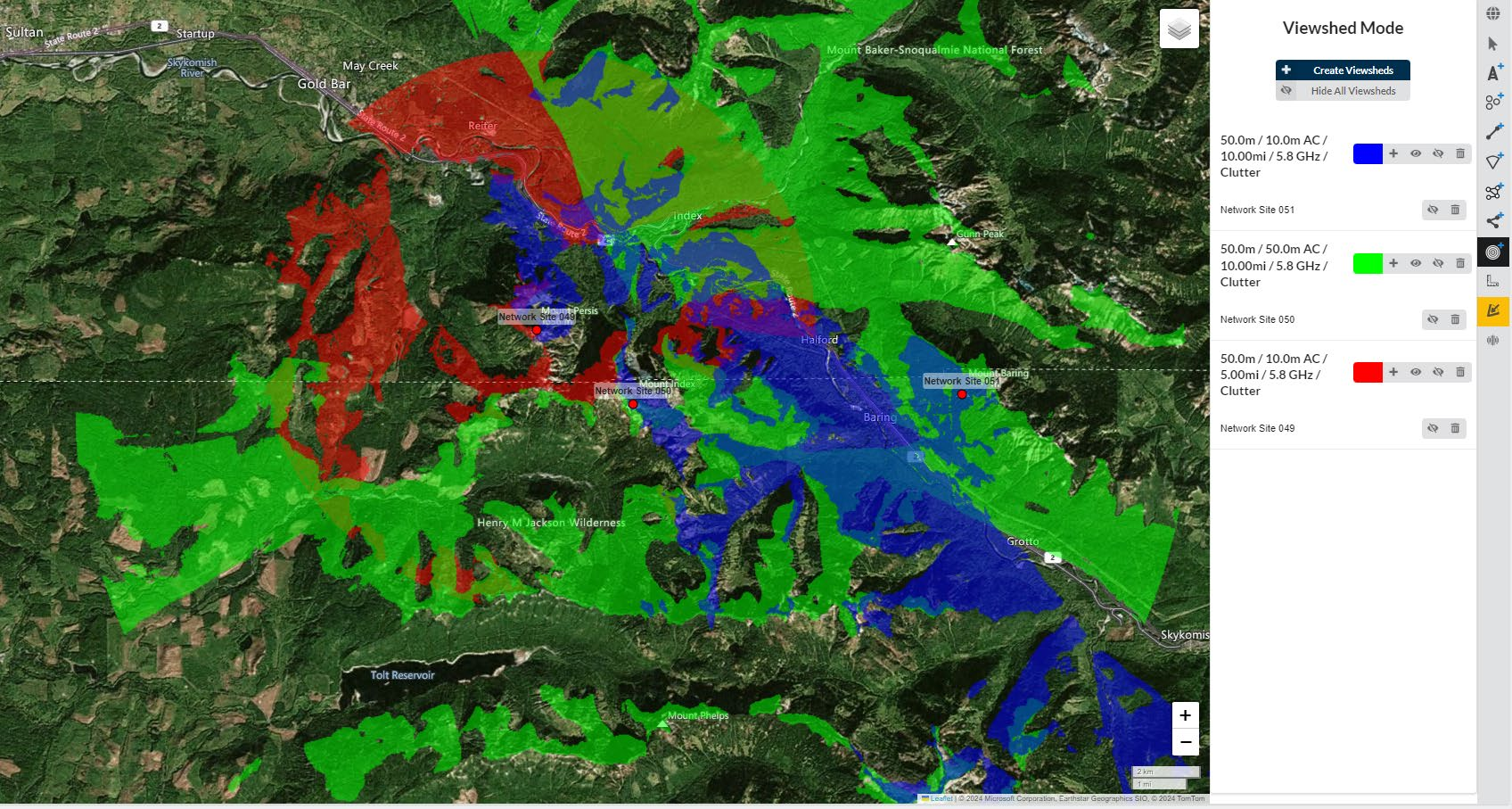

Viewsheds allow you to see all line-of-sitelocations in a given area. You define the tower height and the height of the subscriber.. Access LINKPlanner
