Product Overview
Cambium Networks NSE 3000
Network Service Edge (NSE) integrates SD-WAN, advanced security, and network services into a single solution
Product Highlights
Cambium Networks’ Network Service Edge (NSE) delivers unified threat management and SD-WAN for small and medium enterprises, educational institutions, and other distributed organizations.
With a single click, enable intrusion detection or intrusion prevention and let the industry-leading IDS/IPS engine protect your network against threats.
NSE features two Gigabit WAN ports and four Gigabit LAN ports and offers reliable connectivity with WAN throughput of up to Gbps.
countries.
Audit security vulnerabilities with always-on LAN vulnerability scans and get notified when critical ones
are discovered.
Filter malware and undesired content with the DNS content filter. Select options to block from over 88+
categories of domain names.
This helps you enforce CIPA guidelines for K–12
Ideal Applications
Enterprise LAN infrastructure requiring cloud-managed Layer 2/3 switching with full PoE budget for wireless APs, IP cameras, and VoIP. Wiring-closet aggregation and data-center edge deployments managed centrally through cnMaestro.
Product Images
8 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the NSE 3000 to ensure compatibility with your deployment.
Specifications
SD-WAN and Traffic Engineering:Network Services
••
Set up WAN links to sharetraffic or configure them in an Create separate networks for employees, guests, and
active-backup fashion.IoT devices with ease. Our VLAN and DHCP configuration make this setup a breeze.
• Share traffic on both WANlinks and specify the traffic •
share.Enable traffic shaping and rate-limiting policies to cap internet bandwidth for guests.
• Tracks WAN link healthand automatically fails over
traffic to the performinglink. • Use the on-box RADIUS server to create user accounts and set up secure network authentication for all the
Prioritize business-criticalapplications and restrict users and devices on your network.
bandwidth for non-criticalapps. • NSE supports Dynamic DNS updates for WAN
Easily prioritize and allotreserved bandwidth for time- interfaces. Create easy-to-remember host names to expose on-premise services. • NSE keeps all databases current and always updated— intrusion rules, vulnerability reports, device signatures,
Auto VPN, Site-to-Site, andRemote Access VPN Geo-IP databases, malware sites database.
• Auto-VPN: Effortlessly createsecure tunnels between
multiple sites or connecttens of remote sites to a central
hub with just a couple ofclicks. Cloud Management
• Enable remote workersto log in to your network • NSEs are completely managed by the easy-to-use,
securely from any device.NSE supports industry secure, and cloud-hosted Cambium Networks
standard WireGuard, L2TP-IPSec,and IKEv2-EAP cnMaestro Network Management system. A single-
protocols for remote accessVPN. pane-of-glass management system to operate and
Turn on multi-factor authenticationto enhance manage all Cambium enterprise products (NSE,
password-based authentication.Offers MFA via Google Enterprise Wi-Fi, and cnMatrix switches). • NSEs can work without a subscription and include strong built-in security features. A subscription adds advanced security and additional features. • Zero-touch provisioning: Power on the device and have
Get a comprehensive overviewand security analysis of it automatically managed and configured.
all the devices on your networkvia Cambium’s • Gain complete visibility and control of your Starlink WAN
cnMaestro cloud managementplatform. link with alignment guidance, performance insights, and
Use the intrusion preventiondashboard to gain insight remote management through cnMaestro.
on intrusion attempts. Usethe insight to refine • Insight and stats on all connected devices on your
prevention policy and enhanceintrusion rule sets. network.
• Get a network security auditof all devices on your • Easy to consume data on intrusion attempts—severity,
network. Patch and remediationmeasures are provided details, country of origin, and remedial measures.
to help you secure yourdevices • Network security audit of all devices on your network:
• Get deep insight into allthe application traffic on your Patch and remediation measures are provided to help
network. Use the insightto craft granular policies to you secure your devices.
prioritize and allocate sufficientbandwidth to business- Network Service Edge (NSE)
SpecificationsNSE 3000 NSE 4000
Recommended Use CaseSites and branches with up to 1,000 Sites, branches, and headquarters with up to devices 2,500 devices
Routed Throughput945 Mbps* 10 Gbps*
Layer-7 Stateful Throughput917 Mbps* 6.5 Gbps*
Advanced firewall throughput (NAT+ AVC) 911 Mbps* 3.3 Gbps*
Advanced Security Throughput
Site-to-Site VPN75 site-to-site VPN tunnels 200 site-to-site VPN tunnels
WAN Ports2 x 1 Gbps RJ45/SFP 1 x 10 GbE SFP+, 1 x 2.5 GbE RJ45 (reconfigurable up to 4 WAN ports) (reconfigurable up to 5 WAN ports) 4 x 1 Gbps RJ45 1 x 10 GbE SFP+, 7 x 2.5 GbE RJ45
LAN Ports
PoE+ PortsNA P7/P8/P9/P10 RJ45 ports
MountingTabletop and wall-mount options Tabletop and Rackmount options (Brackets included)
Dimension232.72 mm x 175.16 mm x 43 mm 330 mm x 230 mm x 44 mm
Weight0.65 kg 3.24 kg
Max Power Consumption22.8W 156W (POE Included), 36W (POE Excluded)
Power Supply40W DC 100-240 V AC, 50-60Hz
LEDsCloud connection and system indicators Cloud connection, WAN status and system indicators
Operating Temperature0ºC–40ºC 0ºC–40ºC

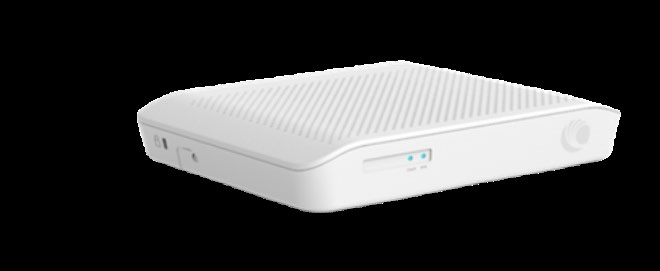

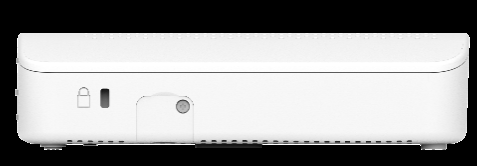

*Throughput values are “up to” andmay vary depending on system configuration. Network Service Edge (NSE) NSE 3000 Back/Ports Side Panel NSE 4000

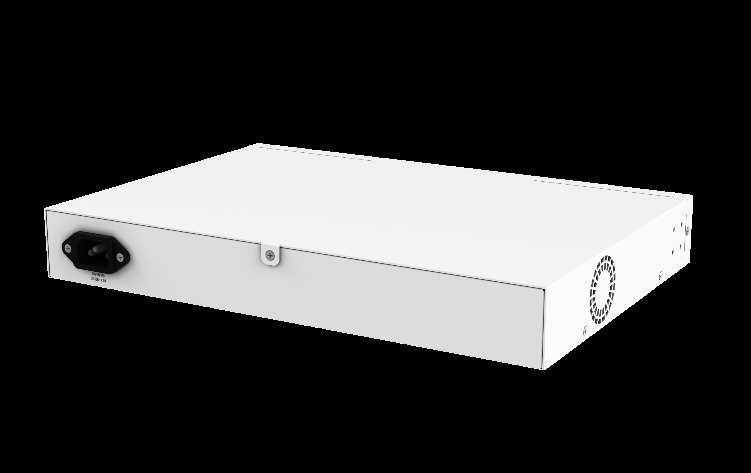

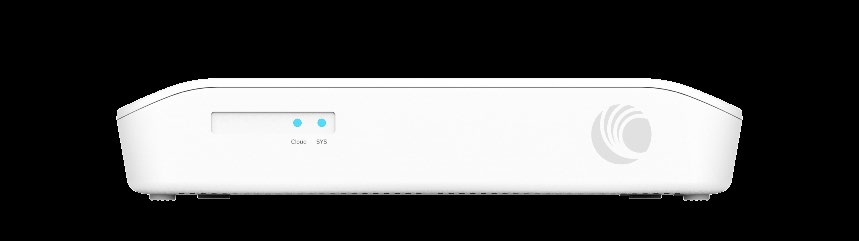

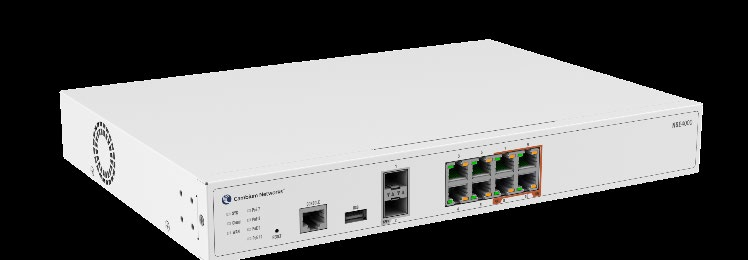

Front/PortsBack Panel Network Service Edge (NSE)
Security and Security PlusFeature Set
Security (No Subscription)Security Plus (Available with a 1-, 3-, or 5-Year Subscription)
SD-WANAll of Security plus...
WAN load balancing (Active-Activeand Active-Backup) Overlay WAN over CGNAT networks
• Flow preferences (Layer3and Layer 7)
Site-to-site VPNs (hub and spokeand mesh) Geo-IP firewall • LAN to WAN • WAN to LAN
Remote VPNDNS content filtering • 80+ categories • Safe search • Fast with data caches around the world
Next-Gen FirewallLAN vulnerability assessment
Intrusion detection and preventionHigh availability
• Choice of free and commercialrule sets • 1+1 in Active-Backup mode
Application visibility and controlAuto VPN • One-click setup of VPN tunnels • IoT device identification
Cloud managed via cnMaestroEssentials cnMaestro reports and analytics Cloud managed via cnMaestro Essentials and cnMaestro X Network Service Edge (NSE)
NSE 3000 and cnMaestroOrdering Information
NSE3000 NSE3000Security and SD-WAN Appliance with 1 Gbps Firewall Throughput and 920 Mbps Advanced Security
NSE-SUB-3000-1 NSEsubscription for one NSE3000. Creates 1 Device Tier30 slot in cnMaestro X or cnMaestro Essentials.
IncludesCambium Care Pro software support. 1-year subscription.
NSE-SUB-3000-3 NSEsubscription for one NSE3000. Creates 1 Device Tier30 slot in cnMaestro X or cnMaestro Essentials.
IncludesCambium Care Pro software support. 3-year subscription.
NSE-SUB-3000-5 NSEsubscription for one NSE3000. Creates 1 Device Tier30 slot in cnMaestro X or cnMaestro Essentials.
IncludesCambium Care Pro software support. 5-year subscription.
Extended Warranty OrderingInformation
The standard warranty for NSE3000is 1 year with an option to buy extended warranty for up to 4 years.
EW-E1NSE3000-WWNSE3000 extended warranty, 1 additional year.
EW-E2NSE3000-WWNSE3000 extended warranty, 2 additional years.
EW-E3NSE3000-WWNSE3000 extended warranty, 3 additional years.
EW-E4NSE3000-WWNSE3000 extended warranty, 4 additional years.
Cambium Care AdvancedAdd-On Ordering Information
CCADV-UPG-NSE3000-1Cambium Care Advanced Add-On to cnMaestro: 1 year of support for 1 NSE3000. 24x7 TAC support, software updates, and NBDS advance replacement for HW. Cambium Care Advanced Add-On to cnMaestro: 3 years of support for 1 NSE3000. 24x7 TAC support, software updates, and NBDS advance replacement for HW.
CCADV-UPG-NSE3000-5Cambium Care Advanced Add-On to cnMaestro: 5 years of support for 1 NSE3000. 24x7 TAC support, software updates, and NBDS advance replacement for HW. NSE4000 Ordering Information
NSE 4000 and cnMaestroOrdering Information
NSE4000 NSE4000Security and SD-WAN Appliance with 10 Gbps Firewall Throughput and 2.5 Gbps Advanced Security
NSE-SUB-4000-1 NSEsubscription for one NSE4000. Creates 1 Device Tier31 slot in cnMaestro X or cnMaestro Essentials.
IncludesCambium Care Pro software support. 1-year subscription.
NSE-SUB-4000-3 NSEsubscription for one NSE4000. Creates 1 Device Tier31 slot in cnMaestro X or cnMaestro Essentials.
IncludesCambium Care Pro software support. 3-year subscription.
NSE-SUB-4000-5 NSEsubscription for one NSE4000. Creates 1 Device Tier31 slot in cnMaestro X or cnMaestro Essentials.
IncludesCambium Care Pro software support. 5-year subscription.
Extended Warranty OrderingInformation
The standard warranty for NSE4000is 1 year with an option to buy extended warranty for up to 4 years.
EW-NSE4000-1NSE4000 extended warranty, 1 additional year.
EW-NSE4000-2NSE4000 extended warranty, 2 additional years.
EW-NSE4000-3NSE4000 extended warranty, 3 additional years.
EW-NSE4000-4NSE4000 extended warranty, 4 additional years.
Cambium Care AdvancedAdd-On Ordering Information
CCADV-UPG-NSE4000-1Cambium Care Advanced Add-On to cnMaestro: 1 year of support for 1 NSE4000. 24x7 TAC support, software updates, and NBDS advance replacement for HW.
CCADV-UPG-NSE4000-3Cambium Care Advanced Add-On to cnMaestro: 3 years of support for 1 NSE4000. 24x7 TAC support, software updates, and NBDS advance replacement for HW.
CCADV-UPG-NSE4000-5Cambium Care Advanced Add-On to cnMaestro: 5 years of support for 1 NSE4000. 24x7 TAC support, software updates, and NBDS advance replacement for HW.
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
