Product Overview
Cambium Networks PTP 450b
Backhaul links are the vital infrastructure that connects the network. You need confidence that your solution will work under heavy demand, regardless of the conditions.
PTP
Ideal Applications
Outdoor campus, stadium, and transportation hub deployments requiring IP67-rated weatherproof Wi-Fi coverage. High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses.
Product Images
10 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the PTP 450b to ensure compatibility with your deployment.
Radio Model Numbers
Global*ROW FCC ISED EU No Encryption
Connectorized– C050045B041A C050045B042A C050045B043A C050045B044A C050045B045A
Mid-Gain (17 dBi) C050045C011AC050045B031A C050045B032A C050045B033A C050045B034A C050045B035A
High-Gain C050045C012AC050045B021A C050045B022A C050045B023A C050045B024A C050045B025A
(radio only)
4-Pack High-Gain N050045D002AN050045D002A N050045D002A N050045D002A N050045D002A N050045D002A
*Global models are restricted to SM-onlyoperation and cannot function as point-to-point (PTP) or backhaul.
Spectrum
Channel Spacing Configurableon 2.5 MHz increments
Frequency Range 4900–5925MHz
Channel Width 5 MHz,10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
Interface
MAC (Media Access CambiumNetworks proprietary
2x2 MIMOOFDM
Physical Layer
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
Ethernet Interface
IPv4, IPv6,UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Protocols Used
IPv4/IPv6(dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™
Management
VLAN 802.1ad(DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Security
Encryption FIPS-197128-bit AES, 256-bit AES (requires optional license for attached access point)
Antenna
Integrated Antenna17 dBi 24 dBi
3 dB Beamwidth –15º 7º
3 dB Beamwidth –30º 7º Dual linear, H + V Dual linear, H + V >20 dB >25 dB
Cross Polarization15 dB 15 dB 5 GHz 450b Subscriber and Backhaul
Modulation Levels (Adaptive)MCS Signal-to-Noise Required (SNR in dB)
2xQPSK 10
4x16QAM 17
6x64QAM 24
8x256QAM 32
Maximum Up to 64km (40 mi) in point-to-multipoint (PMP) mode, up to 200 km (124 mi) in point-to-point (PTP) mode
Latency 3–5 ms,typical
GPS Yes, synchronizedby access point or via 3.5 mm port using cnPulse (for PTP mode)
Quality of Service DiffserveQoS
Physical
Antennan/a n/a Optional radome: N000900L021A EN 61000-4-5: 10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air > 40 Years > 40 Years > 40 Years
EnvironmentalIP67 IP55 IP55, Optional glands to enhance to IP67 (N000000L135A) 200 kph (124 mph) 200 kph (124 mph) 200 kph (124 mph) -40°C to 60°C (-40°F to 140°F), 0–100% non-condensing
Weight0.9 kg (2 lb) 0.6 kg (1.4 lb) 3.1 kg (7 lb)
includingmounting bracket including mounting bracket including mounting bracket
Dimensions24 x 4 x 9 cm 12.5 x 24.8 x 12 cm Diameter 45 x 28 cm (9.5 x 1.5 x 3.5 in) (4.9 x 9.8 x 4.7 in) (17.8 in x 11.2 in)
Pole Diameter2.5 cm to 7.6 cm 2.5 cm to 7.6 cm (1 in to 3 in) 2.5 cm to 7.6 cm (1 in to 3 in) (1 in to 3 in) ± 20 degrees mechanical tilt ± 20 degrees mechanical tilt
Power9 W typical, 12 W peak 9 W typical, 12 W peak 9 W typical, 12 W peak
Input Voltage20–32 VDC 20–32 VDC 20–32 VDC 5 GHz 450b Subscriber and Backhaul
Transmit Power 54 dB dynamicrange (to EIRP limit by region) (1 dB step)
Maximum Transmit +27 dBm(MIMO, combined V+H)
Power Control ATPC (AutomaticTransmit Power Control) at system level;, all subscribers implement ATPC
Certifications
ISED Canada109W-0042 109W-0032 109W-0042
FCC IDZ8H89FT0042 Z8H89FT0032 Z8H89FT0042
ETSIEN 301 893 v2.1.1 EN 301 893 v2.1.1 EN 301 893 v2.1.1 EN 302 502 v2.1.1 EN 302 502 v2.1.1 EN 302 502 v2.1.1 Mid-Gain 17 dBi High-Gain 24 dBi 5 GHz 450b Subscriber and Backhaul

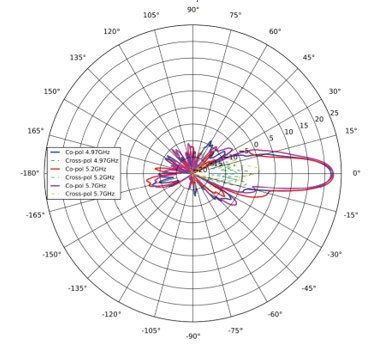

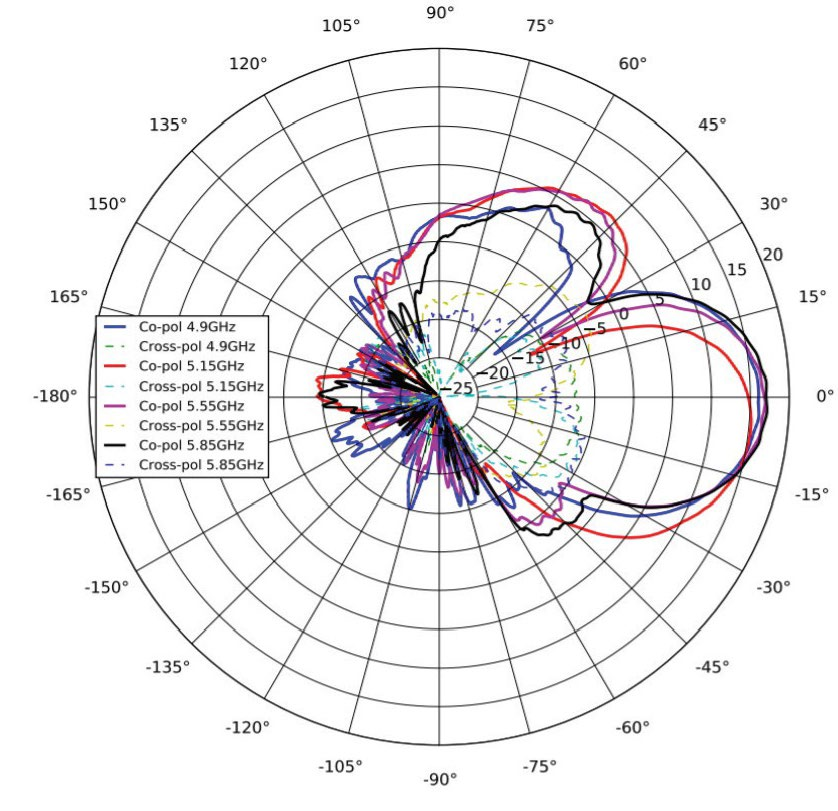

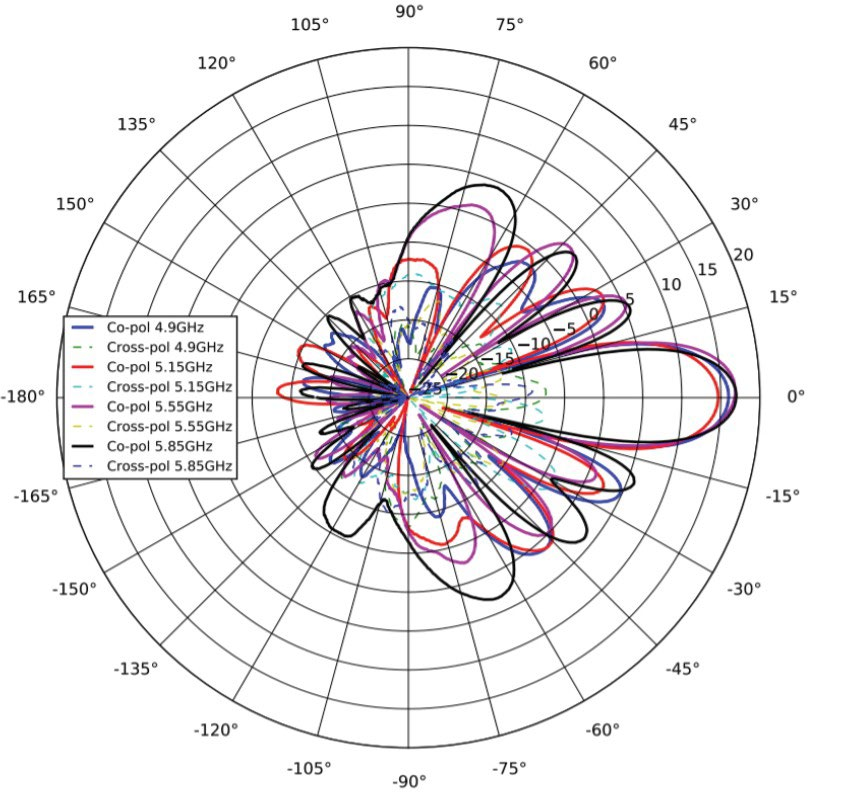

5 GHz 450b Mid-Gain AntennaPatterns
Azimuth,Vertical Elevation, Vertical

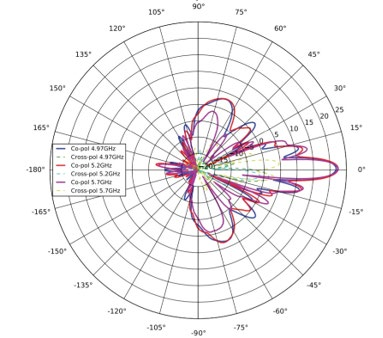

5 GHz 450b High-GainAntenna Patterns
Azimuth,Vertical Elevation, Vertical
