Cambium Networks PTP 450i Fixed Wireless Backhaul

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses.

Talk to a Pro

PTP 450i

Specs: Cambium Networks industry-leading 450 platform

Fit to comprehensive network with dynamic interference filtering

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing before 4:15 pm PST
Authorized Reseller — Serving customers 20+ years
Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Product Overview

Cambium Networks PTP 450i Fixed Wireless Backhaul

Fit to comprehensive network with dynamic interference filtering

PTP

Product Highlights

ULTRA-WIDE BAND RADIOS

Supports the entire band, whether in GHz or GHz. Advanced radio design improves transmit power and increases receive sensitivity.

UPDATED FPGA AND SOC ARCHITECTURE

Triples the processing power compared to

RUGGED METAL ENCLOSURE

Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/ HAZLOC certified models available for hazardous deployments.

MULTIFUNCTION AUX PORT

Allows for greater flexibility for deployment by adding a camera or other PoE directly.

DYNAMIC INTERFERENCE FILTERING

Provides industryleading noise isolation for improved performance.

INCREASE THROUGHPUT

Now capable of up to Mbps per sector in a MHz channel.

Ideal Applications

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.

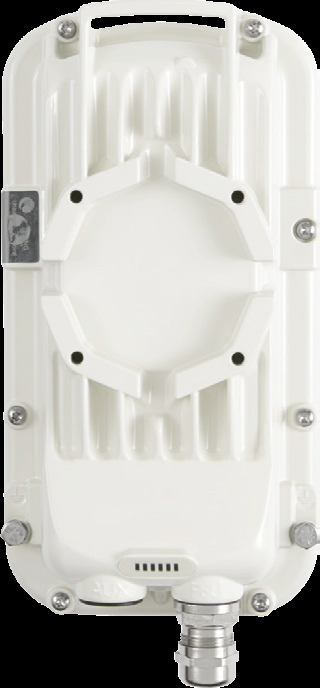

Product Images

6 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 450i to ensure compatibility with your deployment.

Specifications

Model NumbersRoW US EU No Encryption ISED

ConnectorizedC050045B001B C050045B003B C050045B005B C050045B007B C050045B015B

IntegratedC050045B002B C050045B004B C050045B006B C050045B008B C050045B016B

ConnectorizedC030045B001A C030045B001A – C030045B003A C030045B001A

IntegratedC030045B002A C030045B002A – C030045B004A C030045B002A

Spectrum

Channel Spacing 3GHz: Customizable to 50 KHz 5 GHz: Configurable on 2.5 MHz increments

Frequency Range 3GHz: 3300 - 3900 MHz 5 GHz: 4900 - 5925 MHz

5MHz, 7 MHz, 10 MHz, 15 MHz,

Channel Width5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz

20MHz, 30 MHz or 40 MHz

Interface

MAC (Media Access Control)Cambium Networks proprietary 2x2 MIMO OFDM

Physical Layer

Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

Protocols UsedIPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Network ManagementIPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM 1700 bytes

VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Security

Encryption256-bit AES (Requires Optional License) PTP 450i Fixed Wireless Backhaul

ARQYes

Modulation Levels (Adaptive)MCS Signal to Noise Required (SNR, in dB)

2xQPSK 10

4x16QAM 17

6x64QAM 24

8x256QAM 32

Maximum Deployment RangeUp to 200 kilometers (124 miles) depending on configuration

Latency3 - 5 ms, typical

GPS SynchronizationYes, via Autosync (UGPS, CMM4 or CMM5) Diffserve QoS

Antenna Connection

Surge SuppressionEN61000-4-5: 1.2us/50us, 500 V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A

Mean Time Between Failure>40 Years

Dust and Water Ingress ProtectionRating IP67, IP66

Temperature / Humidity-40°C to +75°C (-40°F to +167°F), 0-100% condensing Connectorized Approx. 2.0 kg (4.5 lbs) Integrated Approx. 2.5 kg (5.5 lbs)

Wind Survival322 km/h (200 mi/h)

VibrationNEMA TS2 Section 2.1.9 and Section 2.2.3

ShockNEMA TS2 Section 2.1.10 and Section 2.2.4

External IcingNEMA 250-2003 Section 5.6 Connectorized 26.0 x 13.4 x 6.4 cm (10.25” x 5.25” x 3.25”) Integrated 31.0 x 31.0 x 6.4 cm (12” x 12” x 2.5”)

Power Consumption15 W typical, 18 W max, Using Aux port PoE for another device will increase power draw

Input Voltage48-59 V DC, 802.3at compliant

MountingWall or Pole mount with Cambium Networks Model # N000045L002A PTP 450i Fixed Wireless Backhaul 3 GHz 5 GHz 17° azimuth for integrated antenna 10° azimuth for integrated antenna

Maximum Transmit Power

Maximum EIRP(may be limited by regulations) (may be limited by regulations)

VSWR1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB ATPC (Automatic Transmit Power Control) at system level,

Certifications

FCC IDZ8H89FT0028 QWP-50450I

CEEN 302 326-2 v1.2.2 EN 301 893 v2.1.1 EN 302 502 v2.1.1 PTP 450i Fixed Wireless Backhaul

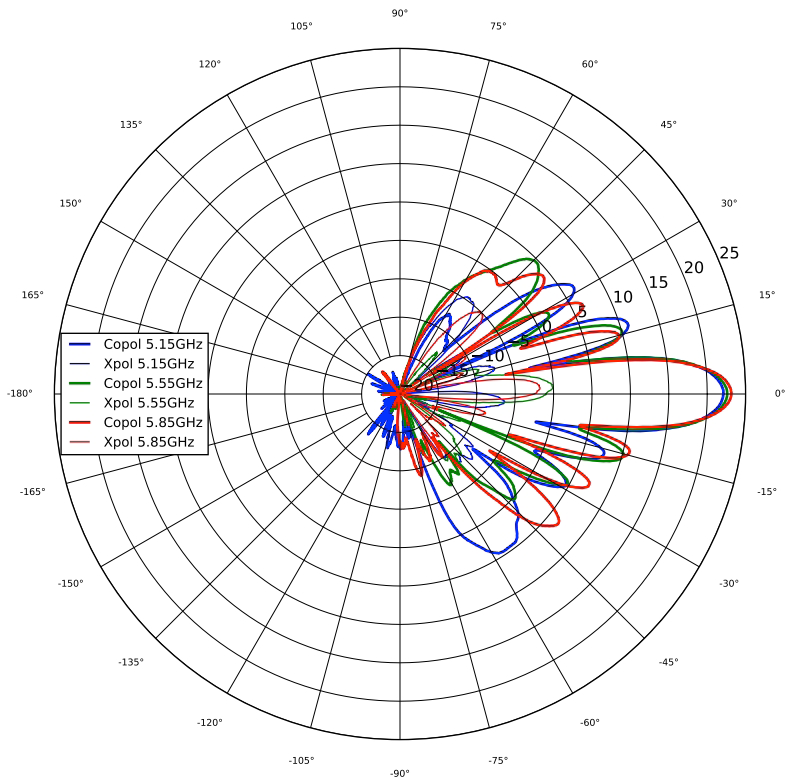

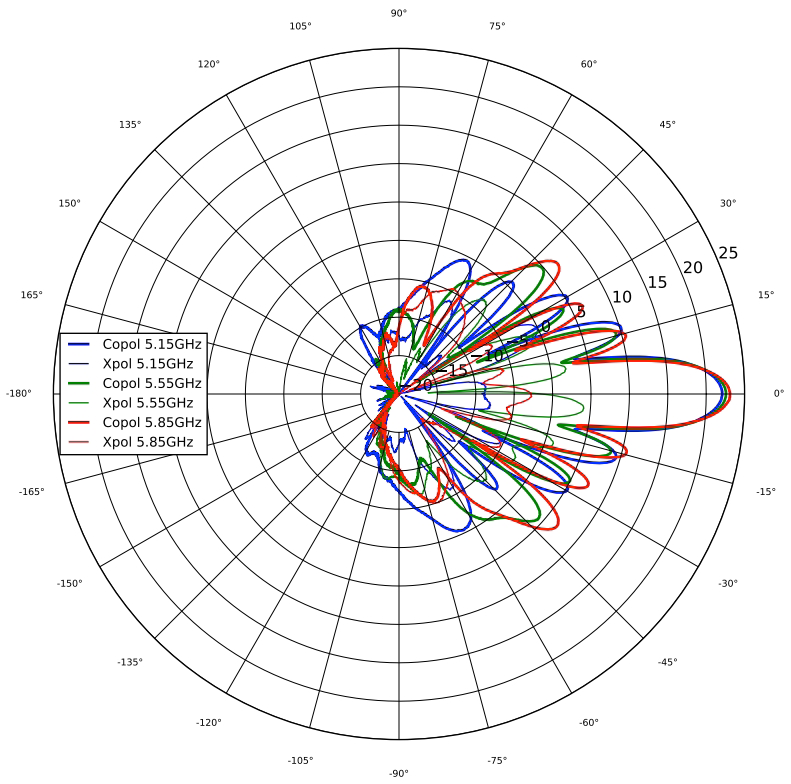

5 GHz Antenna Patternfor Integrated PTP 450i

5 GHzAzimuth 5 GHz Elevation

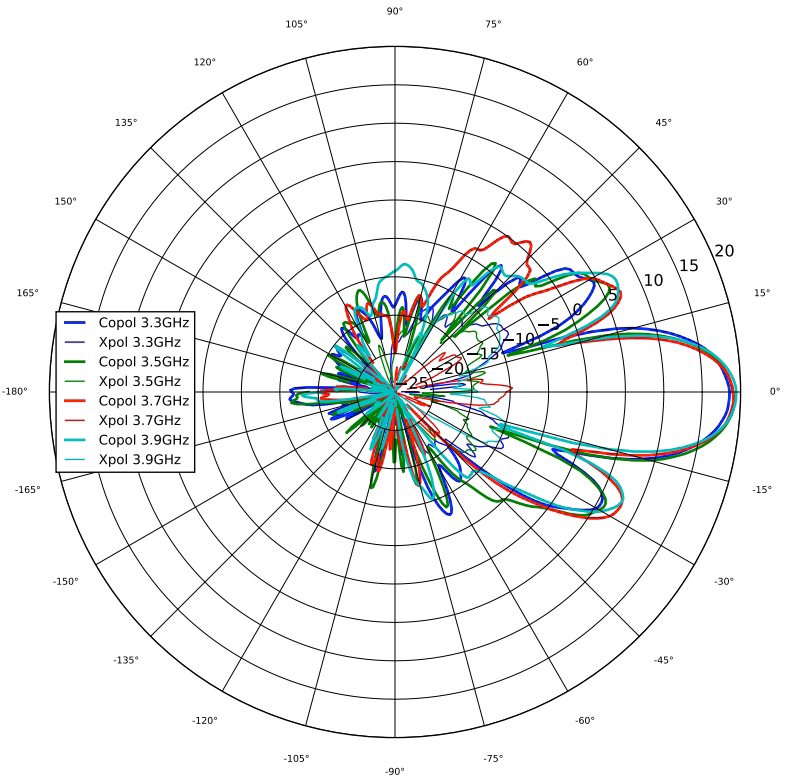

3 GHz Antenna Patternfor Integrated PTP 450i

3 GHzAzimuth 3 GHz Elevation

ABOUT CAMBIUM NETWORKS

Cambium Networks empowersmillions of people with wireless connectivity worldwide. Its wireless portfolio is used by commercial and

government network operatorsas well as broadband service providers to connect people, places and things. With a single network architecture

spanning fixed wireless andWi-Fi, Cambium Networks enables operators to achieve maximum performance with minimal spectrum. End-to-end

cloud management transformsnetworks into dynamic environments that evolve to meet changing needs with minimal physical human

intervention. Cambium Networksempowers a growing ecosystem of partners who design and deliver gigabit wireless solutions that just work.

Downloads

Documentation & Resources

Download datasheets and technical documentation for the PTP 450i.

Data Sheet
