PTP 450v 2×2
  • Specs: PMP 450v 2x2 Fixed Wireless Subscriber
  • Operates from 5.15 GHz to 7.125 GHz
  • 2x2 MIMO subscriber module
  • Can be deployed as point-to-point (PTP) backhaul link

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks PTP 450v 2×2

Both the 2×2 PTP 450v and 4×4 PTP 450v support up to 2×40 MHz of operating spectrum to deliver over 500 Mbps of data.

PTP

Product Highlights

Frequency Flexibility

Achieve flexibility in spectrum usage with GHz or GHz frequency

MHz total

were produced in a different factory.

Mechanical Assembly

GPS Active Antenna For GHz Operation

Spectrum

Channel Spacing Configurable on 2.5 MHz increments Frequency Range 5.150 GHz–7.125 GHz Component Carrier Bandwidths 5, 10, 15, 20, 30, Occupied Bandwidth x MHz component carriers, *Note that model numbers ending in “A” are equivalent in form, fit and function, but

Ideal Applications

Fixed wireless broadband distribution to rural, suburban, and underserved communities at scale. ISP last-mile buildouts requiring scalable point-to-multipoint architecture with high spectral efficiency.

Product Images

4 photos
Product image 1
Product image 2
Product image 3
Product image 4
Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 450v 2×2 to ensure compatibility with your deployment.

Specifications

PMP 450v2x2 Fixed Wireless Subscriber Module & PTP Backhaul

Interface

MAC (Media Access Control) LayerCambium Networks proprietary 2x2 MIMO OFDM

Physical Layer

Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols UsedIPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network ManagementIPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
MTU1700 bytes
VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Packets Per Sector100,000
ARQYes
Modulation Levels (Adaptive)MCS Signal to Noise Required (SNR, in dB)
2xQPSK 10
3x8QAM 13
4x16QAM 17
5x32QAM 21
6x64QAM 24 128QAM 28
8x256QAM 32
Ultimate Sensitivity-94 dBM
Maximum Deployment RangeUp to 40 mi (64 km), in PMP mode, up to 124 mi (200 km) in PTP mode
Latency3–5 ms, typical
GPS SynchronizationYes, via embedded GPS
Quality of ServiceDiffserve QoS

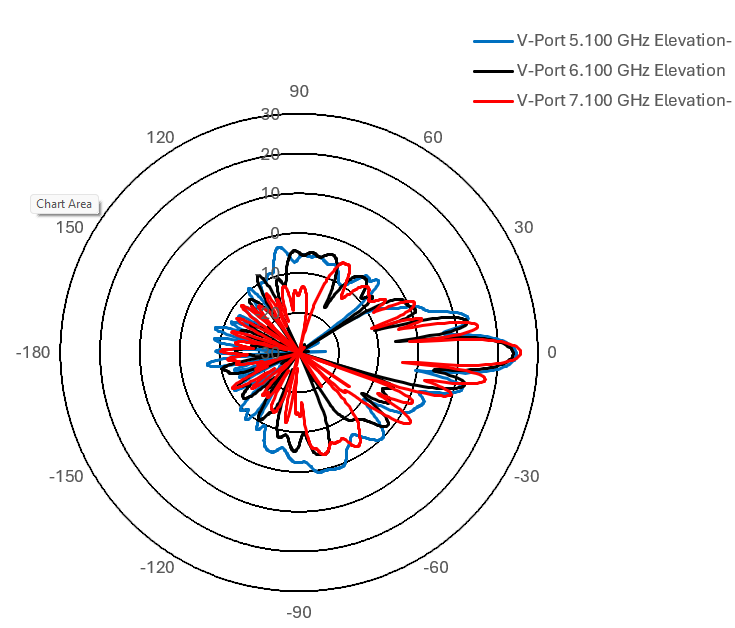

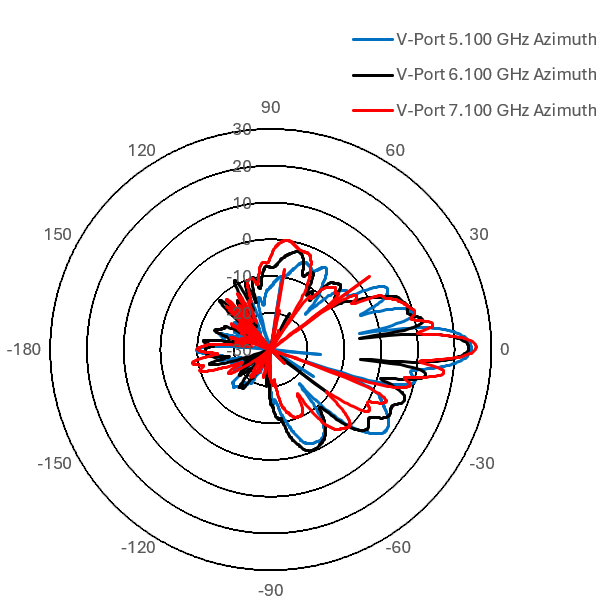

Antenna

Integrated Antenna Peak Gain24 dBi
3 dB Beamwidth – Azimuth7°
3 dB Beamwidth – Elevation7°
PolarizationDual Linear, H+V
Front-to-Back Isolation> 30 dB ( > 25 dB at sector edge) 15 dB
VSWR< 2
PMP 450v2x2 Fixed Wireless Subscriber Module & PTP Backhaul
Maximum Transmit +28dBm (MIMO, combined H+V) for 5 GHz, +20 dBm for 6 GHz
+50dBm combined output (may be limited by regulations) for 5 GHz, +44 dBm for 6 GHz
Power Control ATPC(Automatic Transmit Power Control) at system level, all subscribers implement ATPC

Physical

Antenna Connection N/A- Integrated Dish antenna, separately purchased part number N060045D201A
Surge Suppression EN61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air
Recommendedexternal surge suppressor: Cambium Model # C000000L033A
Mean Time Between >40 Years
Dust and Water Ingress IP67,IP66
Temperature / Humidity -40°Cto +60°C (-40°F to +140°F), 0%–95% condensing
Weight 1.2kg (2.6 lb) radio only, 4.0 kg (8.8 lb) with dish & bracket
Wind Survival 200kph (124 mph)
IEC60068-2-64:2008Random Vibration Test ESTN EN 300 019-2-4 V2.3.1
Dimensions (Diameter x 469mm diameter x 364 mm depth (18.5 in diameter x 14.3 in depth)
Power Consumption 25Wtypical, 35W max – Recommended Power Supply, C000000L141A
Input Voltage 42-59VDC, Passive PoE only (not 802.3 standards-based)

Security

Encryption FIPS-197128-bit AES, 256-bit AES (requires optional license)

Certifications

PMP 450v2x2 Fixed Wireless Subscriber Module & PTP Backhaul
