PTP 45700 Beam Steering ODU
  • Specs: QUIC K L OOK :
  • The PTP 45700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming that allows for easy tactical installation and best-in-class interference mitigation in addition to the industry-leading spectral efficiency and processing capabilities of the PTP 700 family of products.

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

Cambium Networks PTP 45700 Beam Steering ODU

The PTP 45700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming that allows for easy tactical installation and best-in-class interference mitigation in addition to the industry-leading spectral efficiency and processing capabilities of the PTP 700 family of products.

PTP

Ideal Applications

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.

Product Images

3 photos

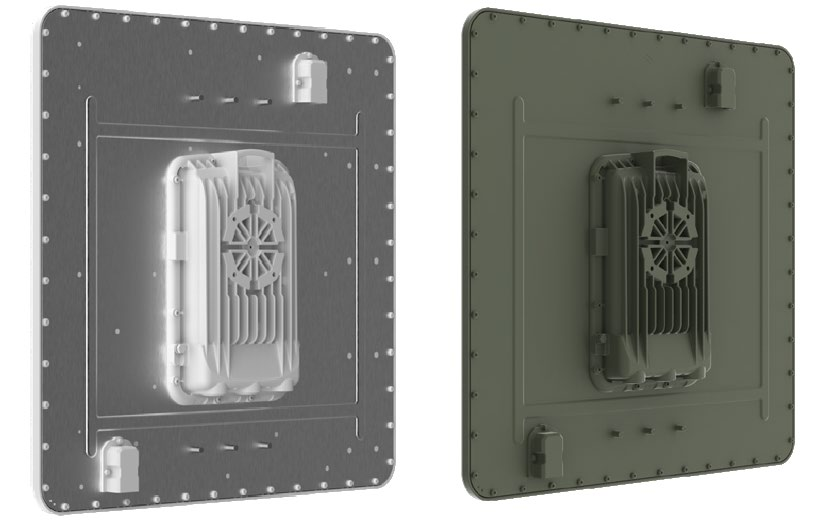

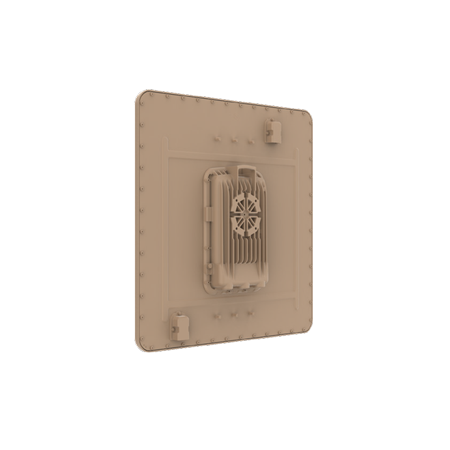

Product image 1

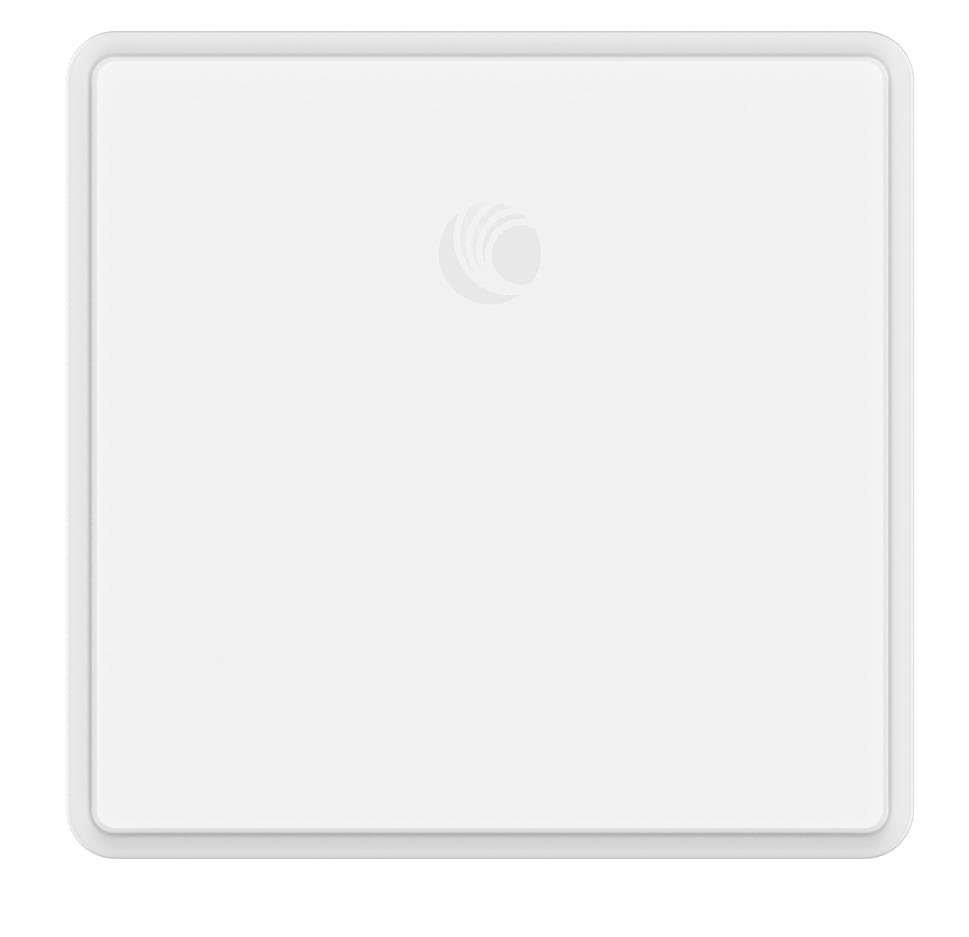

Product image 2

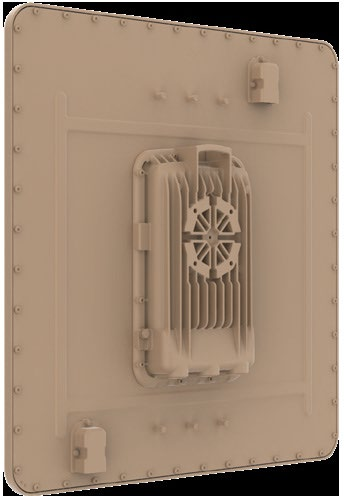

Product image 3
Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 45700 Beam Steering ODU to ensure compatibility with your deployment.

Specifications

RadioWide-band operation 4.4 GHz to 5.875 GHz in a single SKU, supporting bands including: • NATO Band IV / NTIA Compliant (4.4 GHz to 4.99 GHz) • 4.9 GHz Public Safety Band • 5.1/5.2/5.4/5.8 GHz FCC/ETSI 1+0, 2+0 (requires external switch) 5, 10, 15, 20, 30, 40, and 45 MHz channels. Channel sizes depend on individual country regulations. 10 bps/Hz maximum

Spectral Efficiency

Channel SelectionAutomatic selection on startup and continual self-optimization to avoid interference Up to 29 dBm

Maximum Transmit Power

Modulation /Fast Preemptive Adaptive Modulation, featuring 13 modulation / FEC coding levels ranging from BPSK to
Error Correction256 QAM dual payload MIMO Time Division Duplex (TDD) Adaptive or fixed transmit/receive duty cycles Split-frequency operation allows separate transmit and receive frequencies, where allowed by regulation. Optional TDD synchronization using PTP-SYNC Module Integrated flat panel

Security

ProtocolIEEE 802.3 1–3 ms one direction Extensive QoS supporting up to 8 queues (PTP mode) and 4 queues (HCMP mode)
Packet ClassificationLayer 2 and layer 3 IEEE 802.1p, MPLS, Ethernet priority
Packet PerformanceLine rate ( >850K packets per second)
Timing TransportSynchronous Ethernet; IEEE 1588v2
Frame SupportPTP mode: Jumbo frame up to 9600 bytes 2 x Gigabit Ethernet copper ports: • Gigabit Port 1: Data + PoE power input • Gigabit Port 2: Data + 802.3at PoE power output 1 x SFP port: Single-mode fiber, multi-mode fiber or copper gigabit Ethernet options available PTP 45700 Beam Steering ODU

Network Management

System ManagementIPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS SNMP v1, v2c and v3, MIB-II, and proprietary PTP MIB Online spectrum analyzer (no impact on payload traffic or network operation) Built-in audio and graphical assistance for link optimization (when automatic beam steering is disabled)

Mechanical Specifications

Dimensions (H x W x D)581 x 595 x 84 mm (22.9 x 23.4 x 3.3 in)
Weight9.1 kg (20.1 lb)
Operating Temperature-40° to 60°C (-40° to 140°F)
Environmental RatingIP66 and IP67
Shock/Vibration/TemperatureMIL-STD-810
Wind Speed Survival160 kph (99 mph)
Power Consumption43W maximum (up to 70W with 802.3at device on auxiliary port) Green, desert tan, white

Environmental and Regulatory

Protection and SafetyCSA C22.2 60950-22; CB approval for global use 4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1 EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007 NTIA Redbook RSS-210
EMCEN 301 489-1, EN 301 489-17; FCC Part 15B Class A, ICES-003 Class A PTP 45700 Beam Steering ODU
Receiver Sensitivity and TransmitPower dBm @ 4.7 GHz
Modulation Mode 5MHz 10 MHz 15 MHz 20 MHz 30 MHz 40 MHz 45 MHz Transmit Power (dBm)
BPSK 0.63 Single -95.0-93.5 -91.7 -90.5 -88.7 -87.5 -87.0 29.0
-91.5-90.0 -88.2 -87.0 -85.2 -84.0 -83.5 28.0
QPSK 0.87 Dual -87.5-86.0 -84.2 -83.0 -81.2 -80.0 -79.4 27.0
16QAM 0.63 Single -85.6-84.1 -82.3 -81.0 -79.3 -78.0 -77.5 26.0
-81.1-79.5 -77.8 -76.5 -74.8 -73.5 -73.0 26.0
16QAM 0.87 Single -80.9-79.4 -77.6 -76.3 -74.6 -73.3 -72.8 25.0
16QAM 0.87 Dual -77.8-76.3 -74.5 -73.3 -71.5 -70.3 -69.8 25.0
64QAM 0.75 Single -77.9-76.4 -74.6 -73.4 -71.6 -70.4 -69.9 24.0
64QAM 0.75 Dual -74.8-73.3 -71.5 -70.3 -68.5 -67.3 -66.8 24.0
-74.1-72.6 -70.9 -69.6 -68.5 -66.6 -66.1 24.0
-70.9-69.4 -67.6 -66.3 -64.6 -63.3 -62.8 24.0
256QAM 0.81 Single -70.9-69.4 -67.6 -66.3 -64.6 -63.3 -62.8 24.0
256QAM 0.81 Dual -67.3-65.8 -64.0 -62.8 -61.0 -59.8 -59.3 24.0
Modulation Mode5 MHz 10 MHz 15 MHz 20 MHz 30 MHz 40 MHz 45 MHz
BPSK 0.63 Single2.3 4.8 7.2 9.6 14.5 19.8 21.7
QPSK 0.63 Single4.7 9.6 14.5 19.2 29.1 39.7 43.5
QPSK 0.87 Dual6.5 13.4 20.2 26.8 40.5 55.2 60.5 9.3 19.3 29.0 38.5 58.1 79.4 87.0
16QAM 0.63 Dual12.9 26.8 40.3 53.5 80.9 110.4 121.0
16QAM 0.87 Single16.6 34.5 51.8 68.8 103.9 141.9 155.5 20.4 42.2 63.4 84.2 127.2 173.7 190.3
64QAM 0.75 Single24.2 50.0 75.3 99.9 151.0 206.1 225.9
64QAM 0.75 Dual18.6 38.5 58.0 77.0 116.3 158.7 173.9 25.9 53.6 80.7 107.1 161.7 220.8 241.9
64QAM 0.92 Dual33.3 68.9 103.7 137.6 207.9 283.8 311.0
256QAM 0.81 Single40.7 84.2 126.9 168.4 254.4 347.3 380.6 48.4 100.1 150.6 199.9 301.9 412.2 451.7
