Product Overview
Cambium Networks PTP 550
Multicore Gigabit Radio – Performance in the presence of Interference
PTP
Product Highlights
The PTP is a point-to-point Gigabit throughput solution based on the gigabit capacity needs for high-speed backhaul solutions in mid- attributes from Cambium Networks’ point to point products such as PTP
802.11 ac Wave operating in GHz wireless space, addressing and long-range applications. The PTP solution draws its 650/670 and PTP 450i.
Metal Housing
Each PTP radio is enclosed in a rugged IP66/67-rated metal enclosure, solar radiation.
way of installing PTP 550.
for flexibility in channel selection, band selection, and address achieves 1.4 Gbps.
Antenna Alignment
The e-alignment GUI provides the installer with an accurate and reliable
optimize the channel of operation to maximize link reliability and will search for the clearest spectrum and move to it limited spectrum in the most challenging environments.
Ideal Applications
High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.
Product Images
2 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the PTP 550 to ensure compatibility with your deployment.
Radio Technology
Model PTP 550Connectorized
PTP 550Integrated
RF Bands Wide-bandoperation 5.1 GHz to 5.9 GHz (Allowable frequency bands are dictated by individual country regulations.)
5170–5320MHz
5520–5980MHz
Number of Radios 2 independentradios 2x2:2 (each 2 streams), 4 streams total (4X4 MIMO)
Channel Sizes Dual independentchannels, each channel configurable as 10, 20, 40, and 80 MHz
Spectral Efficiency 8.5 bps/Hzmaximum
Channel Selection Fixed frequencyor dynamic channel selection (DCS)
Maximum Transmit Up to 26dBm
Up to 173dB with integrated antenna
MCS 0to MCS 9 (256 QAM 5/6)
Time divisionduplex (TDD)
Multipletransmit/receive duty cycles
Antenna Integratedflat panel: 23 dBi
Connectorized:Single- and dual-polarity antennas through 2 x N-type connectors
Range Up to 200km (122 miles)
UL/DL Ratio 50:50 ,70:30, and 75:25
Supported
Security FIPS 197compliant 128-bit AES encryption
Factorymode recovery
Latency 3 ms onedirection
Packet Layer 2and layer 3 IEEE 802.1p, Ethernet priority, VLAN
Quality of Service 3 levelsof QoS
TDD Sync SupportsCMM5 and cnPulse
Flexible I/O 1 Gigabitport: Data + PoE power input
1 SFP port(single-mode fiber, multi-mode fiber, and copper Gigabit Ethernet options available)
Management
In-bandand out-of-band management
Management
System IPv6/IPv4dual-stack management support
Management
SNMPv2and SNMPv3, https, WPA-PSK2
Onlinespectrum analyzer (no impact on payload traffic)

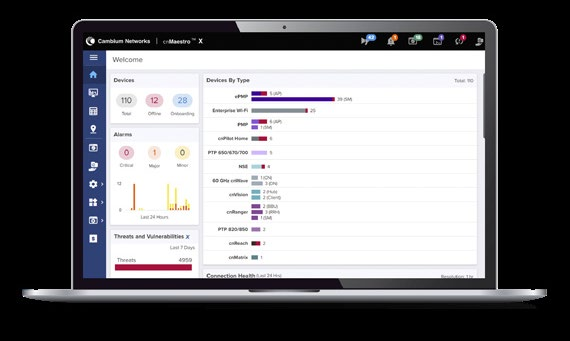

cnMaestro™management
Installation Built-ine-alignment using GUI on radio to assist in installation PTP 550
SingleChannel
Channel SizeAggregate Throughput
10 MHz83 Mbps
20 MHz166 Mbps
40 MHz332 Mbps
80 MHz725 Mbps Dual Channel
Channel A Channel BAggregate Throughput
10 MHz 10 MHz166 Mbps
10 MHz 20 MHz249 Mbps
10 MHz 40 MHz415 Mbps
10 MHz 80 MHz747 Mbps
20 MHz 20 MHz332 Mbps
20 MHz 40 MHz465 Mbps
20 MHz 80 MHz840 Mbps
40 MHz 40 MHz650 Mbps
40 MHz 80 MHz1.025 Gbps
80 MHz 80 MHz1.4 Gbps
5.170–5.250GHz 5.250–5320 GHz 5.520–5725 GHz 5.725–5.980 GHz
Bandwidth (MHz) 10 2040 80 10 20 40 80 10 20 40 80 10 20 40 80
-91.0 -89.0-87.0 -84.0 -91.0 -88.0 -86.0 -84.0 -92.0 -89.5 -86.5 -84.0 -91.0 -88.0 -85.0 -83.0
-89.0 -87.0-85.0 -83.0 -90.0 -87.0 -84.0 -82.0 -89.5 -87.0 -84.5 -81.9 -89.0 -86.0 -83.0 -81.0
-86.0 -84.0-81.0 -78.0 -86.0 -83.0 -81.0 -79.0 -87.0 -84.5 -82.5 -80.5 -86.0 -83.0 -81.0 -79.0
-84.0 -82.0-79.0 -76.0 -84.0 -81.0 -78.0 -76.0 -84.0 -81.5 -78.9 -76.2 -83.0 -81.0 -79.0 -77.0
-80.0 -78.0-75.0 -73.0 -80.0 -77.0 -74.0 -72.0 -79.5 -77.5 -75.0 -72.5 -80.0 -77.0 -74.0 -72.0
-78.0 -76.0-73.0 -70.0 -78.0 -75.0 -73.0 -71.0 -78.5 -76.0 -73.5 -70.9 -78.0 -75.0 -73.0 -71.0
-77.0 -75.0-72.0 -69.0 -77.0 -74.0 -72.0 -70.0 -77.0 -74.5 -71.9 -69.2 -76.0 -73.0 -71.0 -69.0
-73.0 -70.0-67.0 -65.0 -72.0 -69.0 -67.0 -65.0 -72.5 -70.5 -67.9 -65.2 -72.0 -69.0 -67.0 -65.0
-71.0 -68.0-65.0 -63.0 -70.0 -67.0 -65.0 -63.0 -70.5 -68.5 -66.5 -63.9 -70.0 -67.0 -65.0 -63.0 PTP 550
Transmit Power (dBm)
5.170–5.250GHz 5.250–5320 GHz 5.520–5725 GHz 5.725–5.980 GHz
MCS Payloads 10 MHz 20 MHz40 MHz 80 MHz 10 MHz 20 MHz 40 MHz 80 MHz 10 MHz 20 MHz 40 MHz 80 MHz 10 MHz 20 MHz 40 MHz 80 MHz
MCS1 Single 26 2625 25 26 26 25 25 25 25 24 23 25 25 23 23
MCS2 26 2625 25 26 26 25 25 25 25 23 23 25 25 23 23
MCS3 Single 26 2625 25 26 26 25 25 25 25 23 23 25 25 23 23
MCS4 Single 25 2525 25 25 25 25 25 23 23 23 23 23 23 23 23
MCS5 Single 23 2323 23 23 23 23 23 22 22 22 22 22 22 22 22
MCS6 22 2222 22 22 22 22 22 21 21 21 21 21 21 21 21
MCS7 Single 22 2222 22 22 22 22 22 20 20 20 20 20 20 20 20
MCS8 Single 21 2121 21 21 21 21 21 20 20 20 20 20 20 20 20
MCS9 Single 20 2020 20 20 20 20 20 19 19 19 19 19 19 19 19
MCS1 Dual 26 2625 25 26 26 25 25 25 25 24 23 25 25 23 23
MCS2 Dual 26 2625 25 26 26 25 25 25 25 23 23 25 25 23 23
MCS3 Dual 26 2625 25 26 26 25 25 25 25 23 23 25 25 23 23
MCS4 Dual 25 2525 25 25 25 25 25 23 23 23 23 23 23 23 23
MCS5 Dual 23 2323 23 23 23 23 23 22 22 22 22 22 22 22 22
MCS6 Dual 22 2222 22 22 22 22 22 21 21 21 21 21 21 21 21
MCS7 Dual 22 2222 22 22 22 22 22 20 20 20 20 20 20 20 20
MCS8 Dual 21 2121 21 21 21 21 21 20 20 20 20 20 20 20 20
MCS9 Dual 20 2020 20 20 20 20 20 19 19 19 19 19 19 19 19
Physical
IntegratedOutdoor Unit (ODU): 305 mm x (12”) 305 mm (12”) x 68 mm (12 in x 12 in x 2.2 in)
ConnectorizedODU: 185 mm x 278 mm x 88 mm (7 in x 11 in x 3.5 in)
Weight IntegratedODU: 2.2 kg (4.85 lb), including bracket
ConnectorizedODU: 1.6 kg (3.5 lb) including bracket
Operating -40° F to+140° F (-40° C to +60° C), including solar radiation
Dust-Water IP66 andIP67
322 kph(200 mph)
Power Supply AC powerinjector: 32° to 104° F (0° to +40° C); 30 W , 56V
Dimensions(W x H x D): 132 mm x 36 mm x 51 mm (5.2 in x 1.4 in x 2 in)
Power 30W maximum(22W typical) PTP 550
Environmental & Regulatory
Protection & Safety UL60950-1/22;IEC60950-1/22; EN60950-1.22; CSA-C22.2 No.
60950-1/22;CB approval with all National Deviations
Radio 5.x GHz:FCC Part 15E ; RSS 247 Issue 2; EN 302 502; EN 301 893
EMC US Part15B, Canada RSS-GEN, Europe – EN 301 489-1 and -17
