Product Overview
Cambium Networks PTP 700
One radio, multiple missions
PTP
Product Highlights
ONE RADIO – MULTIPLE MISSIONS
Whether deploying in first-responder tactical situations, over water to oil platforms, in urban canyons to video cameras and hot-spots, or along remote stretches of national borders for defense and situational awareness, the requirements for high-speed connectivity intersect with constraints on available spectrum, line of sight and non- line of sight topologies, IT/ Enterprise integration, cyber- security threat prevention, and harsh environmental conditions.
The dynamic nature and complexity of these missions means that spectrum managers, network operators, and implementation managers need flexibility and adaptability while staying within the constraints of program budgets. The long-term total cost of ownership and sustainability of any solution comes under increasing scrutiny.
Ideal Applications
High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.

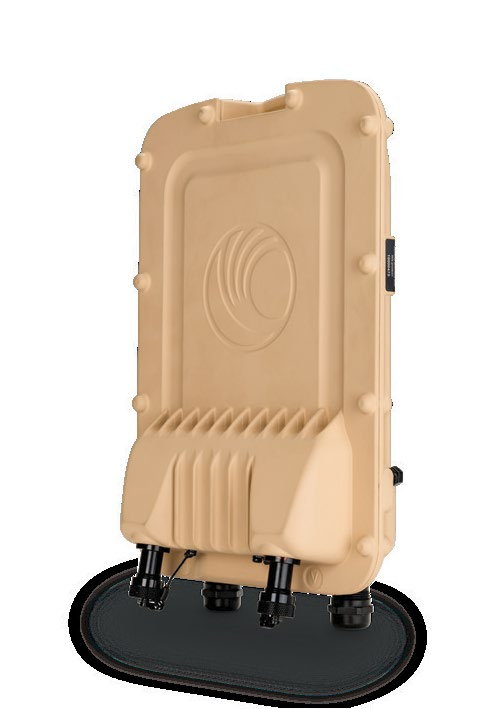

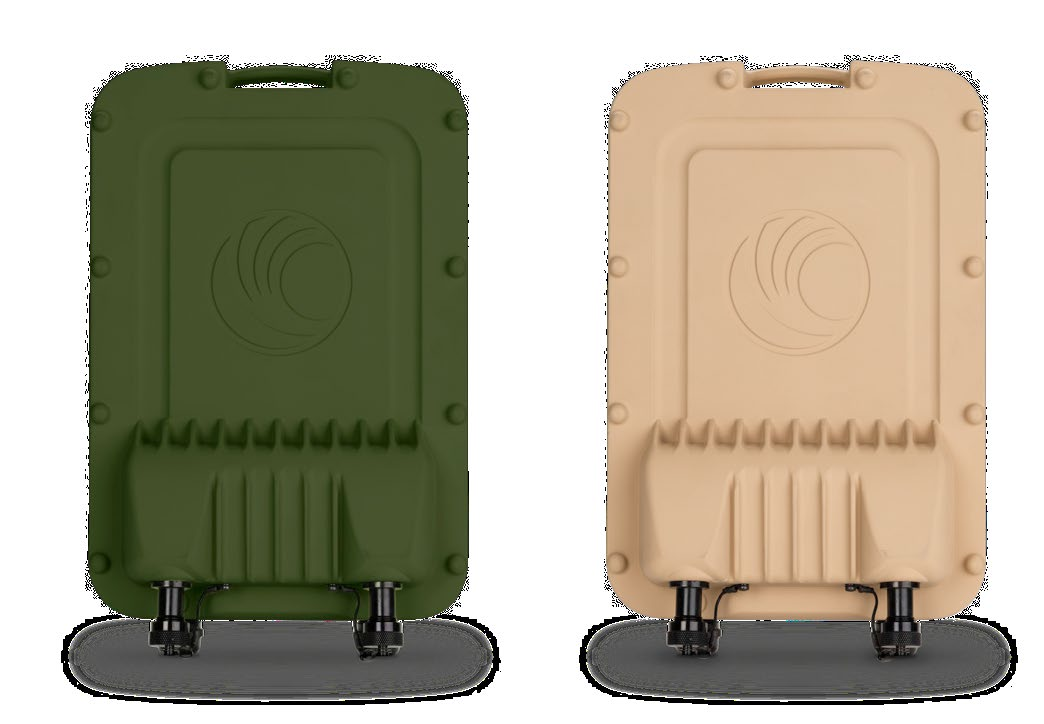

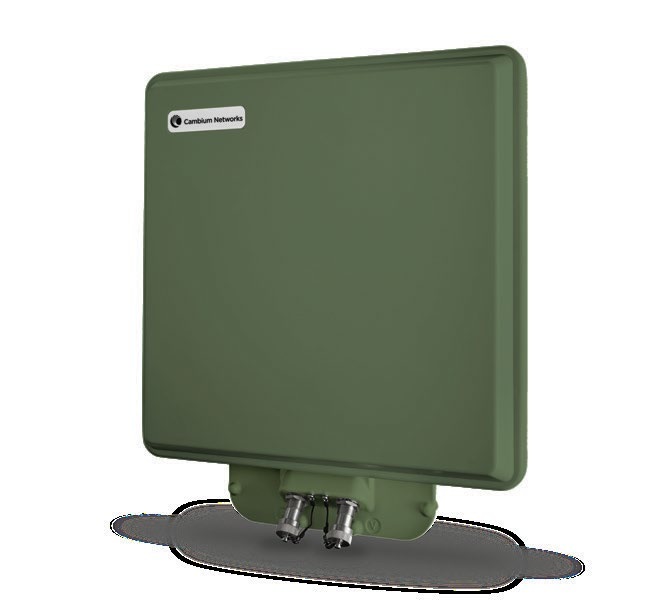

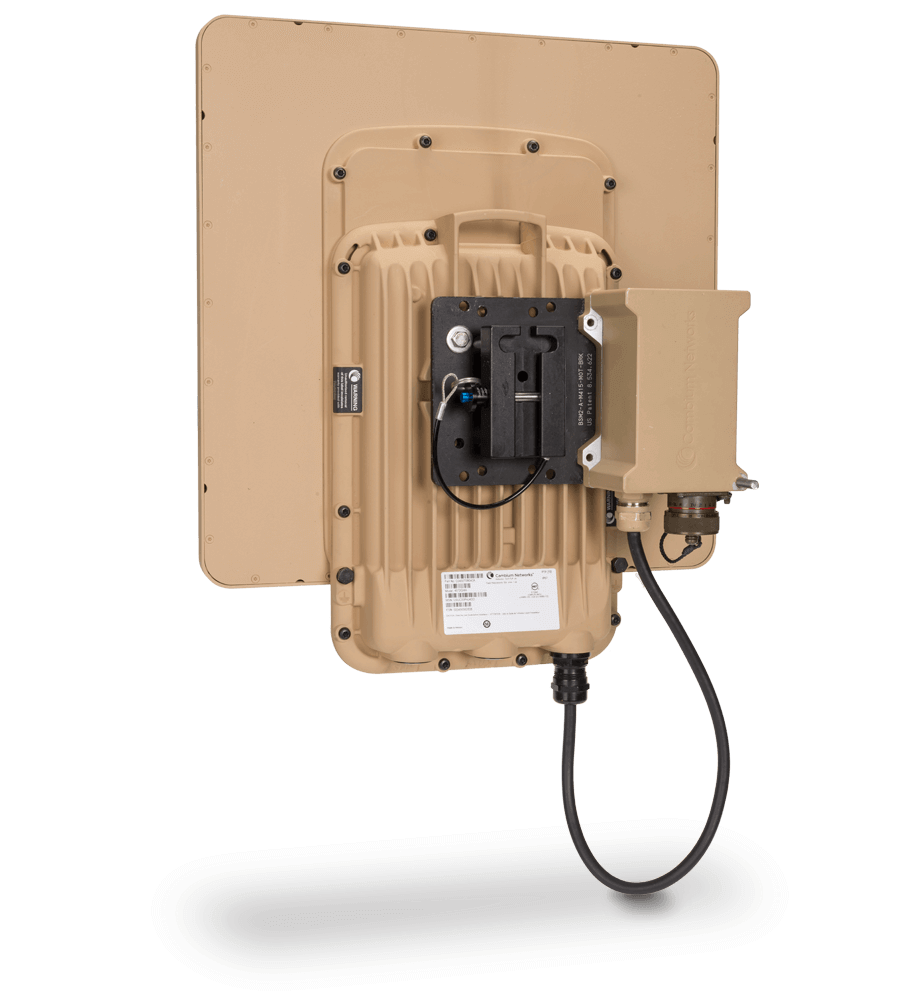

Product Images
4 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the PTP 700 to ensure compatibility with your deployment.
Specifications
RadioPTP 45700 Wide-band operation 4.4 GHz to 5.875 GHz in a single SKU, support bands including: • NATO Band IV / NTIA Compliant (4.4 GHz to 4.99 GHz) • 4.9 GHz Public Safety Band • 5.1/5.2/5.4/5.8 GHz FCC/ETSI 1+0, 1+1 HSB; 2+0 (require external switch) 5, 10, 15, 20, 30, 40, and 45 MHz channels. Channel sizes depend on individual country regulations.
Spectral Efficiency10 bps/Hz maximum By Dynamic Spectrum Optimization (DSO) or manual intervention Automatic selection on startup and continual self-optimization to avoid interference Up to 29 dBm
Maximum Transmit Power
System GainUp to 169 dB with Integrated antenna
Modulation /Fast Preemptive Adaptive Modulation, featuring 13 modulation / FEC coding levels ranging from BPSK to
Error Correction256 QAM dual payload MIMO Time Division Duplex (TDD) Adaptive or fixed transmit/receive duty cycles Split-frequency operation allows separate transmit and receive frequencies, where allowed by regulation. Optional TDD synchronization using PTP-SYNC Module Integrated flat panel: 23 dBi
Antenna
RangeUp to 155 mi (250 km) 128/256-bit AES encryption (optional)
Security
Ethernet BridgingIEEE 802.3
Protocol
QoSExtensive QoS supporting up to 8 queues (PTP mode) and 4 queues (HCMP mode)
Packet ClassificationLayer 2 and layer 3 IEEE 802.1p, MPLS Line rate ( >850K packets per second)
Timing TransportSynchronous Ethernet; IEEE 1588-2008 transparent clock
Frame SupportPTP Mode: Jumbo frame up to 9600 bytes HCMP Mode: 2000 bytes per frame 2 x Gigabit Ethernet copper ports: • Gigabit Port 1: Data + PoE power input • Gigabit Port 2: 802.3at PoE output port 1 x SFP port: single-mode fiber, multi-mode fiber or copper Gigabit Ethernet options available PTP 45700 Fixed Wireless Backhaul
Management
Network ManagementIn-band and out-of-band management (OOBM) IPv6/IPv4 dual-stack management support
System Management
InstallationBuilt-in audio and graphical assistance for link optimization
Remote Modules MasterUp to 8 nodes
Channel Bandwidth20 MHz and 40 MHz 8 bps/Hz Max
Spectral Efficiency in HCMP
Latency in HCMP Mode2 to 4 ms one way (typically)
Antenna Options4.4 GHz–5.875 GHz 90º sector (15 dBi gain) 4.4 GHz–5.875 GHz 36º sector (16 dBi gain) 2 3 4 5 6 7 8
Data Capacity per RemoteNumber of Remote Module @ 40 MHz: 162 106 80 66 56 46 42 Mbps:
Mechanical Specifications
Dimensions (H x W x D)Integrated Outdoor Unit (ODU): 429 x 371 x 96 mm (16.9 x 14.6 x 3.8 in) Connectorized ODU: 318 x 204 x 90 mm (12.5 x 8.0 x 3.5 in) Connectorized + Integrated ODU: 5.3 kg (11.7 lb) including bracket Outdoor Unit (ODU): 3.1 kg (6.8 lb) including bracket
Operating Temperature-40° to 60°C (-40° to 140°F) IP66 and IP67
Environmental Rating
Shock/Vibration/TemperatureMIL-STD-810
Wind Speed Survival322 kph (200 mph)
Power SupplyAC + DC power injector: -40° to 140° F (-40° to 60° C); 70 W; 90-240 VAC, 50/60 Hz 40W maximum (up to 70W with 802.3at device on auxiliary port)
Environmental and Regulatory
Protection and SafetyC22.2 60950-22; CB approval for global use 4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1 EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007 NTIA Redbook; RSS-210
EMCEN 301 489-1, EN 301 489-4, EN 301 489-17; FCC Part 15B Class B, ICES-003 Class B PTP 45700 Fixed Wireless Backhaul
Receiver Sensitivity and TransmitPower dBm @ 4.7 GHz
Modulation Mode 5MHz 10 MHz 15 MHz 20 MHz 30 MHz 40 MHz 45 MHz Transmit Power (dBm)
BPSK 0.63 Single -93.5-92.0 -90.2 -89.0 -87.2 -86.0 -85.5 28.0
-90.0-88.5 -86.7 -85.5 -83.7 -82.5 -82.0 27.0
QPSK 0.87 Dual -86.0-84.5 -82.7 -81.5 -79.7 -78.5 -77.9 26.0
16QAM 0.63 Single -84.1-82.6 -80.8 -79.5 -77.8 -76.5 -76.0 25.0
-81.0-79.5 -77.8 -76.5 -74.8 -73.5 -73.0 25.0
16QAM 0.87 Single -79.4-77.9 -76.1 -74.8 -73.1 -71.8 -71.3 24.0
16QAM 0.87 Dual -76.3-74.8 -73.0 -71.8 -70.0 -68.8 -68.3 24.0
64QAM 0.75 Single -76.4-74.9 -73.1 -71.9 -70.1 -68.9 -68.4 23.0
64QAM 0.75 Dual -73.3-71.8 -70.0 -68.8 -67.0 -65.8 -65.3 23.0
-72.6-71.1 -69.4 -68.1 -66.3 -65.1 -64.6 23.0
-69.4-67.9 -66.1 -64.8 -63.1 -61.8 -61.3 23.0
256QAM 0.81 Single -69.4-67.9 -66.1 -64.8 -63.1 -61.8 -61.3 23.0
256QAM 0.81 Dual -65.8-64.3 -62.5 -61.3 -59.5 -58.3 -57.8 23.0
Modulation Mode 5MHz 10 MHz 15 MHz 20 MHz 30 MHz 40 MHz 45 MHz
BPSK 0.63 Single2.3 4.8 7.2 9.6 14.5 19.8 21.7
QPSK 0.63 Single4.7 9.6 14.5 19.2 29.1 39.7 43.5
QPSK 0.87 Dual6.5 13.4 20.2 26.8 40.5 55.2 60.5 9.3 19.3 29.0 38.5 58.1 79.4 87.0
16QAM 0.63 Dual 12.926.8 40.3 53.5 80.9 110.4 121.0
16QAM 0.87 Single 16.634.5 51.8 68.8 103.9 141.9 155.5
20.442.2 63.4 84.2 127.2 173.7 190.3
64QAM 0.75 Single 24.250.0 75.3 99.9 151.0 206.1 225.9
64QAM 0.75 Dual 18.638.5 58.0 77.0 116.3 158.7 173.9
25.953.6 80.7 107.1 161.7 220.8 241.9
64QAM 0.92 Dual 33.368.9 103.7 137.6 207.9 283.8 311.0
256QAM 0.81 Single 40.784.2 126.9 168.4 254.4 347.3 380.6
48.4100.1 150.6 199.9 301.9 412.2 451.7
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional
digital experiences anddevice connectivity with compelling economics. Our ONE Network platform simplifies management of
Cambium Networks’ wiredand wireless broadband and network edge technologies. Our customers can focus more resources
on managing their businessrather than the network. We make connectivity that just works.
