Product Overview

Cambium Networks PTP 820A

Split mount, multi-carrier, up to 1 Gbps

PTP

Product Highlights

RU Chassis 10x universal slot

Standard Power 6–38 GHz, 71–76 GHz, 81–86 GHz High Power 6–11 GHz

RFU-D High-capacity multicore radio

RFU-D-HP High-capacity, high-power multicore radio RFU-E High-capacity E-band radio RFU-C High-capacity radio RFU-A High-capacity, high-power radio

Radio Features

Layer link bonding (up to 16+0) Layer link bonding with PTP and PTP All-Outdoors units Multi-carrier adaptive bandwidth control (up to 8+0) Protection & Diversity: HSB, SD (BBC & BBS) High Spectral Use: BPSK to QAM w/ACM Multiband with PTP 850E Advanced Space Diversity (ASD) Field replaceable diplexers & channel filters

Typical Radio Configuration

N+0 (up to N=8), 1x16+0, 1x8+0, 2x4+0, 4x2+0, 8x1+0, 1+1, 2+2 Split Mount Standard power, high power All Indoor High power

Ideal Applications

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.

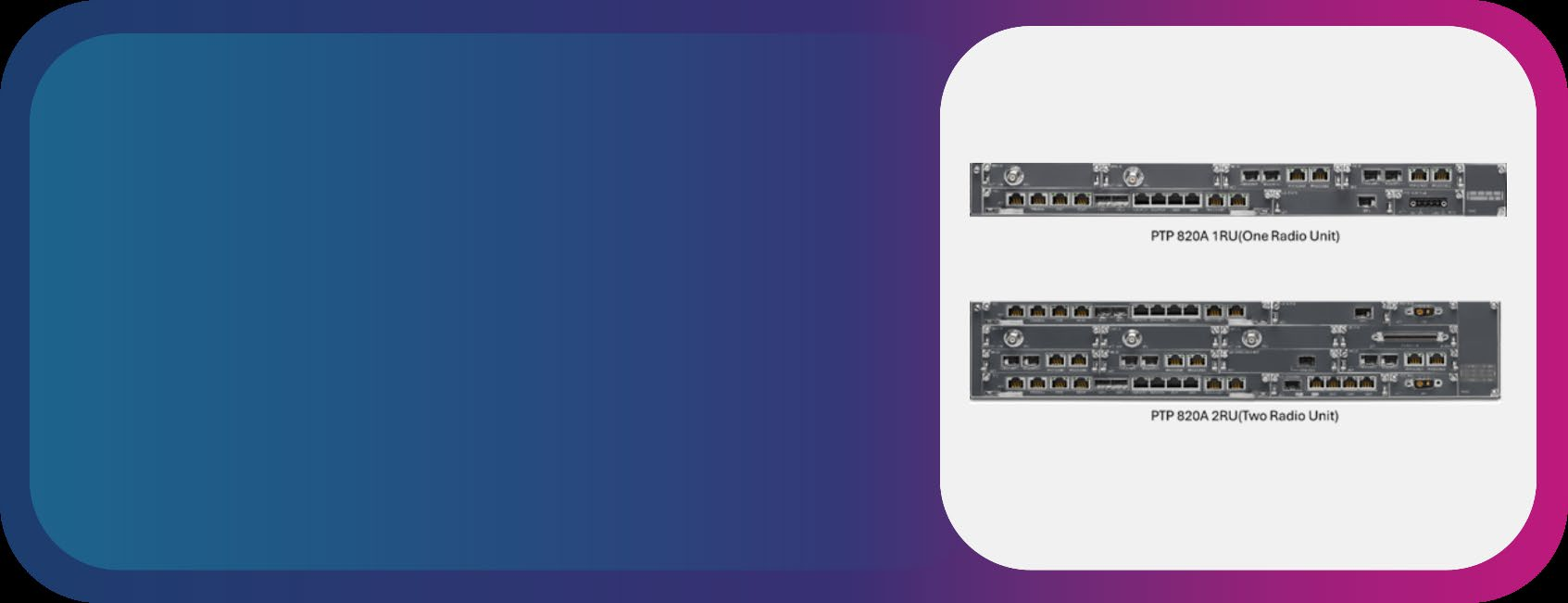

Product Images

2 photos

Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 820A to ensure compatibility with your deployment.

Specifications

Ethernet Interfaces Upto 8 x 10/100Base-T (RJ-45) Up to 14 x 1000Base-X (SFP)

Upto 10 x 1000Base-T (RJ 45) Up to 8 x 10GBase-X (SFP+)

Upto 2 x 2.5GBase-T (RJ-45)

Management Interfaces 2 x10/100 Base-T (RJ-45)

SFP Types Optical1000Base-LX (1310 nm) or SX (850 nm)F

MTU 9600bytes

Quality of Service MultipleClassification criteria (VLAN ID, P-bits, IPv4 DSCP, IPv6 TC, MPLS EXP)

8 priorityqueues per port

Deepbuffering (configurable up to 64 Mbit per queue)

P-bitmarking/remarking

VLANadd/remove

Network Protocols MSTP,ERP (ITU-T G.8032)

Frame Cut-Through Controlledlatency and PDF for delay-sensitive applications

Header Deduplication Capacityboosting by eliminating inefficiency in all layers (L2, MPLS, L3, L4, Tunneling – GTP for LTE, GRE)

TDM Interfaces 1RUchassis: 80 x DSIs; 5 x ch-OC-3s; 4 x OC-3s

2RUchassis: 160 x DSIs; 10 x ch-OC-3s; 8 x OC-3s

TDM Features NativeTDM services and TDM PWE use the same hardware

Integratedch-OC-3 MUX (VC11)

XCcapacity – 512 VCs

Timingoptions – Loop timing, system clock, the recovered clock

1+1/ 1:1 path protection

Clear-channelOC-3 (RST)

Management Protocols SNMP,REST

SDN Support NETCONFIG/YANG

Synchronization SyncDistribution over any traffic interface (GE/FE, DS1, OC-3)

DedicatedIn/Out synch interface (1.5 MHz)

SyncE(ITU-T G.8261, G.8262)

SSM/ESMCSupport for ring/mesh applications (ITU-T G.8264)

SyncERegenerator mode, providing PRC grade (ITU-T G.811) performance for smart pipe applications.

OptimizedTransport for reduced PDV

Standards

CarrierEthernet 2.0 (CE 2.0)

Supported Ethernet 10/100/1000Base-T/X(IEEE 802.3) Link aggregation (IEEE 802.3ad)

Standards

10G Base-LR(802.ae) Auto MDI/MDIX for 1000baseT

EthernetVLANs (IEEE 802.3ac) RFC 1349: IPv4 TOS

VirtualLAN (VLAN, IEEE 802.1Q) RFC 2474: IPv4 DSCP

Class ofservice (IEEE 802.1p) RFC 2460: IPv6 Traffic Classes

Providerbridges (QinQ – IEEE 802.1ad) PTP 820A

Standards, continued

Supported DSI ITU-T G.703,G.736, G.775, G.823, G.824, G.828, ITU-T I.432, ETSI ETS 300 147, ETS 300 417

Standards

Supported OC-3 ITU-T G.703,G.775, G.813, G.825, EN 300 386 V1.2.1, ES 201 468; V1.1.1 :2000-03, ES 201 468 V1.2.1 :2002-09,

Standards

EN 610004-3

TDM Pseudowire SAToP– RFC 4553

Radio Encryption

Secured Protocols HTTPS,SNMPv3, SSH, SFTP

TACACS+ authentication, authorization,and accounting (session-based)

Standards Compliance

Radio Spectral FCC Part101, EN 302 217-2

EMC EN 301489-4, EN 301 489-1, FCC 47 CFR, part 15, subpart B, ICES-003, TEC/SD/DD/EMC-221/05/OCT-16,

Safety EN 62368-1,IEC 62368-1, UL 62368-1 CSA-C22.2 No.62368-1

Ingress Protection RFU-D:IP67 RFU-C: IP66

RFU-D-HP:IP67 RFU-HP: IP56

RFU-S:IP67

Storage ETSI EN300 019-1-1 Class 1.2

Transportation ETSI EN300 019-1-2 Class 2.3

1.8" (H),17.5" (W), 9.6" (D), 6.6 lb (empty)

2RU Chassis 3.46" (H),17.5" (W), 9.6" (D), 13.2 lb (empty)

Plugin Card 0.66–3.3lb

RFU-D 9.05" (H),9.17" (W), 3.85" (D), 14.33 lb (includes diplexer unit)

RFU-D-HP 12.56" (H),11.26" (W), 4.21" (D), 26.5 lb (includes diplexer or OCU unit)

RFU-S 8.54" (H),8.27" (W), 3.35" (D), 8.82 lb

RFU-C 7.87" (H),7.87" (W), 3.35" (D), 9 lb

1.8" (H),19" (W), 13.18" (D), 26.45 lb

Environmental

IDU +23F to+113F

-27F to+131F (-49F to +140F extended) PTP 820A

Power Input

IDU Standard Input-48 VDC -40 to -60 VDC, with a maximum current of up to 15A (1RU chassis) or 30A (2RU chassis)

Power Consumption

TCC-U45W; RMC – 17W; RIC-D – 12W; 1X10G LIC – 12W; 4XGE LIC – 9W; 16XDS1 LIC – 17W; ch-OC-3 LIC – 25W 9W

Fans (1RU/2RU)6/30W max (4/6W-25°C)

RFU-D (2+0)6-11 GHz: 65W; 13-42 GHz: 48W

RFU-D-HP (2+0)135W

RFU-D-HP (1+0 SD)88W*

RFU-D-HP (2+0 SD, Rx only)41W*

RFU-S43W 6-26 GHz (1+0/1+1): 22W/39W; 28-42 GHz (1+0/1+1): 26W/43W

RFU-A (1+0)High Level: 77W; Medium Level: 53W; Low Level: 43W; Mute: 24W

RFU-A† (1+1 HSB/SD BBS)High Level: 101W; Medium Level: 77W; Low Level: 67W; Mute: 48W

RFU-HP (6-8 GHz)Max Bias: 73W; Mid Bias: 48W; Min Bias: 34W; Mute: 18W

RFU-HP (11 GHz)Max Bias: 74W; Mid Bias: 64W; Mute: 21W

Capacity and Maximum Numberof DS1s*

CapacityCapacity Max. No. of Capacity Capacity Max. No. of Capacity Capacity Max. No. of

(Mbps)De-Dup DS1s (Mbps) De-Dup DS1s (Mbps) De-Dup DS1s

Channel Size5 MHz 10 MHz, 14 MHz 20 MHz

BPSK –– – – – – 11-13 11-40 8

3-44-13 2 13-15 13-48 6 25-30 26-94 16

8 QAM –– – 19-23 20-73 10 39-47 41-148 24

8-109-32 4 26-32 28-100 13 54-66 57-206 33

32 QAM 11-1412-43 6 35-43 37-133 18 72-88 76-275 44

14-1715-54 7 43-53 45-164 22 90-109 94-340 54

17-2118-65 9 52-63 54-196 26 109-133 114-413 65

256 QAM 19-2420-74 10 59-72 62-225 30 124-151 130-470 74

–– – 65-79 68-247 33 135-165 142-515 81

1024 QAM Strong –– – 68-83 72-260 34 144-176 151-548 86

–– – 73-89 76-276 37 153-187 161-583 91

2048 QAM –– – – – – 166-203 175-633 97 25 MHz 30 MHz 40 MHz

14-1715-54 10 18-22 19-68 12 26-31 27-97 17

QPSK 33-4034-124 21 40-49 42-152 25 55-67 58-209 34

50-6153-191 31 59-72 62-225 36 83-102 87-317 50

69-8573-264 42 84-103 89-321 51 114-140 120-435 68

32 QAM 93-11397-352 56 112-137 118-426 67 152-185 159-577 90

114-140120-435 68 139-170 146-527 83 187-228 196-710 111

128 QAM 138-169145-526 82 167-205 176-637 99 227-277 238-862 134

158-193166-601 94 193-236 203-734 114 244-298 256-927 144

512 QAM 175-214184-665 104 206-251 216-782 122 267-327 281-1016 157

186-227195-708 110 225-274 236-854 133 303-371 319-1154 179

1024 QAM Light 198-242208-752 117 238-291 250-906 141 323-394 339-1227 190

212-260223-808 125 260-318 273-989 153 349-427 367-1327 205

4096 QAM 230-281242-875 136 277-339 291-1055 163 369-451 388-1404 215

*BPSK and 4096 QAM modulationsrequire RFU-D, RFU-D-HP, or RFU-S. For details about supported scripts, frequencies, and channels per RFU, refer to the

Release Notes for the relevant CeraOSversion. PTP 820A

Capacity and Maximum Numberof DS1s*, continued

CapacityCapacity Max. No. of Capacity Capacity Max. No. of Capacity Capacity Max. No. of

(Mbps)De-Dup DS1s (Mbps) De-Dup DS1s (Mbps) De-Dup DS1s

Channel Size50 MHz 60 MHz 80 MHz

33-4035-126 18 40-49 42-153 21 55-67 57-208 24

QPSK 68-8371-257 35 84-103 88-320 44 114-139 119-432 48

106-130111-403 55 124-151 130-471 65 162-198 170-617 69

16 QAM 145-177152-552 75 173-212 182-658 90 229-280 240-870 98

32 QAM 183-224192-696 95 229-280 240-870 118 304-371 319-1155 128

237-290249-901 123 281-344 296-1071 1455 373-456 391-1418 157

128 QAM 277-339291-1054 143 341-416 358-1296 176 448-547 470-1702 186

329-402345-1251 170 394-481 414-1498 203 514-628 540-1954 214

512 QAM 357-437375-1359 184 424-518 445-1612 218 564-690 593-2147 235

389-475408-1479 201 461-564 484-1754 237 606-741 637-2306 255

1024 QAM Light 413-505434-1571 213 490-599 515-1864 252 645-789 678-2454 271

446-545468-1695 230 531-649 558-2020 273 683-835 717-2500 287

4096 QAM 463-565486-1759 238 547-668 574-2079 286 – – –

*BPSK and 4096 QAM modulationsrequire RFU-D, RFU-D-HP, or RFU-S. For details about supported scripts, frequencies, and channels per RFU, refer to the

Release Notes for the relevant CeraOSversion.

Frequency (GHz) 67 8 11 13 15 18 23 26 28–32 38

2828 28 28 24 24 22 22 21 18 22

8 QAM 2828 28 28 24 24 22 22 21 18 22

16 QAM 2827 27 28 23 24 22 22 20 17 21

32 QAM 2827 26 28 23 24 22 22 19 16 21

64 QAM 2826 26 27 23 24 22 22 19 16 20

128 QAM 2726 26 26 22 24 22 22 19 16 20

256 QAM 2726 26 26 21 22 20 22 17 14 19

512 QAM 2725 24 26 21 22 20 21 17 14 19

1024 QAM 2524 24 25 20 20 20 20 16 13 18

2048 QAM 2523 22 24 20 20 18 19 15 12 18

4096 QAM 2321 20 22 18 18 16 – – – – 4 5 6 7 8 11

BPSK35 35 38 38 37 36

QPSK – 8 QAM35 35 37 37 37 36

16 – 32 QAM35 35 37 37 37 35

64 QAM34 34 36 36 35 34

128 QAM34 34 36 35 35 33 33 33 35 34 33 32

512 QAM33 33 34 33 33 32 32 32 33 32 32 31

2048 QAM31 31 33 31 31 31

4096 QAM30 30 31 29 29 29 PTP 820A

67 8 11 13 15 18 23 26 28–38

BPSK - 8 PSK 2827 27 28 27 24 23 24 23 18

16 QAM 2827 27 28 27 24 23 24 23 17

32 QAM 2727 26 28 26 24 23 24 23 16

2726 26 27 24 23 23 23 23 16

128 QAM 2726 26 27 24 23 22 23 23 16

2726 26 27 24 22 22 22 21 14

512 QAM 2525 25 27 24 22 22 22 21 14

2524 24 25 22 20 19 21 20 13

2048 QAM 2323 24 24 21 20 17 20 18 12

4096 QAM 2121 22 22 19 18 15 – – –

Frequency (GHz) 6–811–15 18–23 26 28 36 38

QPSK/8 PSK 2624 22 21 14 12 18

16 QAM 2523 21 20 14 11 17

32 QAM 2422 20 19 14 10 16

64 QAM 2422 20 19 14 10 16

128 QAM 2422 20 19 14 10 16

256 QAM 2220 18 17 12 8 14

512 QAM 2220 18 17 9 10 14

1024 QAM 2119 17 16 8 9 13

2048 QAM 1917 15 14 6 7 11 6L&H 7 8 11

QPSK – 16 QAM32 32 32 29 31 31 31 29

64 QAM31 31 31 28 30 30 30 27

256 QAM29 29 29 26 27 27 27 24

1024 QAM27 27 27 24 PTP 820A

Receiver Threshold (RSL)(RFU-D and RFU-S)

Frequency (GHz) 67–8 10 11 13 15 18 23 24 26 28–31 32 38

Channel Size20 MHz

BPSK -91.5-91.5 -91.0 -92.0 -91.0 -90.0 -91.5 -90.5 -87.0 -90.0 -90.0 -89.5 -89.0

QPSK -88.5-88.5 -88.5 -89.5 -88.0 -87.5 -88.5 -88.0 -84.0 -87.5 -87.0 -87.0 -86.5

8 PSK -83.5-83.5 -83.0 -84.0 -83.0 -82.0 -83.5 -82.5 -79.0 -82.0 -82.0 -81.5 -81.0

16 QAM -82.0-82.0 -81.5 -82.5 -81.5 -80.5 -82.0 -81.0 -77.5 -80.5 -80.5 -80.0 -79.5

-78.0-78.0 -78.0 -79.0 -77.5 -77.0 -78.0 -77.5 -73.5 -77.0 -76.5 -76.5 -76.0

64 QAM -75.5-75.5 -75.0 -76.0 -75.0 -74.0 -75.5 -74.5 -71.0 -74.0 -74.0 -73.5 -73.0

-72.5-72.5 -72.0 -73.0 -71.5 -71.0 -72.5 -71.5 -68.0 -71.0 -71.0 -70.5 -70.0

256 QAM -69.0-69.0 -69.0 -70.0 -68.5 -68.0 -69.0 -68.5 -64.5 -68.0 -67.5 -67.5 -67.0

-67.0-67.0 -66.5 -67.5 -66.0 -65.5 -67.0 -66.0 -62.5 -65.5 -65.5 -65.0 -64.5

1024 QAM Strong -64.0-64.0 -64.0 -65.0 -63.5 -63.0 -64.0 -63.5 -59.5 -63.0 -62.5 -62.5 -62.0

1024 QAM Light -63.0-63.0 -63.0 -64.0 -62.5 -62.0 -63.0 -62.5 -58.5 -62.0 -61.5 -61.5 -61.0

Channel Size25 MHz

BPSK -88.5-87.5 -87.5 -88.0 -87.0 -86.5 -87.5 -86.5 -83.0 -86.5 -86.0 -86.0 -85.0

QPSK -87.5-86.5 -86.5 -87 -86.0 -85.5 -86.5 -85.5 -82.0 -85.5 -85.0 -85.0 -84.0

-82.5-82.0 -81.5 -82.5 -81.5 -80.5 -82.0 -81.0 -77.5 -80.5 -80.5 -80.0 -79.5

16 QAM -80.5-80.0 -79.5 -80.5 -79.5 -78.5 -80.0 -79.0 -75.5 -78.5 -78.5 -78.0 -77.5

-77.5-77.0 -76.5 -77.5 -76.0 -75.5 -77.0 -76.0 -72.5 -75.5 -75.5 -75.0 -74.5

64 QAM -74.5-74.0 -73.5 -74.5 -73.5 -72.5 -74.0 -73.0 -69.5 -72.5 -72.5 -72.0 -71.5

-71.5-71.0 -70.5 -71.5 -70.5 -69.5 -71.0 -70.0 -66.5 -69.5 -69.5 -69.0 -68.5

256 QAM -68.5-67.5 -67.5 -68.5 -67.0 -66.5 -67.5 -67.0 -63.0 -66.5 -66.0 -66.0 -65.5

512 QAM -66.0-65.0 -65.0 -66.0 -64.5 -64.0 -65.0 -64.5 -60.5 -64.0 -63.5 -63.5 -63.0

1024 QAM Strong -63.0-62.5 -62.0 -63.0 -61.5 -61.0 -62.5 -61.5 -58.0 -61.0 -61.0 -60.5 -60.0

1024 QAM Light -62.5-61.5 -61.5 -62.5 -61.0 -60.5 -61.5 -61.0 -57.0 -60.5 -60.0 -60.0 -59.5

2048 QAM -58.5-58.0 -57.5 -58.5 -57.0 -56.5 -58.0 -57.0 -53.5 -56.5 -56.5 -56.0 -55.5

4096 QAM -55.5-55.0 -54.5 -55.5 -54.0 -53.5 -55.0 – – – – – –

Channel Size30 MHz

BPSK -88.5-88.0 -87.5 -88.5 -87.0 -86.5 -88.0 -87.0 -83.5 -86.5 -86.5 -86.5 -86.0

QPSK -87.5-87.0 -86.5 -87.5 -86.0 -85.5 -87.0 -86.0 -82.5 -85.5 -85.5 -85.5 -85.0

8 PSK -82.5-81.5 -81.5 -82.5 -81.0 -80.5 -81.5 -81.0 -77.0 -80.5 -80.0 -80.0 -79.5

16 QAM -81.0-80.0 -80.0 -80.5 -79.5 -79.0 -80.0 -79.0 -75.5 -79.0 -78.5 -78.5 -78.0

32 QAM -77.0-76.5 -76.0 -77.0 -76.0 -75.0 -76.5 -75.5 -72.0 -75.0 -75.0 -75.0 -74.5

-74.5-73.5 -73.5 -74.0 -73.0 -72.5 -73.5 -72.5 -69.0 -72.5 -72.0 -72.0 -71.5

128 QAM -71.0-70.5 -70.0 -71.0 -70.0 -69.0 -70.5 -69.5 -66.0 -69.0 -69.0 -69.0 -68.5

-68.0-67.5 -67.0 -68.0 -67.0 -66.0 -67.5 -66.5 -63.0 -66.0 -66.0 -66.0 -65.5

512 QAM -66.0-65.5 -65.0 -66.0 -64.5 -64.0 -65.5 -64.5 -61.0 -64.0 -64.0 -64.0 -63.5

-63.0-62.0 -62.0 -62.5 -61.5 -61.0 -62.0 -61.0 -57.5 -61.0 -60.5 -60.5 -60.0

1024 QAM Light -62.0-61.0 -61.0 -62.0 -60.5 -60.0 -61.0 -60.5 -56.5 -60.0 -59.5 -59.5 -59.0

2048 QAM -58.0-57.5 -57.0 -58.0 -56.5 -56.0 -57.5 -56.5 -53.0 -56.0 -56.0 -56.0 -55.5

4096 QAM -55.0-54.5 -54.0 -55.0 -53.5 -53.0 -54.5 – – – – – –

Channel Size40 MHz

BPSK -87.0-86.5 -86.0 -87.0 -86.0 -85.0 -86.5 -85.5 -82.0 -85.0 -85.0 -85.0 -84.5

-86.0-85.5 -85.0 -86.0 -85.0 -84.0 -85.5 -84.5 -81.0 -84.0 -84.0 -84.0 -83.5

8 PSK -81.0-80.5 -80.0 -81.0 -79.5 -79.0 -80.5 -79.5 -76.0 -79.0 -79.0 -79.0 -78.5

-79.5-79.0 -78.5 -79.5 -78.0 -77.5 -79.0 -78.0 -74.5 -77.5 -77.5 -77.5 -77.0

32 QAM -76.0-75.0 -75.0 -75.5 -74.5 -74.0 -75.0 -74.0 -70.5 -74.0 -73.5 -73.5 -73.0

-73.0-72.0 -72.0 -73.0 -71.5 -71.0 -72.0 -71.5 -67.5 -71.0 -70.5 -70.5 -70.0

128 QAM -70.0-69.0 -69.0 -70.0 -68.5 -68.0 -69.0 -68.5 -64.5 -68.0 -67.5 -67.5 -67.0

256 QAM -67.0-66.0 -66.0 -66.5 -65.5 -65.0 -66.0 -65.0 -61.5 -65.0 -64.5 -64.5 -64.0

512 QAM -64.0-63.5 -63.0 -64.0 -62.5 -62.0 -63.5 -62.5 -59.0 -62.0 -62.0 -62.0 -61.5

1024 QAM Strong -61.5-61.0 -60.5 -61.5 -60.0 -59.5 -61.0 -60.0 -56.5 -59.5 -59.5 -59.5 -59.0

1024 QAM Light -60.5-60.0 -59.5 -60.5 -59.5 -58.5 -60.0 -59.0 -55.5 -58.5 -58.5 -58.5 -58.0

2048 QAM -58.0-57.0 -57.0 -58.0 -56.5 -56.0 -57.0 -56.5 -52.5 -56.0 -55.5 -55.5 -55.0

4096 QAM -55.0-54.0 -54.0 -55.0 -53.5 -53.0 -54.0 – – – – – –

*BPSK and 4096 QAM modulationsrequire RFU-D, RFU-D-HP. PTP 820A

Receiver Threshold (RSL)(RFU-D and RFU-S), continued

Frequency (GHz) 67–8 10 11 13 15 18 23 24 26 28–31 32 38

Channel Size50 MHz

BPSK -86.5-85.5 -85.5 -86.0 -85.0 -84.5 -85.5 -84.5 -81.0 -84.5 -84.0 -84.0 -83.5

QPSK -85.5-84.5 -84.5 -85.0 -84.0 -83.5 -84.5 -83.5 -80.0 -83.5 -83.0 -83.0 -82.5

8 PSK -80.0-79.5 -79.0 -80.0 -79.0 -78.0 -79.5 -78.5 -75.0 -78.0 -78.0 -78.0 -77.5

16 QAM -78.5-77.5 -77.5 -78.0 -77.0 -76.5 -77.5 -76.5 -73.0 -76.5 -76.0 -76.0 -75.5

32 QAM -74.5-74.0 -73.5 -74.5 -73.5 -72.5 -74.0 -73.0 -69.5 -72.5 -72.5 -72.5 -72v

64 QAM -71.5-70.5 -70.5 -71.5 -70.0 -69.5 -70.5 -70.0 -66.0 -69.5 -69.0 -69.0 -68.5

128 QAM -68.5-68.0 -67.5 -68.5 -67.5 -66.5 -68.0 -67.0 -63.5 -66.5 -66.5 -66.5 -66.0

256 QAM -66.0-65.0 -65.0 -66.0 -64.5 -64.0 -65.0 -64.5 -60.5 -64.0 -63.5 -63.5 -63.0

512 QAM -63.5-63.0 -62.5 -63.5 -62.0 -61.5 -63.0 -62.0 -58.5 -61.5 -61.5 -61.5 -61.0

1024 QAM Strong -60.0-59.5 -59.0 -60.0 -58.5 -58 -59.5 -58.5 -55.0 -58.0 -58.0 -58.0 -57.5

1024 QAM Light -59.0-58.0 -58.0 -59.0 -57.5 -57.0 -58.0 -57.5 -53.5 -57.0 -56.5 -56.5 -56.0

2048 QAM -57.0-56.0 -56.0 -56.5 -55.5 -55.0 -56.0 -55.0 -51.5 -55.0 -54.5 -54.5 -54.0

-54.0-53.0 -53.0 -53.5 -52.5 -52.0 – – – – – – –

Channel Size60 MHz

-86.0-85.0 -84.5 -85.5 -84.0 -83.5 -85.0 -84.0 -83.5 -83.5 -83.5 -83.0 -82.5

QPSK -85.0-84.0 -83.5 -84.5 -83.0 -82.5 -84.0 -83.0 -82.5 -82.5 -82.5 -82.0 -81.5

-80.5-79.0 -79.0 -79.5 -78.5 -78.0 -79.0 -78.0 -77.5 -78.0 -77.5 -77.5 -77.0

16 QAM -78.0-77.0 -76.5 -77.5 -76.0 -75.5 -77.0 -76.0 -75.5 -75.5 -75.5 -75.0 -74.5

32 QAM -74.5-73.0 -73.0 -73.5 -72.5 -72.0 -73.0 -72.0 -71.5 -72.0 -71.5 -71.5 -71.0

64 QAM -71.5-70.0 -69.5 -70.5 -69.5 -68.5 -70.0 -69.0 -68.5 -68.5 -68.5 -68.0 -68.0

128 QAM -69.0-67.0 -67.0 -67.5 -66.5 -66.0 -67.0 -66.0 -65.5 -66.0 -65.5 -65.5 -65.0

256 QAM -65.5-64.0 -63.5 -64.5 -63.5 -62.5 -64.0 -63.0 -62.5 -62.5 -62.5 -62.0 -62.0

512 QAM -63.5-62.0 -61.5 -62.5 -61.5 -60.5 -62.0 -61.0 -60.5 -60.5 -60.5 -60.0 -60.0

1024 QAM Strong -60.0-58.5 -58.0 -59.0 -58.0 -57.0 -58.5 -57.5 -57.0 -57.0 -57.0 -56.5 -56.5

1024 QAM Light -59.0-57.5 -57.0 -58.0 -57.0 -56.0 -57.5 -56.5 -56.0 -56.0 -56.0 -55.5 -55.5

2048 QAM -56.5-54.5 -54.5 -55.0 -54.0 -53.5 -54.5 -53.5 -53.0 -53.5 -53.0 -53.0 -52.5

4096 QAM -53.5-51.5 -51.5 -52.0 -51.0 -50.5 – – – – – – –

*BPSK and 4096 QAM modulationsrequire RFU-D, RFU-D-HP.

Receiver Threshold (RSL)(RFU-D and RFU-S), continued

Frequency (GHz) 67–8 10 11 13 15 18 23 24 26 28–31 32 38

Channel Size80 MHz

-85.0-85.0 -84.5 -85.5 -84.5 -83.5 -85.0 -84.0 -83.5 -83.5 -83.5 -83.0 -83.5

QPSK -82.5-82.5 -82.5 -83.0 -82.0 -81.5 -82.5 -81.5 -81.0 -81.5 -81.0 -81.0 -81.0

8 PSK -79.0-79.0 -78.5 -79.5 -78.5 -77.5 -79.0 -78.0 -77.5 -77.5 -77.5 -77.0 -77.5

16 QAM -76.0-76.0 -75.5 -76.5 -75.0 -74.5 -76.0 -75.0 -74.5 -74.5 -74.5 -74.0 -74.0

32 QAM -72.5-72.5 -72.0 -73.0 -71.5 -71.0 -72.5 -71.5 -71.0 -71.0 -71.0 -70.5 -70.5

64 QAM -69.0-69.0 -69.0 -70.0 -68.5 -68.0 -69.0 -68.5 -68.0 -68.0 -67.5 -67.5 -67.5

128 QAM -66.5-66.5 -66.0 -67.0 -66.0 -65.0 -66.5 -65.5 -65.0 -65.0 -65.0 -64.5 -65.0

256 QAM -63.5-63.5 -63.0 -64.0 -63.0 -62.0 -63.5 -62.5 -62.0 -62.0 -62.0 -61.5 -62.0

512 QAM -61.0-61.0 -61.0 -62.0 -60.5 -60.0 -61.0 -60.5 -60.0 -60.0 -59.5 -59.5 -59.5

1024 QAM Strong -58.0-58.0 -57.5 -58.5 -57.5 -56.5 -58.0 -57.0 -56.5 -56.5 -56.5 -56.0 -56.5

1024 QAM Light -57.0-57.0 -57.0 -58.0 -56.5 -56.0 -57.0 -56.5 -56.0 -56.0 -55.5 -55.5 -55.5

2048 QAM -54.5-54.5 -54.5 -55.5 -54.0 -53.5 -54.5 -54.0 -53.5 -53.5 -53.0 -53.0 –

*BPSK and 4096 QAM modulationsrequire RFU-D, RFU-D-HP. PTP 820A

Frequency (GHz) 4–56 7 8 11 4–5 6 7 8 11 4–5 6 7 8 11

Channel20 MHz 25 MHz 30 MHz, 40 MHz

BPSK -93.3 -93.0-93.2 -92.6 -92.7 -92.4 -92.1 -92.3 -91.7 -91.8 -91.7 -91.4 -91.6 -91.0 -91.1

-90.4 -90.1-90.3 -89.7 -89.8 -89.4 -89.1 -89.3 -88.7 -88.8 -88.7 -88.4 -88.6 -88.0 -88.1

8 PSK -86.4 -86.1-86.3 -85.7 -85.8 -85.4 -85.1 -85.3 -84.7 -84.8 -84.7 -84.4 -84.6 -84.0 -84.1

16 QAM -83.5 -83.2-83.4 -82.8 -82.9 -82.5 -82.2 -82.4 -81.8 -81.9 -81.7 -81.4 -81.6 -81.0 -81.1

32 QAM -80.1 -79.8-80.0 -79.4 -79.5 -79.2 -78.9 -79.1 -78.5 -78.6 -78.4 -78.1 -78.3 -77.7 -77.8

64 QAM -76.9 -76.6-76.8 -76.2 -76.3 -76.1 -75.8 -76.0 -75.4 -75.5 -75.3 -75.0 -75.2 -74.6 -74.7

128 QAM -73.9 -73.6-73.8 -73.2 -73.3 -73.0 -72.7 -72.9 -72.3 -72.4 -72.3 -72.0 -72.2 -71.6 -71.7

256 QAM -70.8 -70.5-70.7 -70.1 -70.2 -69.9 -69.6 -69.8 -69.2 -69.3 -69.1 -68.8 -69.0 -68.4 -68.5

512 QAM -68.0 -67.7-67.9 -67.3 -67.4 -67.0 -66.7 -66.9 -66.3 -66.4 -66.8 -66.5 -66.7 -66.1 -66.2

1024 QAM Strong -65.1 -64.8-65.0 -64.4 -64.5 -64.1 -63.8 -64.0 -63.4 -63.5 -63.5 -63.2 -63.4 -62.8 -62.9

1024 QAM Light -64.4 -64.1-64.3 -63.7 -63.8 -63.2 -62.9 -63.1 -62.5 -62.6 -62.7 -62.4 -62.6 -62.0 -62.1

2048 QAM -61.9 -61.6-61.8 -61.2 -61.3 -61.1 -60.8 -61.0 -60.4 -60.5 -60.2 -59.9 -60.1 -59.5 -59.6

4096 QAM –– – – – -57.0 -56.7 -56.9 -56.3 -56.4 -56.5 -56.2 -56.4 -55.8 -55.9

Channel40 MHz 50 MHz 60 MHz, 40 MHz

BPSK -90.6 -90.3-90.5 -89.9 -90.0 -89.6 -89.3 -89.5 -88.9 -89.0 -88.8 -88.5 -88.7 -88.1 -88.2

QPSK -87.4 -87.1-87.3 -86.7 -86.8 -86.7 -86.4 -86.6 -86.0 -86.1 -85.6 -85.3 -85.5 -84.9 -85.0

8 PSK -83.4 -83.1-83.3 -82.7 -82.8 -82.4 -82.1 -82.3 -81.7 -81.8 -81.8 -81.5 -81.7 -81.1 -81.2

-80.5 -80.2-80.4 -79.8 -79.9 -79.5 -79.2 -79.4 -78.8 -78.9 -78.6 -78.3 -78.5 -77.9 -78.0

32 QAM -77.1 -76.8-77.0 -76.4 -76.5 -76.5 -76.2 -76.4 -75.8 -75.9 -75.3 -75.0 -75.2 -74.6 -74.7

-74.0 -73.7-73.9 -73.3 -73.4 -73.1 -72.8 -73.0 -72.4 -72.5 -72.2 -71.9 -72.1 -71.5 -71.6

128 QAM -71.0 -70.7-70.9 -70.3 -70.4 -70.6 -70.3 -70.5 -69.9 -70.0 -69.4 -69.1 -69.3 -68.7 -68.8

-68.7 -68.4-68.6 -68.0 -68.1 -67.0 -66.7 -66.9 -66.3 -66.4 -66.2 -65.9 -66.1 -65.5 -65.6

512 QAM -65.9 -65.6-65.8 -65.2 -65.3 -64.5 -64.2 -64.4 -63.8 -63.9 -63.7 -63.4 -63.6 -63.0 -63.1

1024 QAM Strong -62.4 -62.1-62.3 -61.7 -61.8 -61.1 -60.8 -61.0 -60.4 -60.5 -60.4 -60.1 -60.3 -59.7 -59.8

1024 QAM Light -61.7 -61.4-61.6 -61.0 -61.1 -60.3 -60.0 -60.2 -59.6 -59.7 -59.6 -59.3 -59.5 -58.9 -59.0

2048 QAM -59.4 -59.1-59.3 -58.7 -58.8 -58.0 -57.7 -57.9 -57.3 -57.4 -57.3 -57.0 -57.2 -56.6 -56.7

-56.3 -56.0-56.2 -55.6 -55.7 -54.5 -54.2 -54.4 -53.8 -53.9 -53.5 -53.2 -53.4 -52.8 -52.9

Channel80 MHz

BPSK -86.8 -86.5-86.7 -86.1 -86.2

QPSK -84.5 -84.2-84.4 -83.8 -83.9

8 PSK -80.8 -80.5-80.7 -80.1 -80.2

16 QAM -77.8 -77.5-77.7 -77.1 -77.2

32 QAM -74.4 -74.1-74.3 -73.7 -73.8

64 QAM -71.5 -71.2-71.4 -70.8 -70.9

128 QAM -68.5 -68.2-68.4 -67.8 -67.9

256 QAM -65.8 -65.5-65.7 -65.1 -65.2

512 QAM -63.1 -62.8-63.0 -62.4 -62.5

1024 QAM Strong -59.9 -59.6-59.8 -59.2 -59.3

1024 QAM Light -59.5 -59.2-59.4 -58.8 -58.9

-56.6 -56.3-56.5 -55.9 -56.0 PTP 820A

Frequency (GHz) 67–10 11–15 18 23 24 26 28 31–38

Channel Size5 MHz

QPSK -98.0-97.5 -98.0 -97.0 -96.5 -93.5 -95.5 -93.5 -94.5

-91.0-90.5 -91.0 -90.0 -89.5 -86.5 -88.5 -86.5 -87.5

32 QAM -87.5-87.0 -87.5 -86.5 -86.0 -83.0 -85.0 -83.0 -84.0

64 QAM -84.5-84.0 -84.5 -83.5 -83.0 -80.0 -82.0 -80.0 -81.0

128 QAM -80.5-80.0 -80.5 -79.5 -79.0 -76.0 -78.0 -76.0 -77.0

256 QAM -77.5-77.0 -77.5 -76.5 -76.0 -73.0 -75.0 -73.0 -74.0

Channel Size10 MHz

QPSK -90.0-89.5 -90.0 -89.0 -88.5 -85.5 -87.5 -85.5 -86.5

-84.5-84.0 -84.5 -83.5 -83.0 -80.0 -82.0 -80.0 -81.0

16 QAM -83.0-82.5 -83.0 -82.0 -81.5 -78.5 -80.5 -78.5 -79.5

-79.5-79.0 -79.5 -78.5 -78.0 -75.0 -77.0 -75.0 -76.0

64 QAM -76.5-76.0 -76.5 -75.5 -75.0 -72.0 -74.0 -72.0 -73.0

128 QAM -73.5-73.0 -73.5 -72.5 -72.0 -69.0 -71.0 -69.0 -70.0

256 QAM -70.5-70.0 -70.5 -69.5 -69.0 -66.0 -68.0 -66.0 -67.0

512 QAM -67.5-67.0 -67.5 -66.5 -66.0 -63.0 -65.0 -63.0 -64.0

1024 QAM Strong -65.0-64.5 -65.0 -64.0 -63.5 -60.5 -62.5 -60.5 -61.5

1024 QAM Light -64.0-63.5 -64.0 -63.0 -62.5 -59.5 -61.5 -59.5 -60.5

Channel Size20 MHz

QPSK -91.0-90.5 -91.0 -90.0 -89.5 -86.5 -88.5 -86.5 -87.5

-85.5-85.0 -85.5 -84.5 -84.0 -81.0 -83.0 -81.0 -82.0

16 QAM -84.0-83.5 -84.0 -83.0 -82.5 -79.5 -81.5 -79.5 -80.5

-80.5-80.0 -80.5 -79.5 -79.0 -76.0 -78.0 -76.0 -77.0

64 QAM -77.5-77.0 -77.5 -76.5 -76.0 -73.0 -75.0 -73.0 -74.0

-74.5-74.0 -74.5 -73.5 -73.0 -70.0 -72.0 -70.0 -71.0

256 QAM -71.5-71.0 -71.5 -70.5 -70.0 -67.0 -69.0 -67.0 -68.0

512 QAM -69.0-68.5 -69.0 -68.0 -67.5 -64.5 -66.5 -64.5 -65.5

1024 QAM Strong -66.0-65.5 -66.0 -65.0 -64.5 -61.5 -63.5 -61.5 -62.5

1024 QAM Light -65.0-64.5 -65.0 -64.0 -63.5 -60.5 -62.5 -60.5 -61.5

2048 QAM -62.0-61.5 -62.0 -61.0 -60.5 -57.5 -59.5 -57.5 -58.5

Channel Size25 MHz

QPSK -90.0-89.5 -90.0 -89.0 -88.5 -85.5 -87.5 -85.5 -86.5

-84.5-84.0 -84.5 -83.5 -83.0 -80.0 -82.0 -80.0 -81.0

16 QAM -83.0-82.5 -83.0 -82.0 -81.5 -78.5 -80.5 -78.5 -79.5

-79.5-79.0 -79.5 -78.5 -78.0 -75.0 -77.0 -75.0 -76.0

64 QAM -76.5-76.0 -76.5 -75.5 -75.0 -72.0 -74.0 -72.0 -73.0

128 QAM -73.5-73.0 -73.5 -72.5 -72.0 -69.0 -71.0 -69.0 -70.0

256 QAM -70.5-70.0 -70.5 -69.5 -69.0 -66.0 -68.0 -66.0 -67.0

512 QAM -67.5-67.0 -67.5 -66.5 -66.0 -63.0 -65.0 -63.0 -64.0

1024 QAM Strong -65.0-64.5 -65.0 -64.0 -63.5 -60.5 -62.5 -60.5 -61.5

1024 QAM Light -64.0-63.5 -64.0 -63.0 -62.5 -59.5 -61.5 -59.5 -60.5

2048 QAM -61.0-60.5 -61.0 -60.0 -59.5 -56.5 -58.5 -56.5 -57.5 PTP 820A

Frequency (GHz) 67–10 11–15 18 23 24 26 28 31–38

Channel Size30 MHz

QPSK -89.0-88.5 -89.0 -88.0 -87.5 -84.5 -86.5 -84.5 -85.5

8 PSK -84.0-83.5 -84.0 -83.0 -82.5 -79.5 -81.5 -79.5 -80.5

-82.5-82.0 -82.5 -81.5 -81.0 -78.0 -80.0 -78.0 -79.0

32 QAM -78.5-78.0 -78.5 -77.5 -77.0 -74.0 -76.0 -74.0 -75.0

-75.5-75.0 -75.5 -74.5 -74.0 -71.0 -73.0 -71.0 -72.0

128 QAM -72.5-72.0 -72.5 -71.5 -71.0 -68.0 -70.0 -68.0 -69.0

256 QAM -69.5-69.0 -69.5 -68.5 -68.0 -65.0 -67.0 -65.0 -66.0

512 QAM -67.5-67.0 -67.5 -66.5 -66.0 -63.0 -65.0 -63.0 -64.0

1024 QAM Strong -64.0-63.5 -64.0 -63.0 -62.5 -59.5 -61.5 -59.5 -60.5

1024 QAM Light -63.5-63.0 -63.5 -62.5 -62.0 -59.0 -61.0 -59.0 -60.0

2048 QAM -60.0-59.5 -60.0 -59.0 -58.5 -55.5 -57.5 -55.5 -56.5

Channel Size40 MHz

-88.0-87.5 -88.0 -87.0 -86.5 -83.5 -85.5 -83.5 -84.5

8 PSK -82.5-82.0 -82.5 -81.5 -81.0 -78.0 -80.0 -78.0 -79.0

-81.0-80.5 -81.0 -80.0 -79.5 -76.5 -78.5 -76.5 -77.5

32 QAM -77.5-77.0 -77.5 -76.5 -76.0 -73.0 -75.0 -73.0 -74.0

64 QAM -74.5-74.0 -74.5 -73.5 -73.0 -70.0 -72.0 -70.0 -71.0

128 QAM -71.5-71.0 -71.5 -70.5 -70.0 -67.0 -69.0 -67.0 -68.0

256 QAM -69.0-68.5 -69.0 -68.0 -67.5 -64.5 -66.5 -64.5 -65.5

512 QAM -66.5-66.0 -66.5 -65.5 -65.0 -62.0 -64.0 -62.0 -63.0

1024 QAM Strong -63.0-62.5 -63.0 -62.0 -61.5 -58.5 -60.5 -58.5 -59.5

1024 QAM Light -62.0-61.5 -62.0 -61.0 -60.5 -57.5 -59.5 -57.5 -58.5

2048 QAM -59.0-58.5 -59.0 -58.0 -57.5 -54.5 -56.5 -54.5 -55.5

Channel Size50 MHz

-87.0-86.5 -87.0 -86.0 -85.5 -82.5 -84.5 -82.5 -83.5

8 PSK -81.5-81.0 -81.5 -80.5 -80.0 -77.0 -79.0 -77.0 -78.0

16 QAM -80.0-79.5 -80.0 -79.0 -78.5 -75.5 -77.5 -75.5 -76.5

32 QAM -76.5-76.0 -76.5 -75.5 -75.0 -72.0 -74.0 -72.0 -73.0

64 QAM -73.0-72.5 -73.0 -72.0 -71.5 -68.5 -70.5 -68.5 -69.5

128 QAM -71.0-70.5 -71.0 -70.0 -69.5 -66.5 -68.5 -66.5 -67.5

256 QAM -67.5-67.0 -67.5 -66.5 -66.0 -63.0 -65.0 -63.0 -64.0

512 QAM -65.0-64.5 -65.0 -64.0 -63.5 -60.5 -62.5 -60.5 -61.5

1024 QAM Strong -61.5-61.0 -61.5 -60.5 -60.0 -57.0 -59.0 -57.0 -58.0

1024 QAM Light -61.0-60.5 -61.0 -60.0 -59.5 -56.5 -58.5 -56.5 -57.5

2048 QAM -57.5-57.0 -57.5 -56.5 -56.0 -53.0 -55.0 -53.0 -54.0

Channel Size60 MHz

QPSK -86.0-85.5 -86.0 -85.0 -84.5 -81.5 -83.5 -81.5 -82.5

8 PSK -81.5-81.0 -81.5 -80.5 -80.0 -77.0 -79.0 -77.0 -78.0

16 QAM -79.0-78.5 -79.0 -78.0 -77.5 -74.5 -76.5 -74.5 -75.5

32 QAM -75.5-75.0 -75.5 -74.5 -74.0 -71.0 -73.0 -71.0 -72.0

64 QAM -72.5-72.0 -72.5 -71.5 -71.0 -68.0 -70.0 -68.0 -69.0

128 QAM -69.5-69.0 -69.5 -68.5 -68.0 -65.0 -67.0 -65.0 -66.0

256 QAM -66.5-66.0 -66.5 -65.5 -65.0 -62.0 -64.0 -62.0 -63.0

512 QAM -64.0-63.5 -64.0 -63.0 -62.5 -59.5 -61.5 -59.5 -60.5

1024 QAM Strong -61.0-60.5 -61.0 -60.0 -59.5 -56.5 -58.5 -56.5 -57.5

1024 QAM Light -60.0-59.5 -60.0 -59.0 -58.5 -55.5 -57.5 -55.5 -56.5

2048 QAM -57.5-57.0 -57.5 -56.5 -56.0 -53.0 -55.0 -53.0 -54.0 PTP 820A

Frequency (GHz) 5.86 7-11 5.8 6 7-11 5.8 6 7-11 5.8 6 7-11

Channel Size5 MHz 10 MHz 20 MHz 25 MHz

QPSK -95.0-97.0 -96.5 -90.5 -92.5 -92.0 -87.5 -89.5 -89.0 -87.0 -89.0 -88.5

–– – -85.5 -87.5 -87.0 -82.5 -84.5 -84.0 -81.5 -83.5 -83.0

16 QAM -88.5-90.5 -90.0 -84.0 -86.5 -86.0 -81.0 -83.0 -82.5 -80.0 -82.0 -81.5

32 QAM -85.0-87.0 -86.5 -80.5 -83.0 -82.5 -77.5 -79.5 -79.0 -76.5 -78.5 -78.0

64 QAM -81.5-83.5 -83.0 -77.5 -79.5 -79.0 -74.5 -76.5 -76.0 -73.5 -75.5 -75.0

128 QAM -78.0-80.0 -79.5 -74.0 -76.5 -76.0 -71.5 -73.5 -73.0 -70.5 -72.5 -72.0

256 QAM -75.0-77.0 -76.5 -71.0 -73.5 -73.0 -68.5 -70.5 -70.0 -67.5 -69.5 -69.0

512 QAM –– – -68.5 -71.0 -70.5 -66.0 -68.0 -67.5 -65.0 -67.0 -66.5

1024 QAM Strong –– – -65.5 -68.0 -67.5 -63.0 -65.0 -64.5 -62.0 -64.0 -63.5

1024 QAM Light –– – -65.0 -67.0 -66.5 -62.0 -64.0 -63.5 -61.5 -63.5 -63.0

2048 QAM Strong –– – – – – -58.5 -60.5 -60.0 -57.5 -59.5 -59.0

Channel Size30 MHz 40 MHz 50 MHz 60 MHz

QPSK -86.0-88.0 -87.5 -84.5 -86.5 -86.0 -84.0 -86.0 -85.5 -83.0 -85.0 -84.5

8 PSK -81.0-83.0 -82.5 -79.5 -81.5 -81.0 -78.5 -80.5 -80.0 -78.5 -80.5 -80.0

16 QAM -79.0-81.0 -80.5 -78.0 -80.0 -79.5 -77.0 -79.0 -78.5 -76.0 -78.0 -77.5

-75.5-77.5 -77.0 -74.5 -76.5 -76.0 -73.5 -75.5 -75.0 -72.5 -74.5 -74.0

64 QAM -72.5-74.5 -74.0 -71.5 -73.5 -73.0 -70.0 -72.0 -71.5 -69.5 -71.5 -71.0

-69.5-71.5 -71.0 -68.5 -70.5 -70.0 -68.0 -70.0 -69.5 -66.5 -68.5 -68.0

256 QAM -66.5-68.5 -68.0 -66.0 -68.0 -67.5 -64.5 -66.5 -66.0 -63.5 -65.5 -65.0

-64.5-66.5 -66.0 -63.5 -65.5 -65.0 -62.0 -64.0 -63.5 -61.5 -63.5 -63.0

1024 QAM Strong -61.0-63.0 -62.5 -60.5 -62.5 -62.0 -59.0 -61.0 -60.5 -58.0 -60.0 -59.5

1024 QAM Light -60.5-62.5 -62.0 -59.5 -61.5 -61.0 -58.0 -60.0 -59.5 -58.0 -60.0 -59.5

2048 QAM Strong -57.0-59.0 -58.5 -56.0 -58.0 -57.5 -54.5 -56.5 -56.0 -54.0 -56.0 -55.5

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital

experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium

Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing

their business rather than thenetwork. We make connectivity that just works.

Downloads

Documentation & Resources

Download datasheets and technical documentation for the PTP 820A.

Data Sheet

Download PDF →

Need Help?

Talk to a Pro →

Pricing Notes:

Pricing and product availability subject to change without notice.
