Cambium Networks PTP 850CX

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses.

PTP 850CX
  • Specs: 11 GHz, 18 GHz
  • All-outdoor dual-core, capable of 4096 QAM with
  • Supports:
  • Standard license key included for easy
  • Compact form factor

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Product Overview

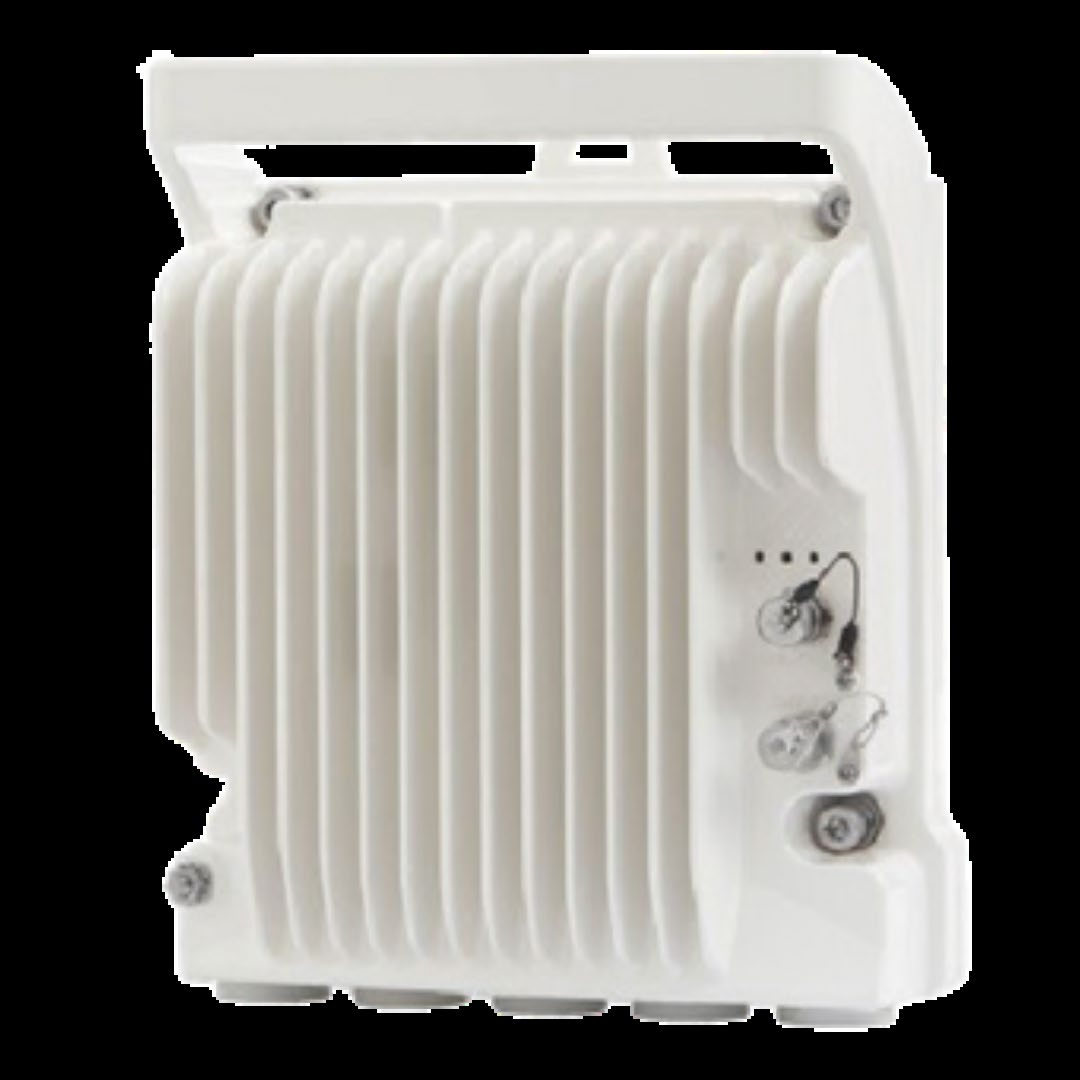

Cambium Networks PTP 850CX

Capable of 4096 QAM with ACM, Supports 11 GHz, 18 GHz

PTP

Product Highlights

High-Capacity Microwave Radio

The Cambium Networks PTP 850CX is a next- generation ultra-high capacity microwave radio

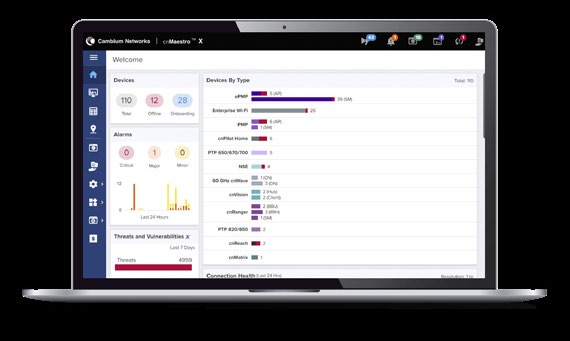

managed via cnMaestro Network Management,

unifying wireless, wired, and security infrastructure under a single platform.

simplified architecture.

With support for layer (L1) link aggregation, PTP 850CX can deliver multi-gigabit speeds across dual- or

Ideal Applications

High-capacity wireless backhaul replacing leased lines between towers, buildings, and campuses. Mobile network backhaul and enterprise campus connectivity requiring carrier-grade link reliability.

Product Images

4 photos
Technical Details

Hardware Specifications

Comprehensive technical data for the PTP 850CX to ensure compatibility with your deployment.

Specifications

Frequency Range 11 GHz,18 GHz
Configurations 1+0 upto 4+0 single/dual polarization, 1+1/2+2 HSB, 2+0 XPIC, 2x2+0 east/west single/dual polarization*
Features 4+0 layer1 aggregation
Layer 1link bonding with PTP-820A†
Enhancedmulti-carrier ABC (up to 2+0)
Protection:1+1 HSB/2+2 HSB
High spectraluse: BPSK to 4096 QAM w/ACM
Channelbandwidth: 14 to 224 MHz
Multibandwith layer 1 link bonding (with PTP 850E)
*Some features are planned for futurerelease.
Interfaces* Port 1: DCport Port 4: SFP28 – 1/10/25G traffic
Port 2:RJ45 – Electric 100 Mbps/1 Gbps traffic/PoE Port 5: RJ-45 – Management/protection/100 Base-T
Port 3:SFP+ - 1/2.5/10 traffic
Ethernet Services Up to 1024Ethernet services, plus one pre-defined management service
MAC addresslearning with 32K MAC addresses
Quality of Service Multipleclassification criteria (VLAN ID, p-bits, IPv4 DSCP, IPv6 TC, MPLS EXP)
8 CoSqueues per port
Ethernet Protocols G.8032Ethernet ring protection switching (ERPS)
Y.1731 EthernetOAM
Y.1731 Ethernetbandwidth notification (ETH-BN)
*SFP and SFP+ devices must be industrialgrade (-40C to +85C/-40F to 185F)

Protocols

NETCONF/YANGPTP 850CX Licensed Microwave Radio

Synchronization Protocols

Enhanced Ethernet equipmentclock (eEEC) specification (G.8262.1)
PTP telecom boundary clock(T-BC) and time save clock (T-TSC) specification (G.8273.2)
PTP telecom transparent clock(T-TC) specification (G.8273.3)
Enhanced SyncE network limits(G.8261, clause 9.2.1)
Enhanced PTP network limits(G.8271.1)
Ethernet synchronization messagingchannel (ESMC) (G.8264, clause 11)
PTP telecom profile for phase/timesynchronization with full timing support from the network (G.8275.1)
PTP telecom profile for phase/timesynchronization with partial timing support from the network (G.8275.2) as T-TC
Precision time protocol (version2, IEEE1588-2008)

Standards

Supported Ethernet 10/100/1000base-T/X(IEEE 802.3)

Standards:

10Gbase-LR(IEEE 802.3ae)
EthernetVLANs (IEEE 802.3ac)
VirtualLAN (VLAN, IEEE 802.1Q)
Class ofservice (IEEE 802.1p)
Providerbridges (Q-in-Q – IEEE 802.1ad)
Link aggregation(IEEE 802.1ax)
Auto MDI/MDIXfor 1000baseT
RFC 1349:IPv4 TOS
RFC 2474:IPv4 DSCP
RFC 2460:IPv6 traffic classes

Radio Encryption AES 256

Secured Protocols HTTPSSFTP
SNMPv3RADIUS authentication and authorization
SSHTACACS+ authentication, authorization, and accounting (session-based)

Standards Compliance

Radio Spectral FCC Part101, EN 302 217-2
Compliance EMC: EN301 489-1, EN 301 489-4, Class B (Europe)
FCC 47CFR, part 15, class B (US), ICES-003, Class B (Canada)
TEC/EMI/TEL-001/01,Class B (India)
Surge EN61000-4-5,Class 4 (for PWR and ETH1 ports)
Safety EN 60950-1,IEC 60950-1, UL60950-1, CSA C22.2 60950-1, EN60950-22, UL 60950-22, CSA C22.2 60950-22
Storage ETSI EN300 019-1-1 Class 1.2
Transportation ETSI EN300 019-1-2 Class 2 PTP 850CX Licensed Microwave Radio
Dimensions 270 mmx 230 mm x 98 mm, 5.3 kg
Pole Diameter 8.89 cm– 11.43 cm (for remote mount installation)
Environmental -33°C to+55° ( -27°F to +131°F)
Standard Input -48 VDC,PoE
DC Input Range -40.5 to-60 VDC

Typical Power Consumption*

2+0 Operation 6–11 GHz:85W
13–15 GHz:66W
1+0 Operation (one 6–11 GHz:66W
13–15 GHz:58W
Both Carriers 6–11 GHz:41W
13–15 GHz:43W
*The maximum power consumptioncan be up to ≈20% higher than typical figures listed above.
Standard License KeysIncluded
2 x capacity 650M with ACM enabled,per Tx channel

ABOUT CAMBIUM NETWORKS

Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
