XV2-21X
- Specs: 802.11ax Dual-Radio Indoor Access Point
- Dual-radio Wi-Fi 6
- 5 GHz (2x2), 2.4 GHz (2x2)
- 1 GbE RJ45 interface
- cnMaestro™ Network Management
- Limited lifetime warranty
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview
Cambium Networks XV2-21X Wi-Fi 6 Indoor Enterprise Wireless Access Point
The XV2-21X indoor ceiling mount 2×2 Wi-Fi 6 AP offers 2.97 total Gbps of bandwidth. Ideal for hospitality, MDU and small and medium business applications.
Wi-Fi 6Indoor
Product Highlights
Value-Tier Wi-Fi for Any Market
Cambium Networks’ XV2-21X Wi-Fi Indoor Access Point (AP) delivers a high performance-to-price ratio attractive to any market.
Designed for Fast Installation
The XV2-21X offers multiple installation methods included in the same shipping box. Mount the AP to a ceiling tile using the included steel plate; mount to an existing junction box with mm center-to-center holes; twist lock the AP onto a mm, mm, and mm T-bar; or simply mount it to any flat surface using the included wall anchors. No additional accessory brackets are needed
The XV2-21X can be adopted and managed by any of the Cambium management systems, including cnMaestro Essentials and cnMaestro X, available in cloud and on-premises versions. Choose the management type you need and change it at any time.
Ideal Applications
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities. Deployments requiring BSS Coloring and OFDMA for efficient spectrum use in congested RF environments.

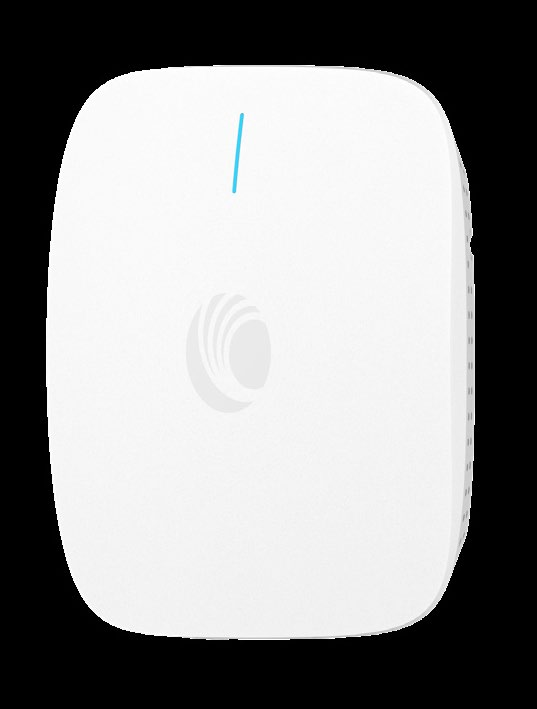

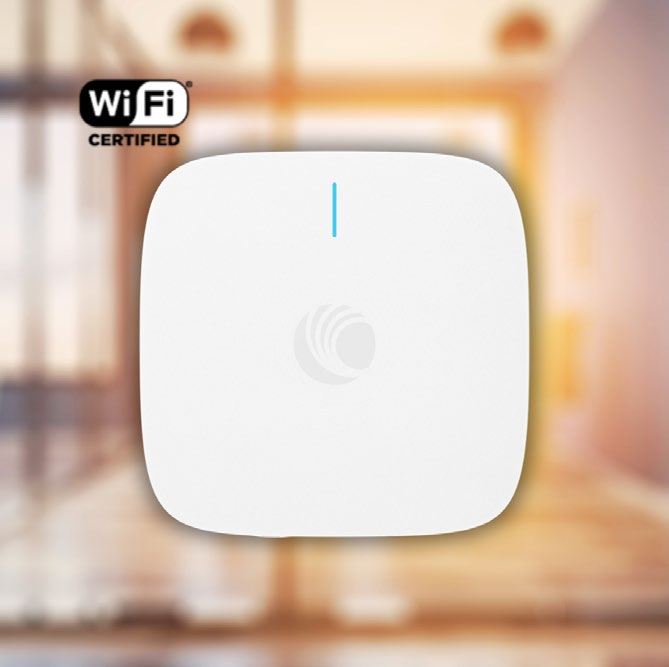

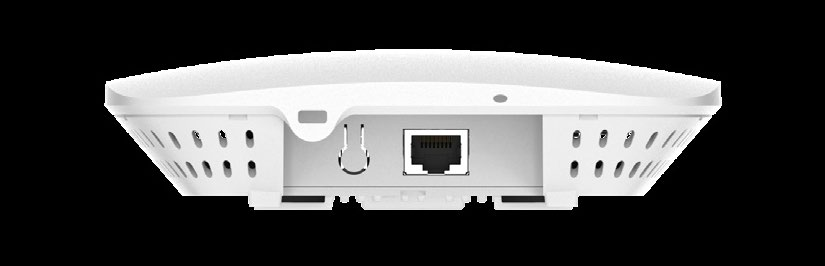

Product Images
14 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the XV2-21X to ensure compatibility with your deployment.
Specifications
RadiosPower
802.11a/n/ac/ax, 2x2:2 Consumption with typical load: 11W
2.4 GHz802.11 b/g/n/ax, 2x2:2
Wi-Fi 802.11 a/b/g/n/ac/axDimensions 155 mm x 155 mm x 37 mm (6.1 in x 6.1 in x 1.46 in)
WPA3-SAE,WPA3-Enterprise, WPA2
SSID Security
(CCMP,AES, 802.11i), WPA2 Enterprise 155 x 155 x 46 mm
(802.1x/EAP),OSEN, OWE, Open (6.1 x 6.1 x 1.81 in)
Max PHY RateWeight 475 g (1.05 lb)
5 GHz radio2402 Mbps Mount Options Wall or ceiling, T-bar with included locking
2.4 GHzradio 573.5 Mbps bracket, ceiling tile plate
Ports 1 x IEEE10/100/1000 Mbps Ambient Operation 0ºC to 50ºC (32ºF to 122ºF) Temperature
Antenna GainStorage -40ºC to 70ºC (-40ºF to 158ºF)
5 GHz 6dBi Temperature
2.4 GHz5 dBi
FCC95% RH non-condensing
Ch 1–11,36–48, 52–64, 100–144, 149–165 Humidity
ISED Ch 1–11,36–48, 52–64, 100–116, 149–165 MTBF 831,902 hours at 50ºC ambient
ETSI*LEDs Multi-color status LEDs, dimmable, on/off
Ch 1–13,36–48, 52–64, 100–140, 149–173
ROW*Certifications Wi-Fi Alliance, Passpoint 3.0,
Ch 1–14,36–48, 52–64, 100–144, 149–173 (compliance) 802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950, IEC62368, UL2043, EN 61373
*Individual country limits may apply.Please contact your regional sales manager for country-specific regulations. For Southeast Asia (SEA) countries, refer to
Wi-Fi Protocols
Data codingsupport 16/64/256/1024-QAM
Channelwidth support under 5 GHz band: 20/40/80/160 MHz
TWT, longOFDM symbol, transmit beamforming, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO power save, MRC,
BPSK, QPSK,CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO
IEEE 802.11a/ac/ax/b/d/e/g/h/i/k/n/r/u/v/w XV2-21X Wi-Fi 6 Access Point
Network Specifications
Operational Modes Controllerlessstandalone cloud-managed RF Management Multi-modal RF optimization supporting Auto-R
cnMaestro,VM for dynamic channel selection and dynamic power adjustment configured via cnMaestro, performed in the intelligent edge AP.
128 concurrentclients per radio, 256 per AP RF monitor with channel utilization/packet
16 SSID perAP error rate/interference.
Security,Band Steering
Open, WPA2-AESwith PSK, ePSK and Yes Mesh Multi-hop, either band
WPA3 withPSK (WPA3-SAE), ePSK, Scheduled WLAN On/off by day, week, time of day
Enterprise,Enterprise-CNSA, OWE
(EnhancedOpen) Data Limit Client bitrate/time/throughput limit per SSID
OSEN andPMF (802.11 W) Network TCP connection log, NAT logging firewall,
MAC authenticationwith local database or DHCP server, DHCP Relay option 82, VLAN
externaldatabase using RADIUS protocol pooling, RADIUS attribute, VID VLAN per
802.1X withEAP-TTLS, EAP- SSID per user, ePSK with VLAN assignment
TLS/MSCHAPv2,PEAPv0/PEAPv1/EAP- per PSK LLDP, IGMP v1, v2
Hotspot2.0 WEB authentication
Wi-Fi Quality ofNetwork Tools
802.11e/WMM(packet marking either with Wired and wireless remote packet capture,
802.1p orIP DSCP), WMM-PS, U-APSD logging, WAN speed test, ZapD, remote network connectivity tools
Multicastto unicast conversion
Service AvailabilityTunnel
Critical networkresource monitor with SSID L2TPv2, L2GRE, PPPoE
Fast RoamingIP
802.11k/r/v,OKC, cnMaestro-assisted roam IPv4, IPv6
Guest Access/VLAN
cnMaestro-hostedEasyPass portal 802.11Q, max 4096
Captive Portal
Multipleauthentication methods Management HTTP/HTTPS web interface, SSH, Telnet
supportedto onboard guest user: Interfaces SNMP V1, V2, V3
• Radius-basedauthentication Syslog, SNMP traps, NTP
• Click-throughwith simple terms and Security Rogue AP detection and termination(X),
conditionsacceptance WIDs/WIPs, DoS protection
• Sociallogin using Google®, Facebook® L2–L7 firewall with application visibility(X) &
• SMS-basedauthentication (X) control(X), DNS based access control(X).
• Voucher-basedaccess ACL and AirCleaner tools
• Microsoft®Azure AD and Google Services Wi-Fi Calling control, NTP, Syslog, DNS
Workspace®(X) proxy, SNMP traps, SNMPv1, SNMPv2c,
• Sponsoredguest access (X) SNMPv3, TCP and DNS logging
• Self-registrationaccess (X)
cnMaestroAPI support for external captive
portal integration
802.11u,Hotspot 2.0
Accounting RADIUSaccounting, load balancing AAA
servers,Dynamic Authorization COA, DM
RESTfulmanagement and statistics API via
cnMaestroX, presence location push APIs
*X features available in cnMaestroX. XV2-21X Wi-Fi 6 Access Point
Management

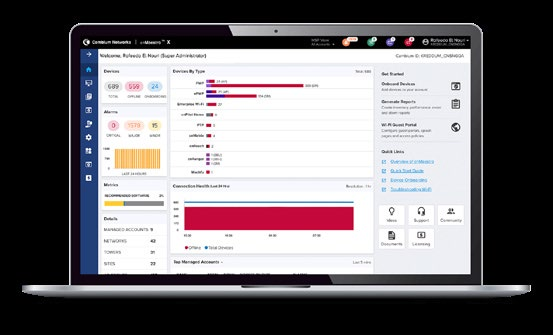

cnMaestro XX Assurance • Helps to quickly identify network-wide connectivity
Advanced device managementcapabilities issues by isolating every element of the client’s
• Deep packet inspection(DPI) application visibility lifecycle, either radio or network related
and Control for 2,400+apps • Gives an overview quality index of the network and
RESTful managementand statistics API highlights each element’s contribution to easily identify the worst offender
• Presence location pushAPIs • Provides insight of probable causes and proposes
Graphic reports
• Webhooks• Provides individual client connectivity visibility
Cambium Care Profor 24x7 technical support throughout the entire lifecycle of its connection to
• Accelerated accessto L2 engineers and regular easily identify each connection’s result and highlight
software updatesthe failure reason, should there be any EasyPass Portal with Additional Options • Self-registration: Form-based access
Assesses the network’sconfiguration and identifies • Sponsored guest: Guest ambassador-based access
weak security settingsand proposes a fix to ensure
the network configurationis up to the top security • Paid access: Monetize the Wi-Fi access
industry standards
License-free cloud managementthat delivers a disruptive total cost of ownership (TCO) for organizations of all sizes. Includes EasyPass
for OneClick or voucher-basedconnection as well as WiFi4EU access. P305T8#y Find out more about cnMaestro XV2-21X Wi-Fi 6 Access Point Front Front Oblique Bottom/Ports Back Panel

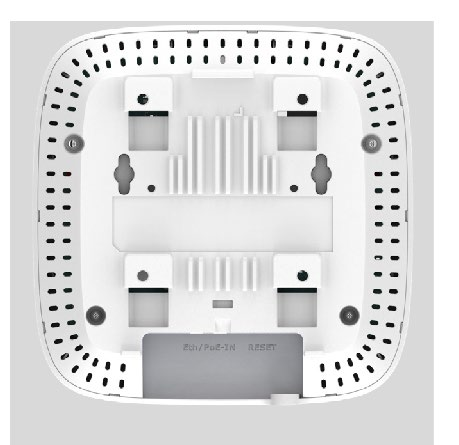

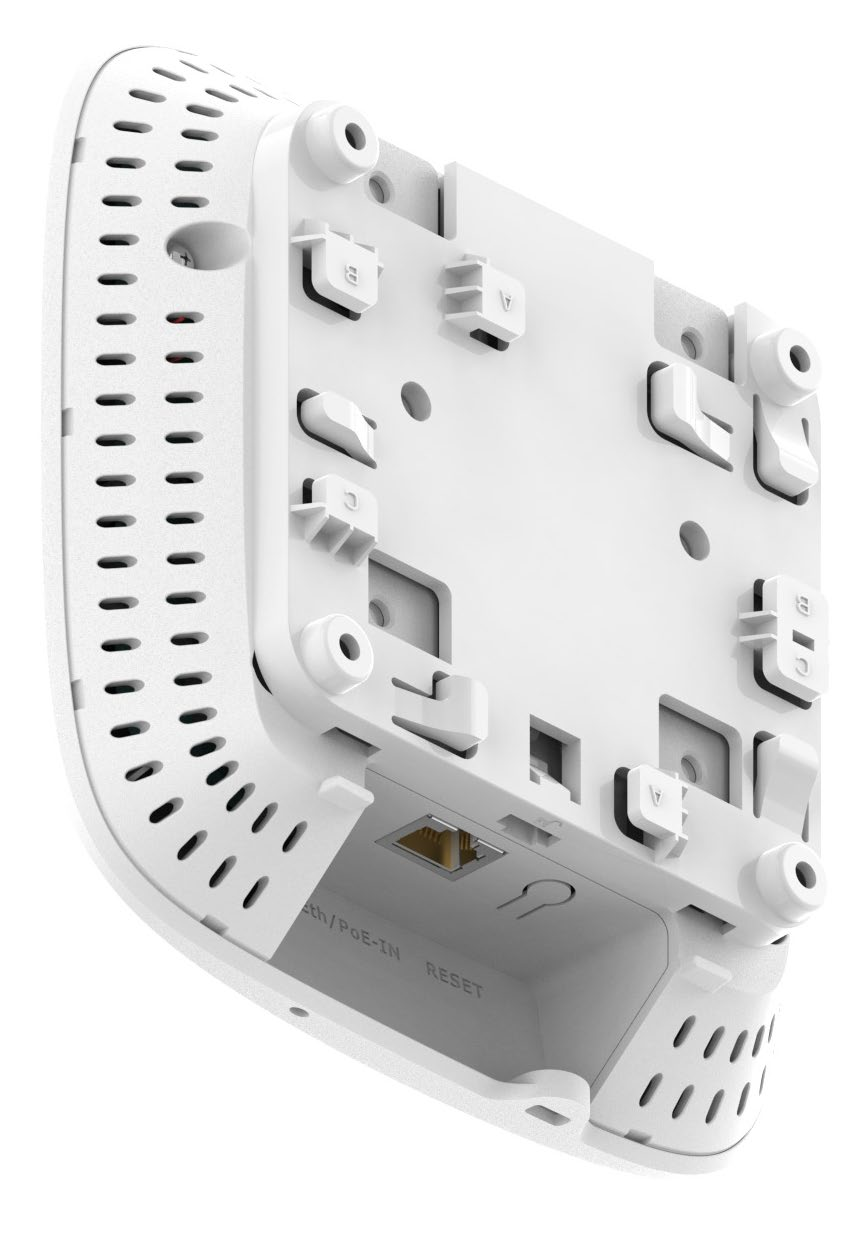

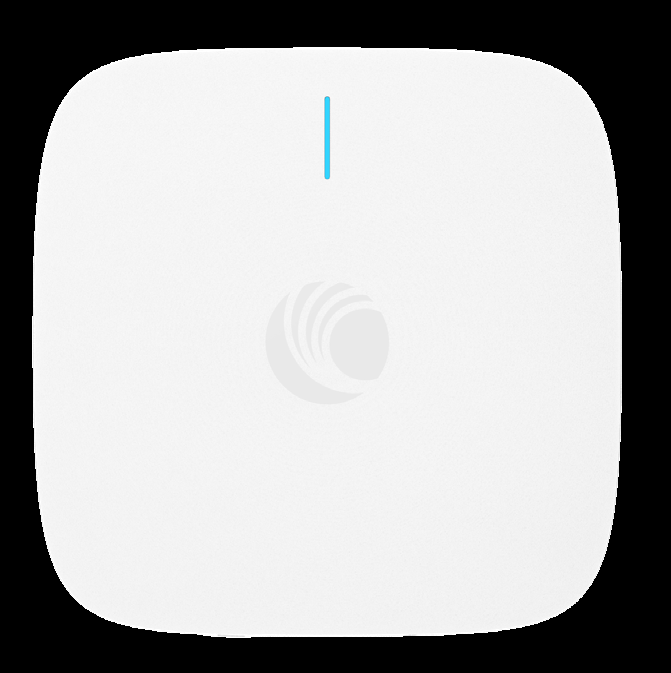

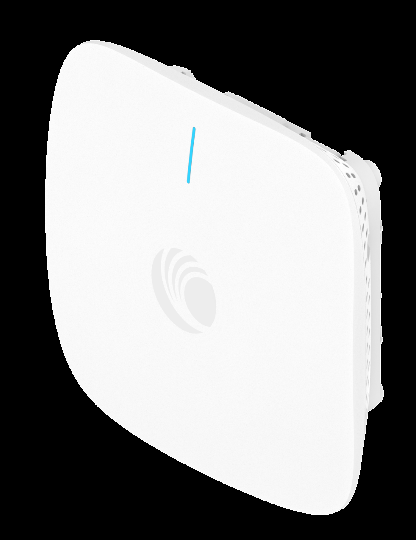

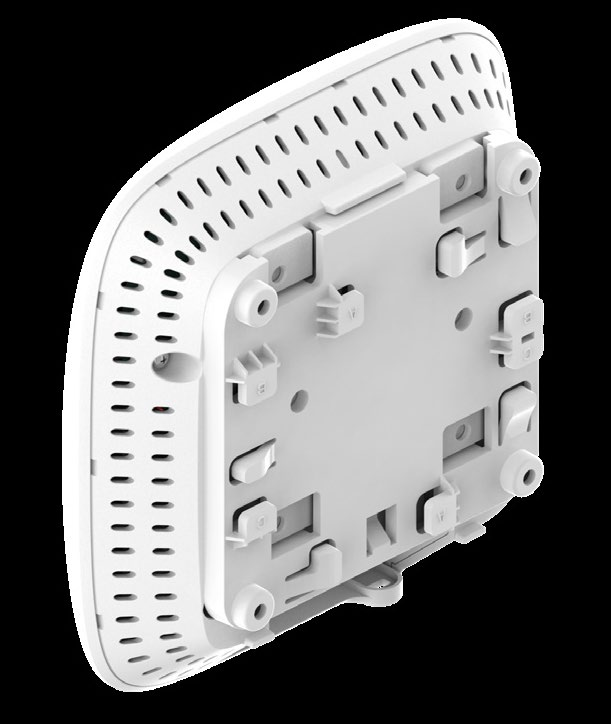

FrontPanel with Back Panel with
MountingBracket Mounting Bracket XV2-21X Wi-Fi 6 Access Point

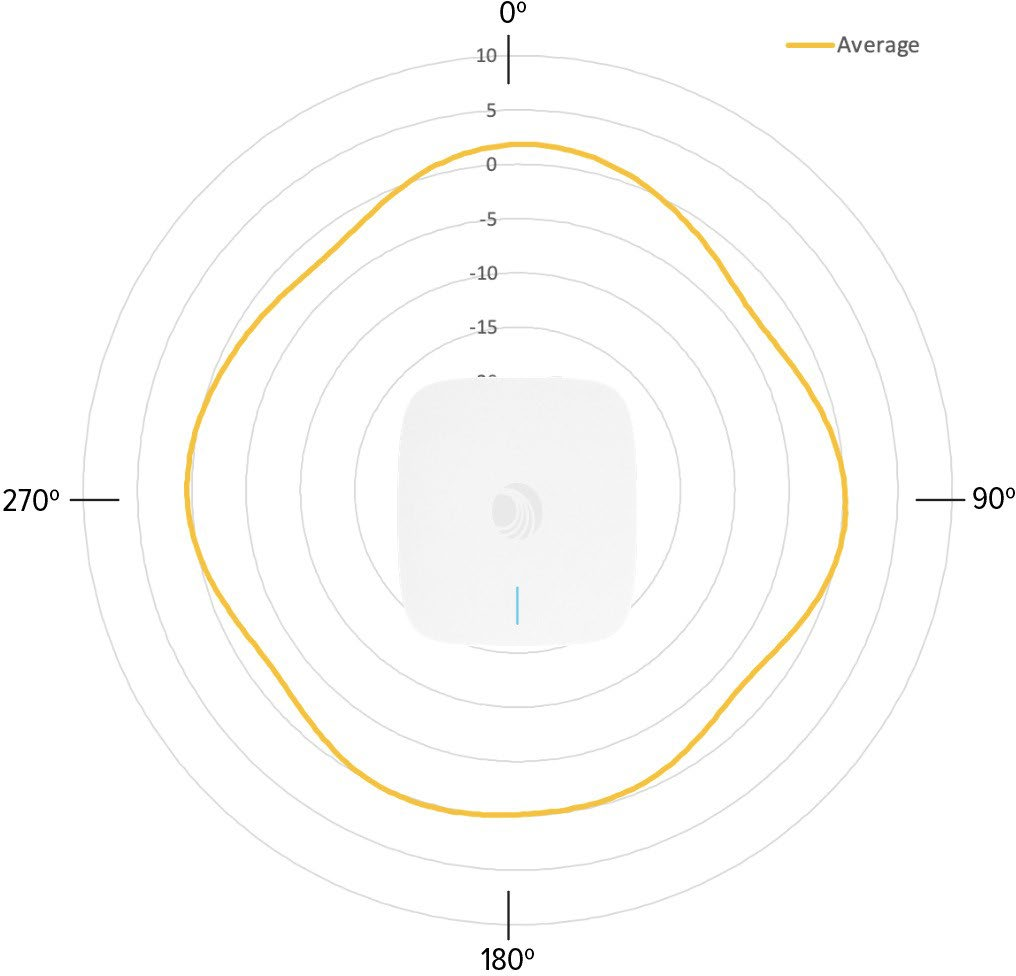

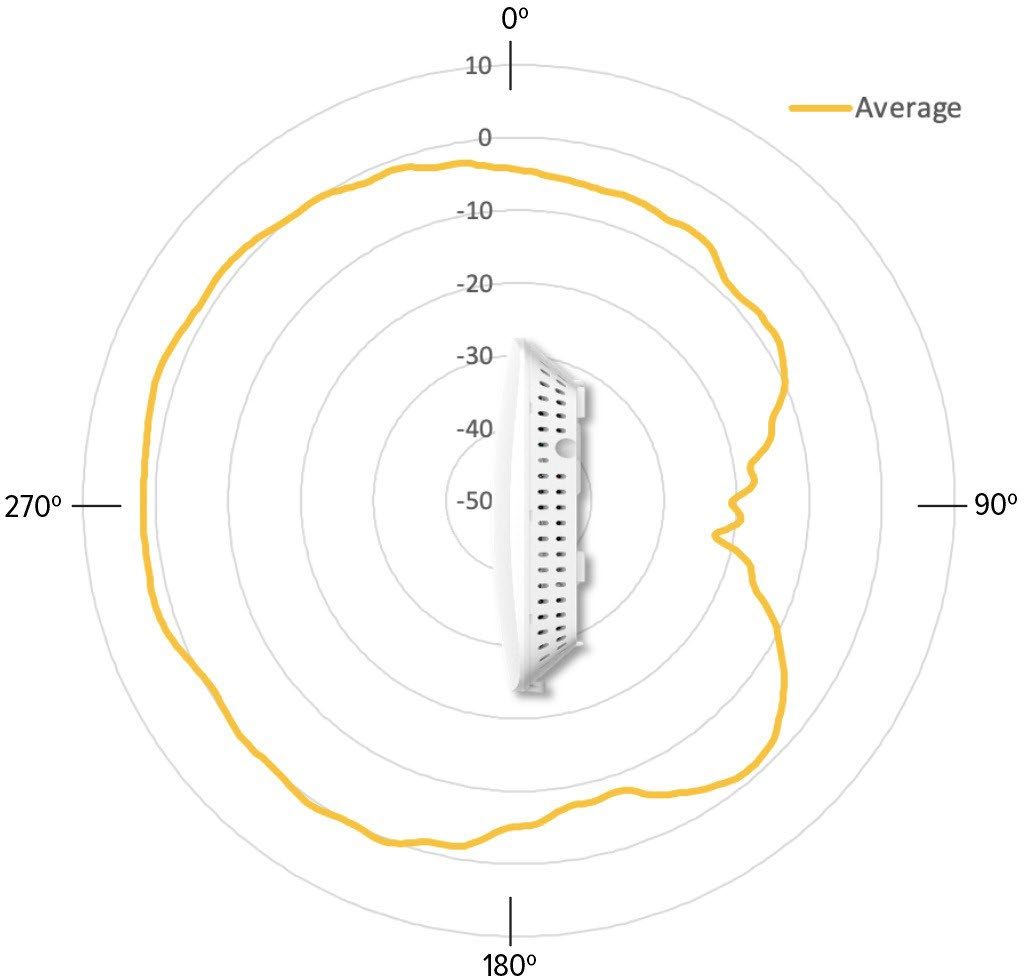

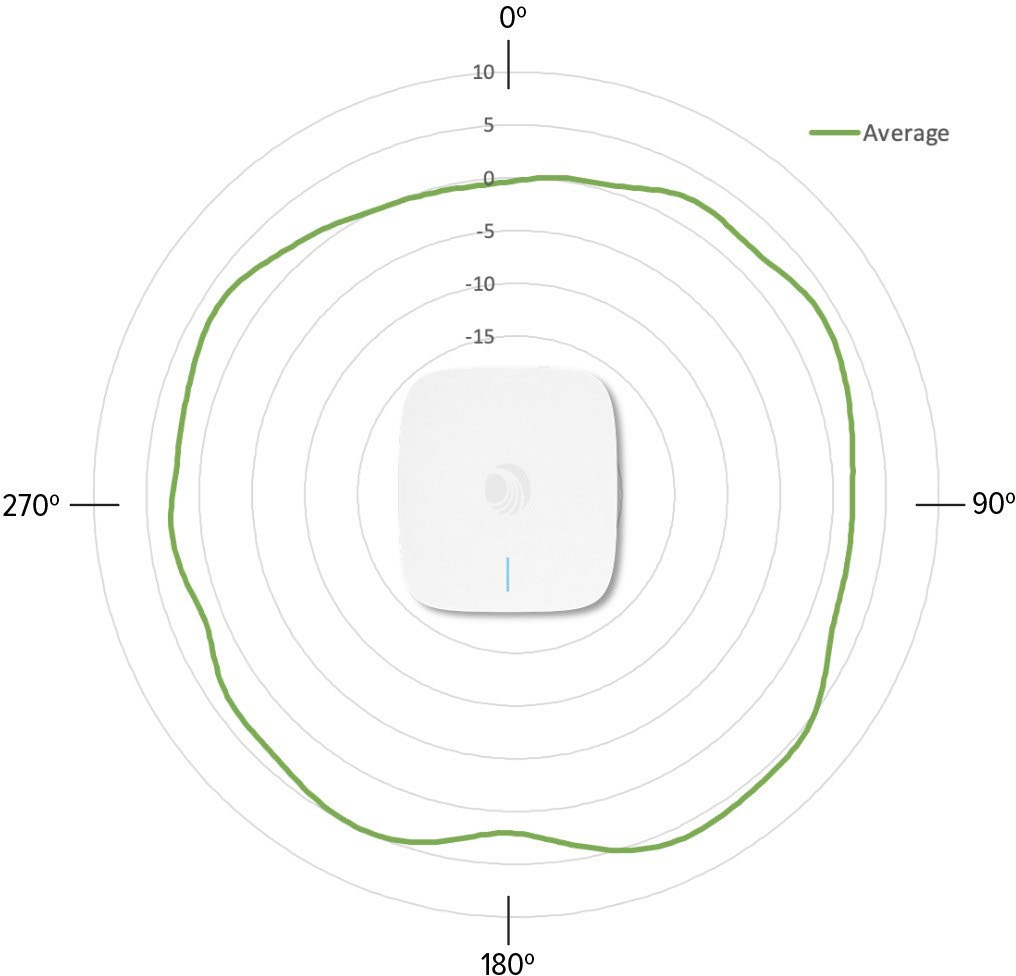

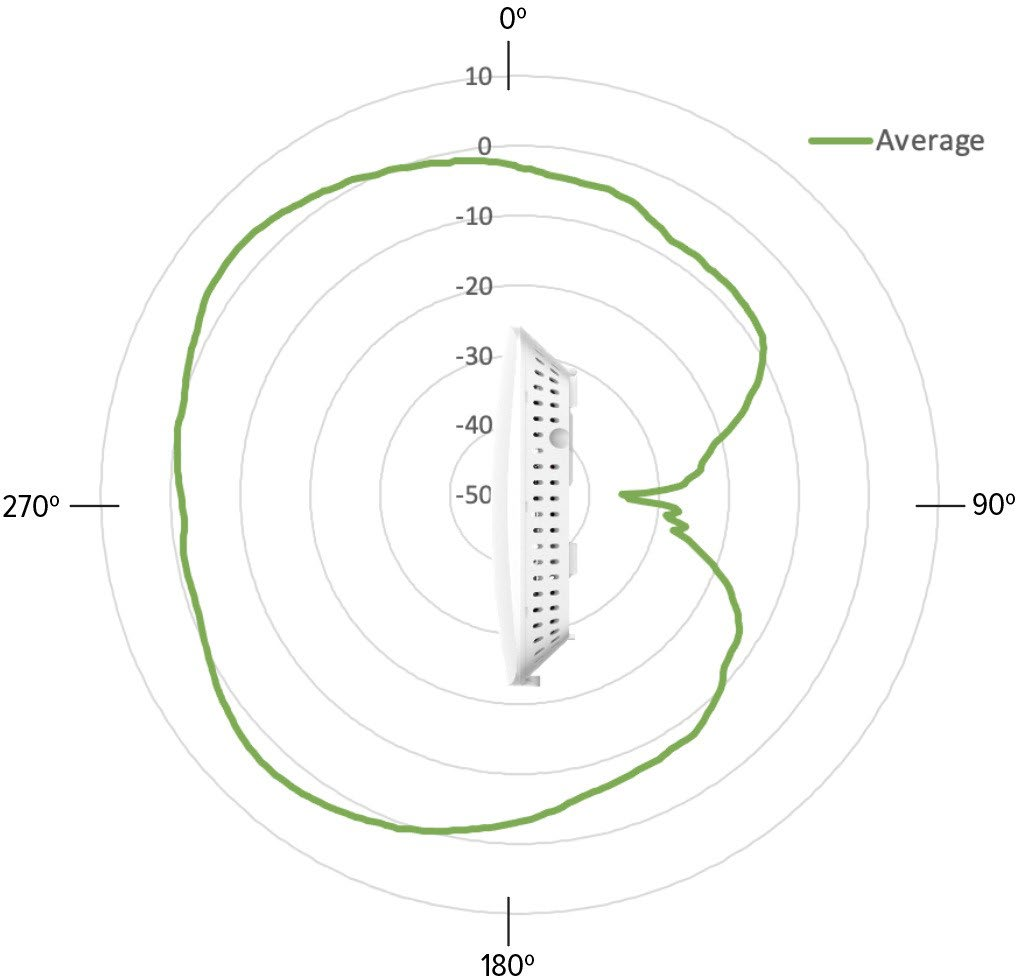

Antenna Patterns
2.4 GHzElevation 2.4 GHz Azimuth
FRONTBACK
5 GHzElevation 5 GHz Azimuth
2.4 GHz Receive Sensitivity(dBm) per Chain 2.4 GHz TX Power Target
HT20HT40 Rate Pout (dBM)
MCS0 -95.5MCS0 -93 MCS0 HT20 27
MCS7 -76.5MCS7 -74 MCS7 HT20 25
HE20HE40 MCS8 VHT20 25
MCS0 -95.5MCS0 -92.5 MCS9 VHT40 24
MCS7 -76.5MCS7 -73.5 MCS11 HE40 23
5 GHz Receive Sensitivity(dBm) per Chain 5 GHz TX Power Target
VHT20 VHT40VHT80 VHT160 Rate Pout (dBm)
MCS0 -95.5 MCS0-94 MCS0 -90 MCS0 -87.5 MCS0 VHT20 27
MCS7 -77 MCS7-74 MCS7 -71.5 MCS7 -69 MCS7 VHT20 24 MCS0 VHT40, VHT80 27, 27
HE20 HE40HE80 HE160
MCS0 -95.5 MCS0-93.5 MCS0 -90.5 MCS8 -65 MCS7 VHT40, VHT80 24, 24
MCS7 -76.5 MCS7-74 MCS7 -71.5 MCS11 -57 MCS11, HE20, HE40, HE80, HE160 22, 22, 22, 21 XV2-21X Wi-Fi 6 Access Point
Regulatory Model
XV2-21XIndoor Dual radio WiFi 6 AP, 2x2, GbE, US
XV2-21XIndoor Dual radio WiFi 6 AP, 2x2, GbE, EU
XV2-21XIndoor Dual radio WiFi 6 AP, 2x2, GbE, RW
XV2-21XIndoor Dual radio WiFi 6 AP, 2x2, GbE, CA
C000000L141A PoE,60W, 56V, 10GbE DC Injector, Indoor, Energy Level 6 Supply
PoE,30.5W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
N000900L017A PoE,15.4W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
Recessedceiling tile Installation Kit for 15mm T-bar, 20mm drop extension. 5 Pack
Recessedceiling tile Installation Kit for 24mm T-bar, 20mm drop extension. 5 Pack
MSX-SUB-XV2-21X-1 cnMaestroX for one XV2-21X AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 1-year
MSX-SUB-XV2-21X-3 cnMaestroX for one XV2-21X AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 3-year
MSX-SUB-XV2-21X-5 cnMaestroX for one XV2-21X AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 5-year
Cambium Care Support
CambiumCare Advanced, 1-year support for one XV2-21X Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CambiumCare Advanced, 3-year support for one XV2-21X Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CambiumCare Advanced, 5-year support for one XV2-21X Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CambiumCare Pro, 1-year support for one XV2-21X Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CambiumCare Pro, 3-year support for one XV2-21X Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CambiumCare Pro, 5-year support for one XV2-21X Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CambiumCare Advanced Add-on to cnMaestro X, 1-year support for one XV2-21X. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW
CambiumCare Advanced Add-on to cnMaestro X, 3-year support for one XV2-21X. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW
CambiumCare Advanced Add-on to cnMaestro X, 5-year support for one XV2-21X. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW XV2-21X Wi-Fi 6 Access Point
EIRP is limited to the countrieslisted below.
SE Asia Regulatory Details
2.4GHz (EIRP) 5 GHz (EIRP)
2400–2483.5MHz 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5825 MHz
Indonesia 27dBm (500mW) 23 dBm (200mW) 23 dBm (200mW) Not supported 23 dBm (200mW) indoor indoor indoor indoor,
36 dBm(4W) outdoor 36 dBm (4W) outdoor
Vietnam 23dBm (200mW) 23 dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Philippines 26dBm (400mW) 26 dBm (400mW) 26 dBm (400mW) 26 dBm (400mW) 26 dBm (400mW)
Malaysia* 27dBm (500mW) 30 dBm (1W) indoor 30 dBm (1W) indoor 5470–5650 MHz 30 dBm (1W) 23 dBm (200mW) 30 dBm (1W) outdoor
Singapore 23dBm (200mW) 23 dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Thailand 20dBm (100mW) 23 dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
*Malaysia restricts the use of 5650MHz–5725 MHz for regulatory reasons. LIMITED WARRANTY Cambium Networks XV2-21X Wi-Fi 6 Access Point includes a limited lifetime hardware warranty that extends 5 years after end of sale.
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the XV2-21X.
Data Sheet
