Cambium Networks XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities.
Talk to a Pro
XV2-22H
- Specs: 802.11ax, Dual-Radio, 2x2, with Multi-Function Ethernet Ports
- Wall plate 802.11ax, 2x2

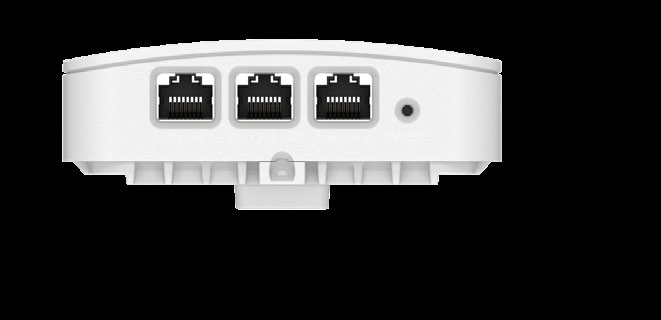

- 3 x GbE Ethernet, one with PoE out

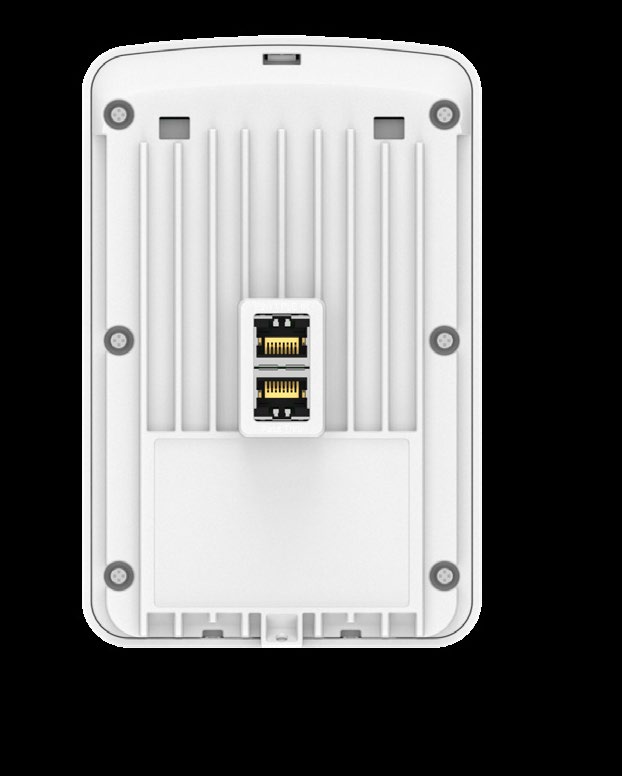

- RJ45 electrical pass-through ports
- BLE/Zigbee/Thread/Matter
- Limited lifetime warranty
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Product Overview

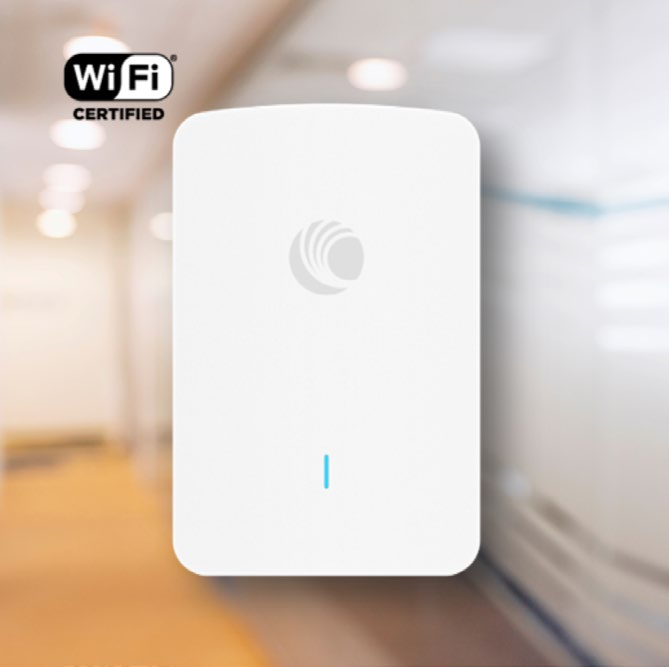

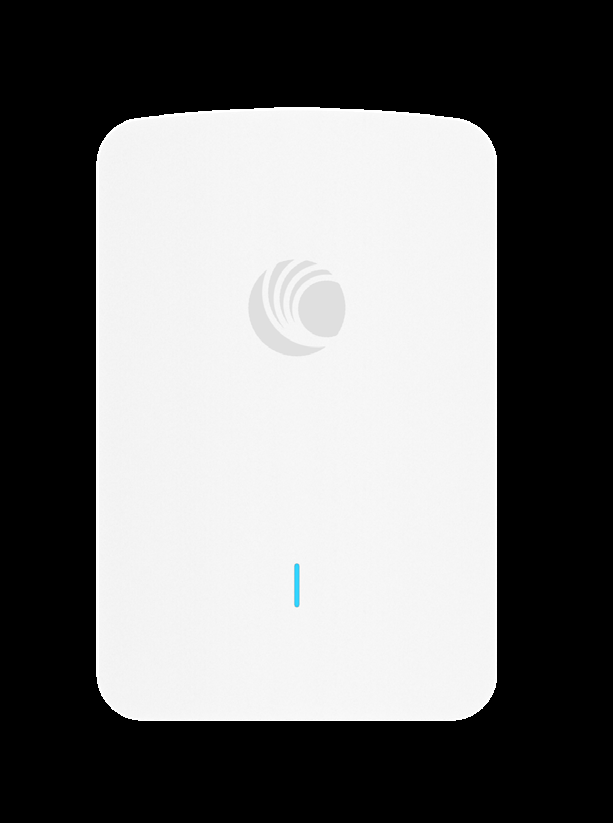

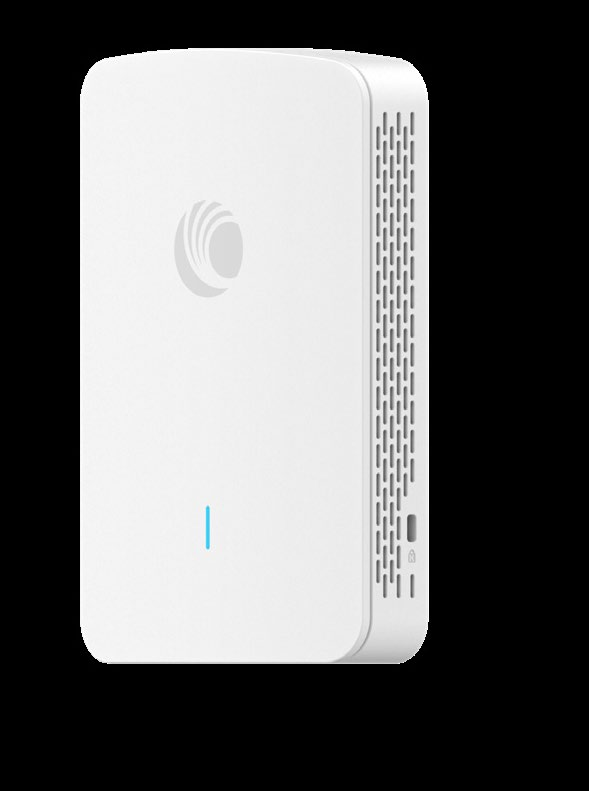

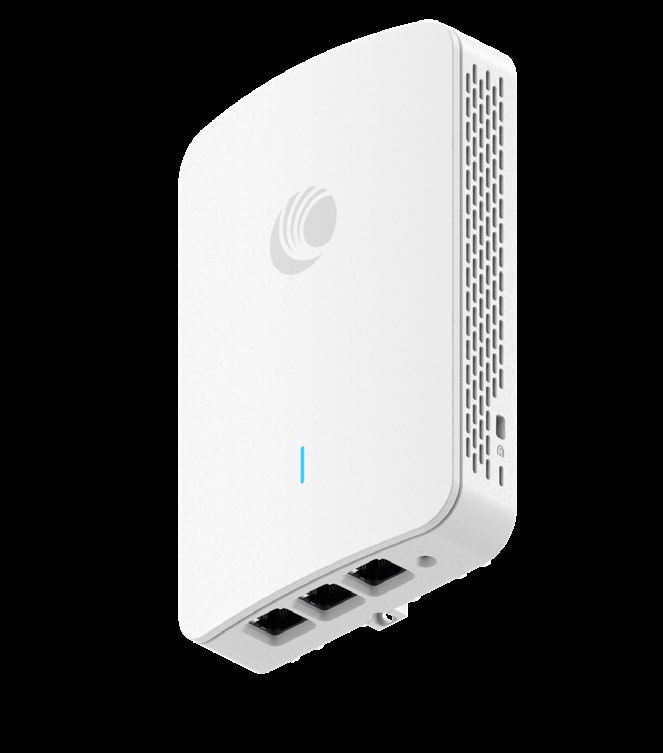

Cambium Networks XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point
The XV2-22H indoor Wi-Fi 6 AP offers 2.97 Gbps of bandwidth and an integrated switch. Ideal for hospitality, MDU, education and small/medium business applications.
Wi-Fi 6IndoorWall Plate
Product Highlights

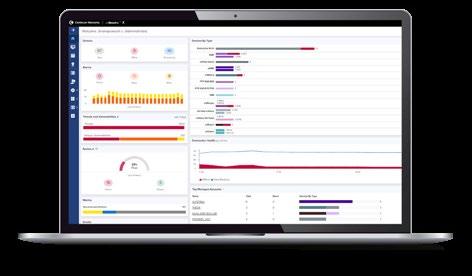

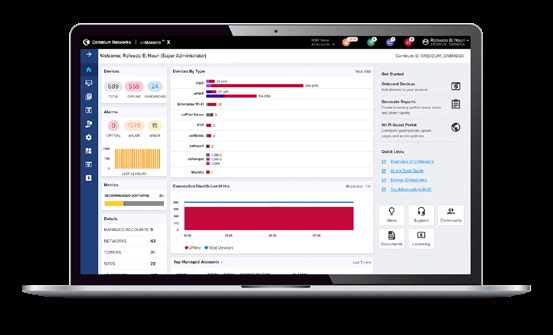

Cloud-Managed Access
cnMaestro™ X is a simple, yet sophisticated cloud-first, next-generation network management solution for Cambium Networks wireless and wired solutions. cnMaestro X offers elastic scalability and single-pane-of- glass management to deliver secure, end-to-end network and wireless lifecycle management with zero-touch provisioning, monitoring and troubleshooting capabilities. It simplifies operations and ongoing maintenance.
Do-Not-Disturb Hotel Design
Many hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family, and social media. With the XV2-22H wall plate AP, guests will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal, point-and-click interface, or integration with third-party portals.
Designed for Fast Installation
Quickly install the XV2-22H over a standard wiring box or to other boxes and surfaces using the optional mounting adapters. The XV2-22H has gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer routing, DHCP, and firewall. Deliver watts of operating power to an external device, such as a VoIP phone, an in-room IoT hub, or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device.
IoT Ready
The integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee-based door access control systems or temperature control, or enable BLE for close point of presence location services.
Ideal Applications
High-density enterprise environments with hundreds of concurrent Wi-Fi clients — corporate offices, campuses, and healthcare facilities. Deployments requiring BSS Coloring and OFDMA for efficient spectrum use in congested RF environments.
Product Images
13 photos
Technical Details
Hardware Specifications
Comprehensive technical data for the XV2-22H to ensure compatibility with your deployment.
Access Point Specifications
1 x 5 GHzradio 802.11ax Wi-Fi 6, 2x2:2 802.3af or 802.3at powered device Typical
RadiosPower
1 x 2.4GHz 802.11ax Wi-Fi 6, 2x2:2 load, no power out: 10W
1 x 802.15.4or 1 x 802.15.1 IoT Typical load, with 10W power out: 20W
transceiver,multi-protocol Dimensions 160 mm x 105 mm x 32 mm
SU-MIMO/MU-MIMO:2 streams (6.3 in x 4.1 in x 1.26 in)
Wi-Fi 802.11 a/b/g/n/ac/axWeight 417 g (0.92 lb)
SSID Security WPA3-SAE(AES), WPA3-Enterprise, WPA2 Mount Options Standard wiring, junction, or other box
(CCMP,AES, 802.11i), WPA2 Enterprise Kensington lock slot, secure bracket Security
(802.1x/EAP),OSEN, OWE, Open
Max PHY Rate 5 GHzradio 2402 Mbps Ambient Operation 0ºC to 40ºC (32ºF to 104ºF)
2.4 GHzradio 573.5 Mbps Temperature
Ports 1 x GE WANStorage -40ºC to 70ºC (-40ºC to 158ºF)
2 x GELAN Temperature
PoE out(up to 10W) Humidity 95% RH non-condensing
USB port NoMTBF 3,648,451 hours @ 25ºC 2,125,972 hours @ 40ºC
Antenna gain Internalomni-directional LEDs Multi-color status LEDs, dimmable, on/off
2.4 GHz:4.47 dBi 5 GHz: 5.56 dBi
IoT AntennaGain: 5.18 dBi
Max EIRP* 2.4 GHz:30 dBm Certifications 802.11u, HotSpot 2.0, Passpoint 3.0,
5 GHz:28 dBm (Compliance) 802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, PP2.0, FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950, IEC62368
US-FCC Ch 1–11,36–64, 100–144, 149–165
ISED Canada Ch 1–11,36–64, 100–116, 149–165
EU-ETSI* Ch 1–13,36–64, 100–140, 149-173
ROW* Ch 1–13,36–64, 100–144, 149–177
*Individual country limits apply. Pleasecontact sales for country-specific regulations. For Southeast Asia (SEA) countries, refer to the SEA Regulatory Details
Standards
Wi-Fi Protocols VHT MCSrates, 16/64/256/1024-QAM, 20/40/80/160 MHz
TWT, LongOFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power
Save, MRC,BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO
IEEE 802.11a/ac/ax/b/d/e/g/h/i/k/n/r/u/v/w XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point
Network Specifications
Operational Modes Controller-lessstandalone cloud-managed RF Management Multi-modal RF optimization supporting
cnMaestro,VM Auto-RF for dynamic channel selection and
WLAN 128 concurrentclients per radio, 256 per AP dynamic power adjustment configured via
16 SSIDper AP cnMaestro, performed in the intelligent
Security, Open, WPA2-AESwith PSK, ePSK and edge AP RF monitor with channel utilization/packet
WPA3 withPSK (WPA3-SAE), ePSK, error rate/interference
Enterprise,Enterprise-CNSA, OWE Band Steering Yes
(EnhancedOpen) Mesh Multi-hop (2), either band
OSEN andPMF (802.11 W) Scheduled WLAN
MAC authenticationwith local database or On/off by day, week, time of day
externaldatabase using RADIUS protocol Data Limit Client bitrate/time/throughput limit per SSID
802.1X withEAP-TTLS, EAP-TLS/ Network TCP connection log, NAT logging firewall,
MSCHAPv2,PEAPv0/PEAPv1/EAP- DHCP server, DHCP Relay option 82, VLAN pooling, RADIUS attribute, VID VLAN per
MAC authfallback to guest portal SSID per user, ePSK with VLAN assignment
HotspotWEB authentication per PSK LLDP, IGMP v1, v2
Wi-Fi Quality of 802.11e/WMM(packet marking either with Network Tools Wired and wireless remote packet capture,
Service 802.1p orIP DSCP), WMM-PS, U-APSD logging, WAN speed test, ZapD, remote
Multicastto unicast conversion network connectivity tools
Service Availability Critical networkresource monitor with SSID Tunnel L2TPv2, L2GRE, PPPoE
Fast RoamingIP IPv4, IPv6
802.11k/r/v,OKC, cnMaestro-assisted roam
Guest Access/VLAN 802.11Q, max 4096
cnMaestro-hostedEasyPass portal
Captive PortalManagement HTTP/HTTPS web interface, SSH, Telnet
Multipleauthentication methods supported
Service (EasyPass)*Interfaces
to on-boardguest user: Security Rogue AP detection and termination (X),
• Radius-basedauthentication WIDs/WIPs, DoS protection
• Click-throughwith simple terms and
conditionsacceptance L2–L7 firewall with application visibility (X) &
• Sociallogin using Google®, Facebook® control (X), DNS based access control (X)
• SMS-basedauthentication (X) ACL and AirCleaner tools
• Voucher-basedaccess Services Wi-Fi Calling control, NTP, Syslog, DNS
• Microsoft®Azure AD and Google proxy, SNMP traps, SNMPv1, SNMPv2c,
• Workspace®(X) SNMPv3, TCP and DNS logging
• Sponsoredguest access (X)
• Self-registrationaccess (X)
cnMaestroAPI support for external captive
portal integration
802.11u,HotSpot 2.0
Accounting RADIUSaccounting, load balancing AAA
servers,Dynamic Authorization COA, DM
API RESTfulmanagement and statistics API via
cnMaestroX, Presence location push APIs
* X Features available under cnMaestroX XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point
Management
cnMaestro XX Assurance •
Paid subscription that includes:Helps to quickly identify network-wide connectivity issues by isolating every element of the client’s
• Advanced device managementcapabilities lifecycle, either radio or network related
Deep packet inspection(DPI) application visibility • Gives an overview quality index of the network and
and Control for 2,400+apps highlights each element’s contribution to easily
RESTful managementand statistics API identify the worst offender
• Presence location pushAPIs • Provides insight of probable causes and proposes fixes for the administrator to apply
• Graphic reports
Webhooksthroughout the entire lifecycle of its connection to
• Cambium Care Profor 24x7 technical support easily identify each connection’s result and highlight
Accelerated accessto L2 engineers and regular the failure reason, should there be any EasyPass Portal with Additional Options • Self-registration: Form-based access
•• Sponsored guest: Guest ambassador-based access
Assesses the network’sconfiguration and identifies
weak security settingsand proposes a fix to ensure • Paid access: Monetize the Wi-Fi access
the network configurationis up to the top security • Microsoft Azure: Corporate user login
industry standards
License-free cloud managementthat delivers a disruptive total cost of ownership (TCO) for organizations of all sizes. Includes EasyPass
for OneClick or voucher-basedconnection as well as WiFi4EU access. P344TB8#y1 Find out more about cnMaestro XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point Front Panel Front Oblique Bottom/Ports Back Panel Front/Side/Bottom Oblique Side Panel XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point

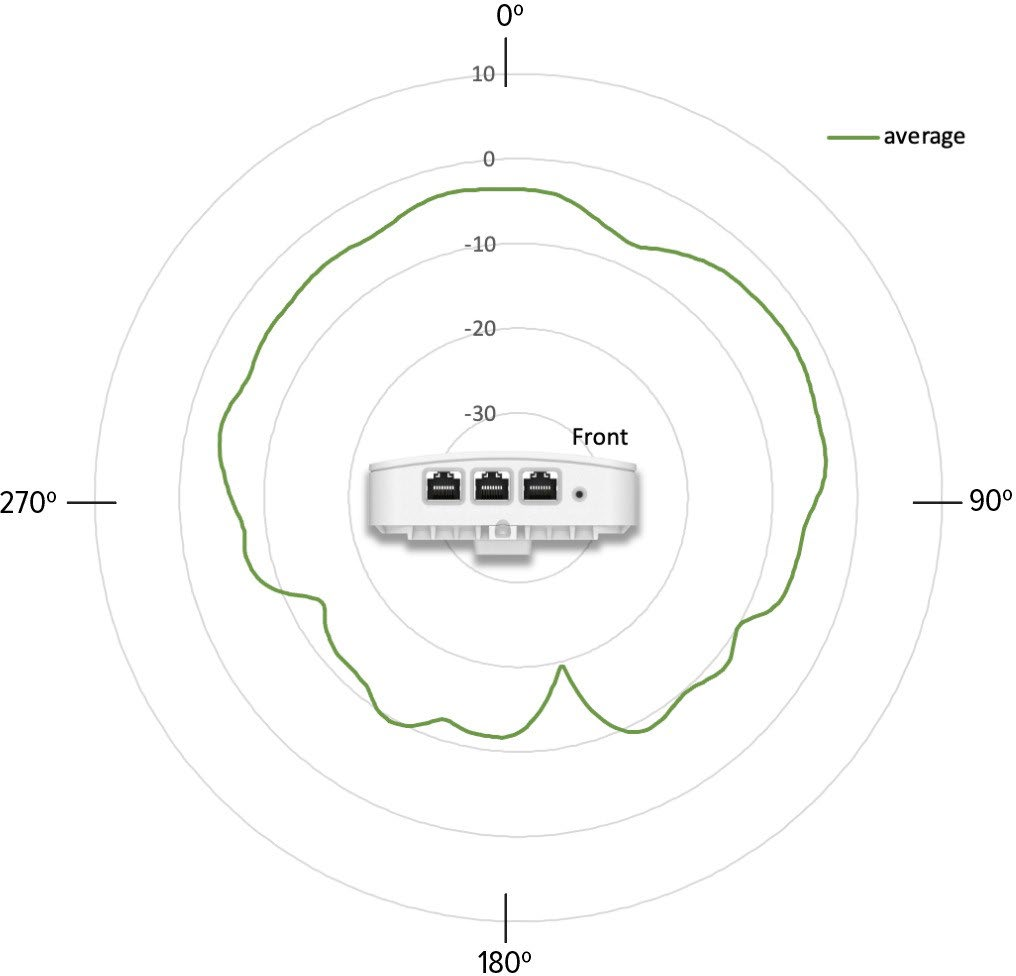

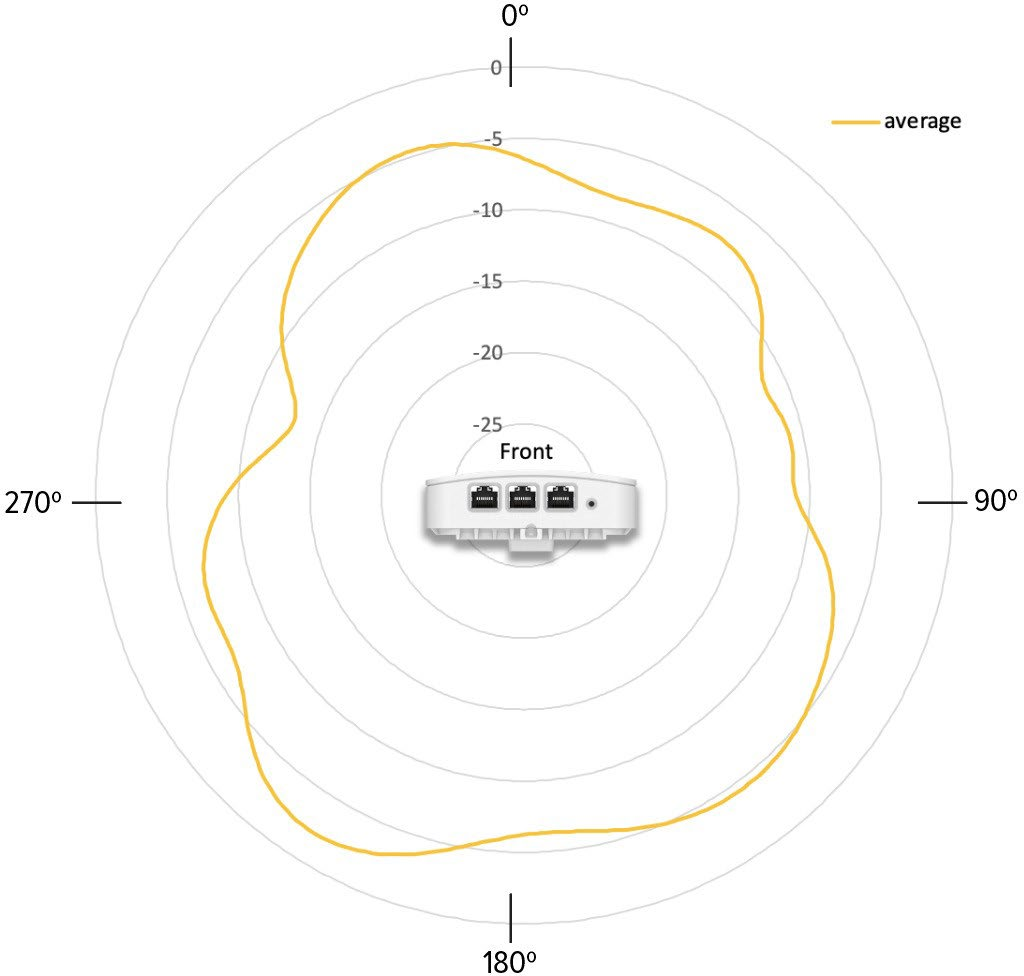

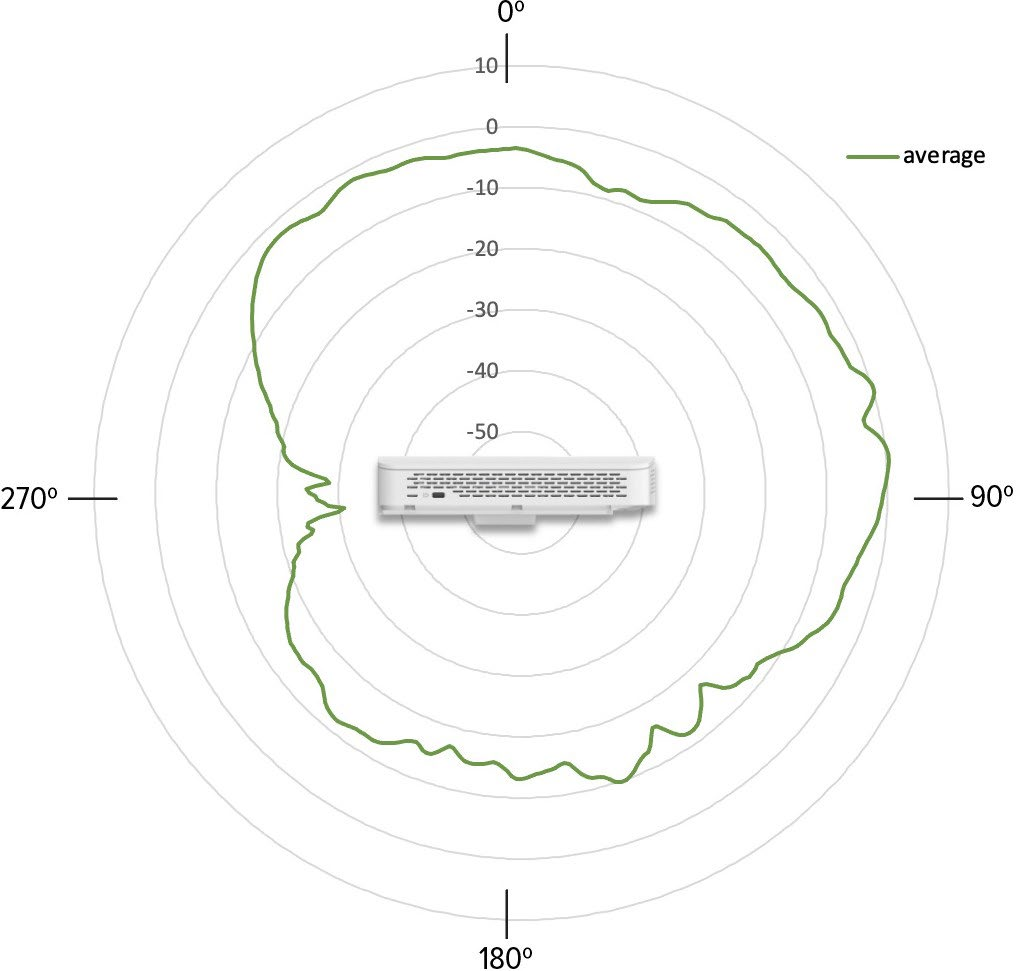

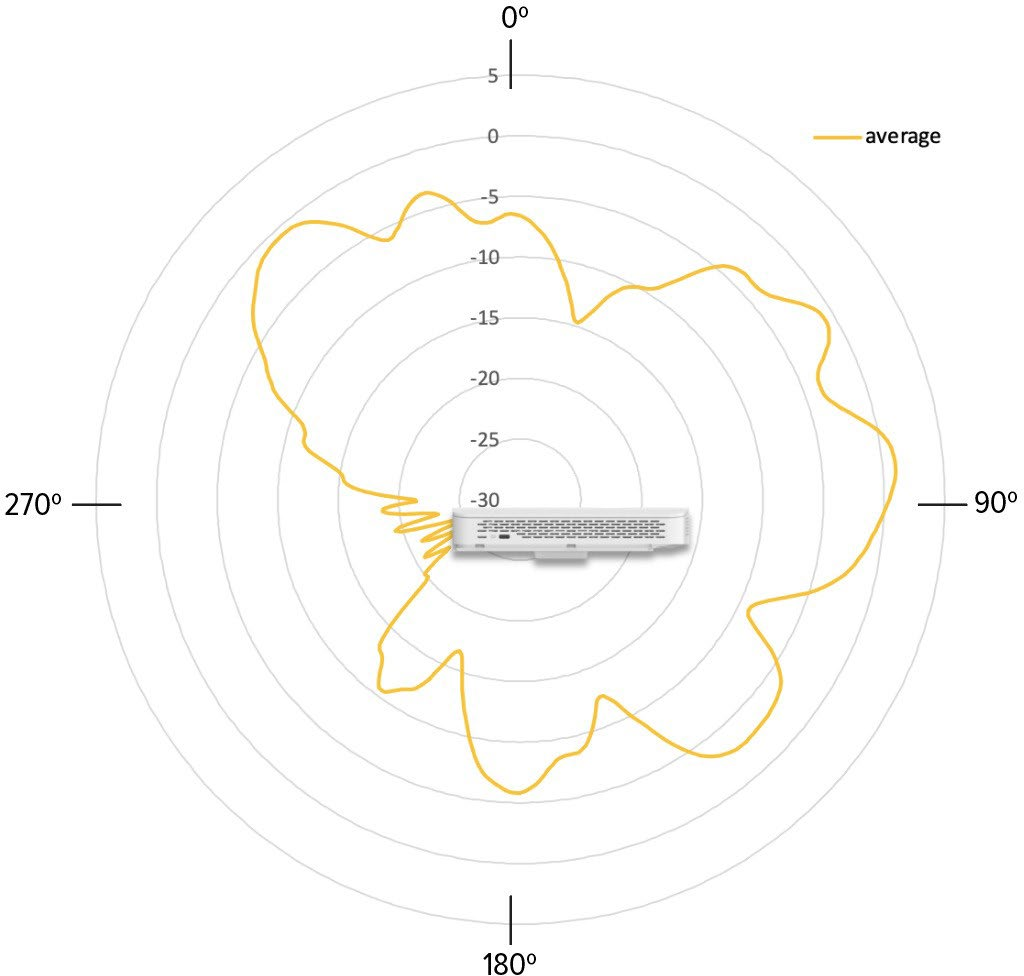

Antenna Patterns
2.4 GHz2.4 GHz Azimuth 5 GHz Azimuth
2.4 GHz Receive Sensitivity(dBm) Per Chain 2.4 GHz TX Power Target
HT20HT40 Rate Pout (dBm)
MCS0 -97MCS0 -94 MCS0 HT20 26
MCS7 -78MCS7 -75.25 MCS7 HT20 23
HE20HE40 MCS8 VHT20 23
MCS0 -96.5MCS0 -94 MCS9 VHT40 22
MCS7 -77.5MCS7 -74.5 MCS11 HE40 21
5 GHz Receive Sensitivity(dBm) Per Chain 5 GHz TX Power Target
VHT20 VHT40VHT80 VHT160 Rate Pout (dBm)
MCS0 -94.5 MCS0 -91.5MCS0 -88.5 MCS0 -85.5 MCS0 VHT20 23
MCS7 -76 MCS7 -73MCS7 -69 MCS7 -66.5 MCS7 VHT20 18
HE20 HE40HE80 HE160 MCS0 VHT40, VHT80 22, 21
MCS0 -94.5 MCS0 -91.5MCS0 -88.25 MCS11 -63 MCS7 VHT40, VHT80 18, 17
MCS7 -75 MCS7 -72.5MCS7 -69 MCS8 -55 MCS11, HE20, HE40, HE80, HE160 16, 15, 15, 14 XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point
Regulatory Model
XV2-22H0A00-RW XV2-22HWi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread
XV2-22HWi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread
XV2-22H0A00-CA XV2-22HWi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread
XV2-22H0A00-EU XV2-22HWi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread
C000000L141A PoE,60W, 56V, 10GbE DC Injector, Indoor, Energy Level 6 Supply
N000000L034B PoE,30.5W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
N000900L017A PoE,15.4W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
PL-DTSTANDB-WW Desktopstand
MountingAdapter, mounts XV2-22H to a flush surface
PL-SNWLGNGB-WW Wallbracket single gang junction box
MSX-SUB-XV2-22H-1 cnMaestroX for one XV2-22H AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 1-year
MSX-SUB-XV2-22H-3 cnMaestroX for one XV2-22H AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 3-year
cnMaestroX for one XV2-22H AP. Creates one Device Tier 3 slot. Includes Cambium Care Pro support. 5-year
Cambium Care Support
CCADV-SUP-XV2-22H-1 CambiumCare Advanced, 1-year support for one XV2-22H Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CCADV-SUP-XV2-22H-3 CambiumCare Advanced, 3-year support for one XV2-22H Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CCADV-SUP-XV2-22H-5 CambiumCare Advanced, 5-year support for one XV2-22H Wi-Fi 6/6E AP. 24x7 TAC support, SW updates, and
NBDadvance replacement for HW
CCPRO-SUP-XV2-22H-1 CambiumCare Pro, 1-year support for one XV2-22H Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CCPRO-SUP-XV2-22H-3 CambiumCare Pro, 3-year support for one XV2-22H Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CCPRO-SUP-XV2-22H-5 CambiumCare Pro, 5-year support for one XV2-22H Wi-Fi 6/6E AP. 24x7 TAC support and SW updates
CCADV-UPG-XV2-22H-1 CambiumCare Advanced Add-on to cnMaestro X, 1-year support for one XV2-22H. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW
CCADV-UPG-XV2-22H-3 CambiumCare Advanced Add-on to cnMaestro X, 3-year support for one XV2-22H. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW
CCADV-UPG-XV2-22H-5 CambiumCare Advanced Add-on to cnMaestro X, 5-year support for one XV2-22H. 24x7 TAC support, SW
updates,and NBDS advance replacement for HW XV2-22H Wi-Fi 6 Indoor Wall Plate Access Point
EIRP is limited to the countrieslisted below.
SE Asia Regulatory Details
2.4GHz (EIRP) 5 GHz (EIRP)
2400–2483.5MHz 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5825 MHz
Indonesia 27dBm (500mW) 23 dBm (200mW) 23 dBm (200mW) Not supported 23 dBm (200mW) indoor indoor indoor indoor,
36 dBm(4W) outdoor 36 dBm (4W) outdoor
Vietnam 23dBm (200mW) 23 dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Philippines 26dBm (400mW) 26 dBm (400mW) 26 dBm (400mW) 26 dBm (400mW) 26 dBm (400mW)
Malaysia* 27dBm (500mW) 30 dBm (1W) indoor 30 dBm (1W) indoor 5470–5650 MHz 30 dBm (1W) 23 dBm (200mW) 30 dBm (1W) outdoor
Singapore 23dBm (200mW) 23 dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
Thailand 20dBm (100mW) 23 dBm (200mW) 23 dBm (200mW) 30 dBm (1W) 30 dBm (1W)
*Malaysia restricts the use of 5650MHz–5725 MHz for regulatory reasons. LIMITED WARRANTY Cambium Networks XV2-22H Wi-Fi 6 is covered by a limited lifetime hardware warranty for a period of 5 years after end of sale.
ABOUT CAMBIUM NETWORKS
Cambium Networks enablesservice providers, enterprises, industrial organizations, and governments to deliver exceptional digital
experiences and device connectivitywith compelling economics. Our ONE Network platform simplifies management of Cambium
Networks’ wired and wirelessbroadband and network edge technologies. Our customers can focus more resources on managing
their business rather than thenetwork. We make connectivity that just works.
Downloads
Documentation & Resources
Download datasheets and technical documentation for the XV2-22H.
